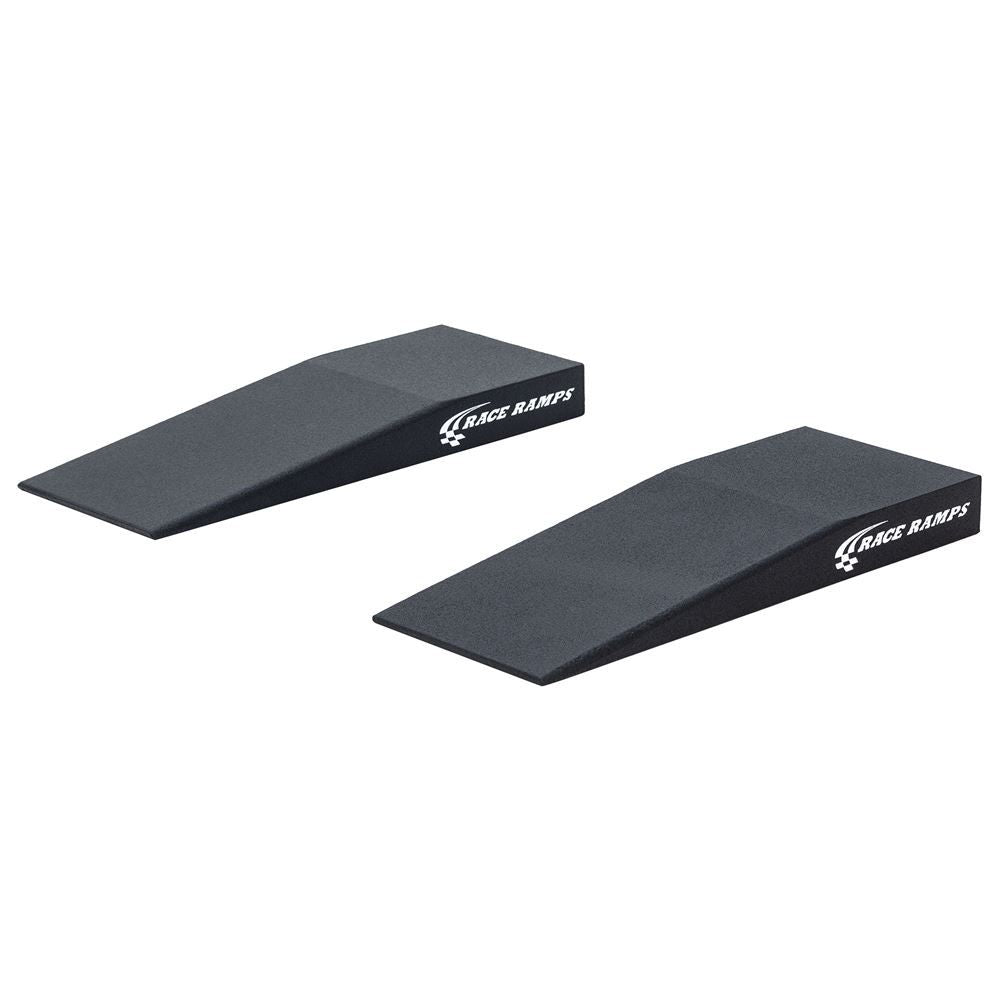

Race Ramps Trak-Jax ramps, one with stop and one without

Race Ramps Trak-Jax Ramps, 3 Inch Lift for Floor Jack Access

by Race Ramps
SKU RR-TJ
Sold out
$149.10
$142.00
No Sales Tax in Most States
Free Shipping
Talk to a Specialist: (470) 208-2754
Better Price? Request a Wire Discount Bulk or Business Order? Get a Fast Custom Quote Veterans & First Responders Save

Notify me when back in stock

Katool Mobile and Desktop Trust Badges Katool collection Mobile Trust Badges

Three Inches, 7.8 Degrees, 5 lbs a Ramp

Race Ramps built these because an autocrosser was tired of the same problem at every event. Swap to track tires in the paddock, and the only way to get a jack under the car is to buy an expensive low profile jack and carry it everywhere.

Trak-Jax raise the car 3" on a 7.8 degree approach, which is enough for a standard floor jack and gentle enough that a lowered car makes the climb. Each ramp weighs 5 lbs.

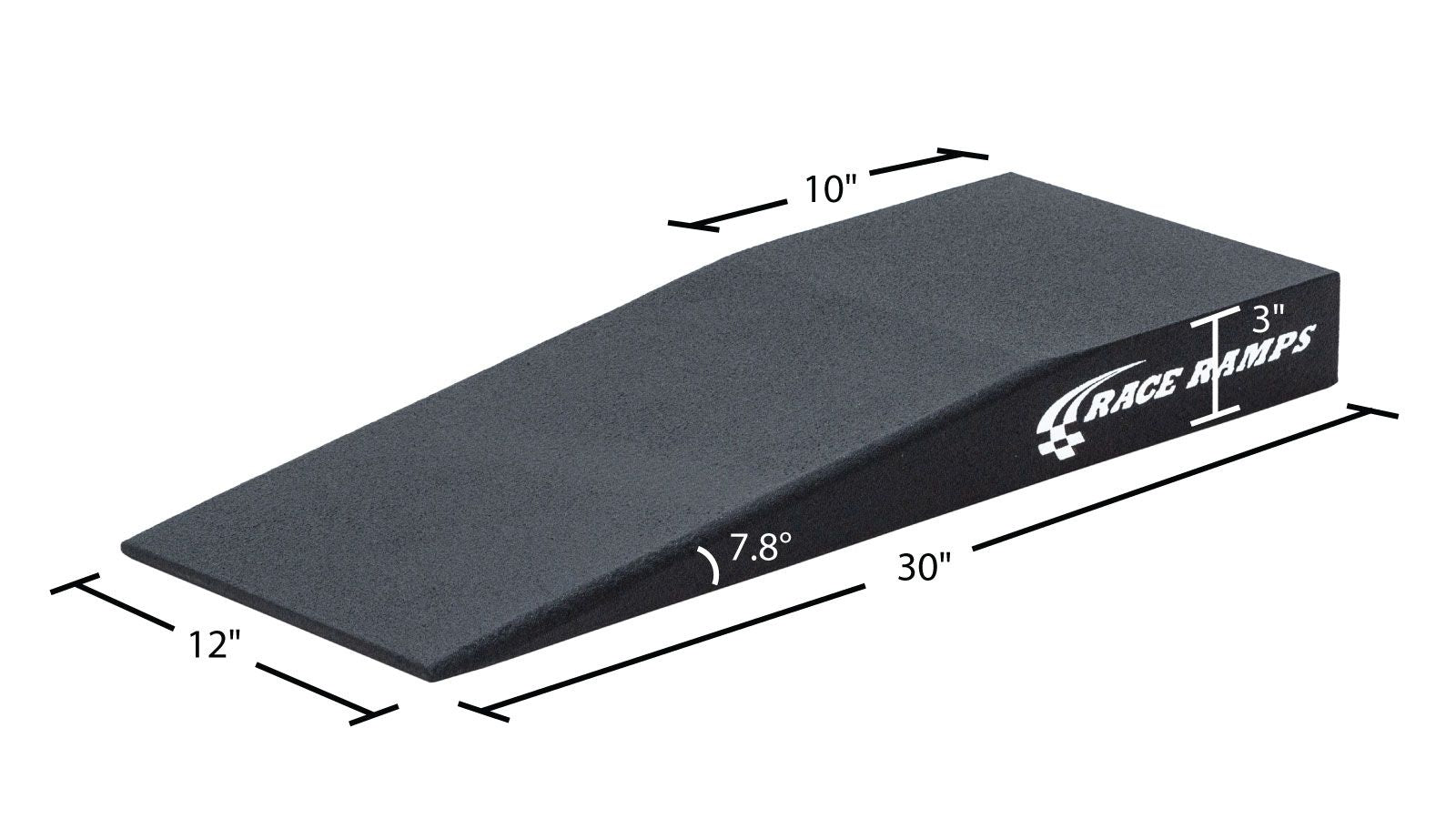

They are 30" long by 12" wide by 3" high, carry 1,500 lbs each, and take tires up to 10" wide. Race Ramps note that the pair goes in the trunk of a sports car.

Sold in pairs, with or without a 1.5" stop at the top. For more lift and a wider deck, see the Roll Ups. See all car ramps.

Race Ramps Trak-Jax ramps, one with stop and one without

Benefits of the Trak-Jax

Cheaper than a low profile jack
This is the whole idea. Three inches of lift turns the jack you already own into one that fits, instead of buying a second jack and hauling it to every event.
7.8 degrees, gentler than the Roll Ups
Less lift over almost the same length gives a shallower climb than any other small ramp Race Ramps make. If a car scraped on something else at this size, it will very likely clear this.
5 lbs, and they live in the car
Ten pounds for the pair. They go in the trunk alongside the tools and the tire gauge and stay there all season, which is the only reason a paddock tool actually gets used.
A stop if you want one
The With Stop version adds a 1.5 inch lip at the top so the tire has something to meet. Useful on grass or gravel, or when you are driving up on your own with nobody watching the wheel.
1,500 lbs on 5 lbs of foam
Same rating as ramps many times the size. Race Ramps foam is rigid and load bearing, which is how a ramp you can lift with two fingers holds a corner of a car.
Nothing to scratch a wheel or a floor
No steel edges to catch a rim in a hurry, and no rust to mark a garage floor. Traction coated foam grips concrete, asphalt, and a paddock surface. Made in the USA with a one year warranty.
Race Ramps Trak-Jax Specifications
Manufacturer Race Ramps
Models RR-TJ (no stop) | RR-TJ-S (1.5" stop)
Type Low rise ramp for floor jack access
Sold As Pair, two ramps
Lift Height 3"
Approach Angle 7.8 degrees
Dimensions 30" L x 12" W x 3" H per ramp
Top Platform 10" long
Capacity 1,500 lbs per ramp | 3,000 lbs per pair
Maximum Tire Width 10"
Weight 5 lbs per ramp, 10 lbs per pair
Material Expanded foam with traction coating
Colour Black
Origin Made in the USA
Warranty 1-year manufacturer warranty | 30-day satisfaction guarantee

Trak-Jax Frequently Asked Questions

Should I get the version with the stop?

Both cost the same, so it comes down to preference. The 1.5 inch stop gives the tire something to bump against so you know you are on. Skip it if you ever want to drive straight over the ramp rather than parking on it.

Trak-Jax or Roll Ups?

Trak-Jax are 3 inches at 7.8 degrees for tires to 10 inches, and lighter. The Roll Ups are 4 inches at 11.9 degrees for tires to 12 inches. Take Trak-Jax if the car is very low or the tires are narrow. Take Roll Ups if you need the extra inch of jack clearance.

Can I put two ramps on the same side?

No. Race Ramps are explicit about this: never use two ramps on the same side of the vehicle. Run one per side across an axle so the car sits level.

Can I work under the car on these?

No. Three inches is jack access, nothing more. Drive up, get the jack under, lift the car, and put it on stands before anything or anyone goes underneath.

Will my tires fit at 10 inches?

Measure section width, not tread. Ten inches covers most 255 and narrower tires. If you run wider rubber, the Roll Ups take up to 12 inches on a 14 inch deck.

Questions about fitment? Talk to a Pitstop Pro specialist or explore more options.

Call (470) 208-2754 Request a Quote Browse Car Ramps
