Katool 2 Post Vehicle Lift - 14,000lb Capacity | KT-M140XD
Built for Real Shops: Katool KT-M140XD 14,000 lb 2-Post Lift That Balances Power, Fit, and Uptime
Shopping for a heavy-duty 2 post lift can feel risky when you’re worried about fit, safety, and uptime. You need a lift that clears your ceiling lights, fits your bay width, and won’t bog down your workflow. The Katool KT-M140XD is designed to solve those headaches with a 14,000 lb capacity, generous drive-through width, and straightforward controls. Its low pad height helps with low-profile vehicles while still handling larger SUVs and work trucks. If you’ve been comparing spec sheets and second-guessing installation requirements, this model gives you clean, confident answers. Above 13,000 lbs, the lift market thins quickly. 16K commercial lifts cost 50-100% more, and most 12K consumer lifts can't safely handle dually pickups or extended-cab trucks. The 14K range is where buyer needs and the market converge.
In daily use, techs want a 2 post car lift that feels stable, lifts quickly, and stays quiet enough to hold a conversation. Dual hydraulic cylinders, mechanical safety locks, and equalization cables deliver smooth, level lifting you can trust. Rise times up to 50 seconds keep throughput moving, and typical operating noise stays at or below 75 dB to cut shop fatigue. The overhead cross beam includes a top limit switch to protect tall roofs and racks. Simple, manual-release lowering gives you predictable control even during power hiccups. 166-inch overall height accommodates the dually trucks and crew-cab work vehicles standard 12K lifts can't safely cycle. Three-stage arms reach short and long wheelbases for proper frame contact.
Planning is easier too. Ceiling height is the big one, and this lift stands about 166.73 inches overall, so measure with clearance for lights and sprinklers. Bay planning is helped by the 157.87 inch overall width and 133.46 inch drive-through width. Site requirements are clear: indoor use on level, 3,000-PSI concrete, with new slabs cured for 28 days and a recommended thickness around 5.9 inches. Multiple motor options cover common single- and three-phase power scenarios. If you’re building out a professional bay or adding capacity, this is a capable Commercial vehicle lift that won’t box you in. For shops bridging consumer and commercial work, the KT-M140XD delivers genuine 14K structural capacity in an overhead 2-post format that fits between consumer-grade pricing and commercial-grade premiums.
Looking for more variety? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Katool Car Lifts Worth It? breakdown. Questions? Call (470) 208-2754.
Benefits of the Katool KT-M140XD Two Post Lift
Key Features of the Katool KT-M140XD You'll Love:
• Heavy 14,000 lb capacity with symmetric geometry: This 14000 lb 2 post lift handles full-size trucks, vans, and loaded service vehicles without drama. Symmetric arms center the mass between posts for a planted, predictable feel. That balance translates to smoother lifting and less rocking, which keeps techs confident and productive.

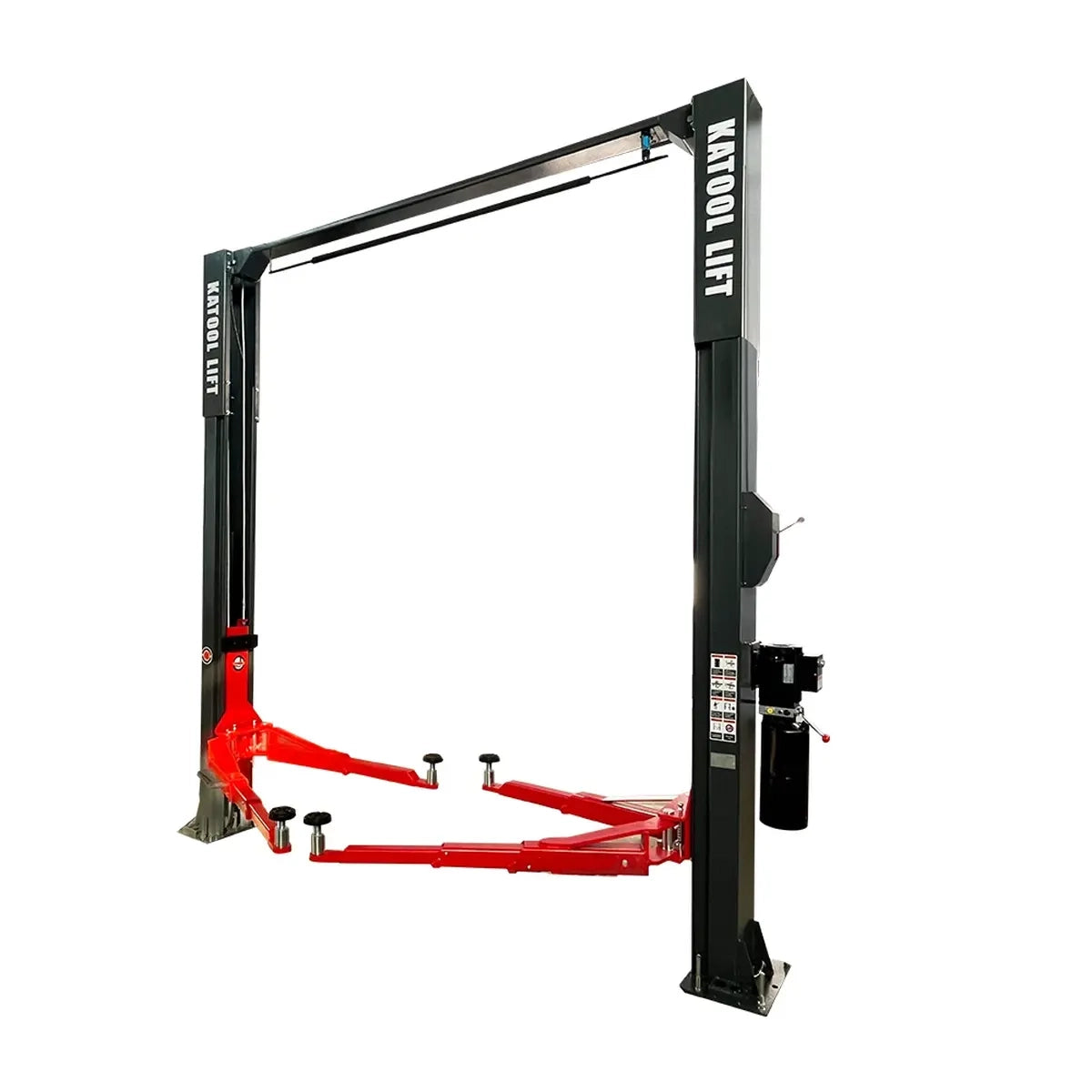

• Overhead cross beam with top limit switch: The overhead design gives you wide floor access and includes an upper limit switch to help prevent roof or rack contact. That safeguard reduces oops-moments with tall cargo boxes and ladders. Fewer near-misses mean fewer interruptions and less rework.

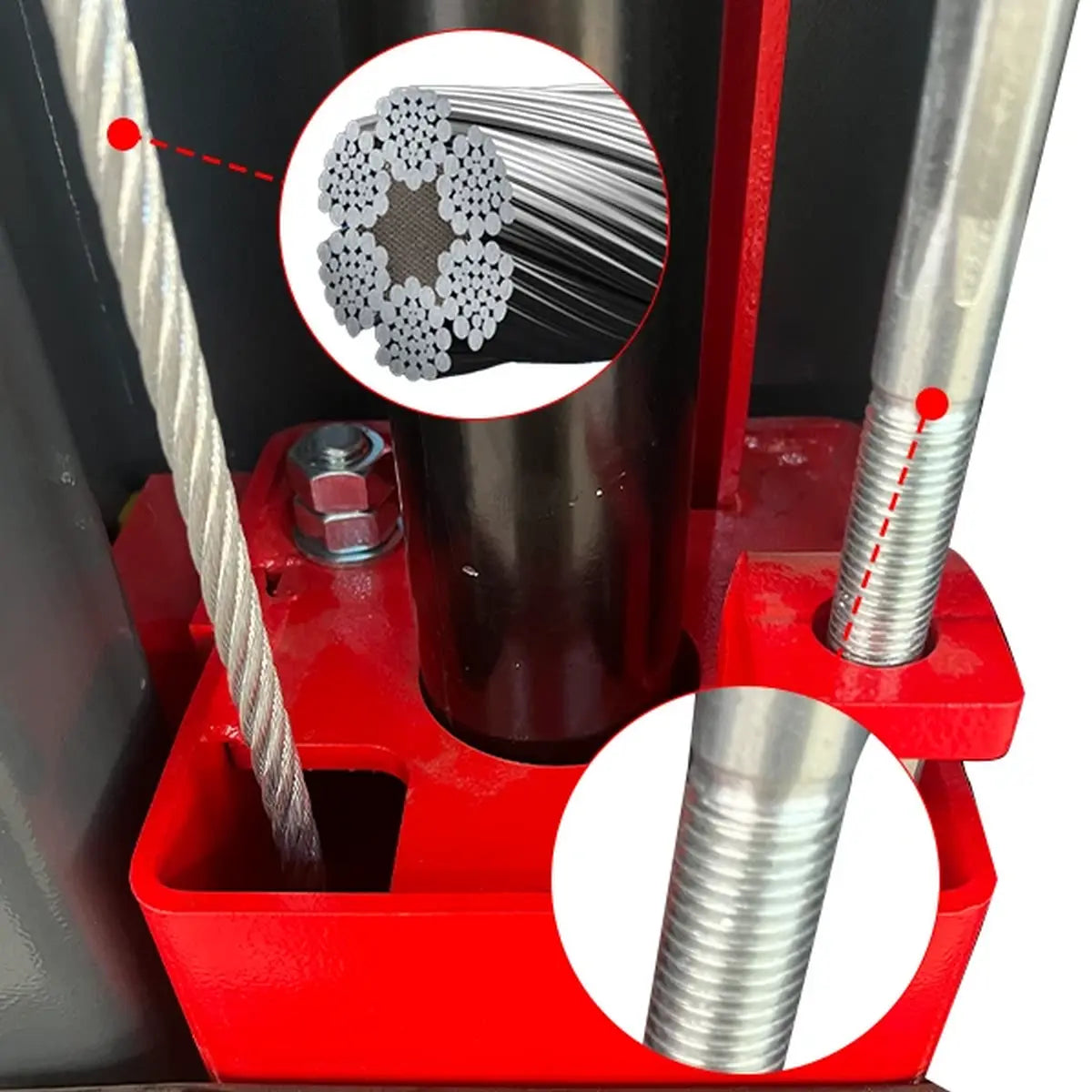

• Dual hydraulic cylinders with equalization cables: Two cylinders power clean, even lifting, while steel equalization cables keep carriages in sync. The setup helps the vehicle stay level as weight shifts during service. It also builds in redundancy so you’re lifting with confidence every cycle.
• Low 4.33 in pad height for low-profile access: At roughly 110 mm minimum pad height, you can pick up lower chassis vehicles without elaborate ramp tricks. That’s a time saver for mixed-fleet shops working on sedans in the morning and trucks in the afternoon. Add stacking adapters as needed to reach OEM lift points without compromising clearance.
Minimum Garage Requirements
✔ Ceiling Height: At least 172" (14'4") recommended ✔ Footprint: 133" drive-thru x 157" overall (11'1" x 13'1") ✔ Concrete Thickness: Minimum 6" (152.4 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 220V/60HZ/1PH ✔ Overall Lift Height: 166" (13'11") (measure before ordering)
✔ Ceiling Height: At least 172" (14'4") recommended
✔ Footprint: 133" drive-thru x 157" overall (11'1" x 13'1")
✔ Concrete Thickness: Minimum 6" (152.4 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 220V/60HZ/1PH
✔ Overall Lift Height: 166" (13'11") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Katool KT-M140XD 14,000 lb 2-Post Lift Specifications |
|
| Manufacturer | Katool |
| Model | KT-M140XD |
| Lift Type | Symmetric 2-post with overhead cross beam |
| Capacity | 14,000 lb |
| Lifting Height | 72.83 in (1800 mm) |
| Rise Time | ≤ 50 s |
| Lowering Time | 20-50 s |
| Minimum Pad Height | 4.33 in (110 mm) |
| Noise | ≤ 75 dB(A) |
| Net Weight | 1,807 lb |
| Overall Height | 166.73 in (4235 mm) |
| Overall Width | 157.87 in (4010 mm) |
| Drive-Through Width | 133.46 in (2990 mm) |
| Power Unit Options | 220V/60HZ/1PH |
| Environment | Indoor use only |
| Operating Temperature | −5°C to +40°C (typical operation ~41-104°F) |
| Floor Requirements | Level concrete, 3,000-PSI minimum, ~5.9 in recommended thickness, slope ≤3°, new slabs cure 28 days |
| Warranty | 12 months parts; 36 months structural components |
Katool KT-M140XD Frequently Asked Questions
Will a dually or crew-cab truck fit on the KT-M140XD?
That's what the 14,000 lb rating is for -- dually pickups, crew-cab work trucks, and loaded service vehicles that strain 12K lifts. The 133.46" drive-thru width is the widest in our Katool 2-post lineup, so wide-body trucks and mirrors clear the columns, and the three-stage arms reach both short and long wheelbases.
Which heavy-duty Katool 2-post is right for me?
This KT-M140XD is the 14,000 lb pick with maximum drive-thru width. Need more? The KT-M150D steps up to 15,000 lbs with concealed lines and an emergency manual-lowering system. If 12,000 lbs covers your fleet, the KT-M120 and low-ceiling H120D cost meaningfully less.
How much ceiling height do I need?
The overhead beam tops out at 166.73" (13'11"), so plan on a 14'4" ceiling with clearance for lights and sprinklers. The top limit switch cuts power before tall cargo boxes or racks can contact the beam.
Does the KT-M140XD run on 110V power?
No -- it runs on 220V single-phase. If your garage only has 110V, our Katool 4 post lifts run on standard household power.
Do I need to bolt it to the floor?
Yes -- every 2-post must be anchored, and at 14,000 lbs the slab matters more than ever: minimum 6" (152 mm) of level, 3,000 PSI concrete, with new slabs cured a full 28 days before install. Verify before ordering.
Should I get a 2-post or a 4-post lift?
Two-posts like this one are built for repair work -- wheels hang free for brakes, suspension, and tires. Four-posts win for storage and drive-on ease. Our 2-Post vs 4-Post guide walks through the decision in five minutes.
How does freight delivery work?
The lift ships as freight at about 1,807 lbs. You can choose curbside freight delivery or free pickup at one of 42 warehouse locations nationwide -- enter your ZIP above to find the closest one. Most orders arrive within 1-2 weeks.
Is the Katool KT-M140XD worth it?
True 14K structural capacity sits in the gap between consumer 12K lifts and commercial 16K racks that cost 50-100% more -- this is the value path for mixed-fleet shops. See the Reviews tab above for buyer feedback, and read our Are Katool Car Lifts Worth It? breakdown on The Pitstop Journal.
