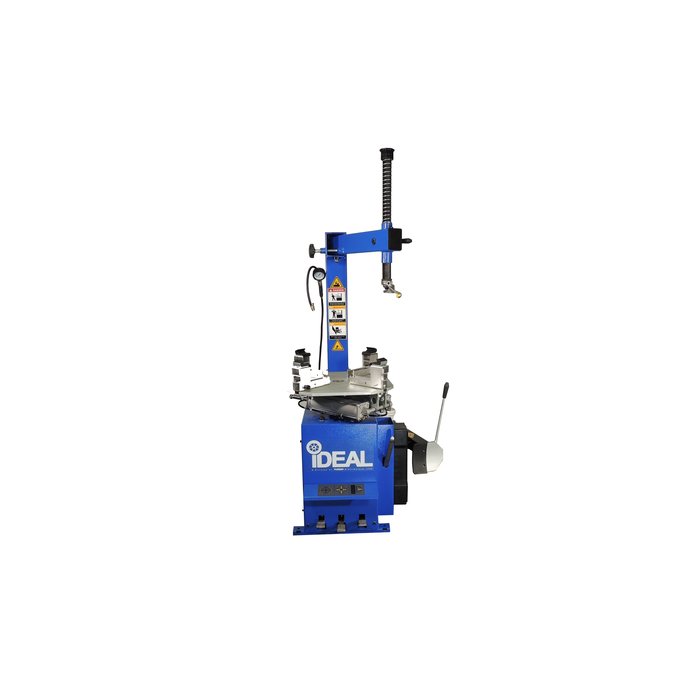

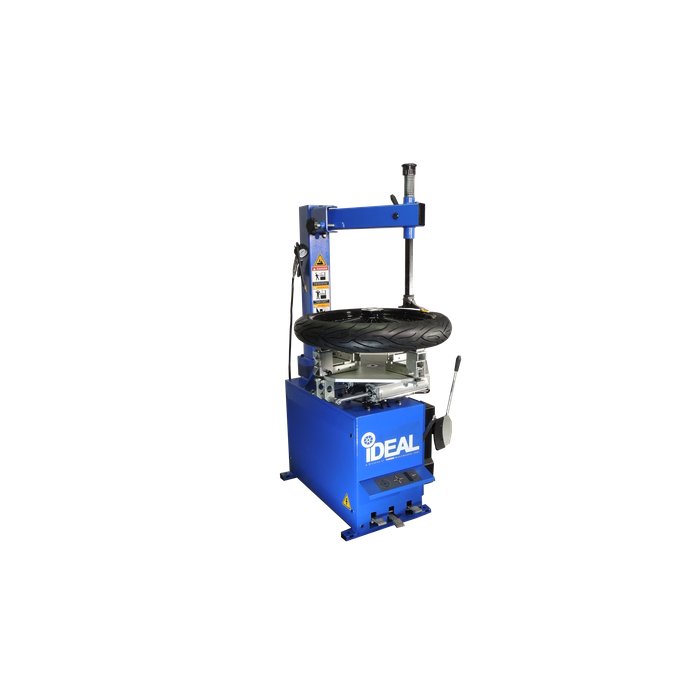

iDEAL Powersport Motorcycle and ATV Tire Changer | TC-400M-B-iDEAL
The Powersport Tire Changer That Handles Every Wheel in the Shop from Sport Bike to ATV
The iDEAL TC-400M-B-iDEAL is the base version of iDEAL Pro-Series powersport tire changer. Same TC-400M-B chassis, same 6 to 24 inch clamping range, same 5,500 lb bead breaker, same electric turntable, without the pneumatic assist arm. Perfect for the independent moto shop, dealership overflow bay or serious enthusiast who works on standard cruiser, sport bike and ATV tires and does not need the assist arm for stiff low-profile sidewalls.

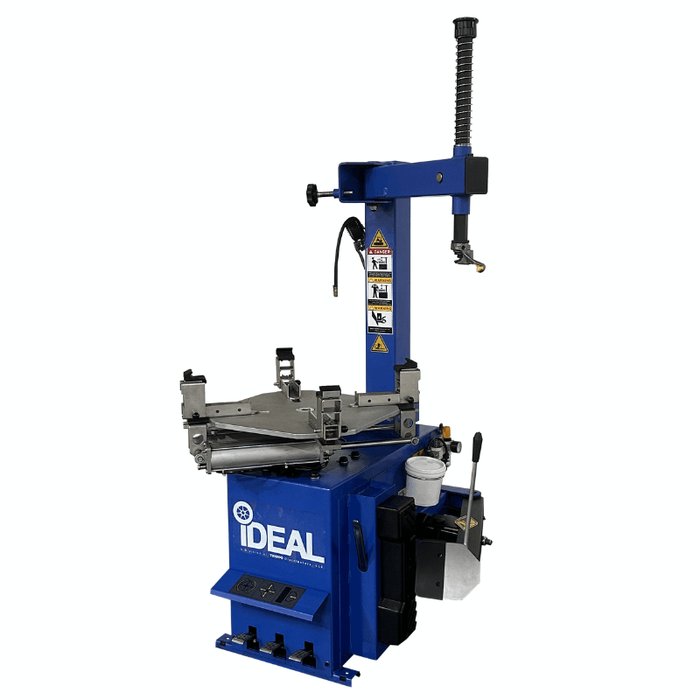

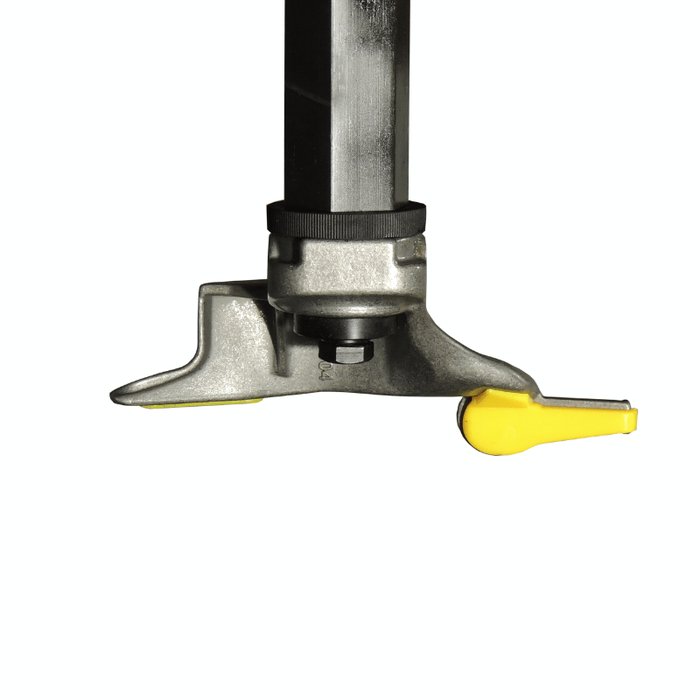

A swing-arm design with four fully adjustable clamps gives real full-range clamping (6 to 24 inches outside), instead of the two-position setup you see on entry-level MC-only changers. Double-acting pneumatic cylinders hold the wheel rock-solid while the electric turntable spins under floor pedal control, and the plastic clamp protectors keep alloy rims scratch-free.
Runs on a 110V single-phase 15 A outlet so it drops into any bay with no electrical work. Includes hand-held inflation gun, air regulator, oiler, water trap, plastic clamp protectors and two sets of duck head inserts. Choose iDEAL Blue or Limited Edition Black. If you regularly run into low-profile sport bike tires or stiff cruiser sidewalls, step up to the TC-400M-B-PL230-K, which adds the pneumatic assist arm from the factory. Backed by iDEAL / Tuxedo one-year parts warranty.
Key Features of the TC-400M-B-iDEAL That Matter in the Powersport Bay:

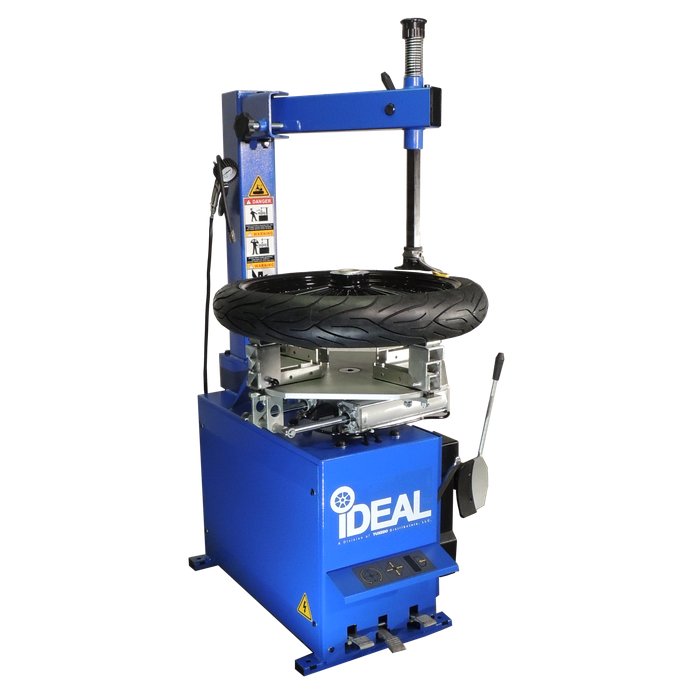

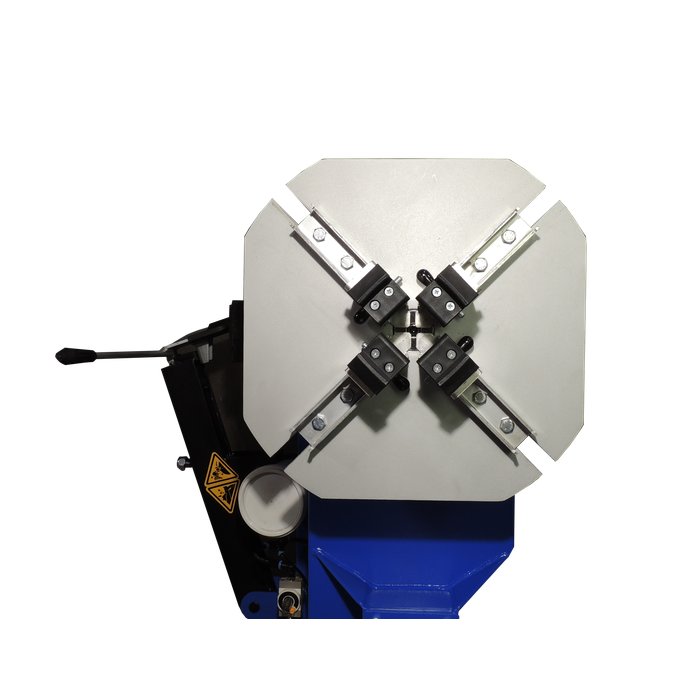

- Full 6 to 24 in Wheel Clamping: Swing-arm design with four adjustable clamps handles everything from a 6 inch dirt bike hub to a 24 inch cruiser or ATV rim. Not a dedicated MC-only setup, one machine for the whole powersport fleet.
- Double-Acting Pneumatic Clamping: Powerful double-acting pneumatic cylinders hold the wheel rock-solid while you break the bead or wrestle a tire on. Plastic clamp protectors keep alloy rims free of scratches.
- 5,500 lb Bead Breaker Force: Heavy-duty bead breaker delivers 5,500 lb of force. Pops stubborn beads on cruiser tires, ATV tires and everything between without hammering with a tire iron.

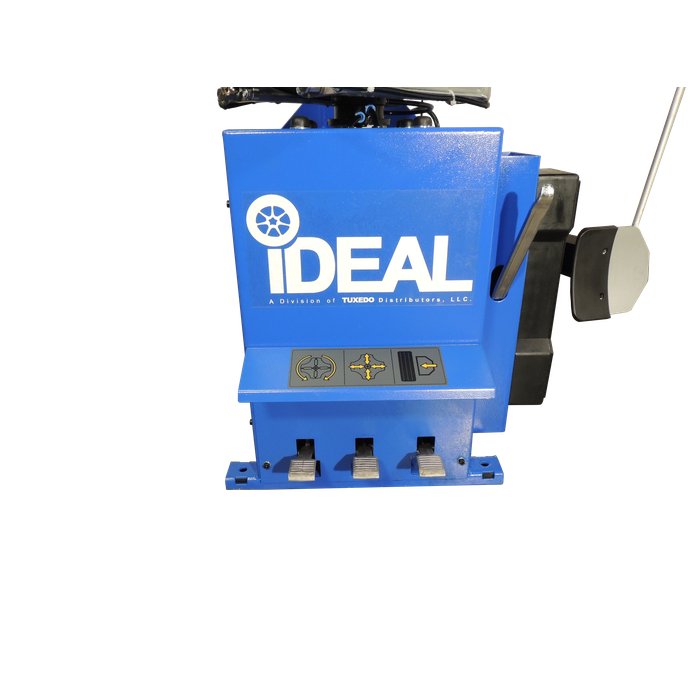

- Electric Table Rotation with Floor Pedals: Electric table rotation controlled by dedicated floor pedals leaves both hands free for the tire iron and lube. Faster and safer than manual spin.

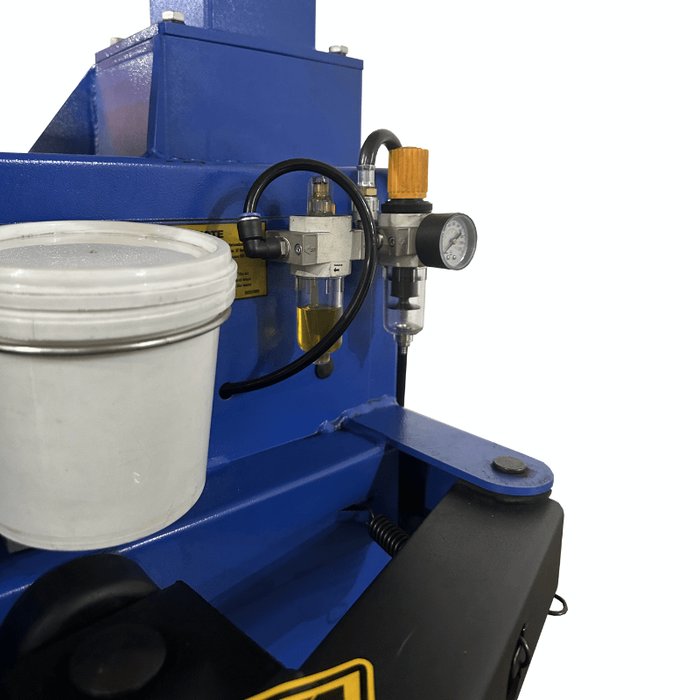

- Includes Inflation Gun + Air Prep: Hand-held inflation gun for accurate final PSI. Air-line regulator, oiler and water trap included so your air is clean and correctly pressurized without a separate wall setup.
- Duck Head Inserts + Clamp Protectors Included: Ships with a set of plastic clamp protectors and two sets of duck head inserts. Everything you need to protect the finish on premium wheels comes in the box.
- Upgrade-Ready to the PL230 Assist Arm: This is the same TC-400M-B chassis as the TC-400M-B-PL230-K. If you regularly change stiff low-profile sport bike tires, step up to the -PL230-K package or add the PL230 assist arm later.

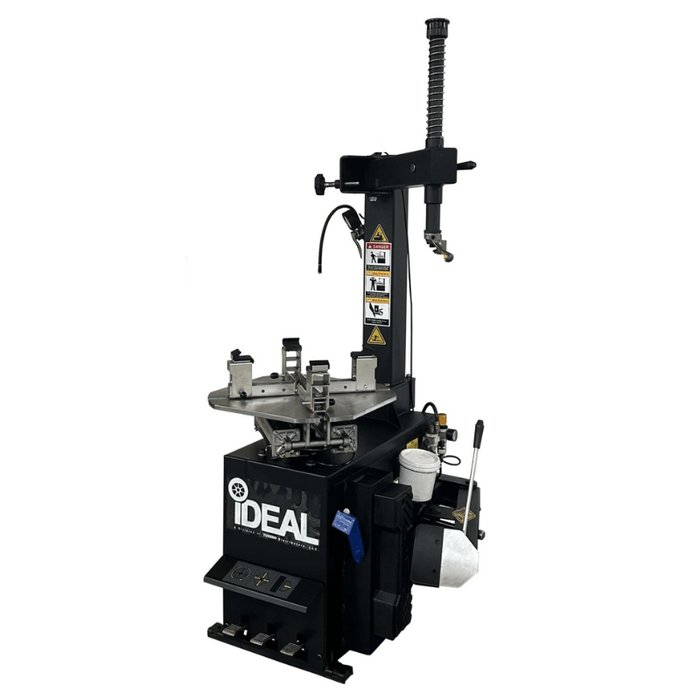

- Blue or Limited Edition Black: Match the rest of your iDEAL powersport equipment (M-2200IEH-XR, A-2200IEH-XR, U-2200IEH-XR, UF-2500EH-X) in iDEAL Blue, or run the whole bay in Limited Edition Black.
TC-400M-B-iDEAL Powersport Tire Changer Specifications | |
| Manufacturer | iDEAL Distributed by Tuxedo Distributors, LLC |
| Model | TC-400M-B-iDEAL (Blue) or TC-400M-B-iDEAL-BLK (Black) |
| Series | iDEAL Pro-Series Powersport Tire Changer |
| Chassis | TC-400M-B, base configuration (no pneumatic assist arm) |
| Primary Application | Motorcycle, ATV, UTV and powersport wheel service |
| Max Wheel Diameter | 37 in |
| Max Wheel Width | 10 in |
| Outside Rim Clamp Range | 6 in to 24 in |
| Clamps | 4 adjustable, double-acting pneumatic cylinders |

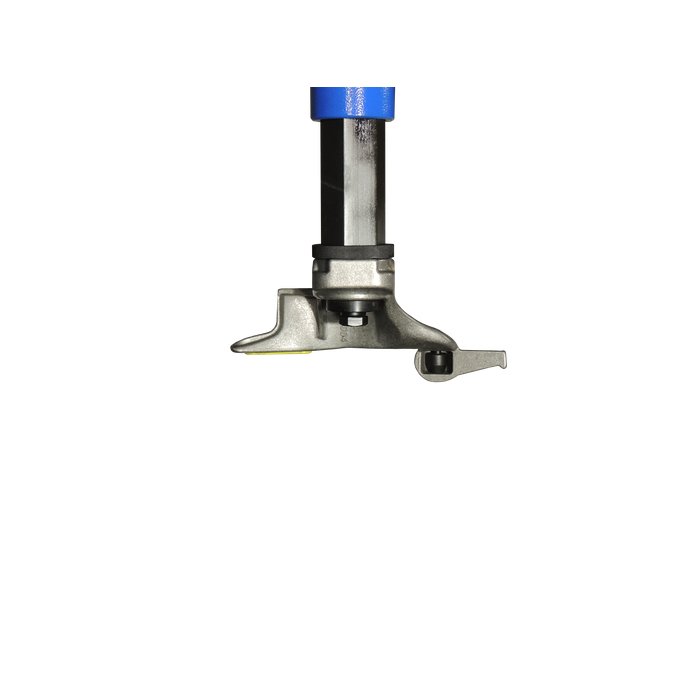

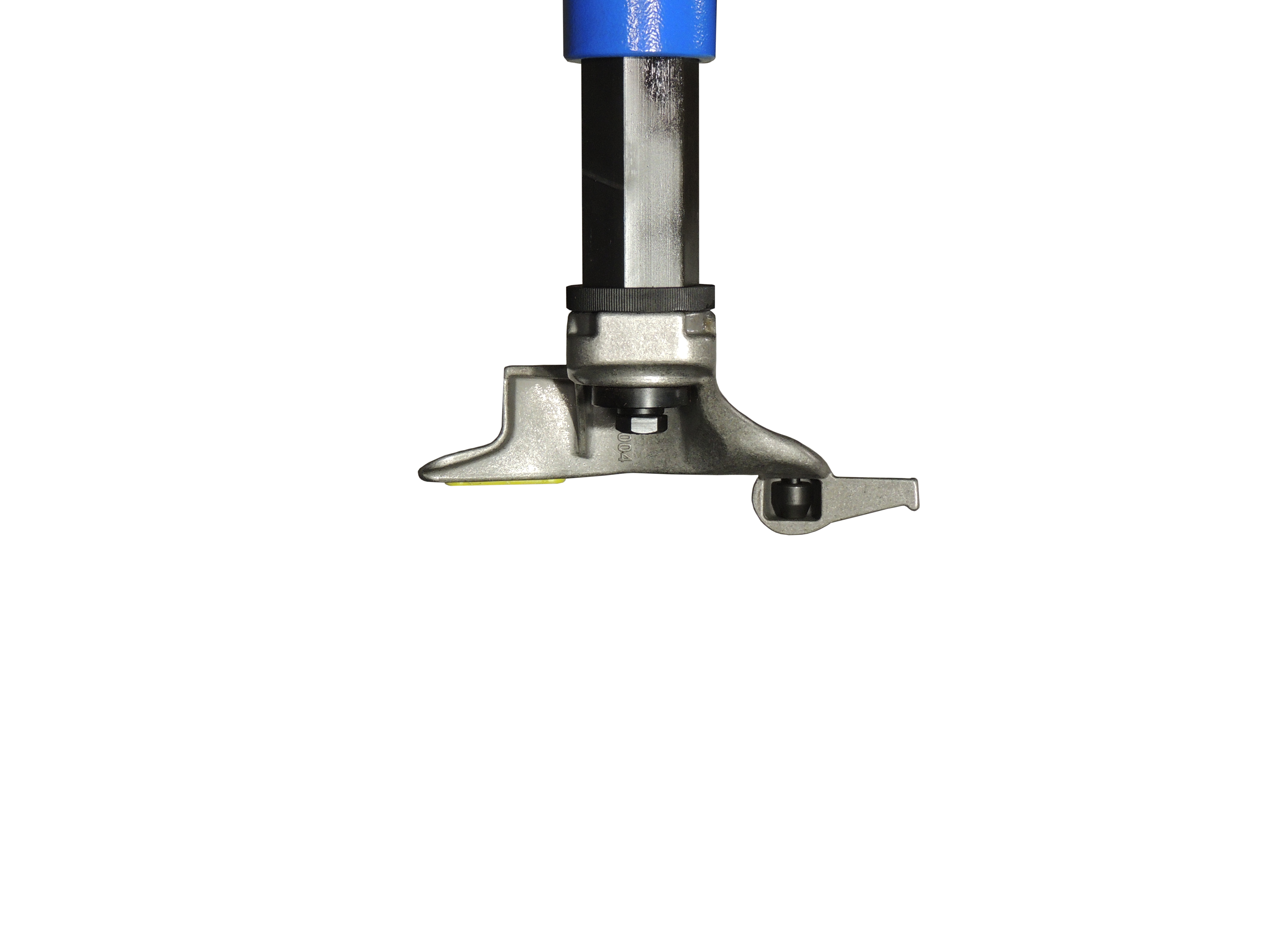

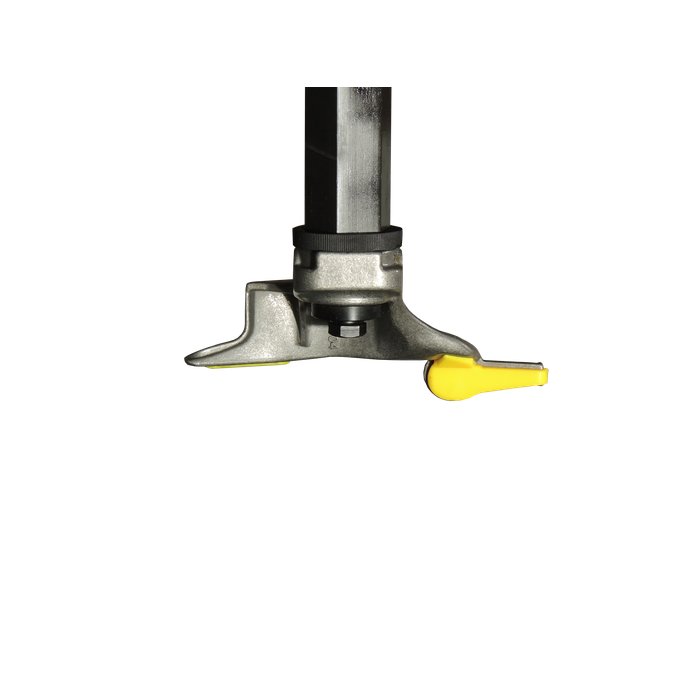

| Wheel Protection | Plastic clamp protectors + demount head protector (included) |
| Bead Breaker Force | 5,500 lb |
| Table Rotation | Electric, floor-pedal controlled |
| Power Supply | 110V, 15 A, 1-Phase |
| Working Air Pressure | 125 psi |
| Assist Arm | Not included (available on TC-400M-B-PL230-K upgrade) |
| Inflation | Hand-held inflation gun included |
| Air Prep | Regulator, oiler and water trap included |
| Included Accessories | Set of plastic clamp protectors + 2 sets of duck head inserts |
| Available Colors | iDEAL Blue, Limited Edition Black |
| Pallet Dimensions | 30 in L x 39 in W x 38 in H |
| Shipping Weight | 470 lb |
| Warranty | iDEAL 1-year (12 months) parts warranty against all product defects |
