iDEAL ALI Certified 72,000 lbs Mobile Four Column Lift | MSC-18K-X-472

$42,800.00Regular price$47,500.00
Save $4,700.00
Delivery Options
Locations

Ensure you have the proper equipment to haul the product back to your destination. If you'd like to confirm inventory status before purchasing, you can email us at support@pitstop-pro.com or call 470-208-2754.

Need it installed? Get matched with a local installer.

1-year warrantyBacked by iDEAL
Lifetime support(470) 208-2754
30-day returnsHassle-free
iDEAL ALI Certified 72,00...
$42,800.00
Overview

Stop Cord Clutter: iDEAL MSC-18K-X-472 Mobile Column Lifts (72,000 lb 4-Column Set) for Faster, Safer Heavy-Duty Work

Buying heavy-duty lifting equipment for buses, fire trucks, and large commercial vehicles can feel risky, especially when uptime, safety, and floor space are on the line. You don’t want cords snaking across the bay, fussy setup, or uneven lifts that slow your crew down. The iDEAL MSC-18K-X-472 fixes those pain points with ALI certification, independent mechanical locks, and continuous PLC plus optical encoder synchronization. Four 18,000 lb columns give you a 72,000 lb set capacity with a smooth rise to 67.1 inches in about 100 seconds. If you’ve been comparing Mobile Column Lifts, this system checks the boxes that matter for day-to-day fleet work.

Each column is battery powered at 24V DC with on-board chargers that plug into standard 100–140VAC, so you keep cords off the floor and the bay clear. Retractable communication cable reels and a U-shape wiring layout make vehicle entry and exit quick. Operators can run individual columns, an axle pair, or all four together from any column using the LCD master control. Adjustable lifting forks cover a wide wheel range from 12.6 to 22 inches, and the 17.9 inch fork length plus 10 inch fork-to-column clearance help with big tire packages. If you’re after a 72000 Mobile Column Lift that feels intuitive the first time you use it, this is it.

Day one setup is simple and indoor-friendly. Built-in pallet-jack wheels with poly casters make positioning easy, and the system stores compactly to free up floor space when the job’s done. Max distance between columns is 32 ft 8 in (32' 8"), so you can accommodate long-wheelbase rigs and specialty vehicles. The package includes a magnetic-base LED work light, clear safety guidance, and a defined maintenance program. For buyers searching Mobile Column Lifts that blend safety, speed, and flexibility, the MSC-18K-X-472 is a proven, shop-ready choice.

Not the right choice? Explore our full lineup of column lifts to find fit for your setup.

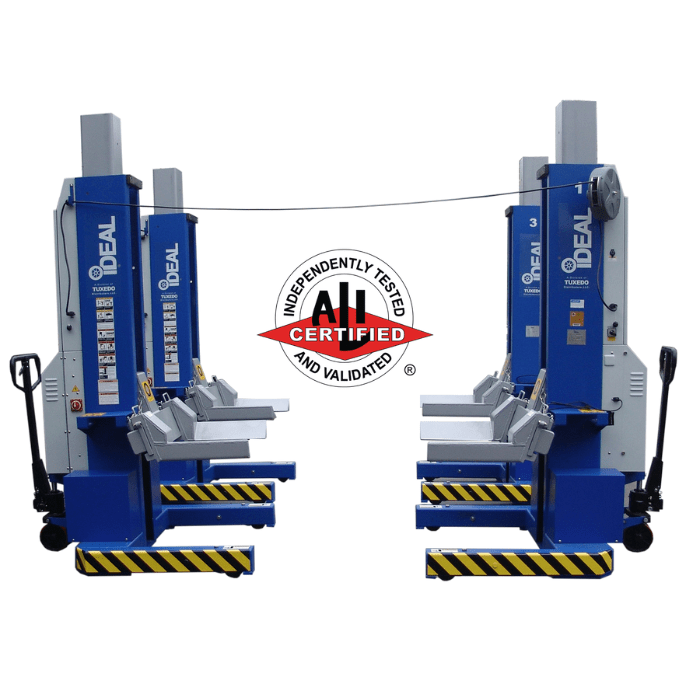

MSC-18K-X-472 mobile column lifts front view with ALI certification

Benefits of the iDEAL MSC-18K-X-472 Mobile Column Lift Set

Faster bay turns | ~100 s rise

Cleaner bays | Cord-free operation

Level lifts | PLC encoder sync

Broad vehicle fit | 12.6–22 in forks

Safer workflow | Mechanical locks

Flexible use | Individual or All modes

Key Features of the iDEAL MSC-18K-X-472 You'll Love:

  • ALI-Certified safety with true mechanical locks
    This system is ALI certified and uses independent mechanical locking for every column. Operators get predictable, level lifting across the set thanks to PLC and optical encoder synchronization. The result is safe under-vehicle access that your team can trust on every job.
  • Any-column control with intuitive LCD interface
    Run a single column, a paired axle, or all four from any column using the master control with LCD and keypad. The interface is easy to read, so operators can confirm modes and lift height at a glance. Faster confirmation means fewer mistakes and quicker turnarounds.
  • Wide wheel coverage with adjustable forks
    The adjustable fork range of 12.6 to 22 inches adapts to common commercial and emergency vehicle wheels. A 17.9 inch fork length and 10 inch fork-to-column clearance help with wide tires and protruding hub components. That versatility lets one set serve multiple fleets and body styles.
  • Fleet-ready options for more kinds of work
    Add the ALI-certified Cross Beam (MSC18KX-CRSBM) for frame-engaging, wheels-free service on heavy rigs. Use the Light Vehicle Adapter Kit (MSC18KX-LTVAK) to lift pickups and SUVs up to 20,000 lb combined. High-rise stands, spacers, and ramps expand your capability without buying another lift.

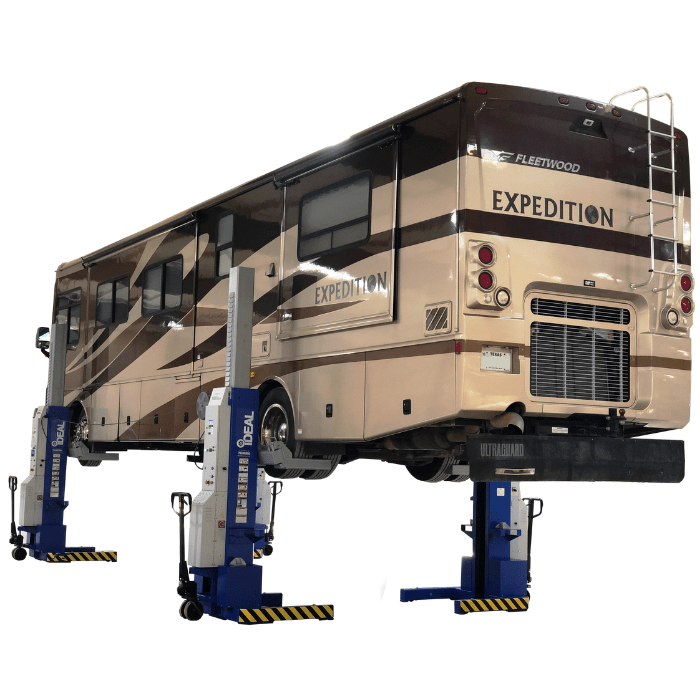

iDEAL MSC-18K-X-472 mobile column lifts raising a Fleetwood Expedition RV

Minimum Garage Requirements

✔ Ceiling Height: At least 162" (13'6") to clear the mast at full extension (155.5") ✔ Concrete Thickness: Minimum 4.5" (114 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Floor: Level concrete, indoors only. No asphalt or suspended slabs without engineering approval ✔ Electrical: 100-140VAC, 60 Hz, single phase for onboard charging (standard outlet) ✔ Anchoring: None required. The columns are mobile and free-standing ✔ Bay Space: Allow for the vehicle plus a 44.1" column at each lifting point (4 columns, 72,000 lb total) ✔ Column Spacing: Up to 32 ft 8 in (32' 8") between columns ✔ Operating Temperature: 41-104 °F (5-40 °C)

*These columns are free-standing and are not anchored to the floor, but the slab still carries the full load. iDEAL specifies level concrete at a minimum of 4.5" thickness and 3,000 PSI compressive strength, indoors only, with no asphalt or suspended slabs without engineering approval. Operating on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and use.

iDEAL MSC-18K-X-472 Mobile Column Lifts (4-Column Set) Specifications

Manufacturer iDEAL
Model MSC-18K-X-472
Configuration 4 mobile columns
Capacity 18,000 lb per column (72,000 lb per 4-column set)
ALI Certification Yes
Power, Operation 24V DC battery, on-board chargers
Charging Power 100–140VAC, 60 Hz, single phase to 24V DC
Batteries (per column) Two 12V sealed deep-cycle Group 31, 105Ah each (not included)
Lift Height 67.1 in
Rise Time ~100 s
Column Height Min 88.6 in, Max 155.5 in
Column Width 44.1 in
Maximum Distance between Columns 32' 8" (9.96 m)
Fork Adjustable Range 12.6–22 in
Fork Length 17.9 in
Fork-to-Column Clearance 10 in
Control Modes Individual, Axle, or All columns from any column
Communication Retractable cable reels, PLC + optical encoder sync

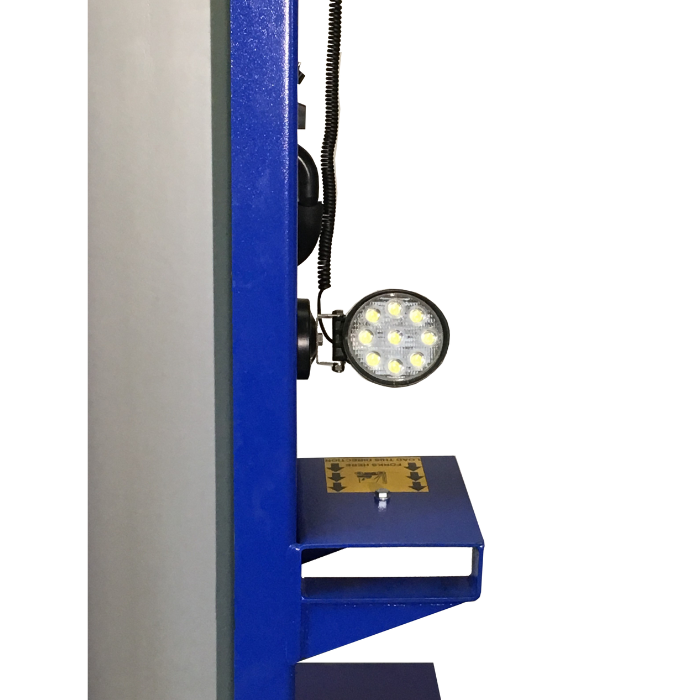

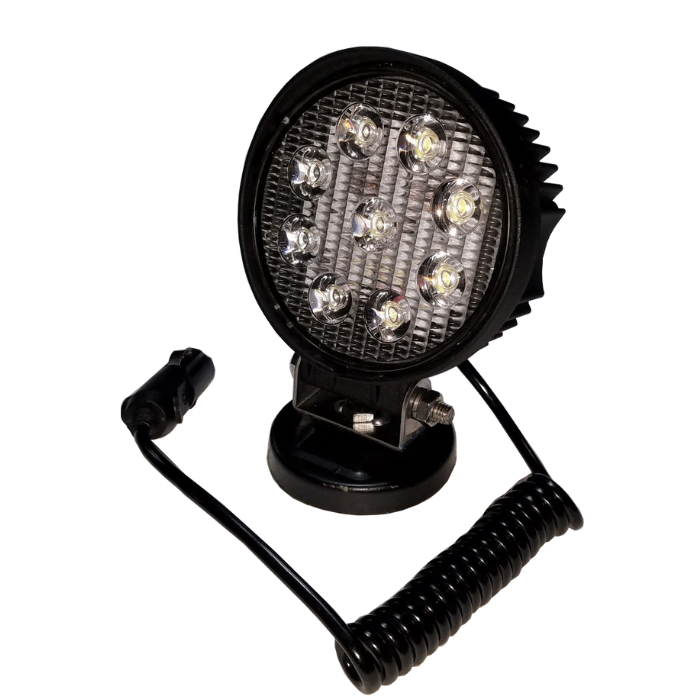

Lighting LED work light with magnetic base (included)
Environment Indoors only, recommended 41–104°F
Floor Requirement 3,000 PSI concrete minimum
Shipping Weight (set) ~6,600 lb
Typical Pallet Dimensions (set) 92 in × 96 in × 90 in
Included Four mobile columns with poly casters, LCD master control, retractable comm cables, on-board chargers, LED work light
Optional Adapters Cross Beam MSC18KX-CRSBM, Light Vehicle Adapter Kit MSC18KX-LTVAK, high-rise stands, forklift spacers, ramps
Warranty 5 years structural, 1 year parts (normal use)
Manual

Click to view the MSC-18K-X-472 Manual

Shipping/Returns

Shipping

  • Freight shipping to commercial addresses in the lower 48 states and Canada.
  • Orders placed Mon–Fri are processed the same day and typically depart within 24-48 hours.
  • Standard transit time is 7-10 days; tariff-related port delays may extend delivery.
  • All freight ships with a scheduled delivery appointment.
  • Forklift or loading-dock equipment is mandatory for off-loading — customer unloads and covers any re-delivery fees.
  • Liftgate service available for $90 on eligible items (e.g. tire changers); not available for vehicle lifts.
  • Inspect freight for damage before signing the Bill of Lading.

Returns

  • Returns are handled case-by-case; contact us for authorization.
  • 30-day return window; items must be unused and in original packaging.
  • 15 % restocking fee applies.
  • Customer pays return freight to our TX facility; original shipping is non-refundable.
  • Non-Returnable Items:
    • Custom-built M1M paint booths.
    • Products beyond 30 days or showing signs of use, damage, or misuse.
  • Return Process:
    • Email us with order #, product, and reason for return.
    • Receive a Return Merchandise Authorization (RMA) and instructions.
    • Ship item per RMA and provide tracking info.
    • Refund / exchange processed within 3 business days of receipt.
  • Refund Processing Times:
    • Credit card: 7-14 business days.
    • PayPal: up to 48 hours.

For assistance, contact us at: support@pitstop-pro.com or call 470-208-2754.

Warranty

Warranty

  • Structural Warranty — 5 Years:
    • Columns, uprights, legs, arms, carriages, swivel pins, overhead beam, tracks, cross rails, top rail beam.
  • Limited Parts Warranty — 1 Year: Covers lifts and wheel-service equipment under normal use (customer pays freight on warranty parts).
  • Not Covered:
    • Routine-maintenance items and normal-wear parts (cables, slider blocks, chains, rubber pads, pulleys).
    • Replacement of lift / tire-changer cylinders after 30 days (seal kit provided instead).
    • On-site labor or equipment damaged by improper installation or use.
  • Claim Requirements:
    • Inspect freight on arrival; note any damage on the carrier’s receipt (freight damage is not a warranty issue).
    • Report missing parts within 72 hours.
    • Provide photos or videos if requested for evaluation.
    • Replacement parts ship as soon as available; immediate availability not guaranteed.
  • Additional Terms: Warranty is non-transferable; liability excludes incidental or consequential damages as permitted by law.

For assistance, contact us at: support@pitstop-pro.com or call 470-208-2754.
