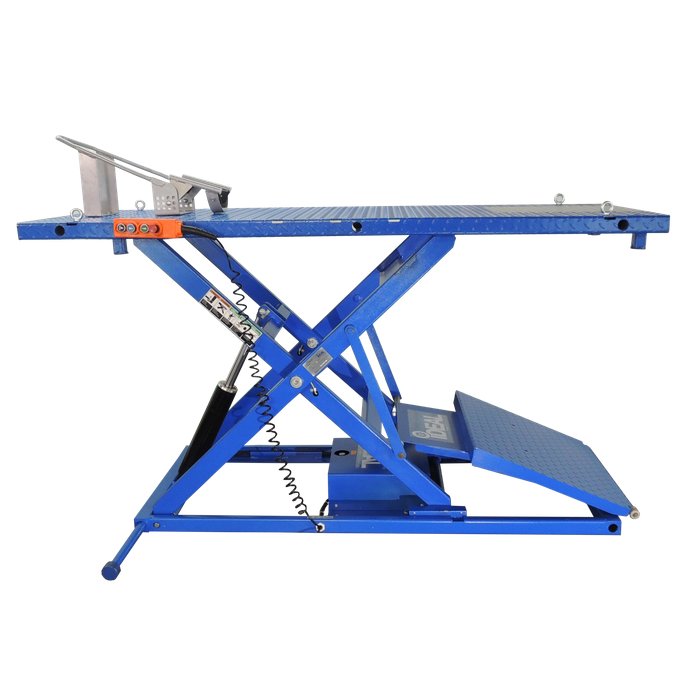

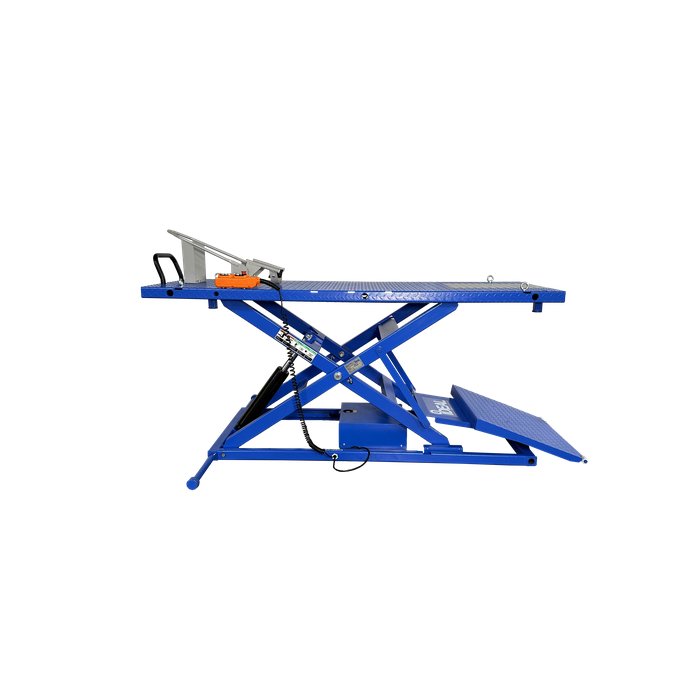

The 2,200 lb Motorcycle Lift Bench with a Full-Width Retractable Ramp for the Cruiser, Sportbike and Trike Bay

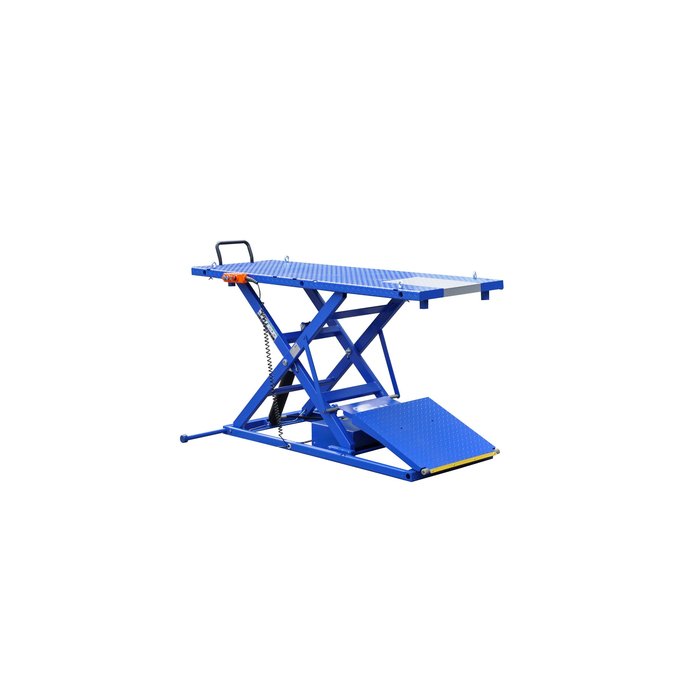

The iDEAL M-2200IEH-XR is a purpose-built motorcycle service lift for the shop, dealership or serious rider working on cruisers, touring bikes, sportbikes, adventure bikes and trikes. Its 2,200 lb capacity and 88-5/8 by 31.5 in platform take a full-dress Harley Ultra, a Honda Gold Wing or a BMW GS with room for tools and tie-downs. The lift rises to a full 47-1/4 inches so you can service the drivetrain, exhaust and suspension without stooping.
What sets this lift apart is the exclusive full-width retractable ramp system. Roll the bike up the ramp, then retract the ramp back under the bench so it does not stick out into the aisle or trip a customer. Combined with a rear drop-down service panel and platform-mounted tie-down anchor eye bolts, you can walk all the way around the bike and get straps around the frame without stepping on a ramp.

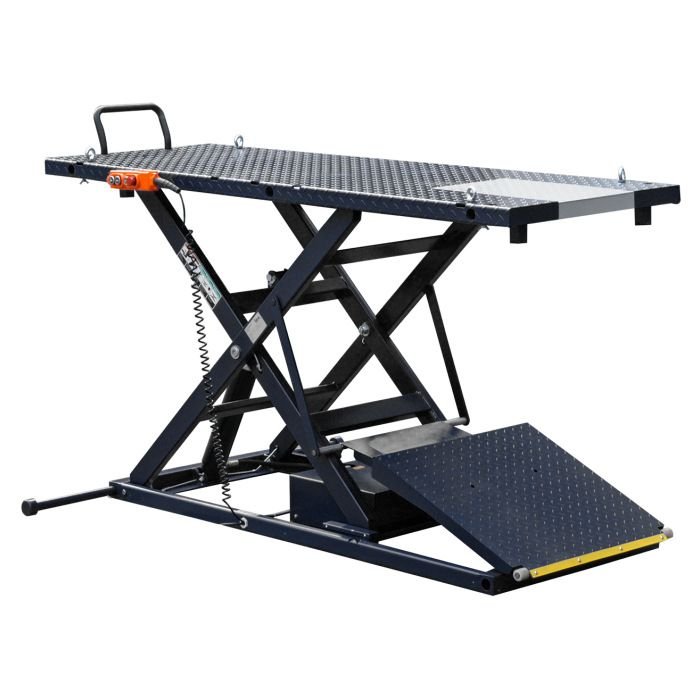

A 110V integrated electric-hydraulic power unit with a hand-held single-point remote pendant lifts and lowers the platform in 30 seconds each direction, and a magnetic lock release drops the platform through six locking positions. Includes an integrated wheel stop, stabilizer bar and mounting points for the optional M-VISE (motorcycle vise), M-CHOCK (front wheel chock), M-JACK and the TRIKEKIT-2200IEH-XR trike conversion kit. Available in iDEAL Blue or Limited Edition Black.
Key Features of the M-2200IEH-XR That Matter in the Motorcycle Bay:

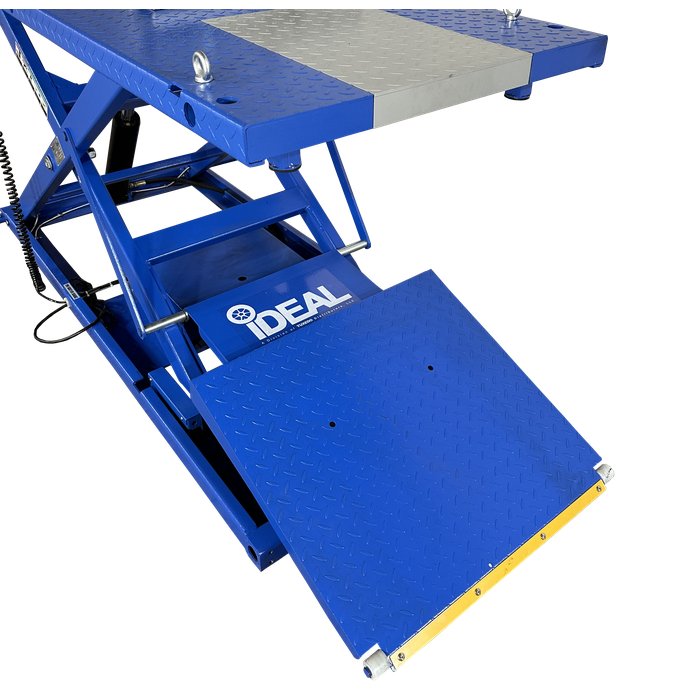

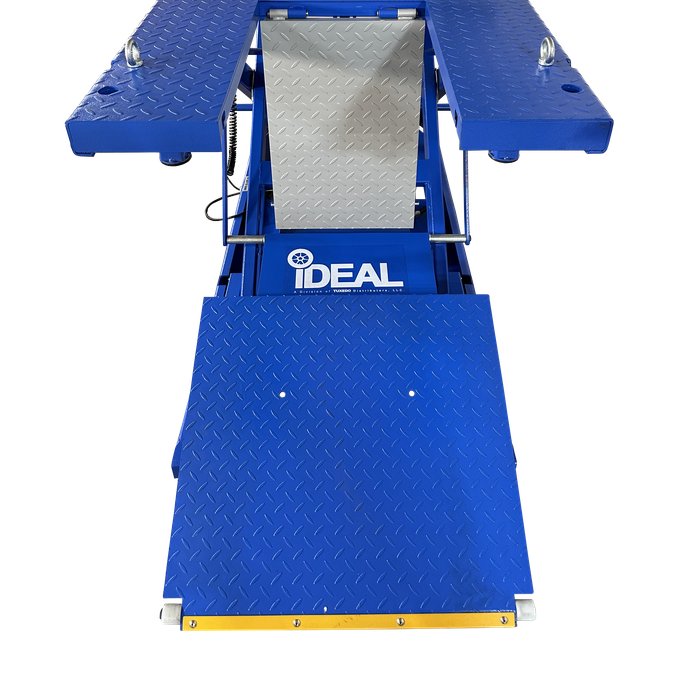

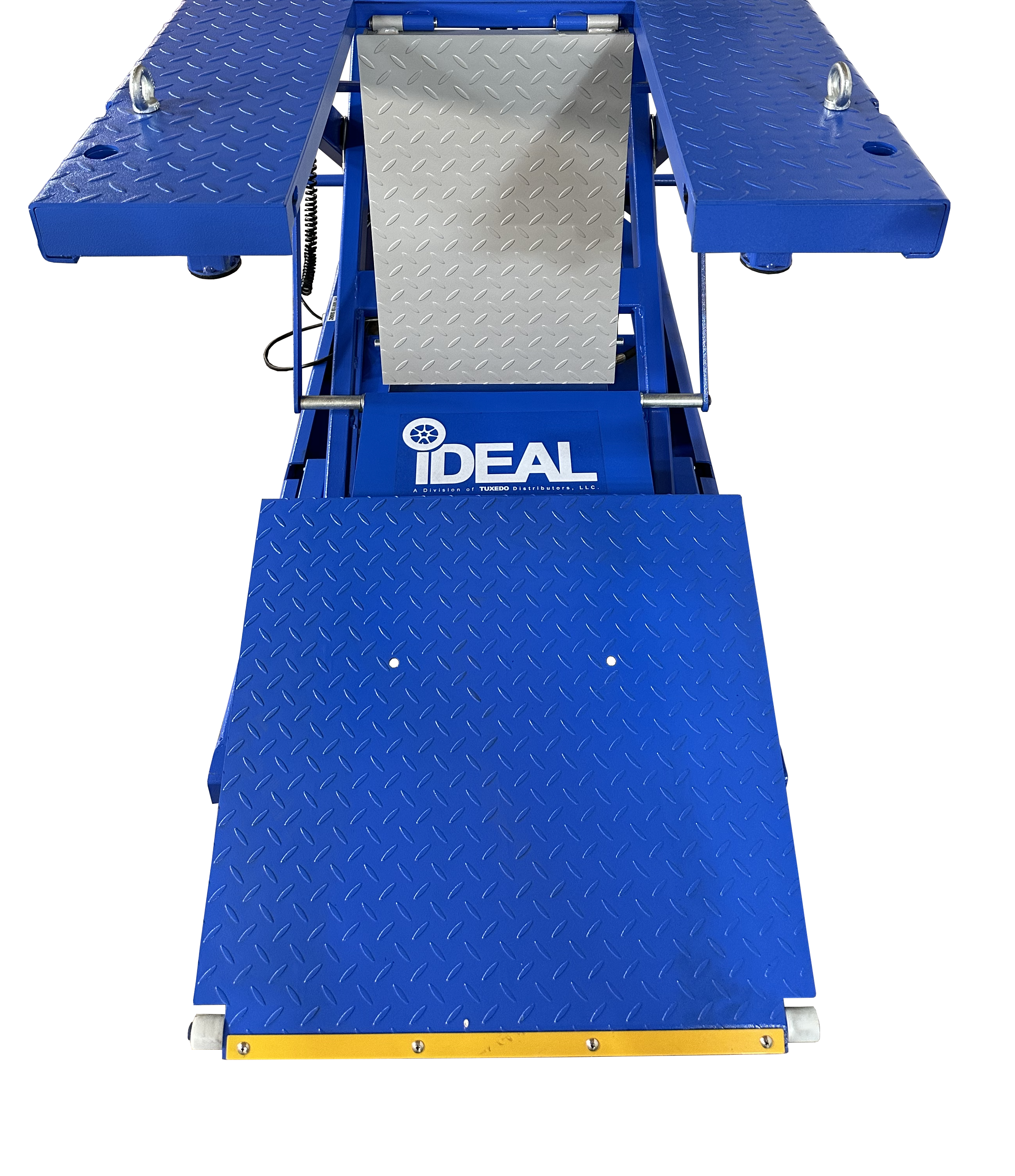

- Exclusive Full-Width Retractable Ramp: The whole approach ramp retracts back under the bench after you roll the bike on. No permanent ramp sticking out into the aisle and no separate ramp to store.

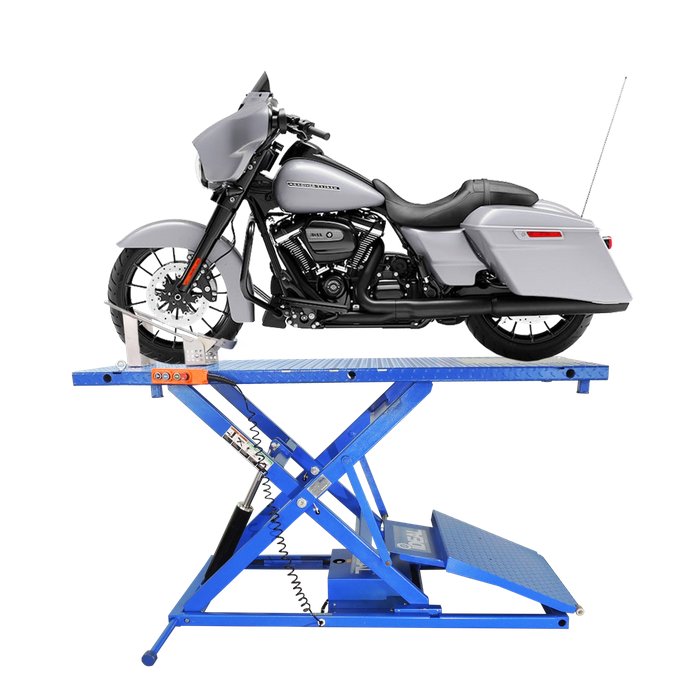

- 2,200 lb Capacity, 47-1/4 in Rise: Handles full-dress touring bikes (Harley Ultra, Gold Wing, BMW K), cruisers, sportbikes and adventure bikes. Six locking heights let you park the platform exactly where you want to work.
- Motorcycle-Sized 31.5 x 88-5/8 in Platform: Sized for the widest touring bikes and long wheelbases. Overall length with ramp is 116-1/2 inches and overall width including the stabilizer bar is 58 inches, so the whole lift lives inside a standard bay.

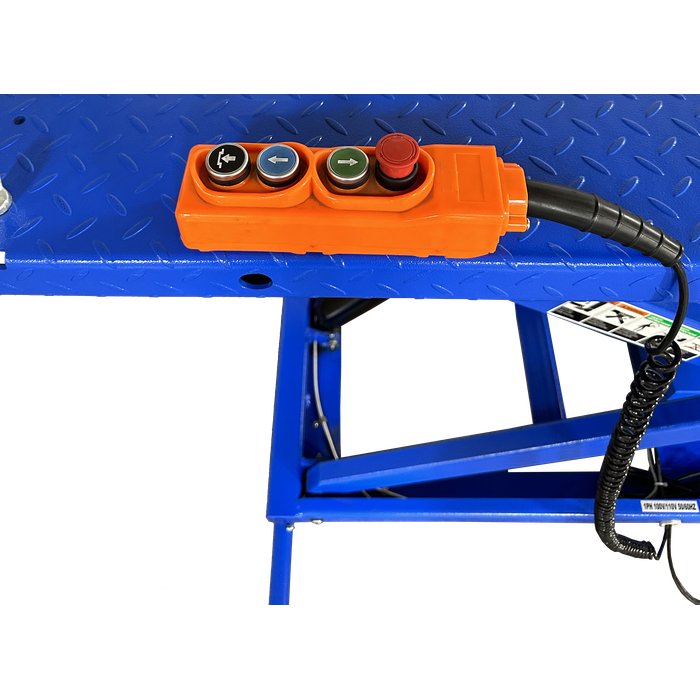

- Integrated 110V Electric-Hydraulic Power Unit: Runs off a standard 110V shop outlet, 18 amp draw. No shop air needed. Single-point hand-held remote pendant handles lifting, lowering and lock release.
- Rear Drop-Down Service Panel: The rear panel drops down to give the tech easy access to the back tire, drivetrain and exhaust without climbing on the ramp or reaching over the deck.

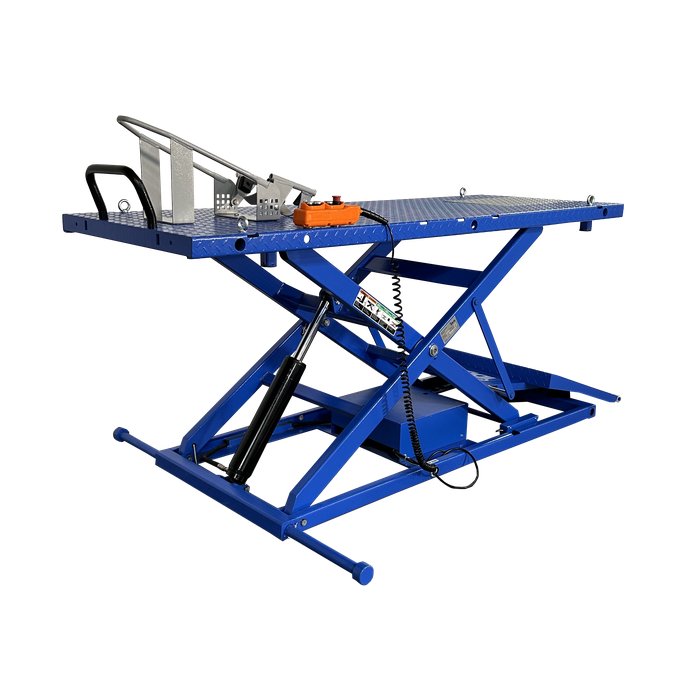

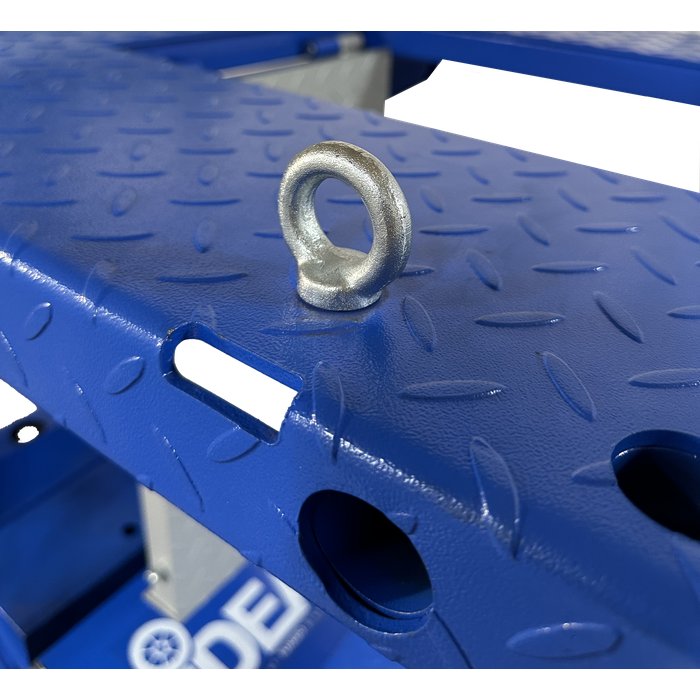

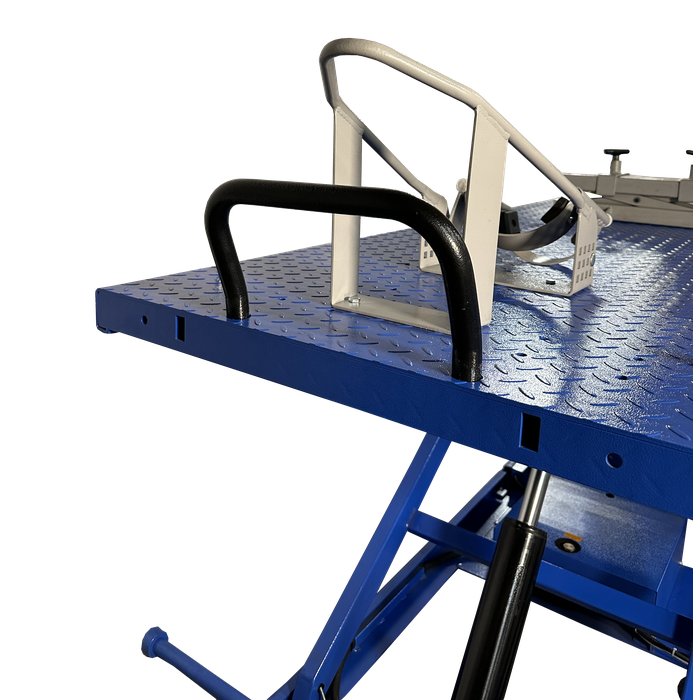

- Built-In Wheel Stop + Stabilizer Bar: Integrated wheel stop keeps the front wheel planted while you strap down. Stabilizer bar keeps the platform rock-solid at full lift height. Tie-down anchor eye bolts included.
- Six Locking Height Positions: Magnetic lock release drops the platform through six mechanical positions. Set it at drive-on height to load, mid-height for wheels and tires, or full height for driveline and exhaust.

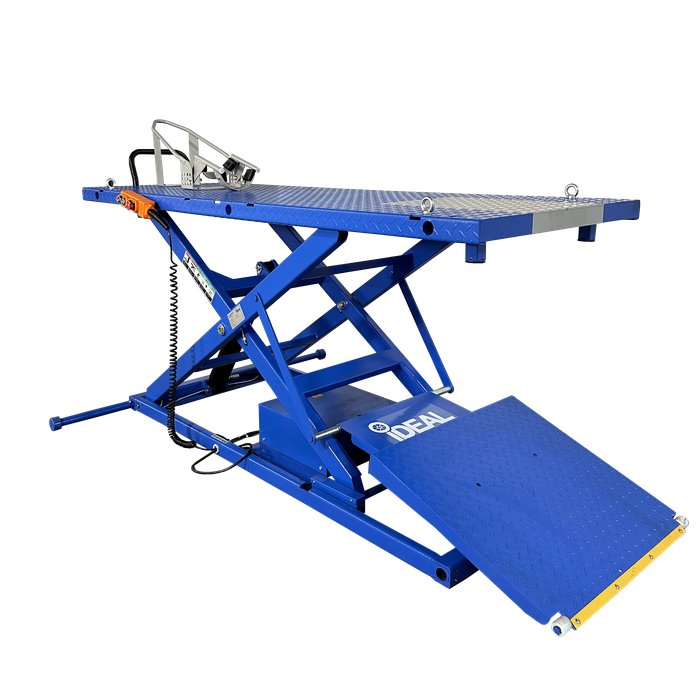

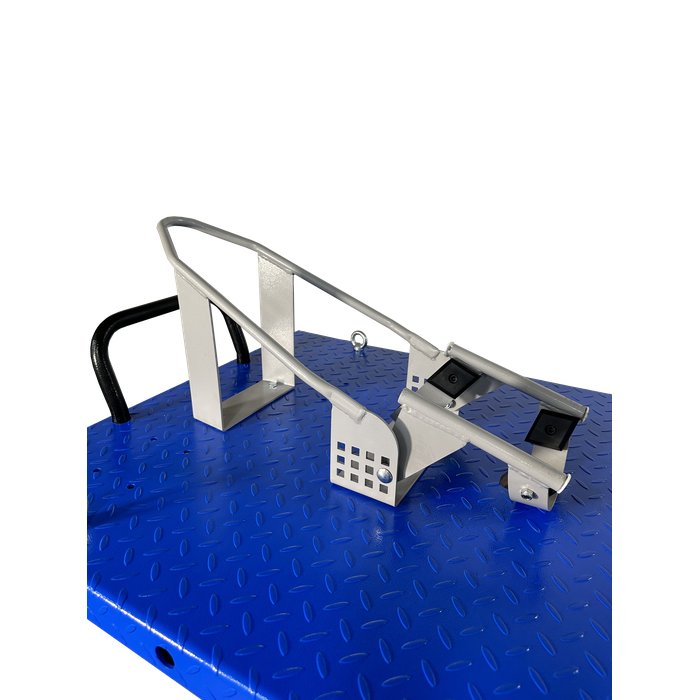

- Ready for M-VISE, M-CHOCK, M-JACK and Trike Kit: Platform is designed with mounting points for the optional M-VISE (motorcycle vise), M-CHOCK (front wheel chock), M-JACK, DLYWHLKIT-2200IEH dolly wheel kit, FRTEXT-2200IEH front extension and TRIKEKIT-2200IEH-XR trike conversion kit.
M-2200IEH-XR Motorcycle Lift Bench Specifications | |
| Manufacturer | iDEAL Distributed by Tuxedo Distributors, LLC |
| Model | M-2200IEH-XR (Blue) or M-2200IEH-XR-BLK (Black) |
| Series | iDEAL Pro-Series |

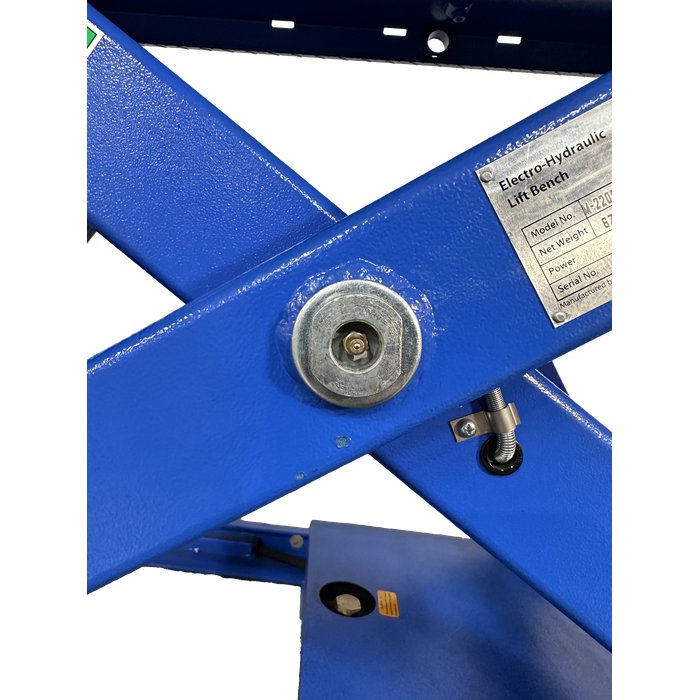

| Configuration | Electric-hydraulic scissor lift bench with retractable ramp |
| Primary Application | Motorcycle, cruiser, touring, sportbike, adventure bike and trike service |
| Lifting Capacity | 2,200 lb (1,000 kg) |
| Minimum Height | 7 in (180 mm) |
| Maximum Lifting Height | 47-1/4 in (1200 mm) |
| Platform Size (L x W) | 88-5/8 in x 31.5 in (2250 mm x 800 mm) |
| Overall Length with Ramp | 116-1/2 in |
| Overall Width incl. Stabilizer | 58 in |
| Rise Time | 30 seconds |
| Lower Time | 30 seconds |
| Power Supply | 110V, 60 Hz, 1-Phase, 18 A |
| Power Unit | Integrated 110V electric-hydraulic |
| Control | Single-point hand-held remote control pendant |
| Locking Positions | Six, with magnetic lock release |
| Approach Ramp | Full-width retractable ramp (27.5 in extended) |
| Service Access | Rear drop-down service panel |
| Safety | Integrated front wheel stop, stabilizer bar, tie-down anchor eye bolts |
| Available Colors | iDEAL Blue, Limited Edition Black |
| Optional Accessories | M-VISE, M-CHOCK, M-JACK, DLYWHLKIT-2200IEH dolly wheel kit, FRTEXT-2200IEH front extension, TRIKEKIT-2200IEH-XR trike conversion, RMPEXT-2200IEH-XR ramp extension |
| Concrete Requirements | Minimum 4 in |
| Finish | Durable powder coat |
| Pallet Dimensions | 35 in x 91 in x 17.5 in |
| Shipping Weight | 704 lb |
| Liftgate Delivery | Eligible |
| Warranty | iDEAL / Tuxedo standard limited warranty (see manual) |
