iDEAL 12,000lb ALI Certified Two Post Lift | TP12KSC-DX
Need Serious Capacity? Upgrade to the iDEAL TP12KSC-DX 12,000 lb Clear-Floor 2-Post Lift
Finding the right 2 post lift can be tricky when your shop handles heavy-duty vehicles day in and day out. Many lifts on the market either lack the strength to safely support full-size trucks and vans or use outdated floor-plate designs that limit mobility under the vehicle. Mechanics often deal with cramped clearance, awkward vehicle positioning, or slow lifting speeds. All of which slow down workflow and put stress on your team. ALI certification at the 12K capacity tier is even rarer than at 10K because most manufacturers stop pursuing certification once you cross into commercial-vehicle territory. The TP12KSC-DX brings ALI certification into the 12K consumer-friendly price band.

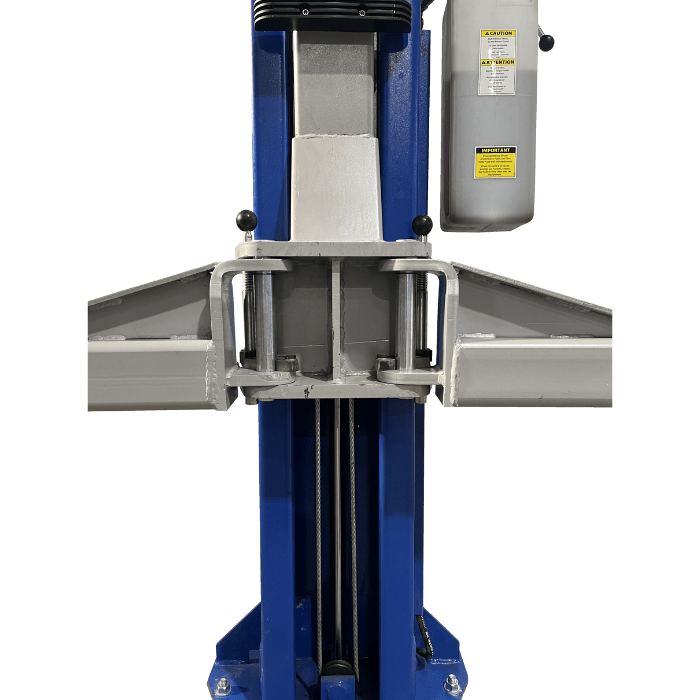

That’s where the iDEAL TP12KSC-DX makes all the difference. Engineered as a 12,000 lb 2 post lift, this model is built for professional shops that need serious capacity, a tall frame, and unrestricted access underneath. Standing 168-1/2″ tall with 122″ between the columns, it’s designed to take on oversized work trucks, vans, and commercial fleets with complete stability and confidence. 12,000 lb structural rating with ALI certification covering both structural design and manufacturing process. Direct-drive hydraulics and aircraft-grade synchronization cables sized for daily commercial cycling.

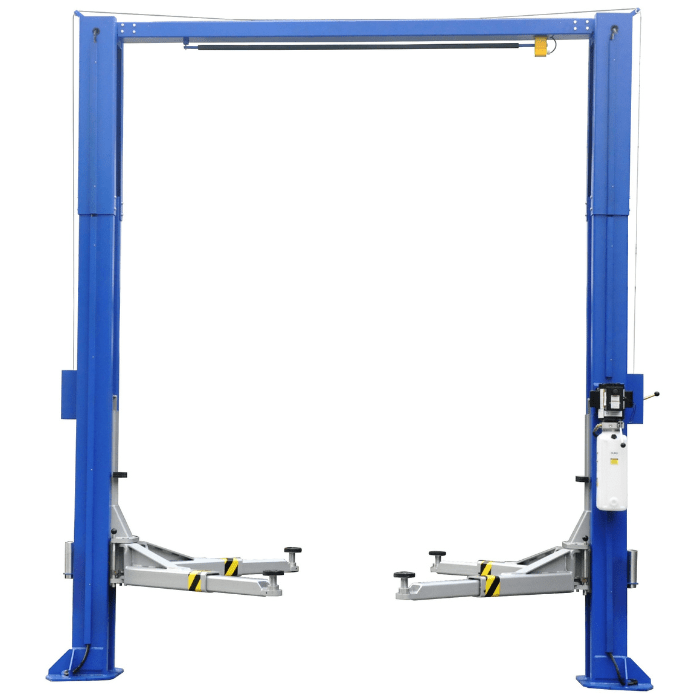

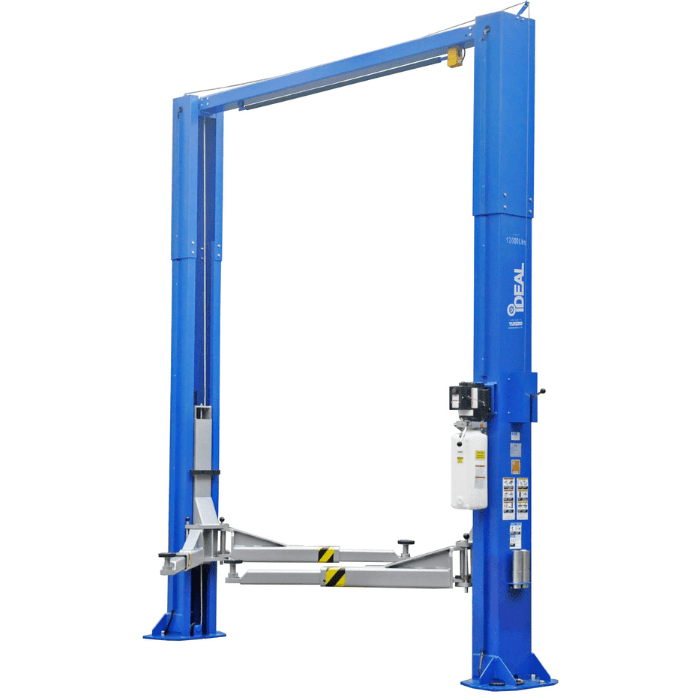

The clear-floor construction eliminates obstructions, so rolling transmission jacks, tool carts, or creepers across the bay is hassle-free. Combined with its symmetric arm design, extended reach, and rapid 50-second lift cycle, the TP12KSC-DX 2 post car lift is all about boosting shop efficiency without cutting corners on safety. If you’ve been searching for iDEAL 2 post lifts that can keep up with modern demands while meeting the standards of an ALI certified lift, this model is exactly what your operation needs. For commercial shops handling crew cabs, work vans, or fleet vehicles at 12K capacity who need third-party safety verification, the TP12KSC-DX is one of the rare options that combines true 12K capability with full ALI certification.
If this isn’t your perfect lift, view our entire 2-post lift selection.
Benefits of the iDEAL TP12KSC-DX Two Post Lift
Key Features of the iDEAL TP12KSC-DX 2-Post Lift You'll Love:
• 12,000 lb Heavy-Duty Capacity: This lift can handle everything from SUVs to fully loaded commercial vans and trucks with ease. The 3,000 lb per-arm capacity provides balanced support, ensuring stability and safety even with fleet vehicles. Shops gain peace of mind knowing that the lift won’t max out under everyday workloads.
• Extra-Tall Frame Design: At 168-1/2″ overall height, the TP12KSC-DX is built for shops with higher ceilings and vehicles that need additional clearance. Taller frames make it possible to lift larger trucks without worrying about overhead restrictions. This feature is especially valuable for professional service centers working on diverse fleets.

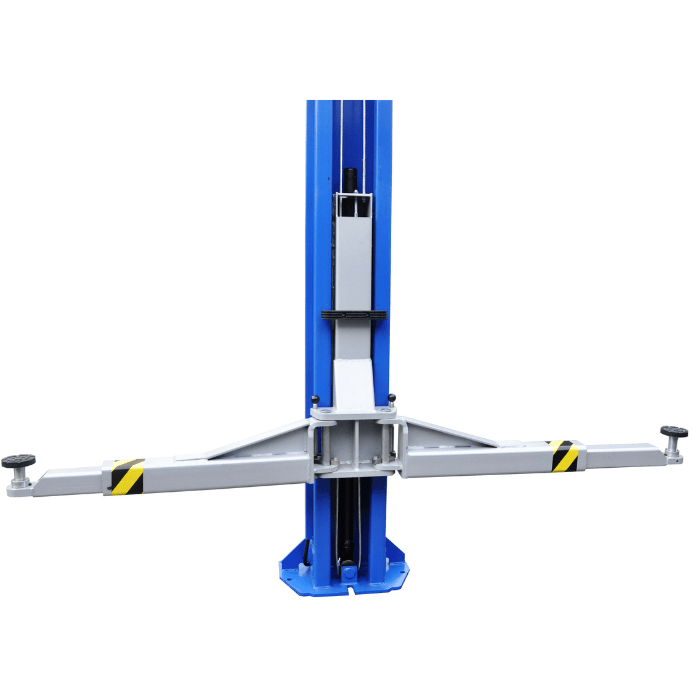

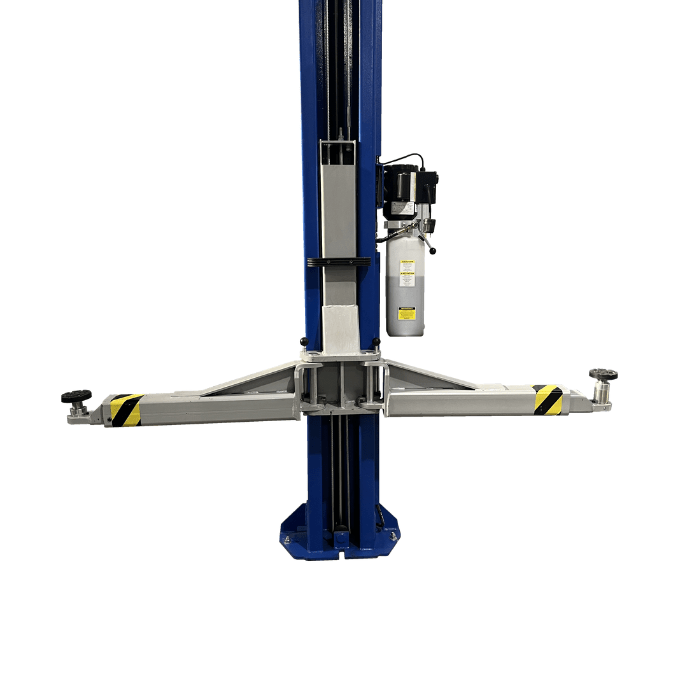

• Symmetric Arm Configuration: The symmetric arms evenly distribute weight, keeping vehicles perfectly balanced throughout the lift cycle. Unlike asymmetrical setups, symmetric arms are ideal for handling larger, heavier vehicles that demand equal support. This design helps prevent tilt and reduces wear on lift components.
• Heavy-Duty Build Quality: From its reinforced columns to the 2,295 lb shipping weight, every component is designed for durability. This lift is engineered for years of daily use in demanding professional shops. The robust construction ensures reliability, lowering the long-term cost of ownership.
Minimum Garage Requirements
✔ Ceiling Height: At least 174" (14'6") recommended ✔ Footprint: 109" drive-thru x 151" overall (9'1" x 12'7") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 220V – 20 AMP – 1PH (MET UL/CSA CERTIFIED DURO POWER UNIT) ✔ Overall Lift Height: 168" (14'0") (measure before ordering)
✔ Ceiling Height: At least 174" (14'6") recommended
✔ Footprint: 109" drive-thru x 151" overall (9'1" x 12'7")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive

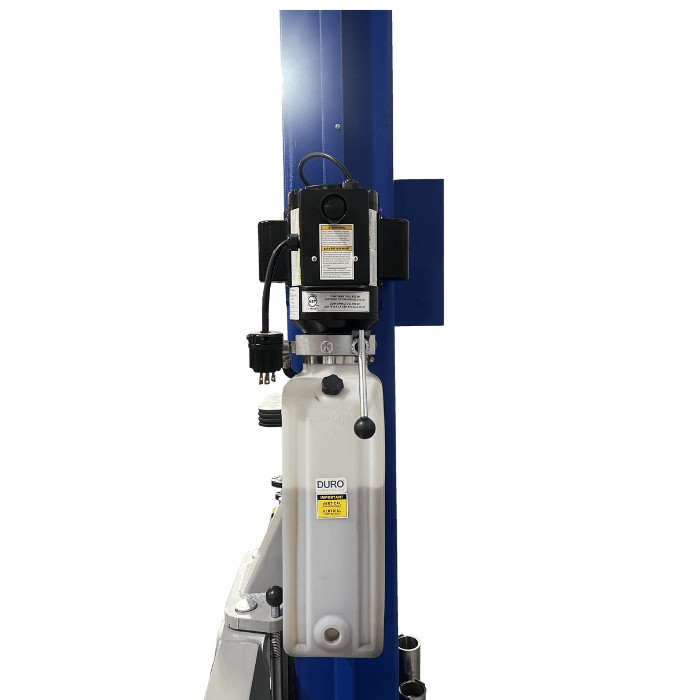

✔ Electrical: 220V – 20 AMP – 1PH (MET UL/CSA CERTIFIED DURO POWER UNIT)
✔ Overall Lift Height: 168" (14'0") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.

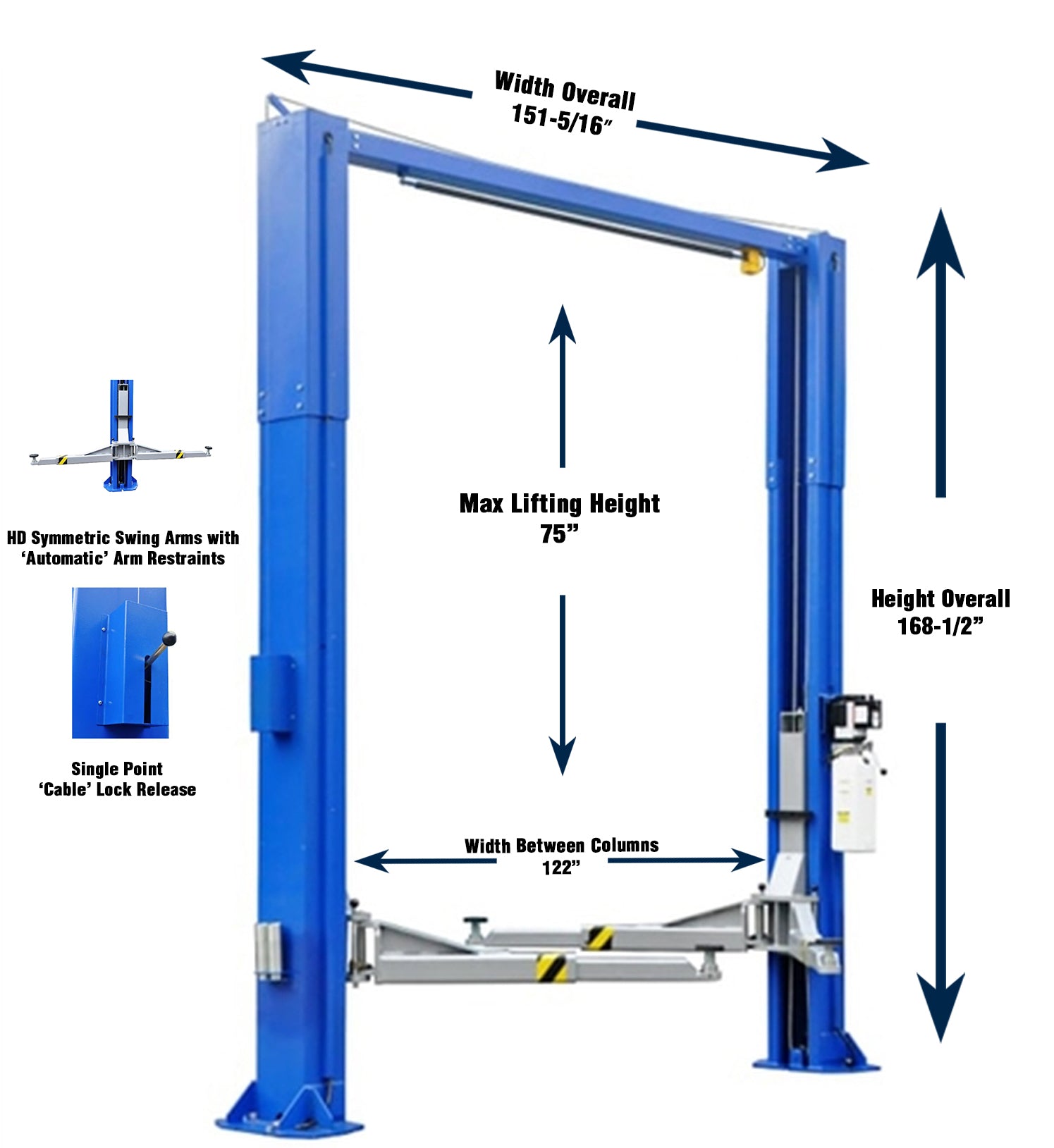

iDEAL TP12KSC-DX 12,000 lb 2-Post Car Lift Specifications |
|
| Manufacturer | iDEAL |
| Model | TP12KSC-DX |
| Capacity | 12,000 lbs |
| Overall Height | 168-1/2″ |
| Overall Width w/ Power Unit | 151-5/16″ |
| Max Lift Height | 75″ |
| Width Between Columns | 122″ |
| Minimum Pad Height | 4-7/8″ |
| Drive-Thru Clearance | 109″ |
| Lifting Speed | 50 seconds |
| Configuration | Symmetric |
| Floor Type | Clear Floor |
| Short Arm Reach (min–max) | 37-5/8″. 57″ |
| Long Arm Reach (min–max) | 37-5/8″. 57″ |
| Max Load per Arm | 3,000 lbs |
| Narrow Bay Setting | N/A |
| Shipping Weight | 2,295 lbs |
| Power Requirements | 220V. 20 AMP. 1PH (MET UL/CSA CERTIFIED DURO POWER UNIT) |
| Warranty | 5 Years Structure, 1 Year Parts - Under Normal Use |
