iDEAL 10,000lb ALI Certified Two Post Lift - Bi-Symmetric | TP10KAC-DX
Clear-Floor Flexibility: iDEAL TP10KAC-DX 10,000 lb 2-Post Car Lift for Safer, Smoother Service
Choosing the right 2 post lift for your shop isn’t easy. Many owners run into problems like lifts that don’t fit their space, lack proper safety features, or struggle to handle heavier vehicles. Others find themselves limited by floor-plate models that restrict movement under the vehicle, making it hard to roll jacks, carts, and toolboxes through the bay. That’s where the iDEAL TP10KAC-DX steps in. A 10,000 lb 2 post lift designed to eliminate those frustrations while giving you more flexibility and control. ALI certification at the 10K capacity tier is rare in the consumer-friendly price band. Most 10K lifts haven't gone through the third-party Automotive Lift Institute testing because it adds engineering and documentation overhead. IDEAL's TP10KAC-DX has.
This Tuxedo 2 post lift features a bi-symmetric configuration, allowing you to switch between asymmetrical or symmetrical setups depending on the vehicle. Whether you’re working on compact sedans, SUVs, or light trucks, this ALI-certified lift gives you the adaptability you need. With 2,500 lbs. Of capacity per arm, reinforced safety locks, and a clear floor design, it’s engineered for long-term durability in professional shops and high-performance garages. ALI certification covers structural design, manufacturing tolerances, and lifecycle testing. The kind of validation commercial shops need for insurance and regulatory compliance. Bi-symmetric arm configuration adapts to varied vehicle loading.
Beyond raw lifting power, the TP10KAC-DX is built with efficiency in mind. The clear floor design opens up the work area, reducing clutter and improving access to transmissions, carts, and rolling equipment. Safety features like the overhead shutoff bar, automatic arm restraints, and single-point latch release make operation smooth and secure. Backed by a 5-year structural warranty and built to ANSI/ALI standards, this is the kind of bi-symmetric 2 post lift you can trust to deliver consistent performance year after year. For commercial shops, fleet operations, or insurance-conscious owners, the TP10KAC-DX is one of the few ALI-certified 10K lifts in the price band that independent shops can absorb.
Need a different capacity or configuration? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our What Is ALI Certification? guide to see why it matters. Questions? Call (470) 208-2754.
Benefits of the iDEAL TP10KAC-DX Two Post Lift
Key Features of the iDEAL TP10KAC-DX 2-Post Lift You'll Love:

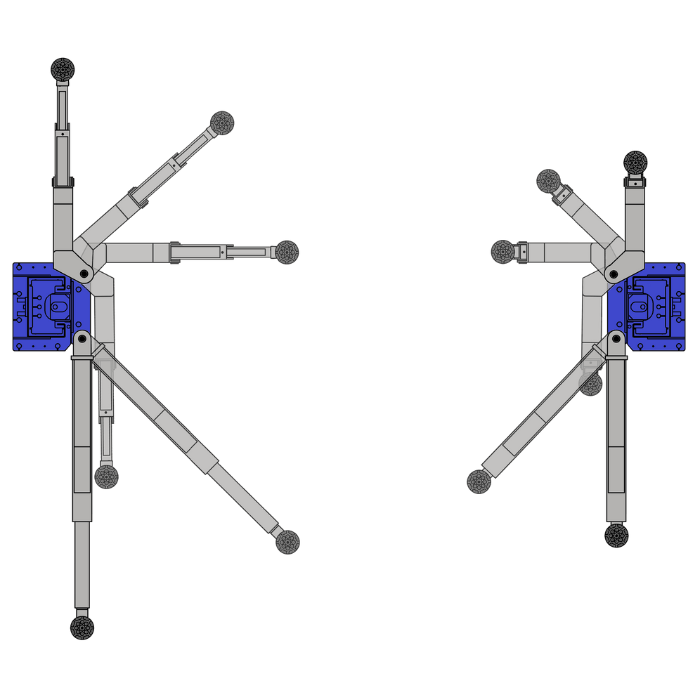

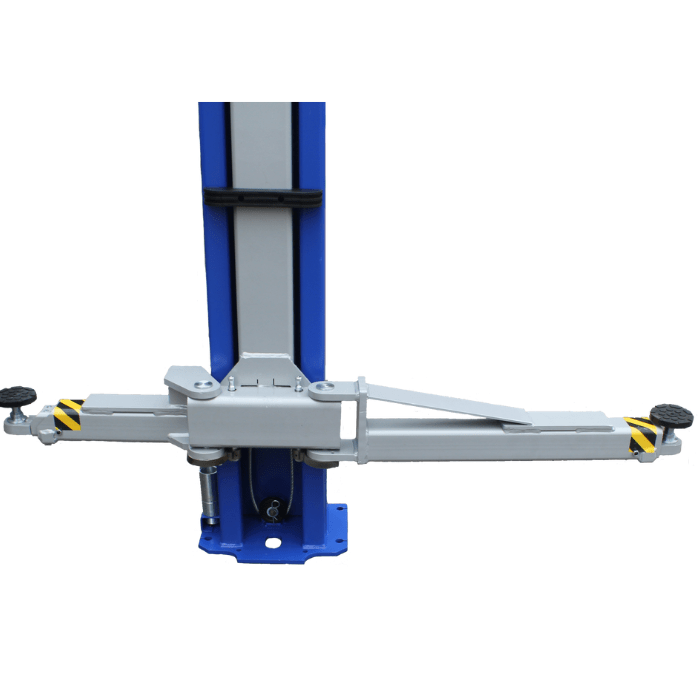

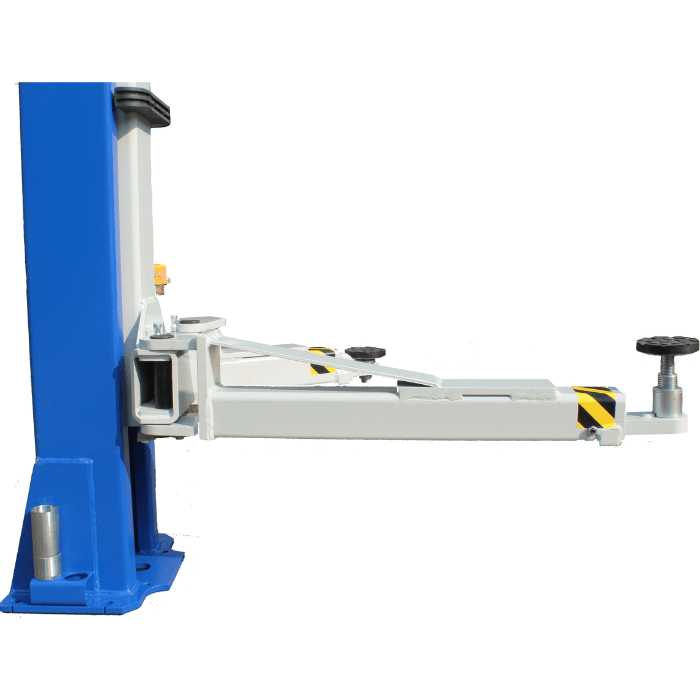

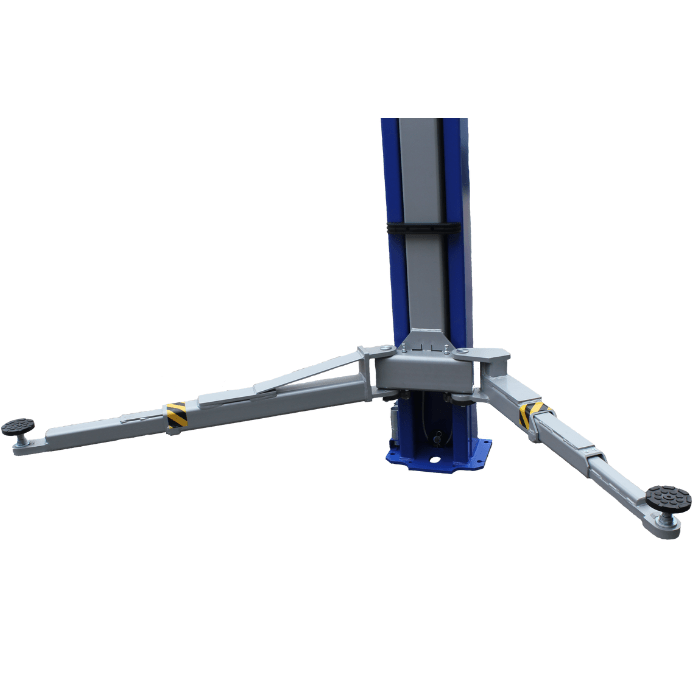

• Bi-Symmetric Swing Arms: The arms can be set up in either asymmetrical or symmetrical configurations, giving you complete flexibility depending on the vehicle. This makes it easier to balance compact cars or provide stability for larger trucks without compromising lift safety.

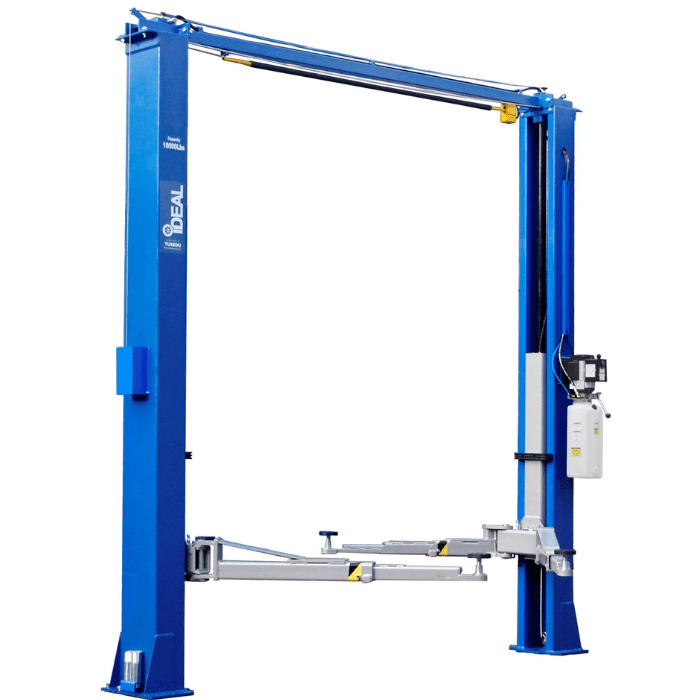

• Clear Floor Design: Unlike floor-plate lifts that block the bay, this clear floor lift keeps the work area open. That means you can move transmission jacks, tool carts, and creepers with ease, improving workflow and efficiency in busy shops.
• Single-Point Safety Release: This system synchronizes both columns with a single manual latch, so lowering the lift is smooth and straightforward. It eliminates the hassle of disengaging locks separately, saving time and reducing operator error.

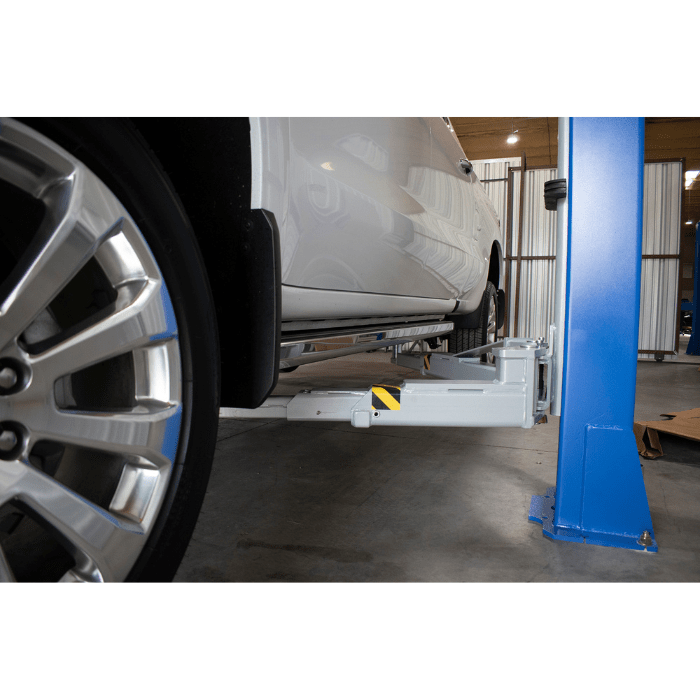

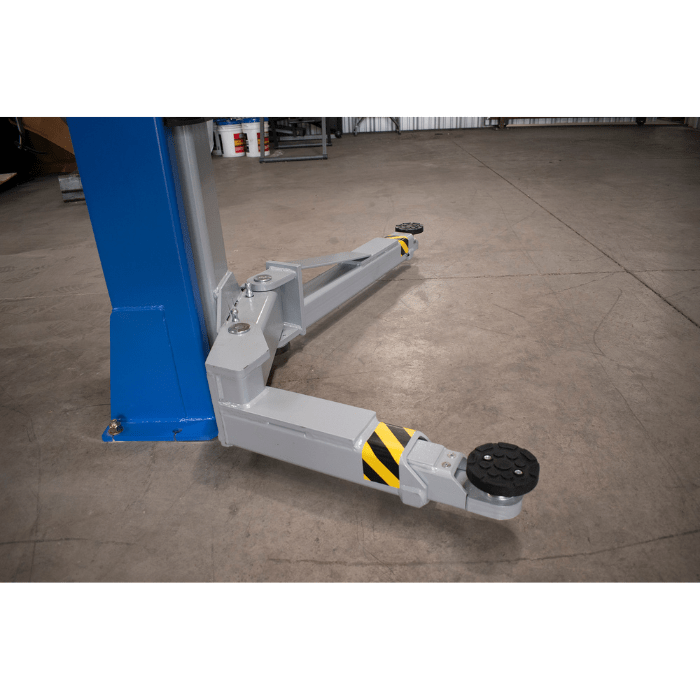

• Automatic Arm Restraints: As soon as the arms make contact with a vehicle, the built-in gears automatically lock into place. This ensures the lift arms stay secure during operation, reducing the risk of slippage or uneven lifting.
• Overhead Shutoff Bar: A built-in overhead safety bar stops the lift instantly if a vehicle roof or rack makes contact. This prevents accidental damage to both vehicles and the lift, adding an extra layer of operator protection.
• Heavy-Duty Carriages: Equipped with UHMW polyethylene rub blocks, the carriage system resists wear and extends the life of the lift. This feature ensures smooth operation and reduced maintenance over years of daily use.
Minimum Garage Requirements
✔ Ceiling Height: At least 150" (12'6") recommended ✔ Footprint: 104" drive-thru x 145" overall (8'8" x 12'1") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 220V – 20 AMP – 1 Phase ✔ Overall Lift Height: 144" (12'0") (measure before ordering)
✔ Ceiling Height: At least 150" (12'6") recommended
✔ Footprint: 104" drive-thru x 145" overall (8'8" x 12'1")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 220V – 20 AMP – 1 Phase
✔ Overall Lift Height: 144" (12'0") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
iDEAL TP10KAC-DX 10,000 lb 2-Post Car Lift Specifications |
|
| Manufacturer | iDEAL |
| Model | TP10KAC-DX |
| Lift Type | Two-Post, Clear Floor |
| Configuration | Bi-Symmetric (asymmetrical or symmetrical arm setup) |
| Capacity | 10,000 lbs. Total (2,500 lbs. Per arm) |
| Certifications | ALI Certified, ANSI/ALI standards |
| Overall Height | 144" (11’ 11”) |
| Overall Width (with Power Unit) | 145-1/2" |
| Width Between Columns | 116" |
| Drive-Thru Clearance | 104" |
| Max Lifting Height | 71" (76-1/2" w/ adapters) |
| Min. Pad Height | 4" |
| Arm Reach | Front: 23"-45" |
| Lifting Speed | ~50 seconds |
| Ship Weight | 1,705 lbs. |
| Power Requirements | 220V. 20 AMP. 1 Phase |
| Hydraulic Pressure | Max 3,050 PSI |
| Hydraulic Fluid | ~12 quarts SAE-10 / AW-32 |
| Shipping Dimensions | 140" x 19" x 48" |
| Warranty | 5 Years Structure, 1 Year Parts - Under Normal Use |
iDEAL TP10KAC-DX Frequently Asked Questions
What does "ALI Certified" actually mean?
The Automotive Lift Institute independently tests the lift's structural design, manufacturing process, and lifecycle durability -- it's third-party verification, not a marketing badge. For commercial shops, ALI certification is often what insurance carriers and OSHA-minded inspectors look for. Our What Is ALI Certification? guide covers when it's required and when it's optional.
What does "bi-symmetric" mean on the TP10KAC-DX?
The arms adjust to load vehicles either asymmetrically (set rearward, doors swing clear of the columns) or symmetrically (centered, even weight distribution) -- no arm swaps needed. One lift covers compact cars through full-size trucks.
Will my truck fit on the TP10KAC-DX?
A 10,000 lb 2 post lift with 2,500 lbs per arm covers sedans, SUVs, half-ton and most 3/4-ton pickups. The 104" drive-thru clearance takes full-size trucks with mirrors. For 1-ton and loaded work trucks, step up to the 12,000 lb TP12KSC-DX.
Which ALI-certified lift is right for me?
This TP10KAC-DX is the bi-symmetric 10K all-rounder. Heavier fleet work? The TP12KSC-DX carries 12,000 lbs on a taller frame. Want an ALI-certified 10K from another line? Compare the Launch TLT210-XT.
How much ceiling height do I need?
Plan on 150" (12'6") -- the overhead assembly stands 144". Under 10 feet of ceiling? A floor-plate model like the Tuxedo TP9KFX keeps everything at about 112" tall.
Do I need to bolt it to the floor?
Yes -- every 2-post must be anchored. The TP10KAC-DX calls for concrete at least 4" thick at 3,000 PSI compressive strength. Verify your slab before ordering.
Is the iDEAL TP10KAC-DX worth it?
Full ALI certification at this price point is rare -- most 10K lifts in the band skip it. Add direct-drive hydraulics, an overhead shutoff bar, and a 5-year structural warranty, and the case makes itself for insurance-conscious shops. See the Reviews tab above for buyer feedback, and our 2-Post vs 4-Post guide if you're still weighing lift types.
