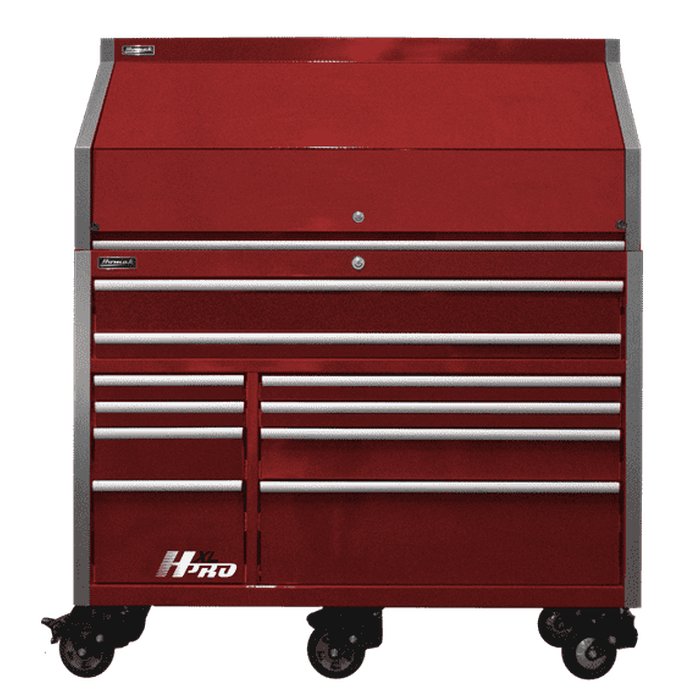

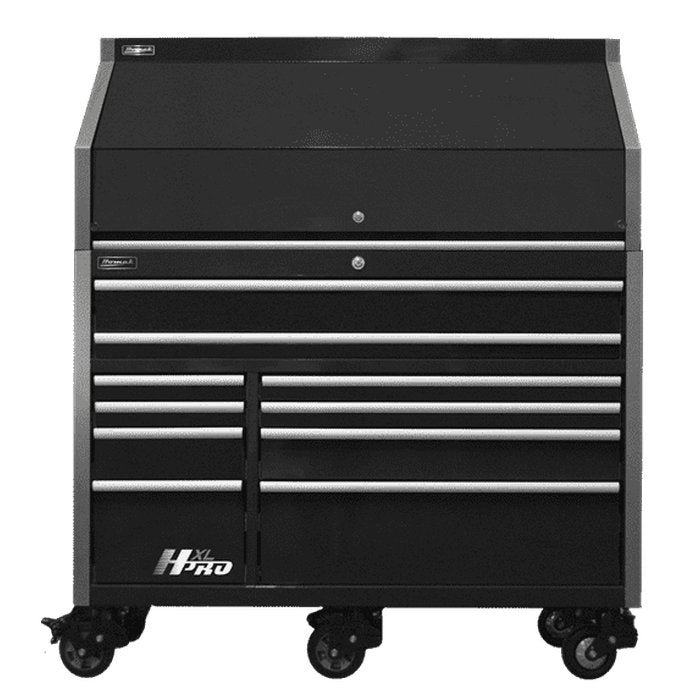

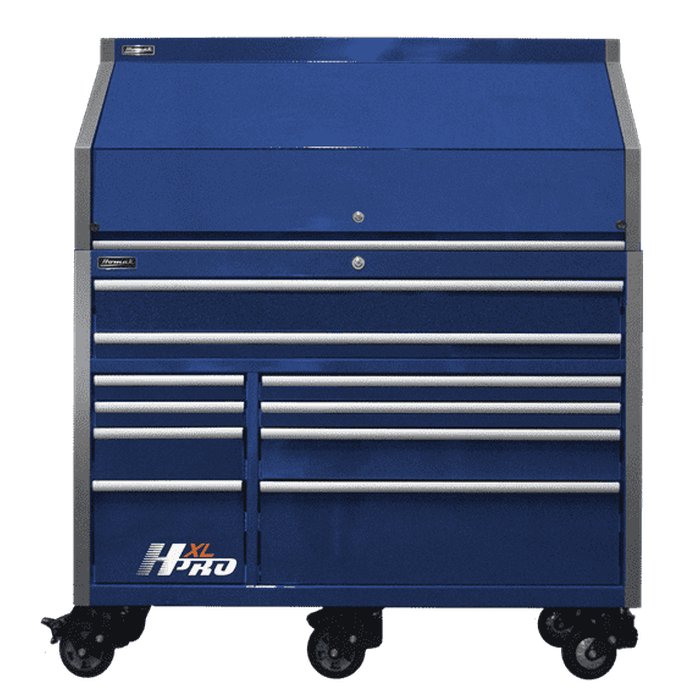

Homak 60" Big Dawg HXL Pro 10-Drawer Roller Cabinet + Canopy Combo w/ Stainless Top
60-Inch Big Dawg HXL Pro Combo - Roller Cabinet with Stainless Top and Bolt-On Canopy
The 60-inch Big Dawg HXL Pro Series Combo is Homak's flagship HXL rig - a 10-drawer roller cabinet with a polished stainless-steel work top plus a full-length canopy overhead with grommet cutouts, a 3-outlet power strip, and Toolboard backsplash for hanging hand tools. HXL is the tier where Homak stops compromising: 265-lb drawer slide capacity, 900-lb casters, 16-gauge steel throughout.
The roller cabinet rolls on six 6-by-2-inch casters rated 900 lbs each - four spring-loaded swivel-locking, two spring-loaded swivel. Six casters not because a 10-drawer roller needs it, but because when the cabinet holds a mechanic's full arsenal plus a torque wrench set that ways lie the total load, four casters compromise the frame. Full-length silver aluminum contoured scoop-style lift-latch pulls on every drawer.
HMC High Security Tubular locking system across both units with a matched key. Three color options: Midnight Black, Fury Red, or Rally Sport Blue. Ships freight. Backed by Homak's Exclusive Limited Lifetime Warranty.
Prefer a top chest instead of a canopy? Browse the Browse Big Dawg HXL Pro top chest options.

Key Features of the 60" HXL Pro Combo That Matter for Serious Shops:
• 265-Lb Drawer Slides: Every drawer rides on ball-bearing slides rated 265 lbs per pair - 2.65x the capacity of standard Homak slides. Real torque wrench sets, engine tools, and heavy specialty gear go in drawers, not on the floor.
• Six 900-Lb Casters: 6" x 2" heavy-duty - four spring-loaded swivel-locking, two spring-loaded swivel. 5,400 lb combined rolling capacity distributes a fully-loaded HXL cabinet without deforming the frame.
• Bolt-On Canopy Overhead: Toolboard backsplash with square peg holes for hanging hand tools. Grommet cutouts + 3-outlet power strip. Full-length work zone at counter height.
• Stainless-Steel Work Top: Between the roller and the canopy - solvent-resistant, wipes clean, doubles as a torque-work zone.
• HMC High Security Tubular Lock, Matched: Real tubular cylinder across both units with a matched key. Single key controls the whole rig.
• 16-Ga Steel + 3.2 Mil Powder Coat: 16-gauge body/frame + 3.2 mil UV-protective high-gloss finish. HXL construction - built to outlast the mechanic.

60" Big Dawg HXL Pro Series Combo Specifications | |
| Manufacturer | Homak Manufacturing (est. 1947, USA) |
| Model | HX02060001-HX04060111 (60" HXL Pro Canopy + Roller with SS Top) |
| Color Options | Midnight Black, Fury Red, Rally Sport Blue |
| Roller Cabinet Dimensions | 60" W x 30" D x 45-1/4" H |
| Canopy Dimensions | 60" W x 30" D x 26-1/8" H |
| Roller Cabinet Storage | 33,091 cu in |
| Canopy Storage | 39,810 cu in |
| Roller Cabinet Drawers | 10 drawers |
| Canopy Features | Toolboard backsplash + grommet cutouts + 3-outlet power strip |
| Top Surface | Polished stainless steel work top on the roller |
| Drawer Slides | Replaceable ball-bearing, 265 lb per pair |
| Drawer Pulls | Full-length silver aluminum contoured scoop-style lift-latch |
| Casters | 6x 6" x 2" heavy-duty, 900 lb each (4 spring-loaded swivel-locking, 2 spring-loaded swivel) |
| Steel Gauge | 16-gauge / 1.5 mm body & frame |
| Locking System | HMC High Security Tubular (matched key) |
| Interior Finish | Non-slip PVC foam drawer liners |
| Exterior Finish | UV-protective 3.2 mil high-gloss powder coat |
| Product Weight | 949 lbs combined (226 canopy + 723 roller) |
| Warranty | Exclusive Limited Lifetime Warranty |
Questions about the HXL Pro tier vs. the RS Pro line, or configuring the combo for your bay? Talk to a Homak Specialist.
