Ekko 5,000 lb Electric Forklift – 189" Max Lift Height | EK25GB

$30,799.00Regular price$35,000.00
Save $4,201.00

✓ No Sales Tax Outside GA and IL

✓ Free Delivery from U.S. Warehouses

✓ Talk to a Specialist — 470-208-2754

✓ Military Discount Available for Veterans

✓ Want a Better Price? Pay by Wire — Click Here to Request a Discount

✓ Commercial Quotes Available — Click Here for a Fast, Custom Estimate

Charger Voltage
Delivery Options
Do you have the necessary equipment to unload this item?

Please confirm if you have a forklift, backhoe, or skid steer with forks rated for 8,910–16,250 lbs, or a 48–52" loading dock. If not, we can arrange rollback tow truck unloading for a $350 flat rate.

Residential or commercial address?

You can always confirm availability ahead of time at support@pitstop-pro.com.

3-year warrantyBacked by Ekko Lifts
Lifetime support(470) 208-2754
Free shippingOn this item
Ekko 5,000 lb Electric Fo...
$30,799.00
Overview

Need Reliable Power? Upgrade to the Ekko 5,000 lb Electric Forklift – EK25GB for All‑Day Performance



When you’re shopping for an Electric forklift, nothing’s worse than unexpected downtime bringing your operations to a halt. Cheap models can stall under heavy pallets, forcing teams to wait around while deadlines slip. Maintenance costs sneak up on you when parts wear out faster than you budgeted for. Broken components and battery issues mean more calls to the shop and less time moving product. You need a dependable lift that powers through your busiest days without constant repairs or run-time worries.

The Ekko 5,000 lb Electric Forklift – EK25GB packs serious muscle with its 5,000 lb load capacity and a towering 189" max lift height. Whether you’re stacking pallets on high racking or loading trucks at the dock, this 5000 lb forklift tackles it all without breaking a sweat. A generous 47.48" free lift clears tight doorways and low ceilings without extra adjustments. The 3‑way side shifting forks let you nudge your loads into perfect position, every time. And its 65.35" wheelbase keeps you stable, even at full height.

Built by Ekko Lifts with heavy‑duty steel and precision robotic welding, the EK25GB is designed for long hauls and tough shifts. Solid pneumatic tires and a ZAPI controller smooth out rough floors and bumpy surfaces, so you’re never jolted off course. Ergonomic handles and intuitive controls ease operator fatigue, letting your team stay focused through long runs. A robust 48 V/600 Ah lead‑acid battery gives you consistent power all day, and optional 220 V charging offers flexibility wherever you need it. From warehousing to manufacturing to shipping docks, this forklift is ready to earn its keep from day one.

From light-duty to high-capacity, our forklift lineup has what you need.

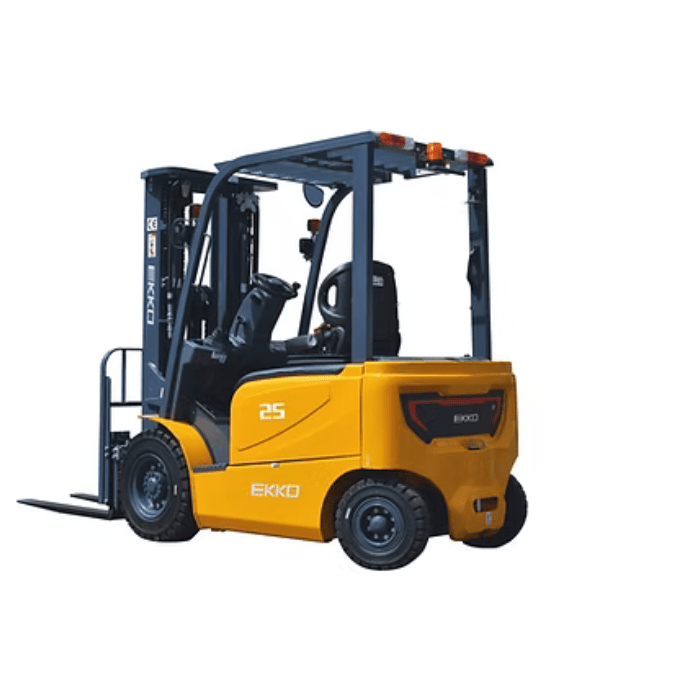

Yellow EKKO EK25GB 48V lead-acid forklift featuring solid pneumatic tires, 84.2 turning radius, and adjustable 42 forks.

Benefits of the Ekko EK25GB Electric Forklift

Increase Throughput | Move more pallets per shift

Boost Warehouse Efficiency | Reduce load‑handling time

Lower Maintenance Costs | Durable build minimizes repairs

Enhance Operator Safety | Smooth controls and stable design

Maximize Uptime | Reliable battery and charging options

Simplify Material Handling | Intuitive operation for any team member

Key Features of the Ekko EK25GB You’ll Love:

  • Impressive 5,000 lb Load Capacity: The EK25GB tackles even your heaviest pallets with ease, running through full‑loads without strain. Its robust lifting system is built to handle continuous use in busy warehouse floors.
  • 189" Maximum Lift Height: Reach towering rack levels effortlessly, stacking goods as high as 15.75 ft. The generous free lift of 47.48" ensures clearance under low beams and doorways.
  • Advanced ZAPI Controller: Experience smooth acceleration and precise speed control in any condition. The smart controller adapts to load weight and floor texture, optimizing power delivery and conserving battery life.
  • Heavy‑Duty Steel Construction: Crafted from high‑grade steel and sealed with robotic welding for rock‑solid durability. It withstands tough impacts and harsh environments day in and day out.

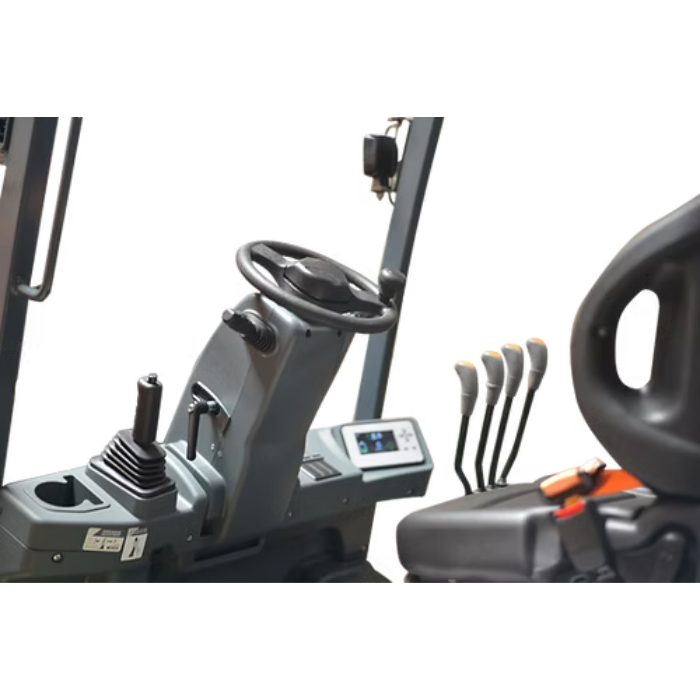

  • Ergonomic Operator Comfort: Thoughtfully designed handles and intuitive controls reduce operator fatigue on long shifts. Clear instrumentation and accessible levers keep your team focused and efficient.
  • Precision Side‑Shift Function: Fine‑tune fork positioning on the fly with a reliable 3‑way valve. Perfect for narrow pallets or awkward loads, saving time and reducing rework.

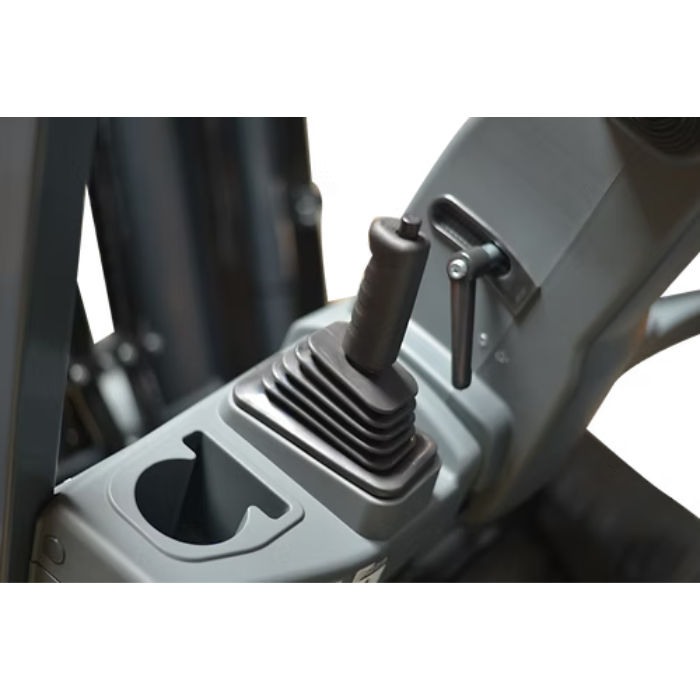

Ergonomic hydraulic joystick and user-friendly controls on the Ekko EK20GS for accurate and efficient load handling

Ekko EK25GB 5,000 lb Electric Forklift Specifications

Manufacturer Ekko Lifts
Model EK25GB
Lift Type Electric
Drive Type Electric
Load Capacity (lb) 5,000
Load Center Distance (in) 24
Wheelbase (in) 65.35
Max. Lifting Height (in) 189
Free Lift Height (in) 47.48
Lowered Mast Height (in) 83
Mast/Fork Carriage Tilt F/B (°) 6 / 6
Side Shifting Forks 3‑way valve
Overall Length (in) 137.95
Overall Width (in) 46.45
Fork Size (T/W/L) (in) 1.57 / 4.72 / 42.12
Fork Adjust Width (in) 8.7 – 29
Turning Radius (in) 84.2
Max. Gradient Performance (%) 15 / 25 (laden / unladen)
Battery Voltage (V/Ah) 48 / 600 AH Lead acid
Service Weight (lb) 9,981
Lifting Motor (kW) 12
Driving Motor (kW) 11
Charger 3‑Phase 480 V (optional 220 V)
Warranty Frame, Forks & Mast – 3 yr / 6,000 hr
Electric Drive & Hydraulic Components – 1 yr / 2,000 hr
Battery – 1 yr / 2,000 hr
Standard Parts – 1 yr / 2,000 hr
Wearable Items – 30 days
Warranty

Warranty

  • Warranty start date: Either the date of shipment to the end user or 90 days after shipment to the dealer, whichever comes first.
  • Electric Units:
    • Wearable parts: 30 days
    • Parts & Electronics: 1 year
    • Frames, Forks, Mast: 3 years
    • Lithium Batteries: 1 or 5 years depending on model
    • Labor: Up to 6 months (pre-approval required)
  • LPG & Diesel Forklifts:
    • Frame, Forks, Mast: 3 years or 6,000 hours
    • Engine: 2 years or 4,000 hours
    • Parts: 1 year or 2,000 hours
    • Wearables: 30 days
    • Labor: Up to 6 months or 1,000 hours (max 60% reimbursed, pre-approval required)
  • Warranty Claims:
    • Submit form to support@pitstop-pro.com
    • Include photos/videos and data plate of unit
    • Provide clear explanation of issue
    • Claims will not begin until all documents are received

For assistance, contact us at: support@pitstop-pro.com or call (470) 208‑2754.

⛟Shipping and Returns

Shipping

  • Free Shipping on All Ekko Lifts Products — No Quote Needed.
  • Shipping and lead times vary by model and supplier. We do not guarantee delivery timelines.
  • Product availability changes daily and must be confirmed before placing an order.
  • All shipping is freight-based and customer is responsible for unloading from the truck.
  • Liftgate service is only available for products under 1,000 lb.
  • Inspect all shipments immediately. Freight damage must be documented on the POD and reported with photos.
  • Failure to note damages on the Bill of Lading will void freight claims.

Returns

  • Returns must be pre-approved and initiated within 7 days of delivery.
  • Items must be new, unused, and in original condition.
  • All freight charges are the responsibility of the purchaser.
  • 20% restocking fee applies to approved returns and exchanges.
  • Defective parts must be reported within 7 days with photos/videos and are subject to inspection.
  • Incorrect parts (ordered or received) must be reported within 7 days with supporting documentation.

For assistance, contact us at: support@pitstop-pro.com or call (470) 208‑2754.
