Atlas Platinum ALI Certified Alignment 4-Post Lift - 14,000 lb. Capacity | PVL14OF-EXT
Atlas PVL14OF-EXT 4 Post Lift. Heavy-Duty Open Front Design, ALI Certified, 14K lb Capacity
Shopping for a 4 post car lift that can handle heavy vehicles and provide easy access for alignments is a challenge. Too many lifts cut corners on structure, lack ALI certification, or use outdated chain systems that create more problems than they solve. Especially when door dings and leveling issues start to add up. If you're tired of sacrificing quality or wasting time on clunky designs, this lift solves all that. Atlas's Platinum tier represents the company's premium ALI-certified line. The PVL14OF-EXT combines Platinum-grade construction with full alignment-ready features at the 14K capacity tier.

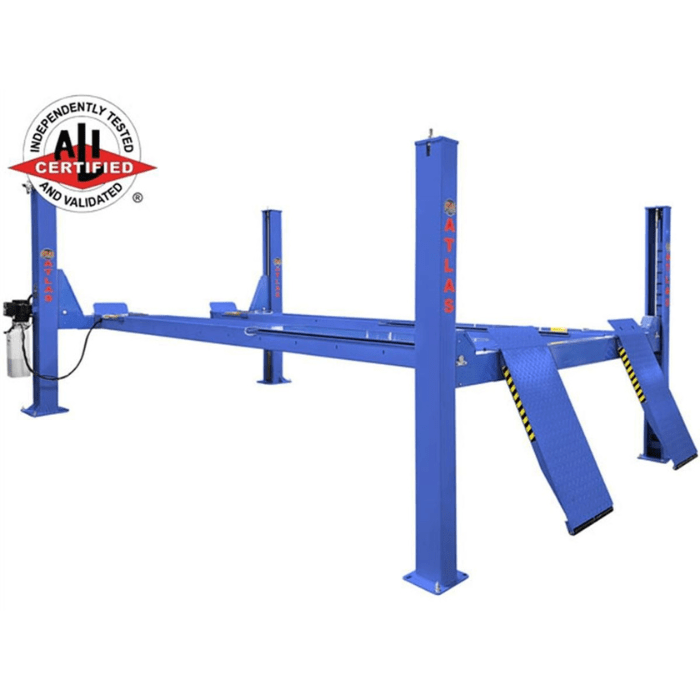

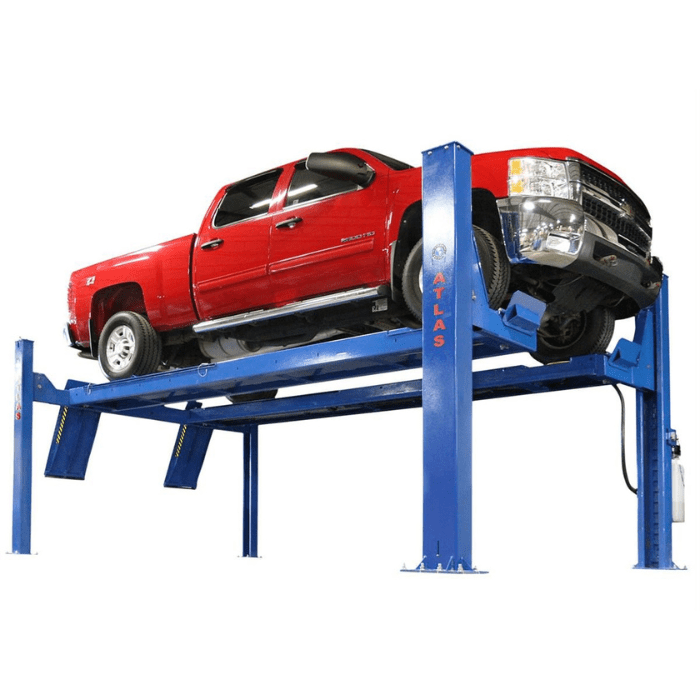

The Atlas Platinum PVL14OF-EXT is a heavy-duty, ALI-certified 4-post lift designed for commercial shops that need strength, accessibility, and precision. With a 14,000 lb. capacity, extra-long runways, and an open-front design, this lift is perfect for wheel alignments and general service work on trucks, vans, and long-wheelbase vehicles. Unlike older chain lifts, it features an under-runway hydraulic cylinder and a high-strength cable system for smoother operation and better leveling accuracy. 14,000 lb capacity with built-in turn plate cutouts and slip plates for accurate alignment work on commercial vehicles. The extended-length runways accommodate long-wheelbase trucks and work vans.
Backed by a 5-year structural warranty and powered by the premium ALLY AL3000 Power Unit, the Atlas 4 post lift stands out with enhanced safety features like a double lock system, built-in slip plates, and turntables for alignment tasks. Whether you're expanding your shop's capabilities or upgrading to something more reliable, this four post car lift delivers on every front. * For commercial alignment shops at the 14K capacity tier, the PVL14OF-EXT is one of the rare options that combines Platinum-tier ALI certification with full alignment-rack functionality.
Benefits of the Atlas PVL14OF-EXT Vehicle Lift
Key Features of the Atlas PVL14OF-EXT ALI Certified 14,000lb Four-Post Vehicle Lift You'll Love:
• Open-Front Design for Easy Access: Unlike traditional four post car lifts, this model eliminates the front crossbar, making it easier to work on suspension and steering components. Techs can access the underside of vehicles more efficiently, speeding up alignment and general repair tasks.

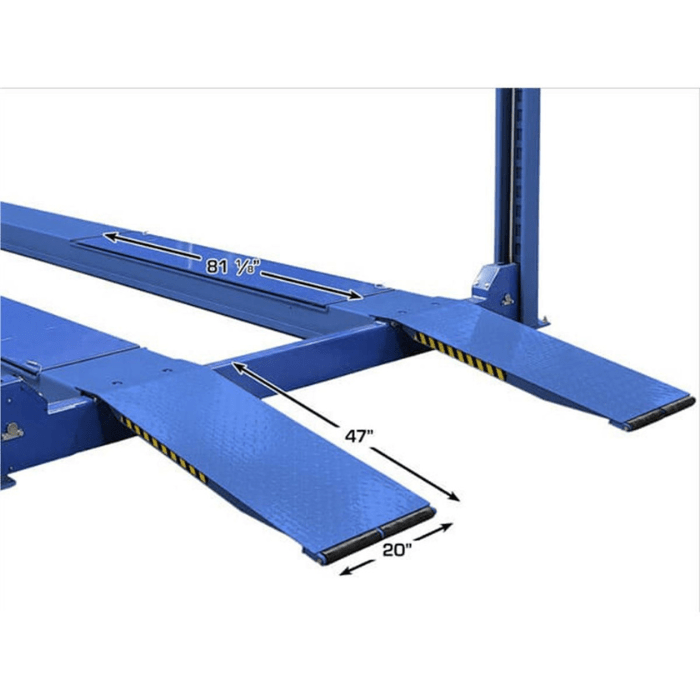

• Extra-Long Runways for Extended Vehicles: With 223 1/2" runways and a 203" max wheelbase, this 4 post lift easily handles longer trucks, vans, and commercial vehicles. The added length gives you flexibility in your bay and allows for more diverse service opportunities.

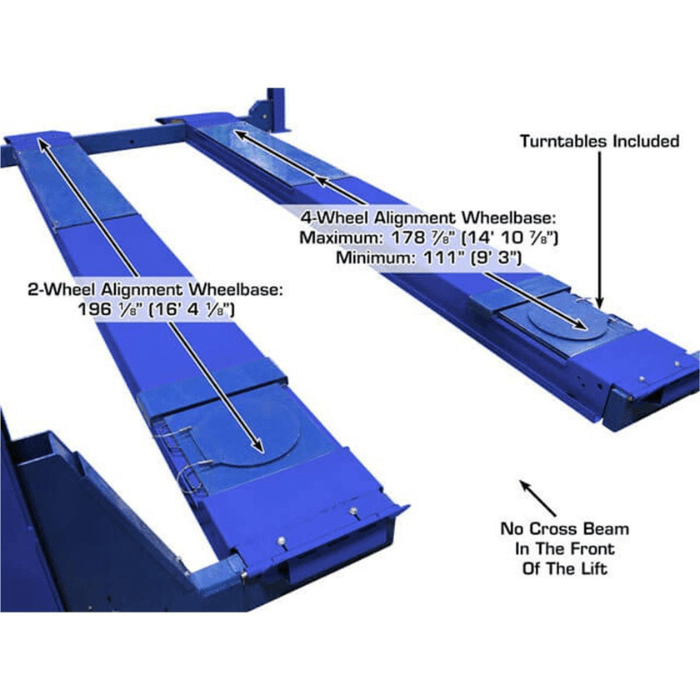

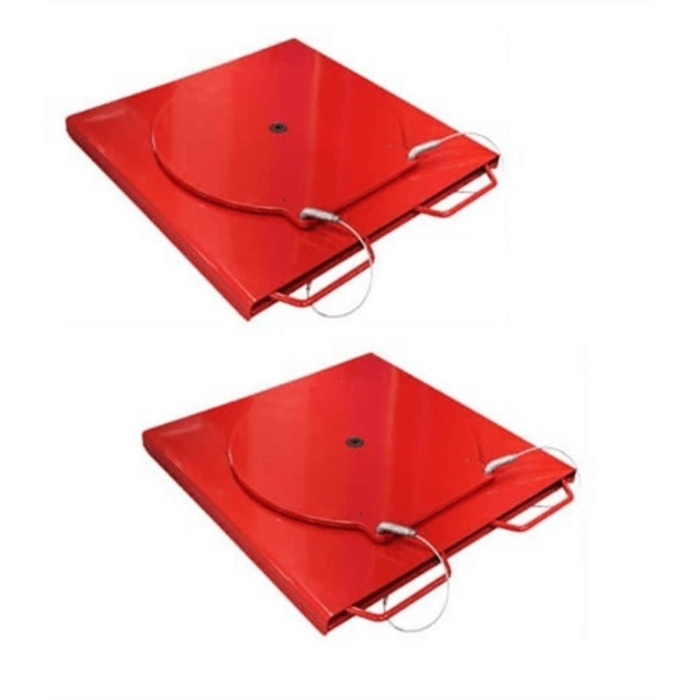

• Integrated Slip Plates and Turntables: Built-in alignment slip plates and included turntables make this lift ideal for wheel alignments without needing extra bolt-ons. Save time and keep your workflow seamless right out of the box.

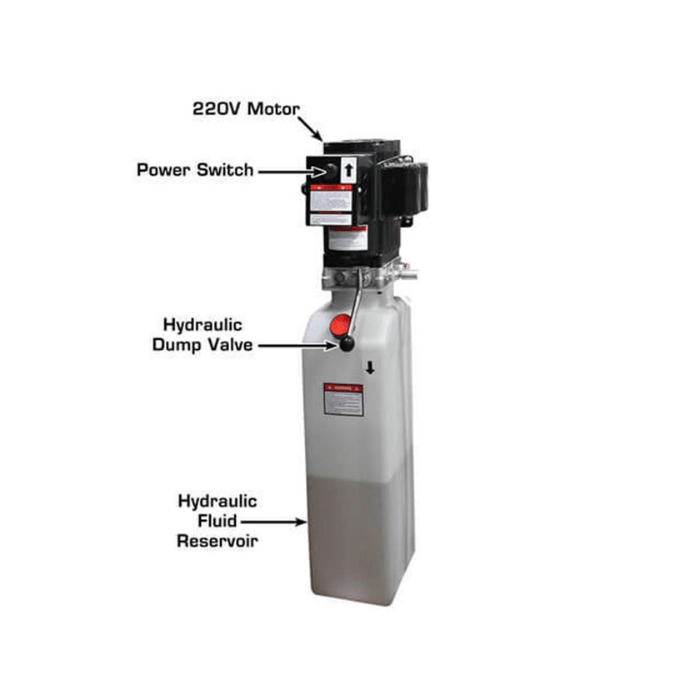

• Premium ALLY AL3000 Power Unit: This commercial-grade hydraulic system offers consistent torque and cooler operation. More motor windings and reinforced armatures mean better durability and smoother lifts, even under max load.

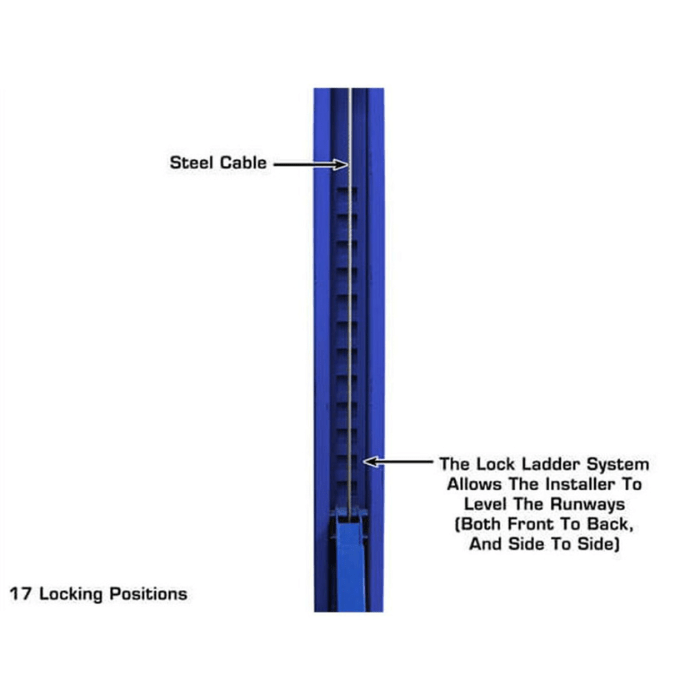

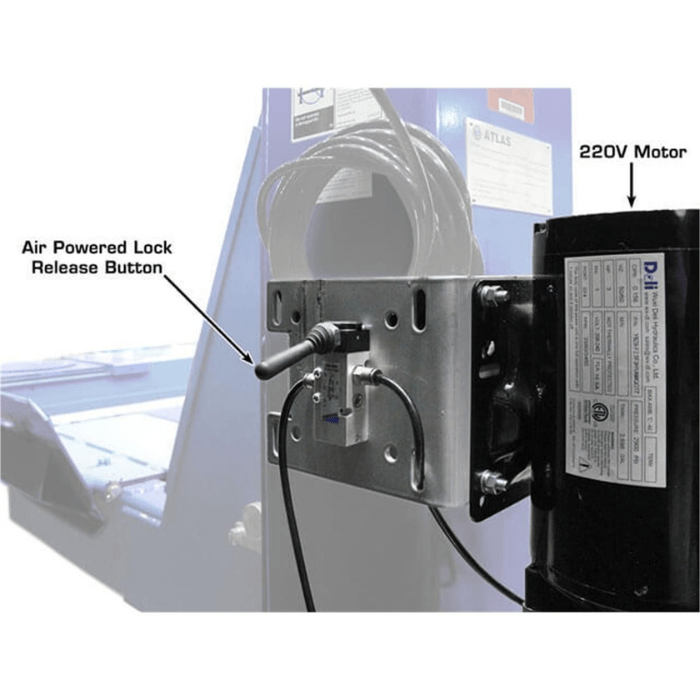

• Double Lock Safety System with External Air Release: The safety mechanism includes both mechanical and pneumatic locks, ensuring fail-safe lifting. Releasing all locks from a single point (external air supply required) improves workflow and minimizes downtime.
• Ready for Rolling Bridge Jacks: Factory-equipped tracks between the runways allow for the easy addition of a rolling bridge jack like the Atlas RJ7000, letting you lift all four wheels off the runways for brake, suspension, or wheel service.
Minimum Garage Requirements
✔ Ceiling Height: At least 98" (8'2") recommended ✔ Floor Space: 272" L x 140" W (22'8" x 11'8") ✔ Concrete Thickness: Minimum 6" (152.4 mm) ✔ Concrete Strength: Minimum 3000 PSI compressive ✔ Electrical: 220V, Single Phase, 30-Amp Breaker Recommended ✔ Post Height: 92" (7'8") (measure before ordering)
✔ Ceiling Height: At least 98" (8'2") recommended
✔ Floor Space: 272" L x 140" W (22'8" x 11'8")
✔ Concrete Thickness: Minimum 6" (152.4 mm)
✔ Concrete Strength: Minimum 3000 PSI compressive
✔ Electrical: 220V, Single Phase, 30-Amp Breaker Recommended
✔ Post Height: 92" (7'8") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Atlas PVL14OF-EXT Commercial Grade Four-Post Lift Specifications |
|
| Manufacturer | Atlas |
| Lift Type | ALI Certified Open Front Alignment 4 Post Lift |
| Capacity | 14,000 lb. |
| Lifting Height | 73 1/4" (6' 1 1/4") |

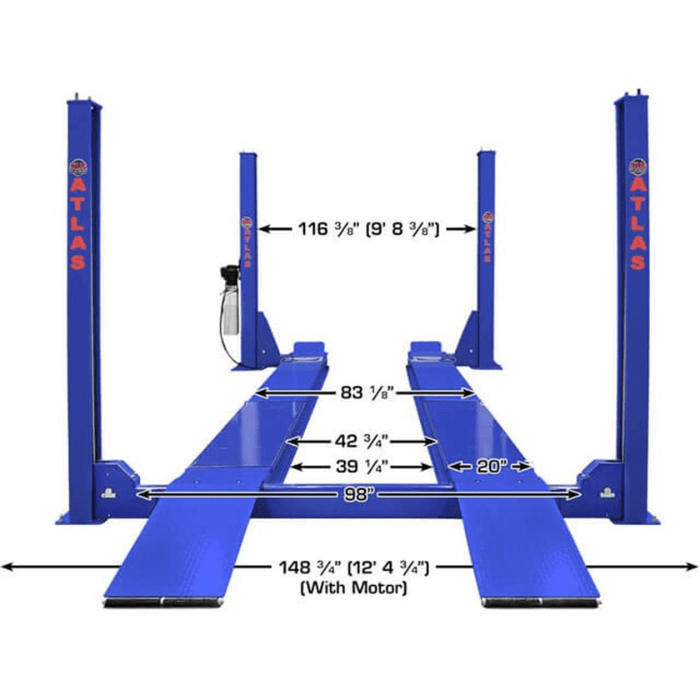

| Overall Width (No Motor) | 140 1/8" (11' 8 1/8") |
| Overall Width (With Motor) | 148 3/4" (12' 4 3/4") |
| Overall Length with Ramps | 272 1/8" (22' 8 1/8") |
| Length Between Columns | 207" (17' 3") |
| Runway Length | 223 1/2" (18' 7 1/2") |
| Runway Width | 20" |
| Runway Thickness | 7" |
| Width Between Runways | 42 3/4" (w/ Rail 39 1/4") |
| Outside Runway to Outside Runway | 83 1/8" (6' 11 1/8") |

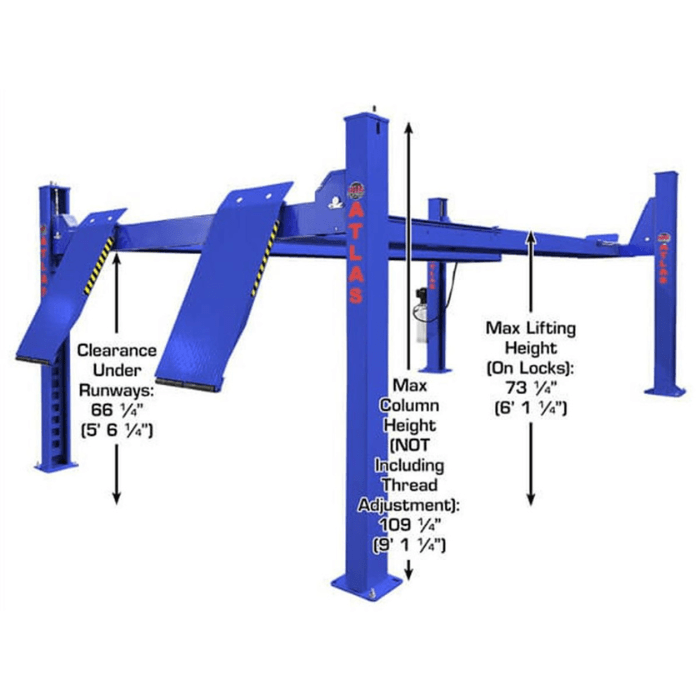

| Clearance Under Runways | 66 1/4" (5' 6 1/4") |
| Clearance Between Columns | 116 3/8" (9' 8 3/8") |

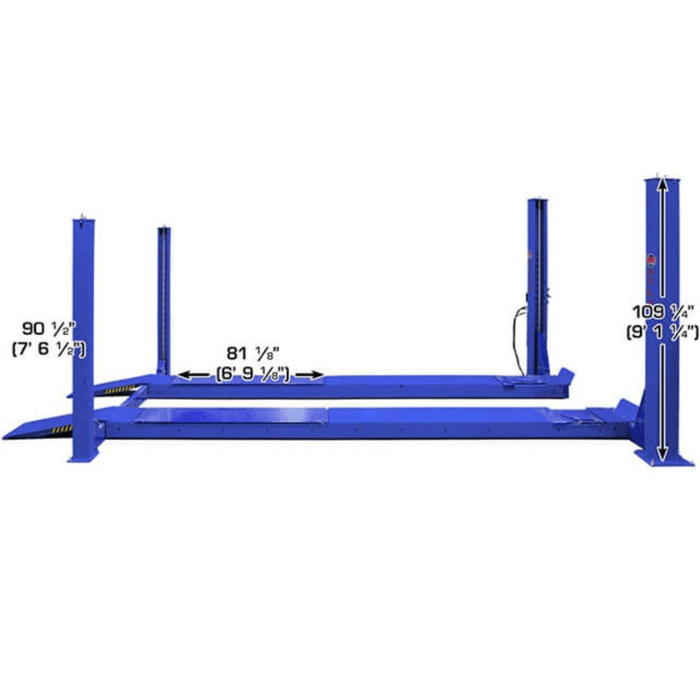

| Height of Columns | Rear: 92 1/2" (7' 8 1/2") / Front: 109 1/4" |
| Maximum Wheelbase | 203" (16' 11") |
| Drive-Thru Clearance | 94 1/2" (7' 10 1/2") |
| Air Requirement | 85-115 PSI (External Air Supply Required) |
| Electrical Requirement | 220V, Single Phase, 30-Amp Breaker Recommended |
| Oil Requirement | 3-5 Gallons AW32 or AW46 (Not Included) |

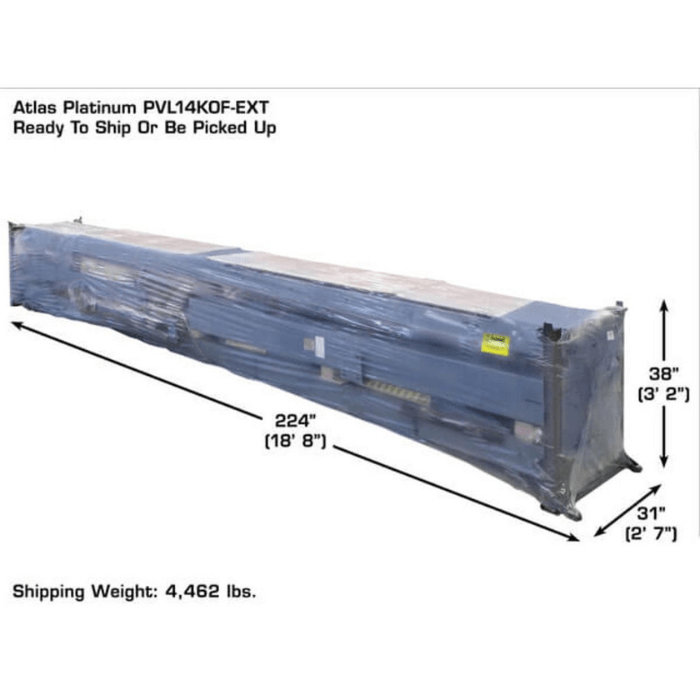

| Shipping Weight | 4,462 lb. |
| Concrete Requirement | Minimum 6" depth, 3000 PSI rating |
