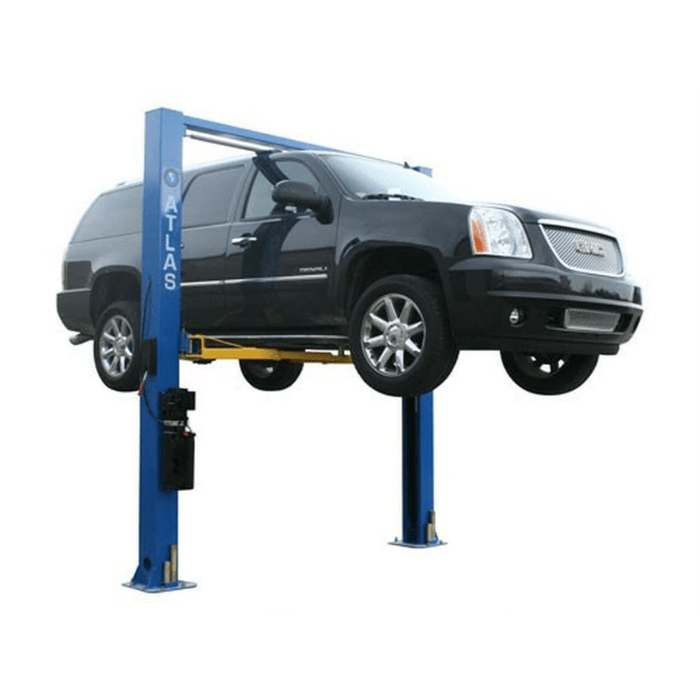

Atlas Overhead 2-Post Lift – 9000 lb. Capacity | 9OHSC-SS
No Compromise on Space or Strength. The Atlas 9OHSC-SS 2-Post Lift Excels in Small Shops and Garages
If you're in the market for a high-quality two post car lift, the Atlas Equipment 9OHSC Overhead 2-Post Lift is a top contender. Ideal for smaller commercial shops or home garages, this lift offers 9,000 lbs. of lifting capacity, making it versatile enough to handle vehicles ranging from compact cars to full-sized SUVs. One of the key challenges when choosing a two-post car lift is ensuring it fits in your space and can handle the workload, and the Atlas 9OHSC 2 post car lift excels in both areas. The SS variant of the 9K overhead line includes Atlas's stainless-steel component upgrades. For shops in coastal or high-humidity environments, the corrosion resistance translates to measurably longer working life.
With its overhead design, the 9OHSC allows for open-floor operation, which maximizes floor space and gives you better flexibility to move around. It’s built to last with its single-piece column and extra-long carriages, offering exceptional strength and durability. Whether you're lifting a Smart Car or a Suburban, this lift provides the reliable performance you need for years of service. 9,000 lb capacity with stainless-steel column and component construction. Overhead design keeps the bay floor open, with the SS variant adding meaningful durability in environments that corrode standard steel.

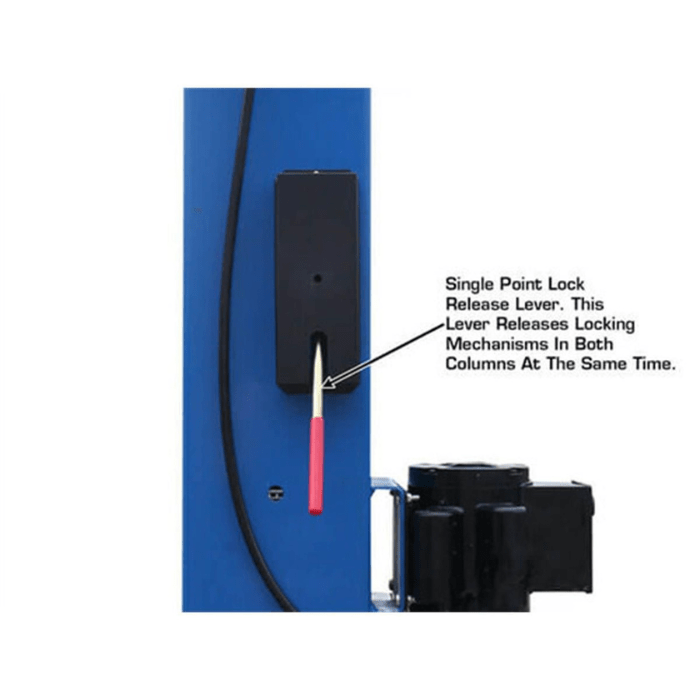

Designed for ease of use and minimal maintenance, the Atlas 9OHSC also features automatic arm restraints and a single-point lock release, adding to its convenience and safety. If you’re looking for a two post lift that combines quality with affordability, the Atlas 9OHSC is a solid investment. * For coastal shops, high-humidity garages, or any environment where standard steel corrosion is a real concern, the 9OHSC-SS is one of the few 9K options engineered for those conditions.
Benefits of the Atlas 9OHSC-SS Auto Lift
Key Features of the Atlas 9OHSC 9000lb Overhead Two-Post Lift You'll Love:
• 9,000 lb. Capacity: The Atlas 9OHSC Overhead 2-Post Lift is built to lift up to 9,000 lbs, making it suitable for various vehicle types, from compact cars to heavy-duty trucks. Whether you're servicing a sedan or an SUV, this lift provides the strength needed for safe, reliable lifts.
• Overhead Design: This lift's overhead configuration offers open-floor operation, which provides greater maneuverability beneath the vehicle. The clear floor space allows you to work more freely, ensuring you can perform maintenance tasks without obstruction.

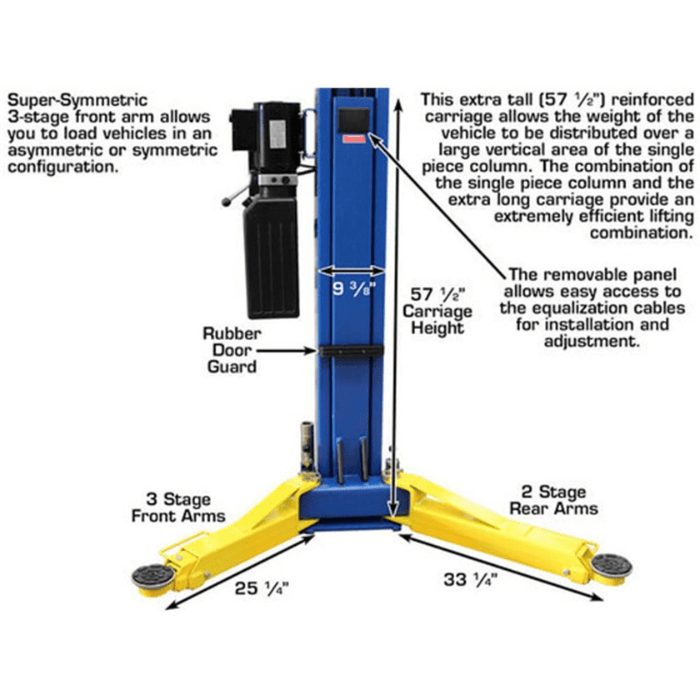

• Single-Piece Column Design: The single-piece formed column not only contributes to a sleek design but also enhances the lift's overall strength and stability. This robust structure ensures that the Atlas 9OHSC can withstand years of heavy use with minimal maintenance.

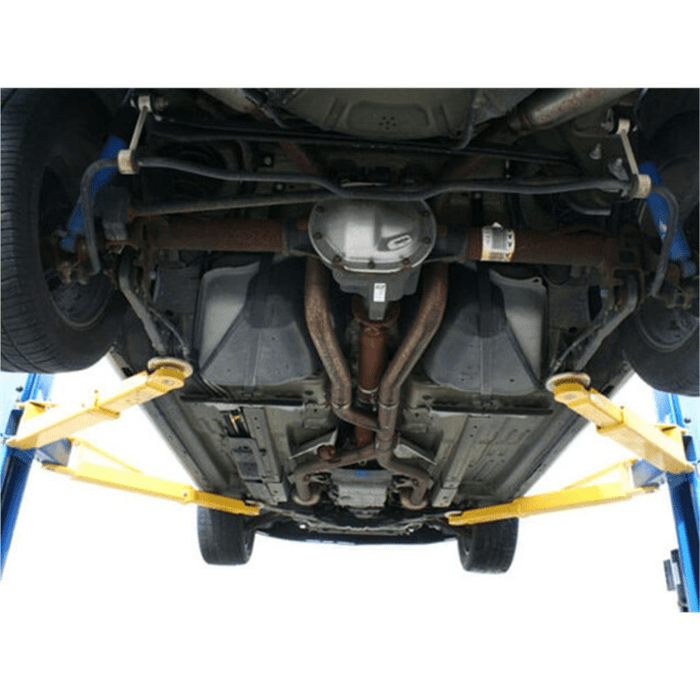

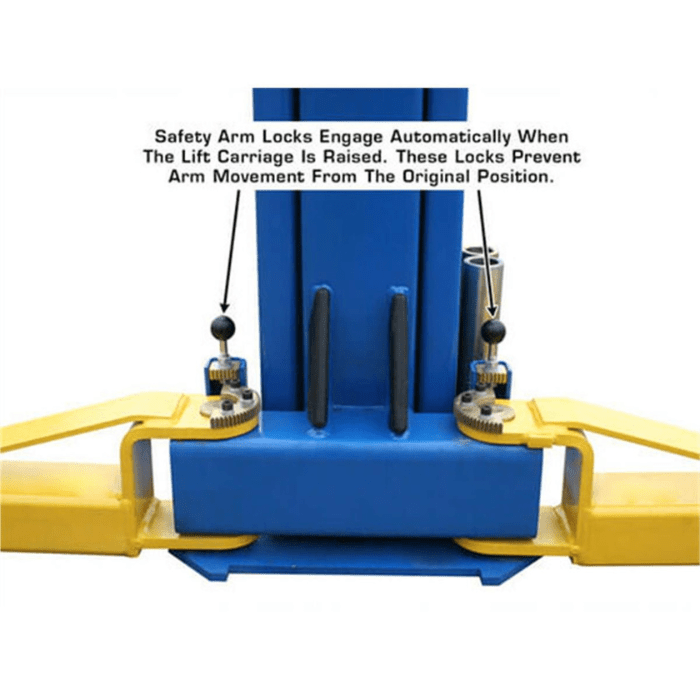

• Automatic Arm Restraints: The automatic arm restraints are designed for added safety and convenience. These restraints ensure that the arms remain securely in place during the lifting process, reducing the risk of accidental movement or damage to your vehicle.
• Dual Hydraulic Chain-Drive Cylinders: Featuring dual hydraulic chain-drive cylinders, this lift delivers consistent and reliable performance. The dual system helps distribute the weight evenly, minimizing strain on each component and extending the lifespan of the lift.
• Free 12-Piece Truck Adapter Set: With the 12-piece truck adapter set included, the Atlas 9OHSC provides greater flexibility when lifting a wide range of vehicles. These adapters ensure that your lift is equipped to handle both small and large vehicles with ease.
Minimum Garage Requirements
✔ Ceiling Height: At least see specifications below recommended ✔ Footprint: see specifications below ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 220 volt single phase, 30 amp breaker recommended ✔ Overall Lift Height: see specifications below (measure before ordering)
✔ Ceiling Height: At least see specifications below recommended
✔ Footprint: see specifications below
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 220 volt single phase, 30 amp breaker recommended
✔ Overall Lift Height: see specifications below (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: 2-post overhead lifts inherently require tall ceilings. Verify your overhead clearance before ordering.
Atlas 9OHSC-SS Overhead Two-Post Car Lift Specifications |
|
| Manufacturer | Atlas |
| Capacity | 9,000 lbs |

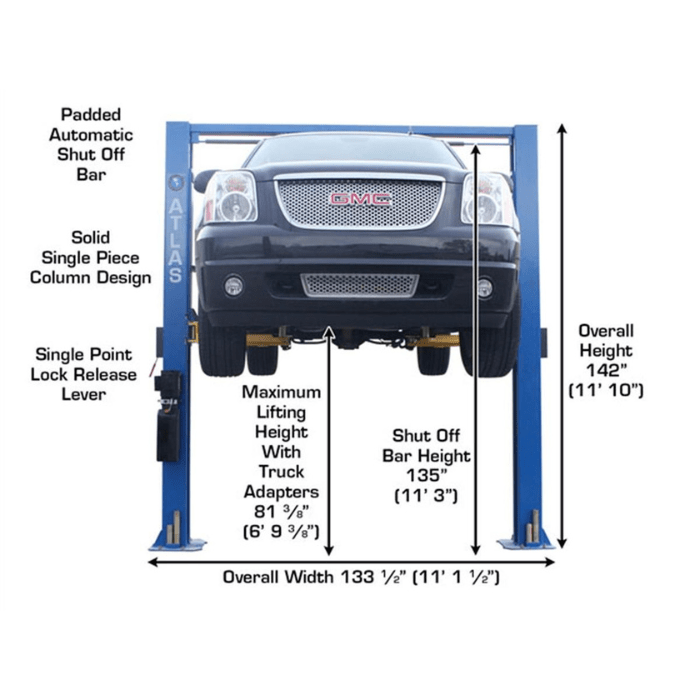

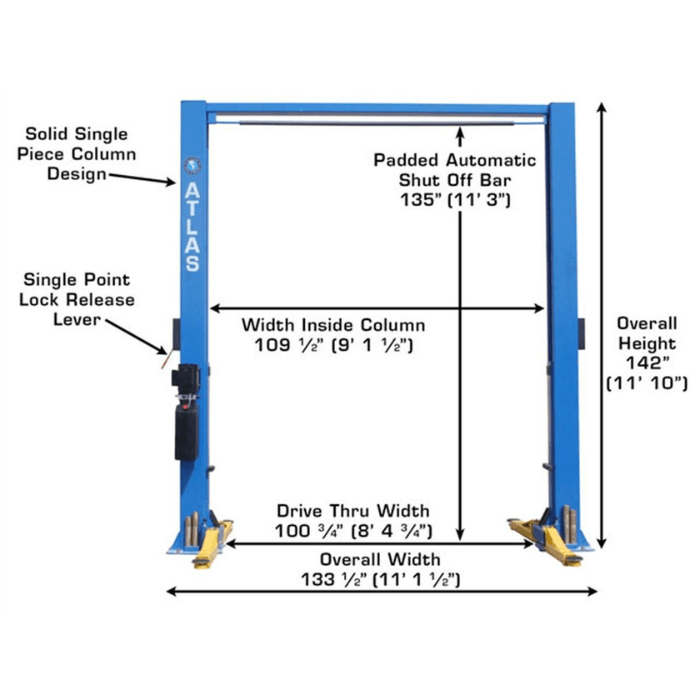

| Overall Floor Width | 133 1/2" (11' 1 1/2") |
| Outside Column to Outside Column | 125 1/2" (10' 5 1/2") |
| Maximum Lift Height (Without Adapters) | 76 3/4" |
| Maximum Lift Height (With Adapters) | 87 3/4" |
| Minimum Arm Height | 4" |
| Inside Column | 109 1/2" (9' 1 1/2") |
| Drive Thru | 100 1/2" (8' 4 1/2") |

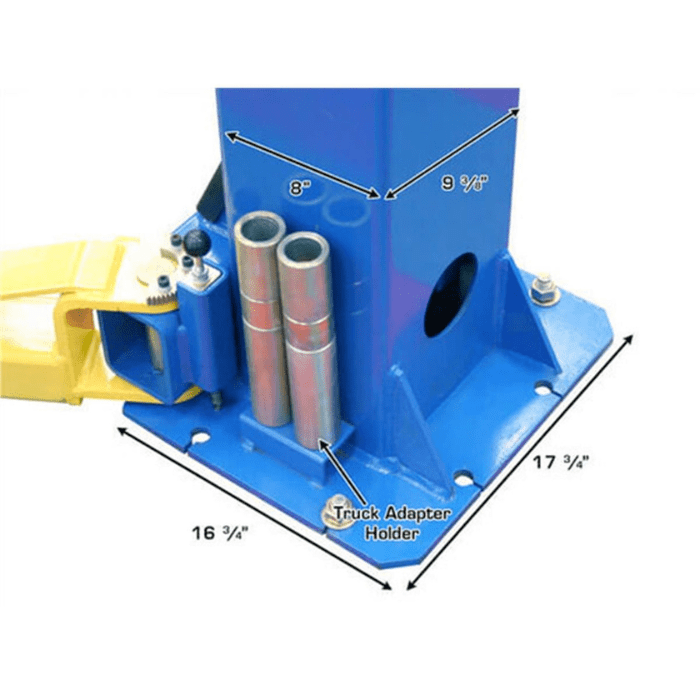

| Column Size | 8" x 9 3/8" |
| Motor/Electrical Requirement | 220 volt single phase, 30 amp breaker recommended |
| Oil Requirement | 3-5 Gallons AW32/AW46 (Not Included) |
| Shipping Weight | 1,430 lbs |

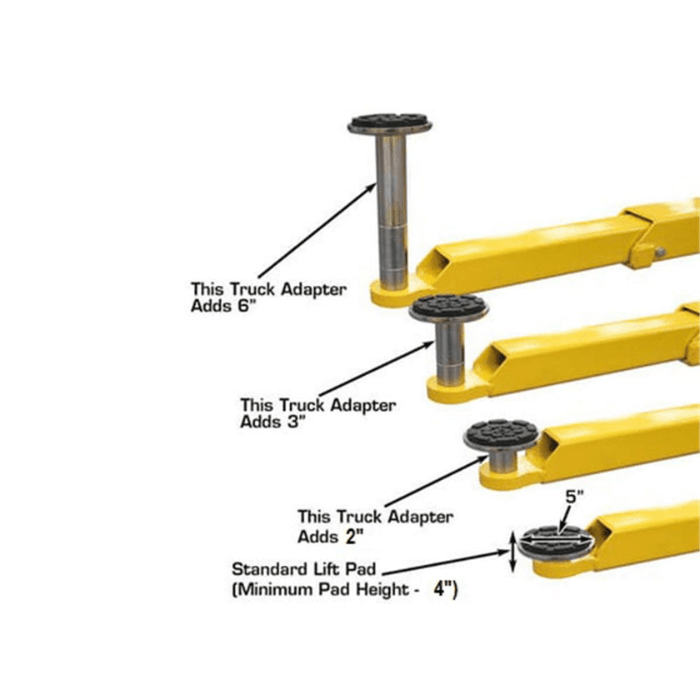

| Adapter Heights | 4 each of 2", 3", 6" |
