Atlas In Ground Full‑Rise Scissor Lift - 9000 lb. Capacity | FM9SL
Unmatched Floor Access. The Atlas FM9SL 9,000 lb In-Ground Scissor Lift for Clean, Open Bays

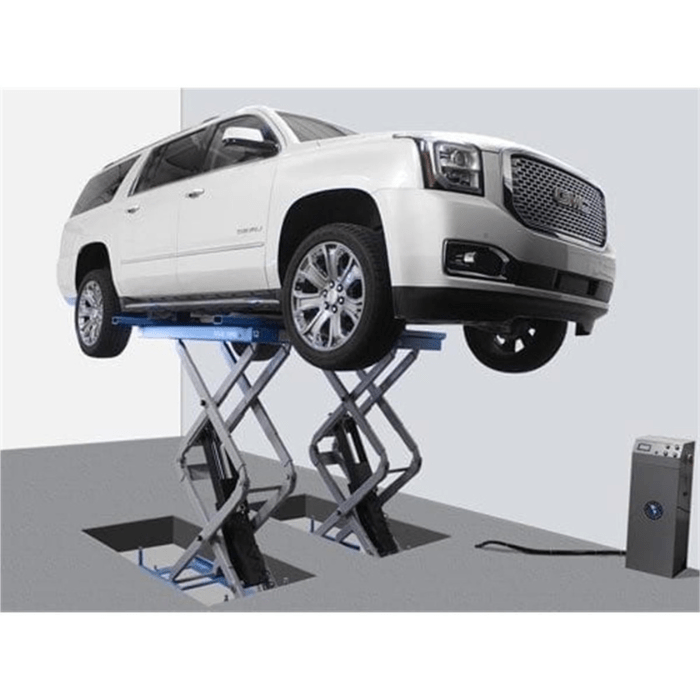

The Atlas FM9SL 9,000 lb In Ground Full-Rise Lift is designed for automotive shops that need a reliable, space-saving lift without compromising performance. One of the biggest challenges many shop owners face is finding a lift that offers strong lifting power while maintaining a clean, unobstructed floor. The Atlas FM9SL solves this problem with its flush-mounted design, making it perfect for those who want to keep the floor area free from above-ground lifts. Not only does this lift maximize the usable space, but it also provides an efficient way to lift vehicles up to 9,000 lbs with ease. In-ground scissor lifts disappear into the floor when not in use, freeing the entire bay for other equipment or vehicles. Atlas's FM9SL delivers 9K capacity in an in-ground configuration that recovers the full bay floor.

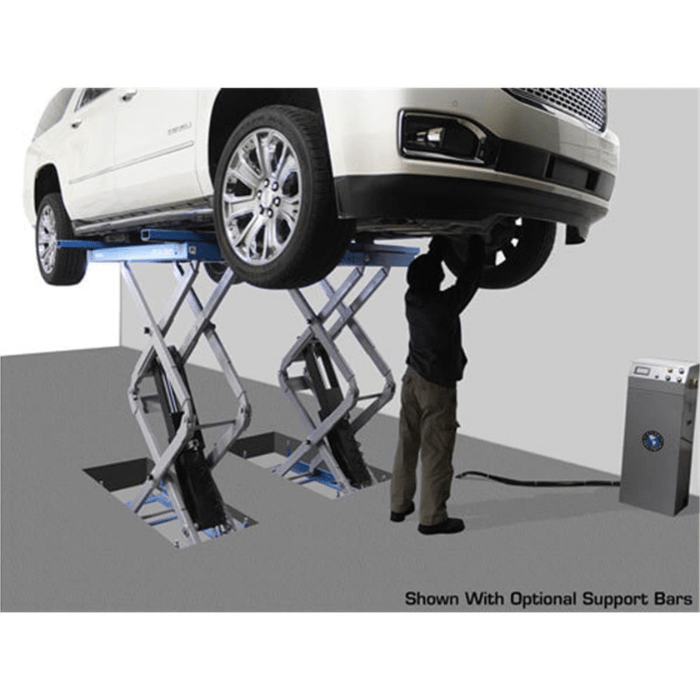

Another concern when purchasing a scissor lift is durability and ease of maintenance. The Atlas FM9SL addresses this by offering commercial-grade construction, a self-contained control unit, and easy access for routine servicing. With a lifting height of up to 73 3/4 inches, it’s ideal for servicing a wide range of vehicles, from compact cars to larger pickup trucks. And with no above-ground obstructions, vehicles can be driven over the lift from any direction, allowing for greater flexibility in vehicle positioning. 9,000 lb capacity with full-rise lift travel for service work. When stored, the lift sits flush with the floor. Drive over it, park on top of it, or use the bay for any other workflow.
The lift’s adjustable width and platform extensions ensure that it can handle vehicles with varying dimensions. Whether you’re lifting a car or a long-wheelbase truck, this Atlas scissor lift can be customized to fit the needs of your service shop. It also features an air-operated single-point lock release for quick operation, and it’s CE-certified for safety, so you can trust that it meets high-quality standards. For shops where bay flexibility matters more than installation cost, the FM9SL delivers full-rise lift capability without committing the bay's floor space permanently.
Still unsure? Browse all Scissor Lifts and compare your options.

Benefits of the Atlas FM9SL Scissor Lift
Key Features of the Atlas FM9SL 9000lb In Ground Full-Rise Scissor Lift You'll Love:

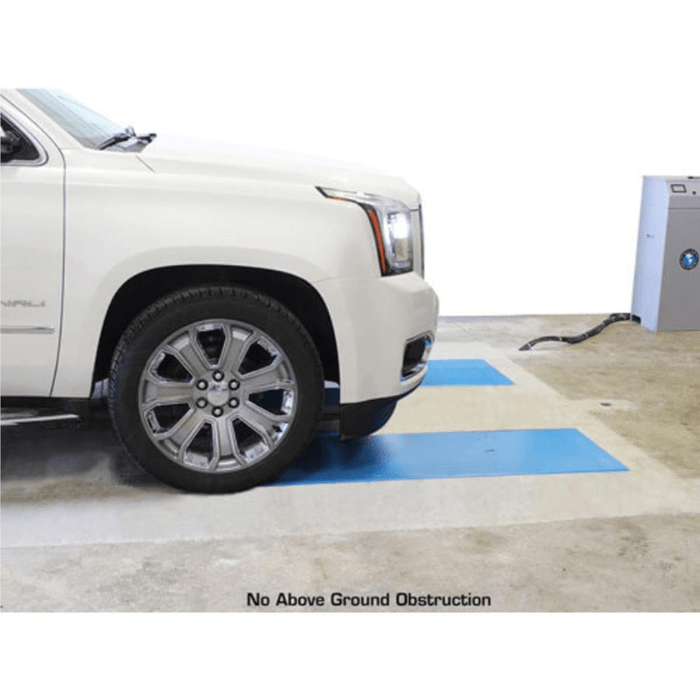

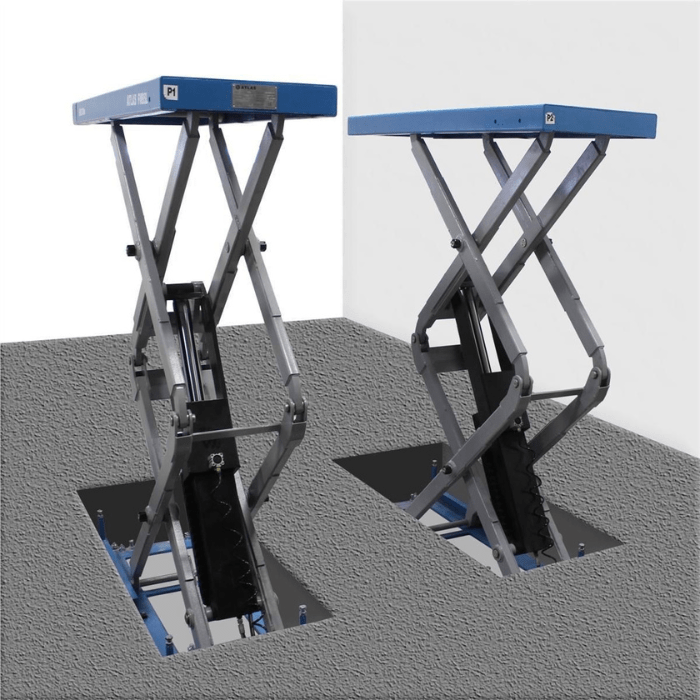

• Flush-Mounted Design: The Atlas FM9SL features a flush-mounted configuration, creating a flat, obstruction-free surface that vehicles can drive over from any direction. Ideal for maximizing space in busy or compact service bays.
• Adjustable Platform Width: Customize the platform width up to 31 inches to accommodate a variety of vehicle sizes. From compact cars to full-size trucks. Ensuring maximum service flexibility in your shop.

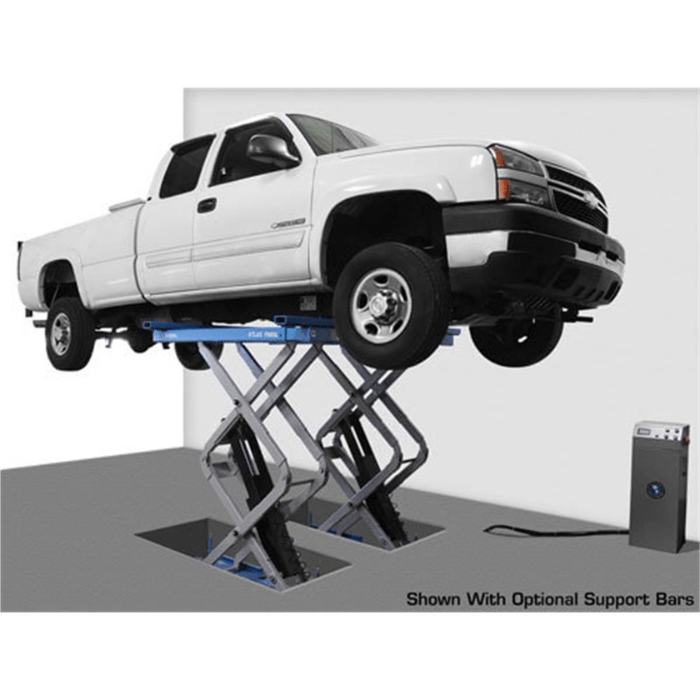

• Platform Extensions: Front and rear platform extensions allow for the safe lifting of longer wheelbase vehicles, such as extended cab pickups. This feature expands the lift's capabilities beyond standard-sized vehicles.

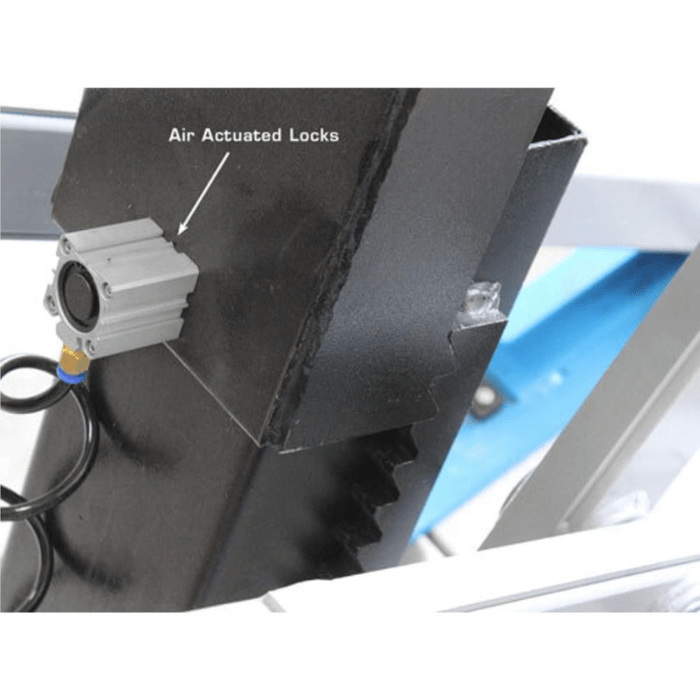

• Air-Operated Lock Release: The single-point air-operated lock release ensures secure lifting and easy lowering operations. Requires an external air supply and is built for efficiency in high-volume environments.

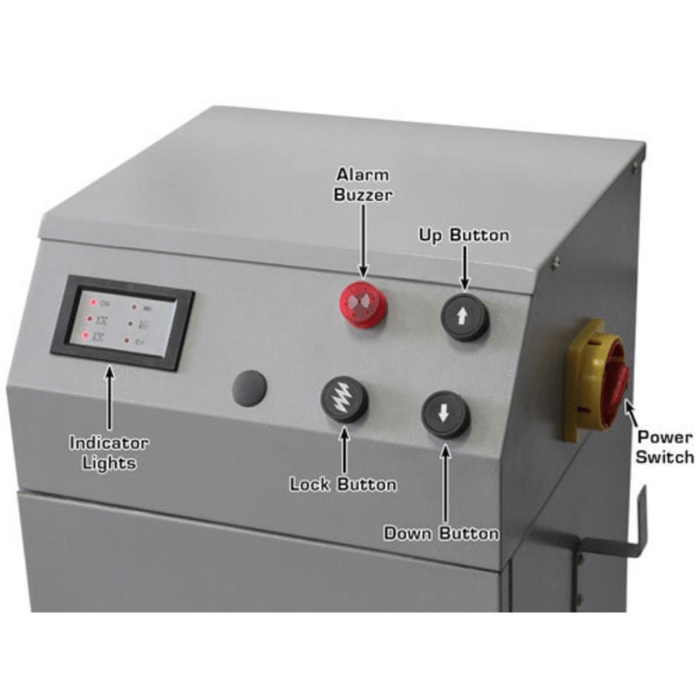

• Self-Contained Control Unit: A separate, easy-to-access control box simplifies daily operation and long-term maintenance. The protected design enhances durability and ensures consistent performance.
• CE Certified for Safety: Complies with CE standards, offering assurance that the lift is manufactured to meet strict European safety and quality regulations. Built for reliable performance in demanding commercial use.

Minimum Garage Requirements
✔ Max Lift Height: 73" (6'1") ✔ Lowered Height: 13.0" drive-on clearance ✔ Platform Dimensions: see specifications below ✔ Overall Dimensions (raised): see specifications below ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Electrical: 220V +/- 5% (Single Phase), Requires 30A Breaker
✔ Max Lift Height: 73" (6'1")
✔ Lowered Height: 13.0" drive-on clearance
✔ Platform Dimensions: see specifications below
✔ Overall Dimensions (raised): see specifications below
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Electrical: 220V +/- 5% (Single Phase), Requires 30A Breaker
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: required ceiling clearance equals max lift height plus your vehicle height plus working clearance. Measure your specific vehicles before ordering.
Atlas FM9SL In Ground Scissor Lift Specifications |
|
| Manufacturer | Atlas |
| Lifting Capacity | 9,000 lbs |

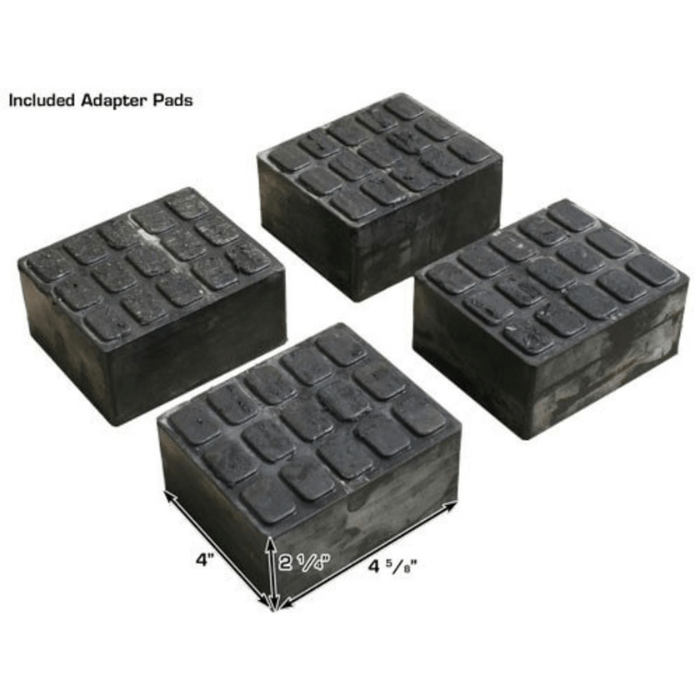

| Max Lifting Height (w/ Lifting Blocks) | 73 3/4" (6' 1 3/4") |
| Max Lifting Height (w/o Lifting Blocks) | 71" (5' 11") |
| Overall Length (w/ Extensions Out) | 80" (6' 8") |
| Overall Length (w/ Extensions In) | 64" (5' 4") |
| Platform Width | 21" |
| Platform Thickness | 4" |

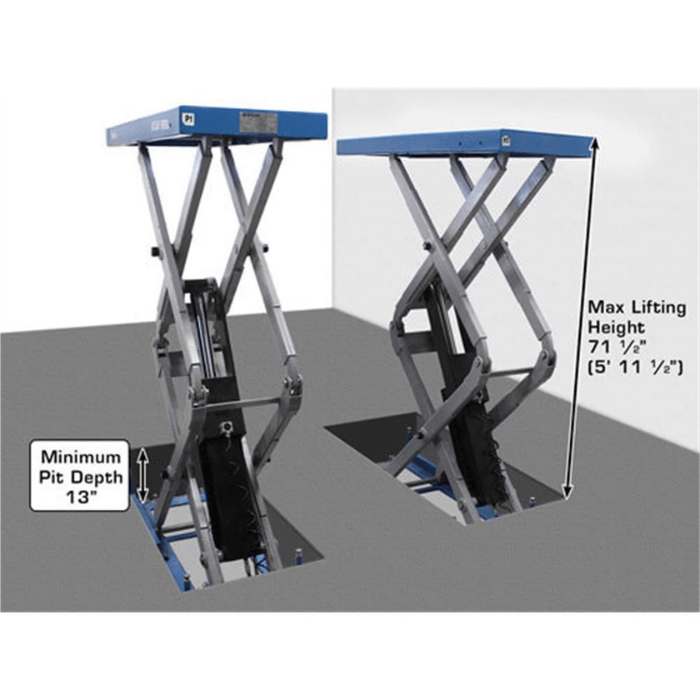

| Minimum Lowered Height (In Ground) | 13" |
| Width Between Platforms | Adjustable up to 31" |
| Air Requirement | 90-120 PSI |
| Power Unit | 220V +/- 5% (Single Phase), Requires 30A Breaker |
| Oil Requirement | 3-5 Gallons AW32 or AW46 (Not Included) |
| Shipping Weight | 2,025 lbs |
