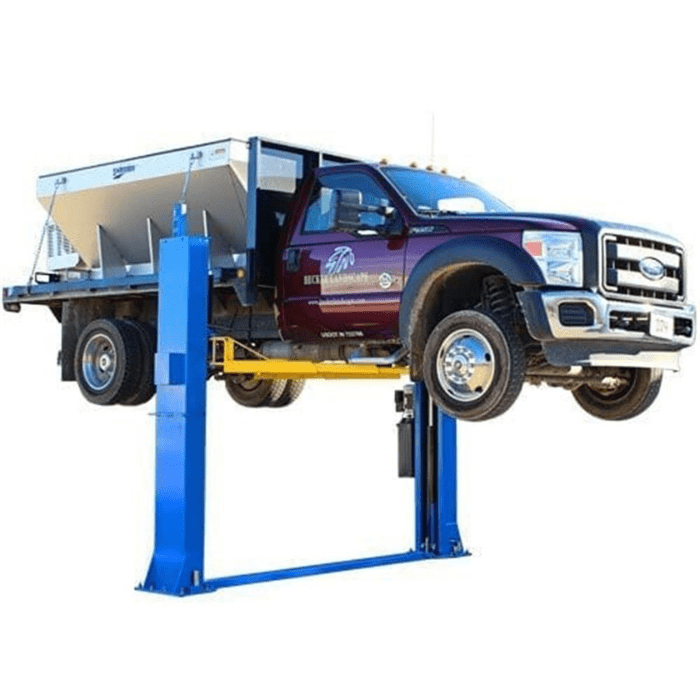

Atlas BP12000X baseplate two-post lift shown raising a heavy-duty commercial truck, designed for high-capacity lifting with a stable floorplate structure.

Atlas Commercial Grade Baseplate 2-Post Lift – 12,000 lb Capacity | BP12000X

by Atlas
SKU ATEATTD-BP12000X
$5,200.00

Notify me when back in stock

If the price feels out of reach, click here — we’re happy to see how close we can get to your budget.
Atlas Mobile and Desktop Trust Badges Atlas collection Mobile Trust Badges

Big Lift, Small Footprint – The Atlas BP12000X Lifts Diesel Trucks with No Overhead Crossbar



Shopping for a heavy-duty two post car lift can be a challenge when ceiling space is limited, especially if you're working on larger vehicles like trucks, vans, or service vehicles. Many 2-post car lifts either lack the strength to handle heavier loads or require more vertical clearance than your garage allows. That’s where the Atlas BP12000X 12,000 lb Baseplate 2 Post Lift steps in. It delivers a rock-solid lifting solution without demanding a tall ceiling, making it an ideal choice for low-bay shops, dealerships, or repair garages that still need full commercial-grade performance.

What makes this two post car lift stand out is its sheer strength and flexibility. With a 12,000 lb. lifting capacity and adjustable width, it’s capable of raising diesel trucks, long-wheelbase vans, and utility vehicles with ease. The baseplate design keeps the lift structure grounded and avoids the need for overhead crossbars, while the symmetric 3-stage arms give you balanced lifting for heavier frames. You’ll also appreciate the 77 ½” maximum lift height (88 ½” with adapters), 103–109” drive-through clearance, and powder-coated steel for added durability.

Whether you're outfitting a busy repair shop or upgrading your fleet maintenance garage, the Atlas BP12000X combines power, reliability, and safety. It’s built with oversized columns, dual chain-over hydraulic cylinders, and automatic arm restraints — plus, it comes with a 12-piece truck adapter set and all mounting hardware included. If you’ve been hunting for a 2 post car lift that works in real-world, space-constrained environments without sacrificing lift capacity, this one checks all the boxes. *The concrete must be at least 4" (101 mm) thick and have a minimum strength of 3000 PSI. Installing this lift on inadequate concrete may lead to serious injury or death. It is the customer's responsibility to confirm the concrete's thickness and strength before purchasing and installing the lift. Customers must also download the Atlas BP12000X Cylinder Bleeding Procedure and perform it immediately after installation and before placing a vehicle on the lift.

Still shopping around? Compare all our 2 Post Lifts in one place.

Image of the Atlas BP12000X with arms down, showcasing its industrial-grade frame and wide-set column structure built for oversized vehicles.

Benefits of the Atlas BP12000X Auto Lift

Commercial-Grade Capacity | Lift up to 12,000 lbs easily.

Low Ceiling Compatible | Open-top style for tight garages.

Customizable Width | Adjust to fit your bay or vehicle size.

Safer Operation | Built-in lock system and auto arm restraints.

Versatile Vehicle Fit | 3-stage arms adapt to different wheelbases.

Ready to Use | Includes adapters and mounting hardware.

Key Features of the Atlas BP12000X 12,000lb Baseplate Two-Post Lift You'll Love:

  • Heavy-Duty 12,000 lb Capacity: Designed to handle heavier-duty vehicles, this two post car lift easily accommodates full-size trucks, vans, and trailers. It’s the ideal choice for commercial shops that work on high-capacity loads daily.
  • Baseplate Open-Top Design: Instead of an overhead crossbar, the baseplate design keeps your ceiling clear — perfect for low-clearance garages. It offers a stable lift while allowing taller vehicles to drive through without issue.
  • Adjustable Width Options: Whether you’re working in a tighter bay or need more room for wide vehicles, the BP12000X gives you flexibility. Choose from two width settings to optimize your space and workflow.

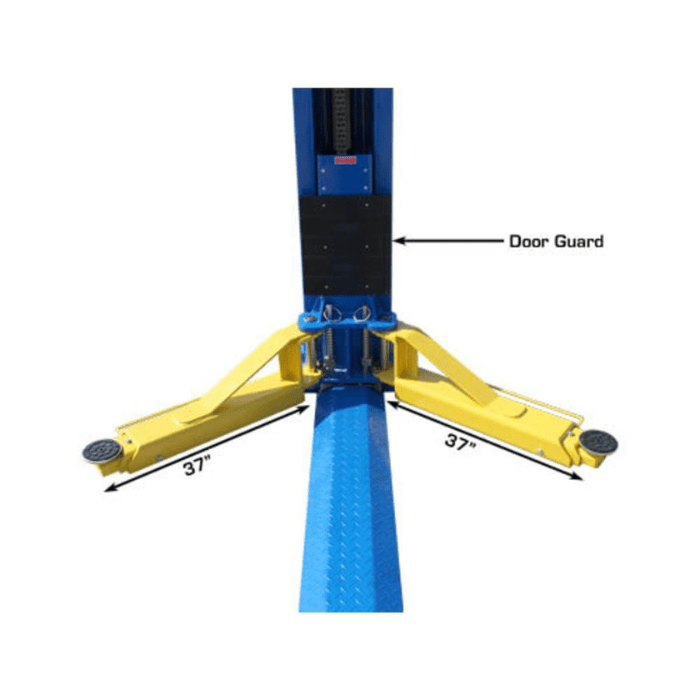

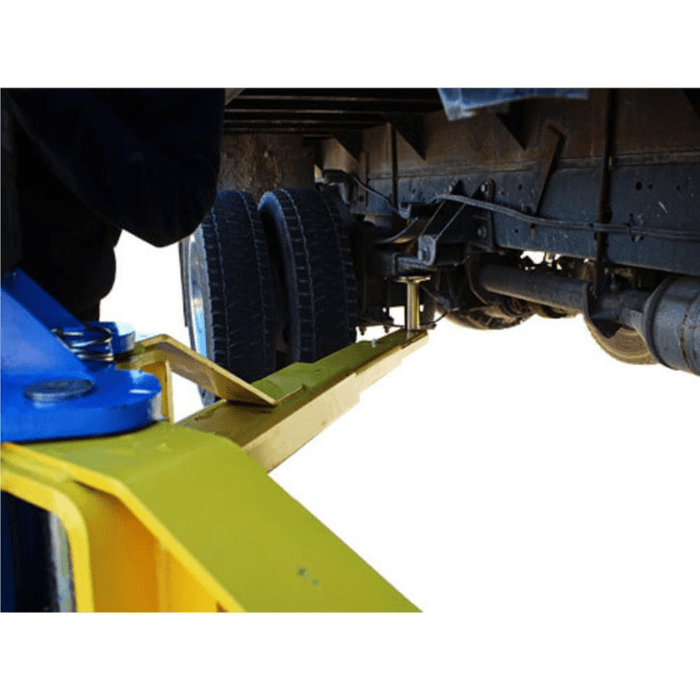

  • 3-Stage Symmetric Arms: These arms give you maximum reach and versatility when lifting heavy-duty frames. Symmetric design offers better balance, while the 3-stage mechanism adapts to different vehicle sizes with ease.

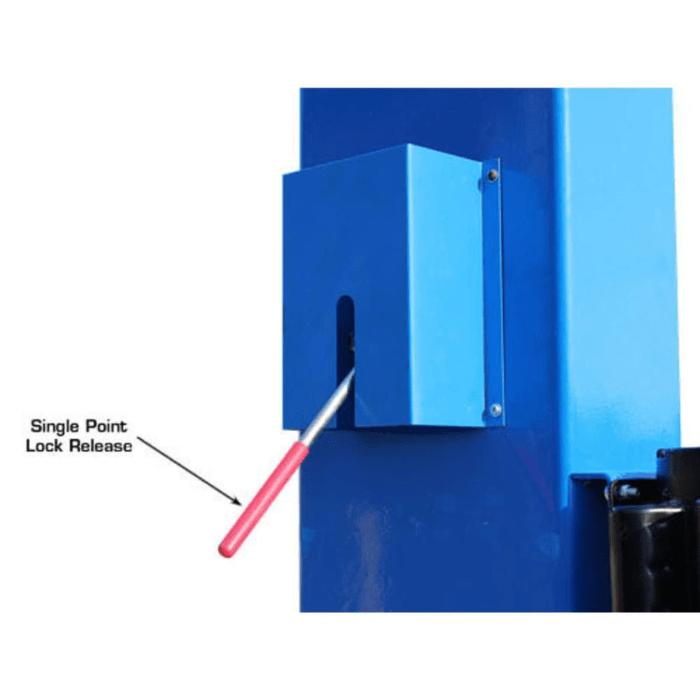

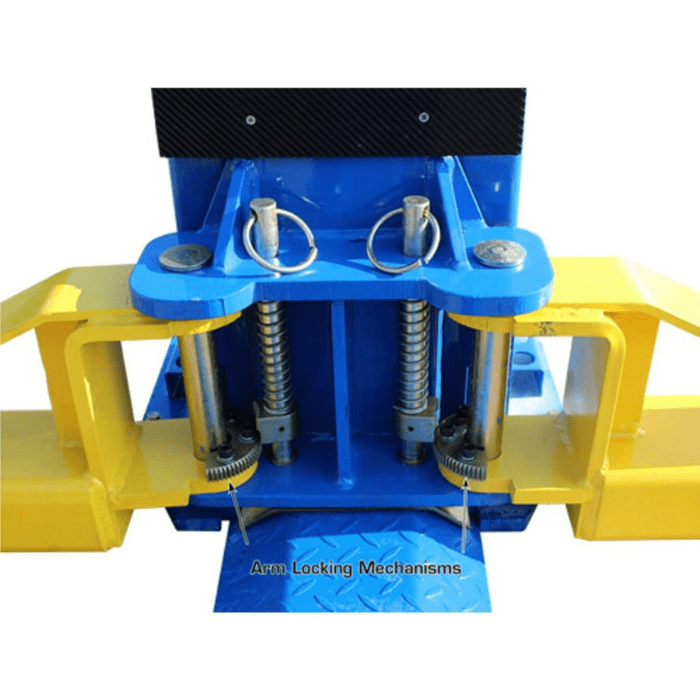

  • Single-Point Lock Release & Automatic Arm Restraints: Simplify operations and boost safety. The lock release system ensures both columns disengage simultaneously, while the auto arm restraints lock in when lifting — no second-guessing stability.
  • Powder-Coated Steel Construction: Durability matters when you’re working with heavy equipment daily. The BP12000X’s powder coat finish helps resist corrosion and wear over time, even in high-volume environments.

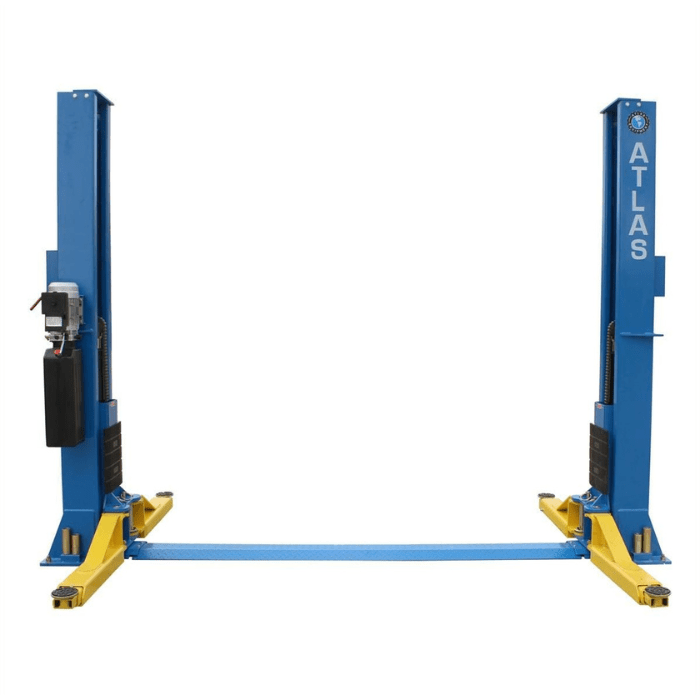

Atlas BP12000X lift pictured in the lowered position, highlighting its robust construction and broad base engineered for larger vehicles and fleet use.

Atlas BP12000X Commercial-Grade Two-Post Car Lift Specifications
Manufacturer Atlas
Lift Type Baseplate 2-Post Lift
Capacity 12,000 lbs

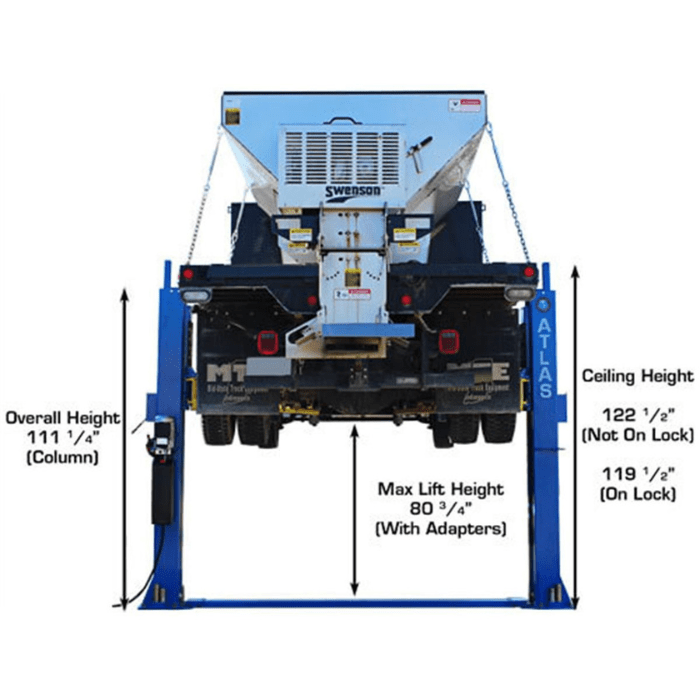

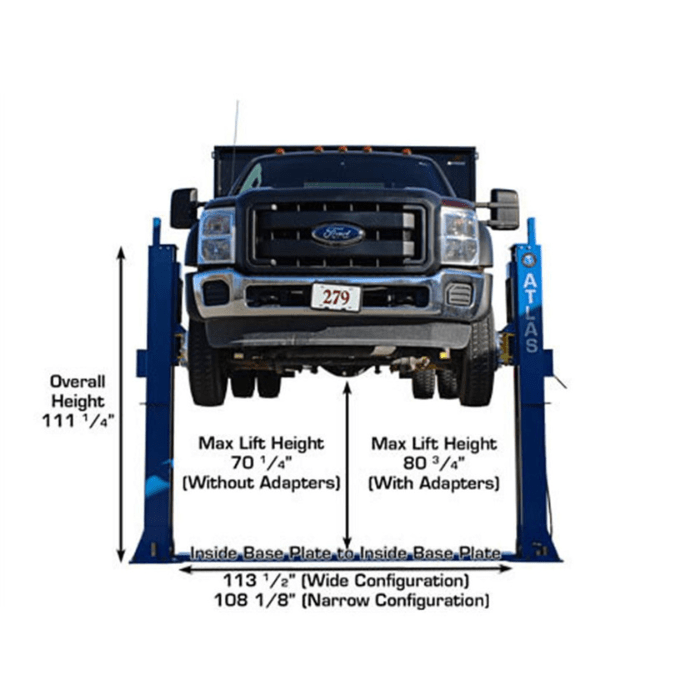

Overall Height 122 ½” (10' 2 ½")

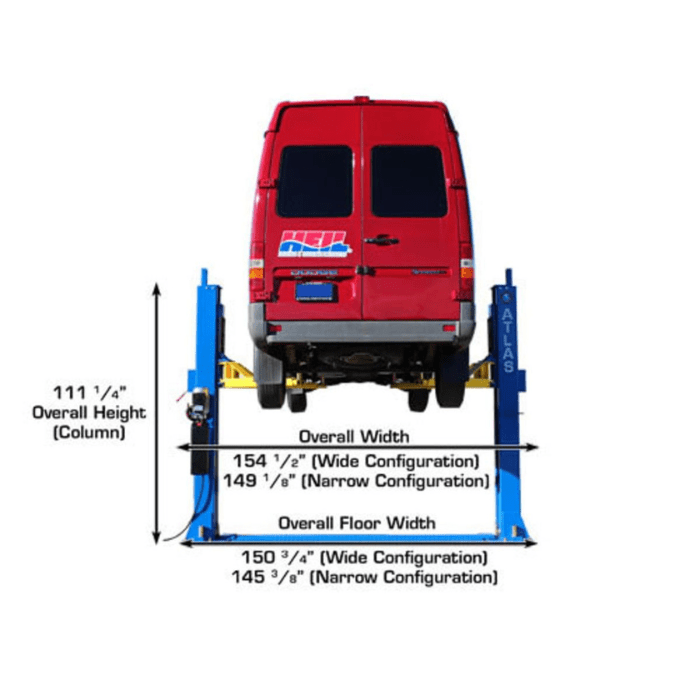

Overall Floor Width 149 ⅜” or 154 ½”

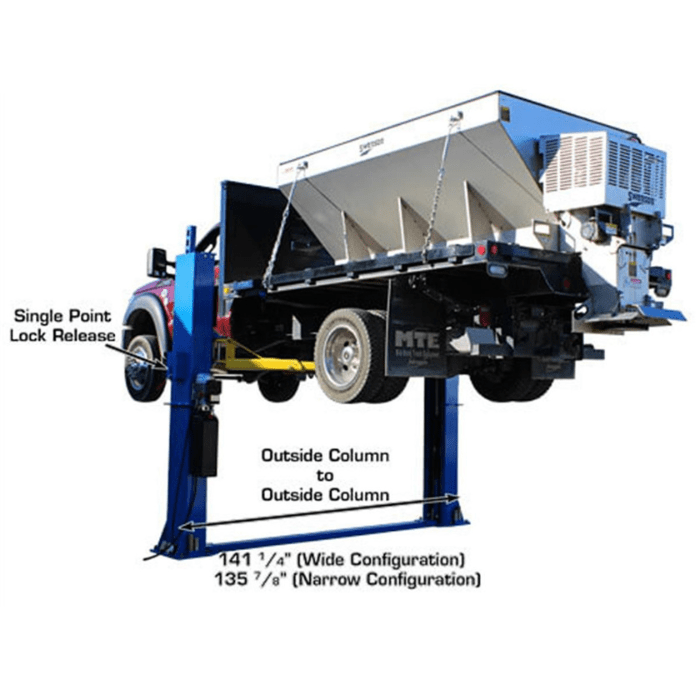

Outside Column to Column 135 ⅞” or 141 ¼”
Drive-Thru Clearance 103 ⅝” or 109”
Maximum Lift Height (w/o Adapters) 77 ½”
Maximum Lift Height (w/ Adapters) 88 ½”
Minimum Arm Height 4”
Inside Column Height 118 ⅛” or 123 ½”
Column Size 8 ¾” x 14”
Arms 3-Stage Symmetric Arms
Power Requirement 220V Single Phase, 30A Breaker Recommended

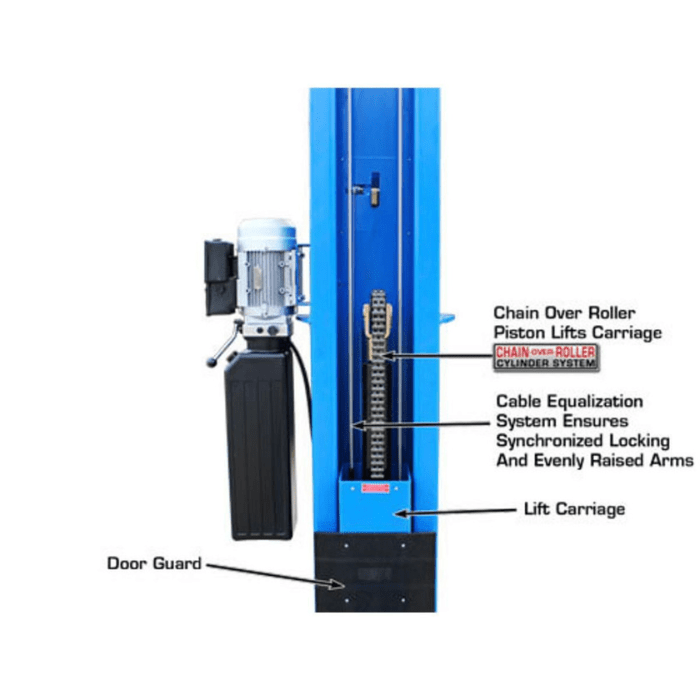

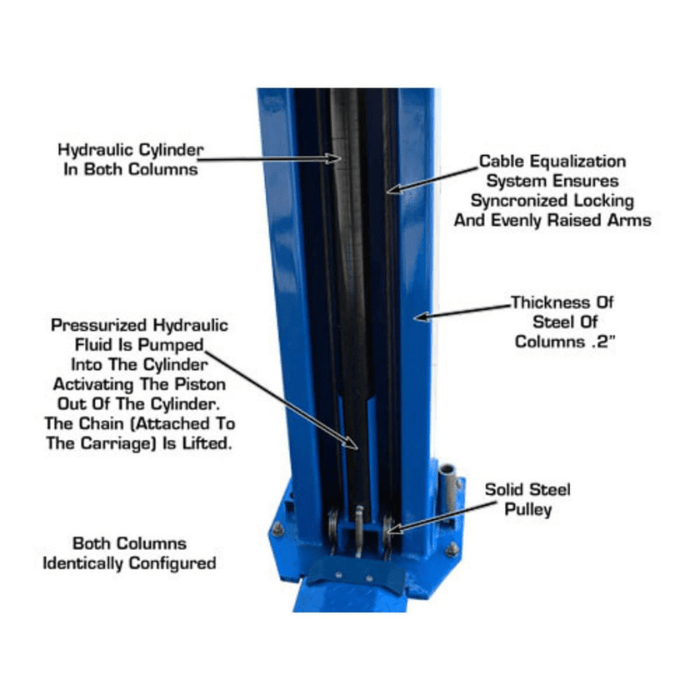

Hydraulic Cylinders Dual Chain-Over Cylinders
Oil Requirement 3–5 Gallons AW32 or AW46 (Not Included)

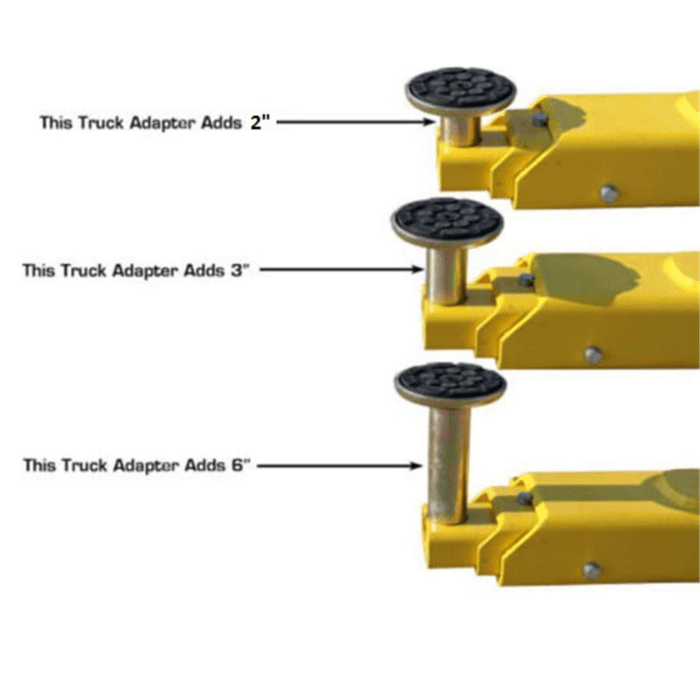

Adapter Set 12-Piece Set (4 each – 2”, 3”, 6”)
Finish Powder Coat

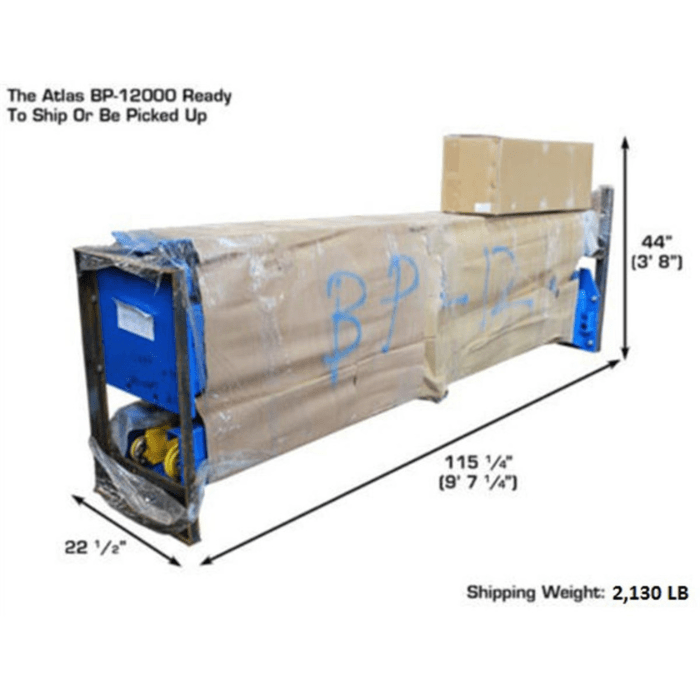

Shipping Weight 2,130 lbs
Warranty 5-Year Structural, 2-Year Hydraulic (Parts)
