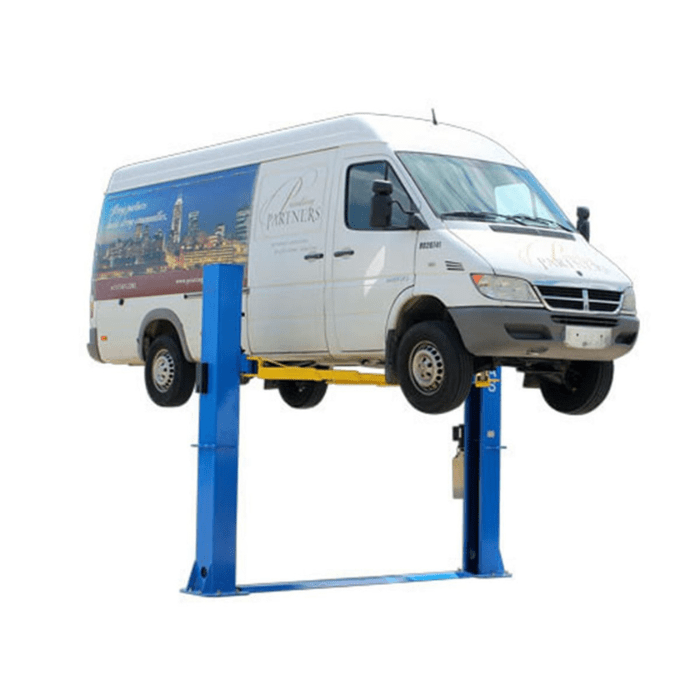

Shopping for a two post car lift can be frustrating—especially if your shop has a lower ceiling but still needs to handle heavy vehicles. Many 2 post car lifts either lack the lifting power you need or require more overhead clearance than your space allows. That’s where the Atlas BP10000X comes in. This commercial-grade lift is purpose-built for shops with ceiling heights around 11 feet, all while providing a solid 10,000 lb. lifting capacity for everything from Smart Cars to one-ton dually trucks.

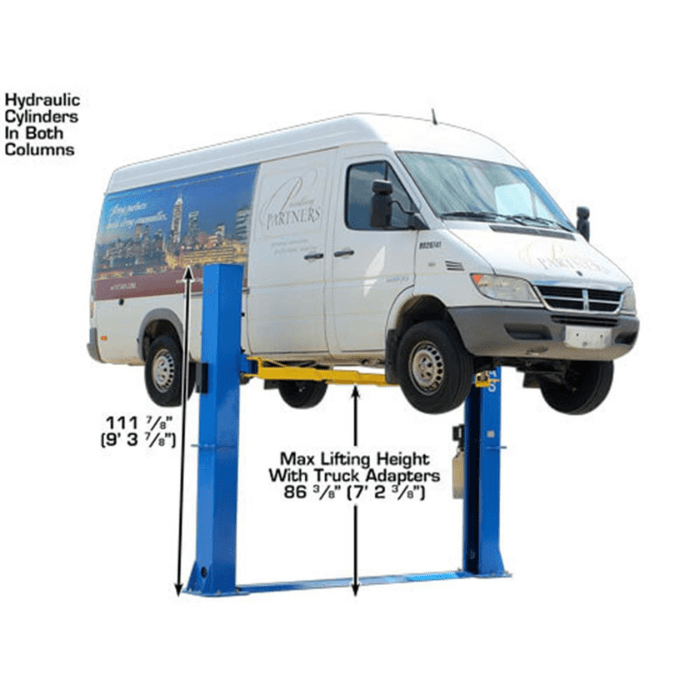

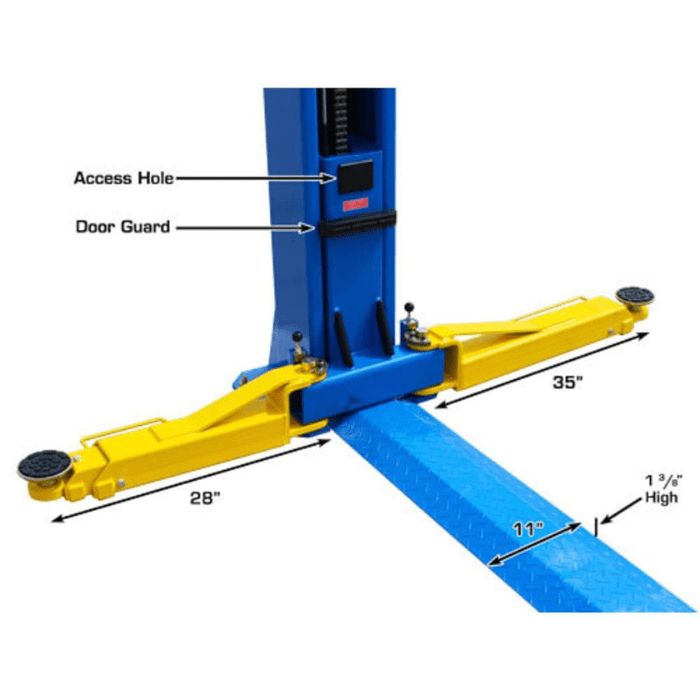

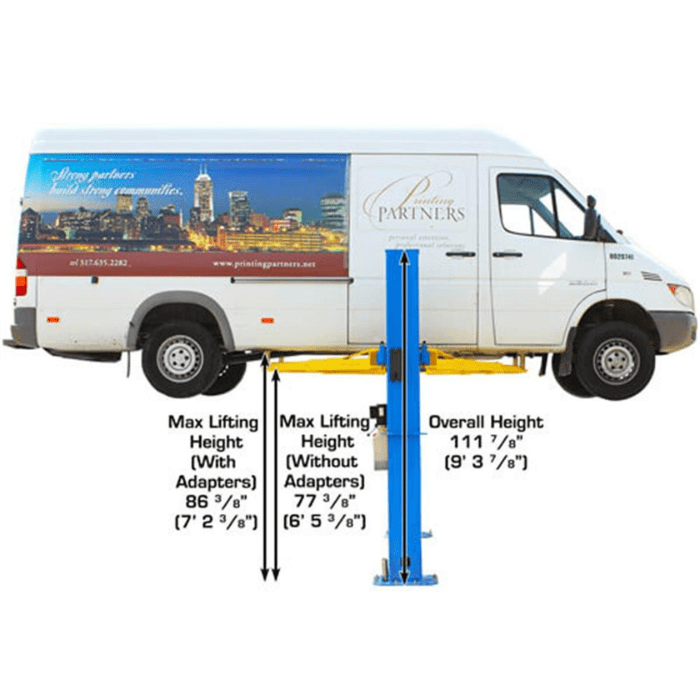

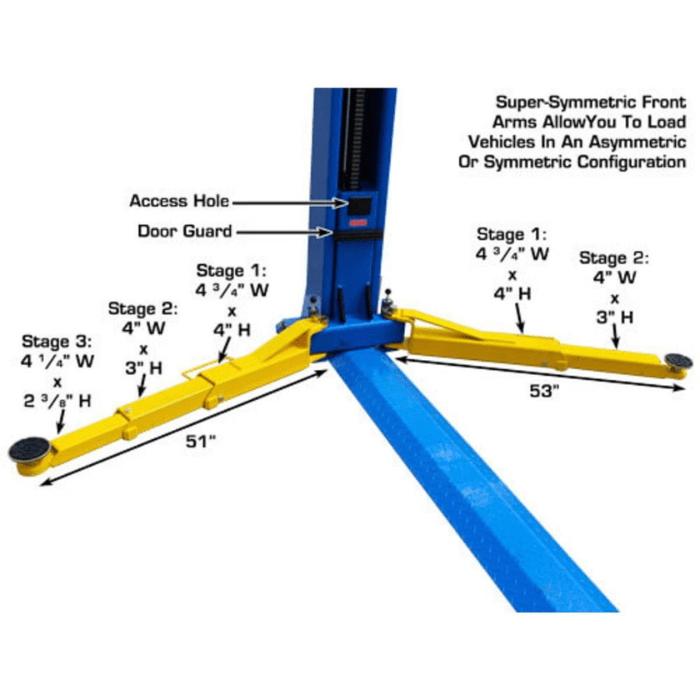

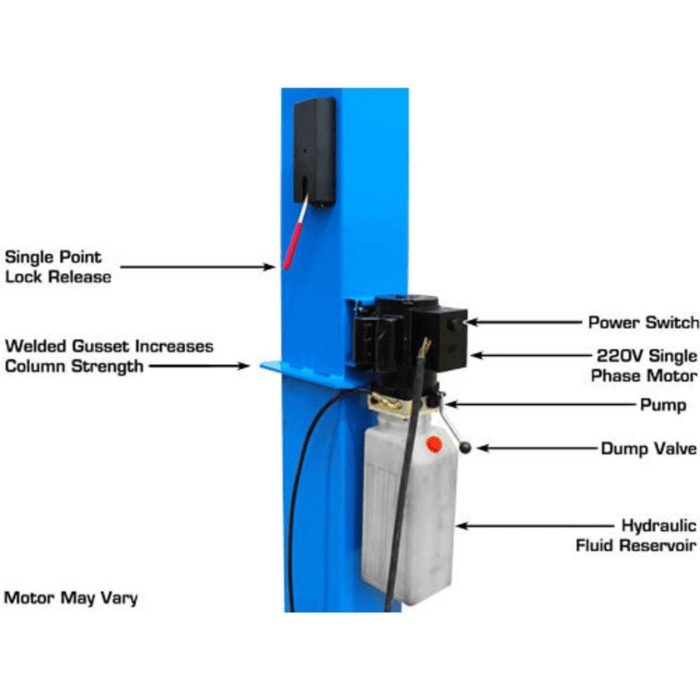

What sets this lift apart is its baseplate design, which offers a clear open-top and a total height of just 111 7/8”—ideal for garages with tight vertical space. The Super-Symmetric arm setup gives you the flexibility to lift a wide variety of vehicle types with minimal fuss, and the single-point lock release simplifies operation by unlocking both columns at once. The oversized columns feature welded support gussets for added strength and long-term durability. This is a serious piece of shop equipment that’s meant for real-world use—not just showroom specs.

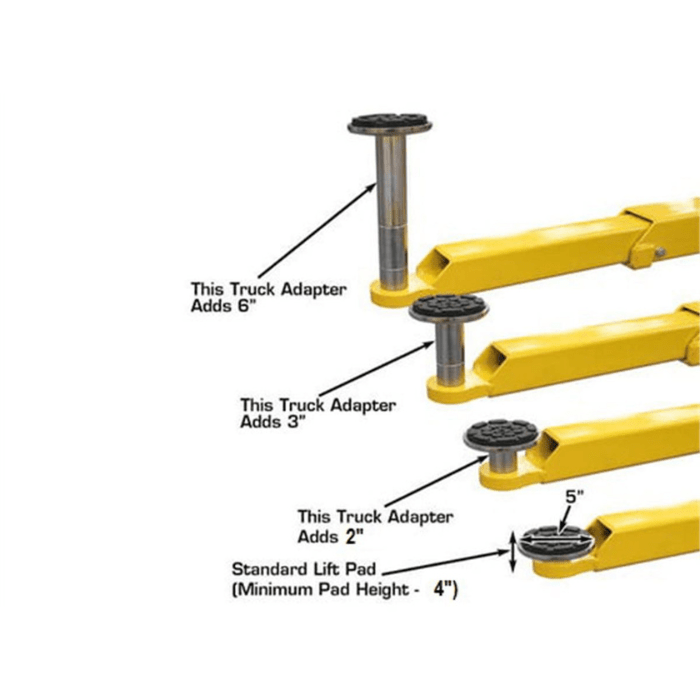

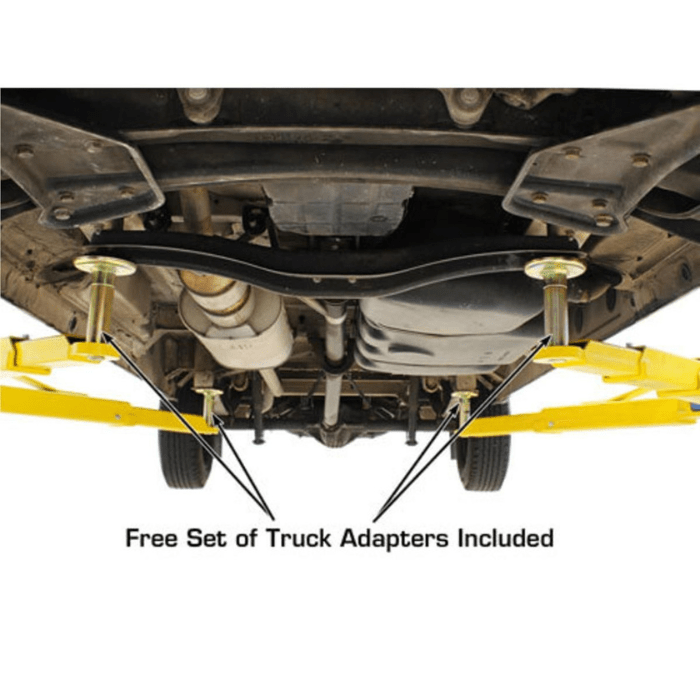

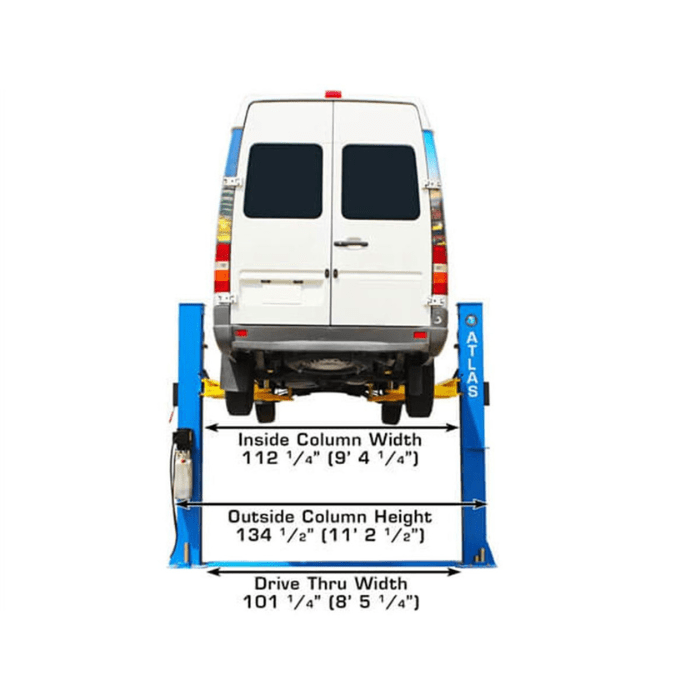

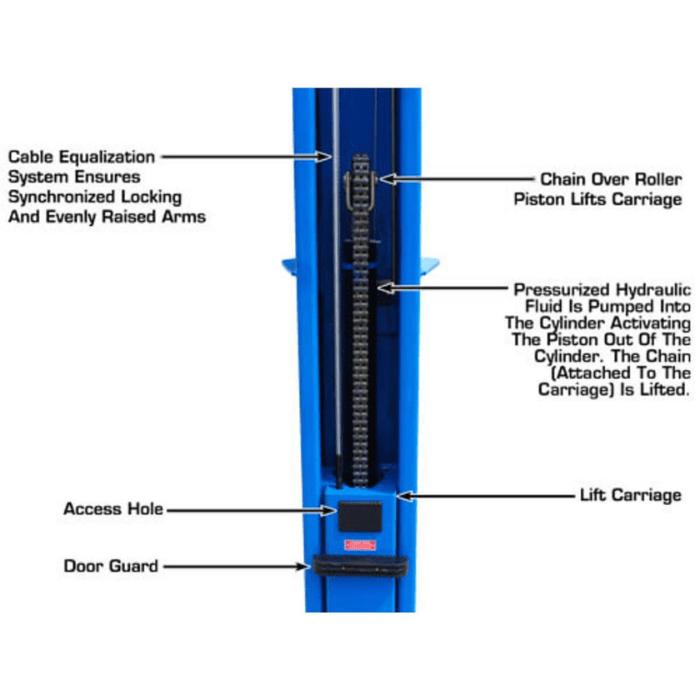

The Atlas BP10000X two post car lift uses dual hydraulic chain-drive cylinders built to ANSI standards, ensuring smooth lifting and safety during daily use. It also includes automatic arm restraints, a powder-coated finish, and a free 12-piece truck adapter set—so you’re ready for just about any vehicle, right out of the box. With a generous drive-thru clearance of 101 1/4” and overall floor width of over 139”, this lift doesn’t just fit your space—it works hard in it. *The concrete must be at least 4" (101 mm) thick and have a minimum strength of 3000 PSI. Installing this lift on inadequate concrete may lead to serious injury or death. It is the customer's responsibility to confirm the concrete's thickness and strength before purchasing and installing the lift.
