Atlas Baseplate 2-Post Lift – 9000 lb. Capacity | 9KBPX
Get More Done in Less Space. The Atlas 9KBPX Offers Reliable 2-Post Lifting for Low Ceilings

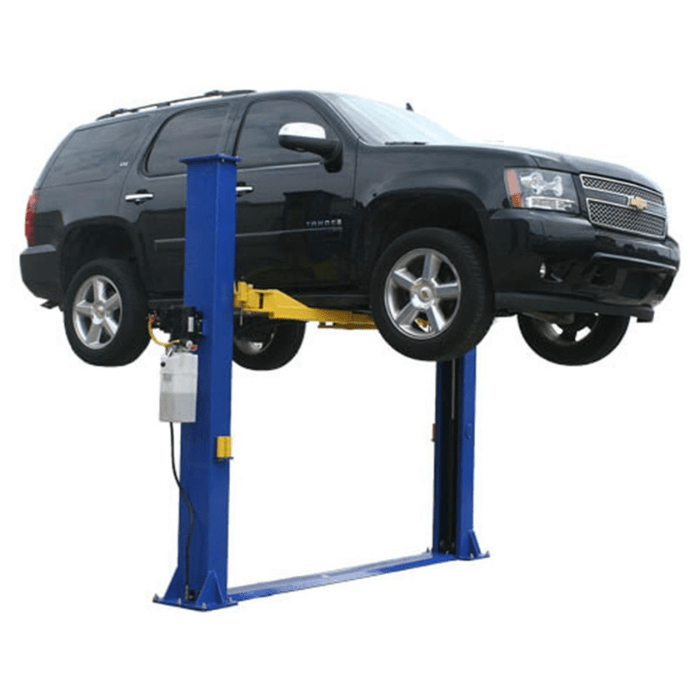

The Atlas Equipment 9KBPX Baseplate 9,000 lb. Capacity 2-Post Lift is a perfect solution for garages with low ceiling clearance, offering an impressive 9,000 lb. Lifting capacity. Designed specifically for compact spaces, this two post car lift maximizes vertical space while providing the necessary strength to lift cars, SUVs, and light-duty trucks. Whether you're a professional mechanic or a passionate home enthusiast, the Atlas 9KBPX delivers high performance without compromising on safety. 9K baseplate 2-post lifts at the residential-friendly tier is the right tool for home shops needing more capacity than 8K provides without committing to commercial-grade overhead clearance.
One of the common challenges when selecting a lift is ceiling height restrictions. The Atlas 9KBPX is engineered with 9' 3 1/2" columns, making it ideal for garages with a ceiling height as low as 9' 6". This flexibility means you don’t need to compromise on the performance or installation of a high-quality lift just because of your garage's limited height. 9,000 lb capacity handles full-size trucks, lifted SUVs, and work vans at the upper end of residential-tier requirements. Baseplate design fits residential ceilings without modification.

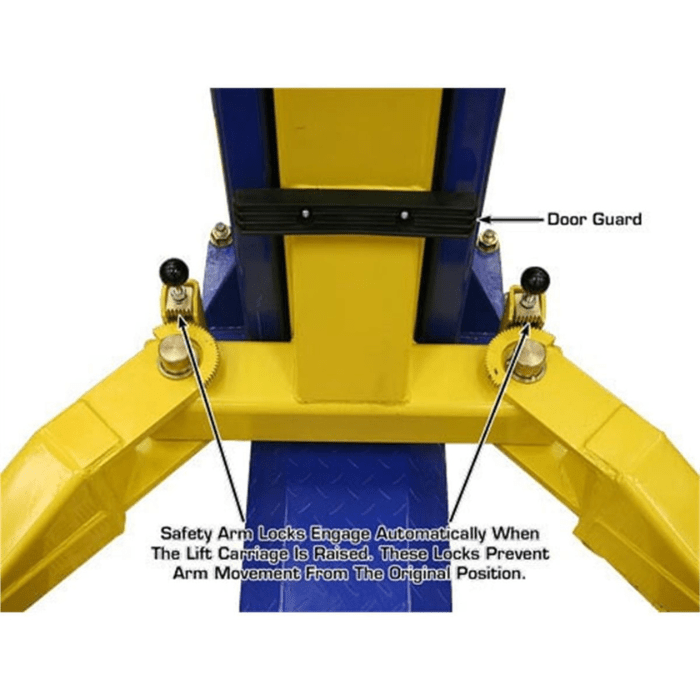

Reliability is key in any automotive lift. The Atlas 9KBPX is equipped with dual hydraulic chain-drive cylinders, offering smooth and consistent lifting power. For added safety, the lift includes an automatic arm restraint system and a secondary lock system (SLS), which ensures that any slack or chain failure is immediately addressed, providing peace of mind while working on vehicles. It’s not just about lifting. It's about doing it securely and efficiently. * For home-shop owners with full-size trucks or lifted vehicles needing 9K capacity, the 9KBPX brings true commercial-grade structural rating into a residential-friendly footprint.

Benefits of the Atlas 9KBPX Auto Lift
Key Features of the Atlas 9KBPX 9000lb Baseplate Two-Post Lift You'll Love:
• 9,000 lb. Lifting Capacity: The Atlas 9KBPX provides a robust lifting power of 9,000 lbs, suitable for a wide range of vehicles including compact cars, SUVs, and light trucks. This makes it a great choice for both home garages and small commercial shops.
• Low Ceiling Clearance: Designed with a column height of just 111 1/2", this two post car lift fits in garages with ceilings as low as 9' 6", offering flexibility in tight spaces without sacrificing performance.

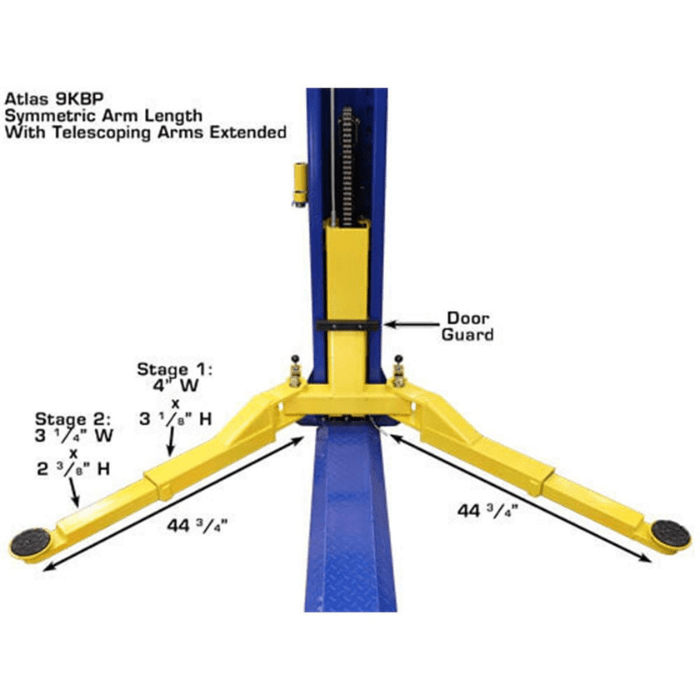

• Symmetric Arms: The symmetric arm configuration ensures balanced lifting and versatility, allowing you to safely lift a variety of vehicles with ease. The arms adjust quickly to accommodate different car sizes, making it ideal for both personal and professional use.
• Secondary Lock System (SLS): The Atlas 9KBPX features a spring-loaded secondary lock system that automatically engages if a chain becomes slack or breaks. This built-in safety feature prevents accidents, ensuring that your lift remains stable and secure throughout the lifting process.

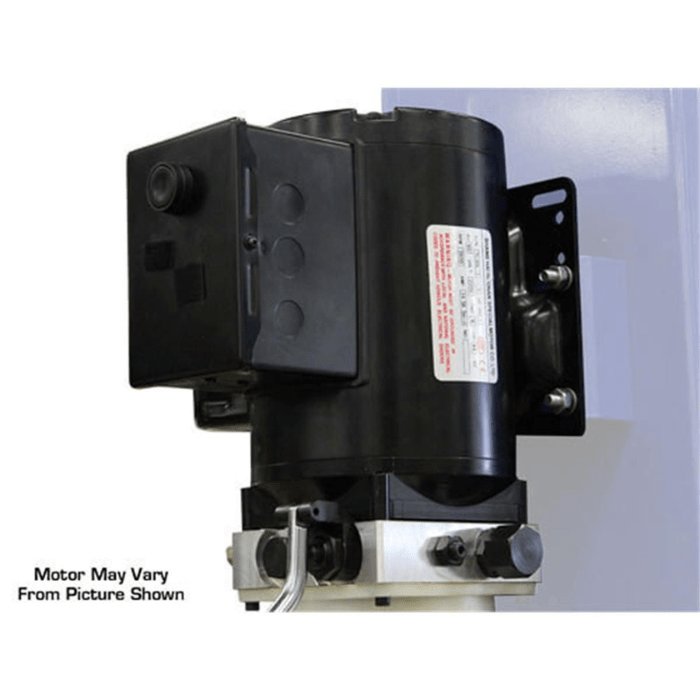

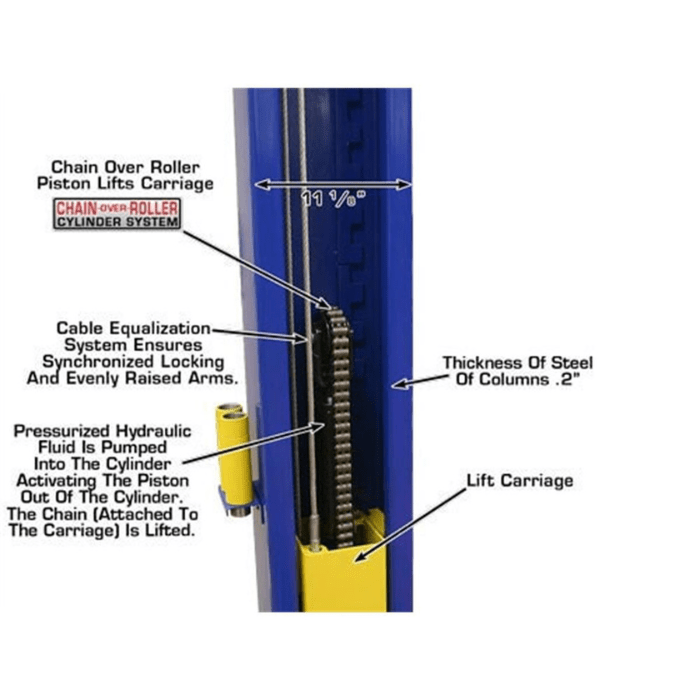

• Dual Hydraulic Chain-Drive Cylinders: With dual hydraulic cylinders, this two post car lift delivers smooth, reliable lifting performance. The chain-drive system minimizes maintenance while providing consistent and powerful lifting capabilities.

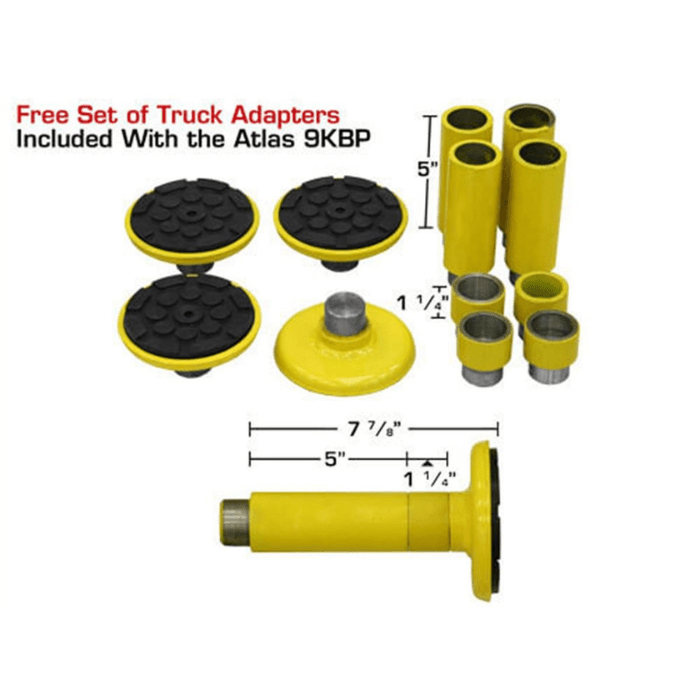

• Free Truck Adapter Set: The lift includes an 8-piece truck adapter set, allowing you to lift vehicles with various frame types and configurations. This added value ensures that the lift is versatile enough to handle different kinds of vehicles.

Minimum Garage Requirements
✔ Ceiling Height: At least 117" (9'9") recommended ✔ Footprint: see specifications below ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3000 PSI compressive ✔ Electrical: 220V single phase (30 amp recommended) ✔ Overall Lift Height: 111" (9'3") (measure before ordering)
✔ Ceiling Height: At least 117" (9'9") recommended
✔ Footprint: see specifications below
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3000 PSI compressive
✔ Electrical: 220V single phase (30 amp recommended)
✔ Overall Lift Height: 111" (9'3") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Atlas 9KBPX Baseplate Two-Post Car Lift Specifications |
|
| Manufacturer | Atlas |
| Capacity | 9,000 lbs |

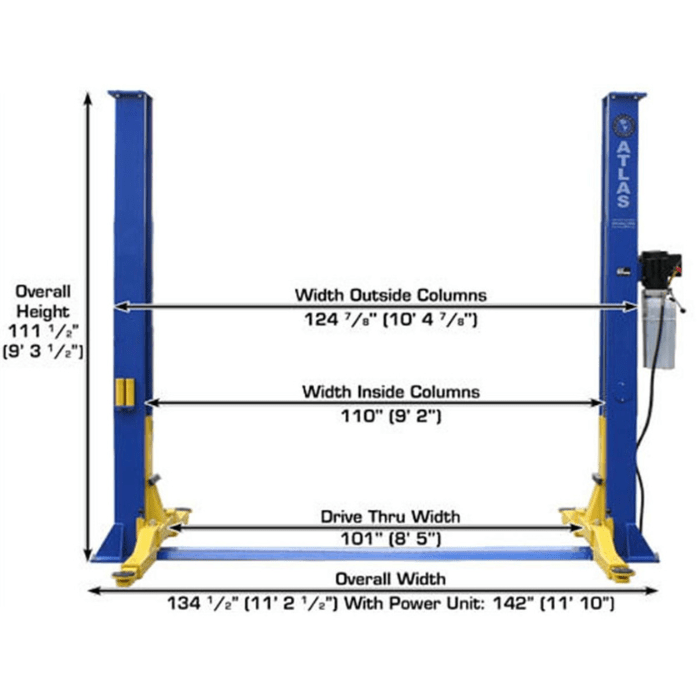

| Overall Height | 111 1/2" (9' 3 1/2") |
| Overall Floor Width | 134 1/2" (11' 2 1/2") |
| Outside Column to Outside Column | 124 7/8" (10' 4 7/8") |

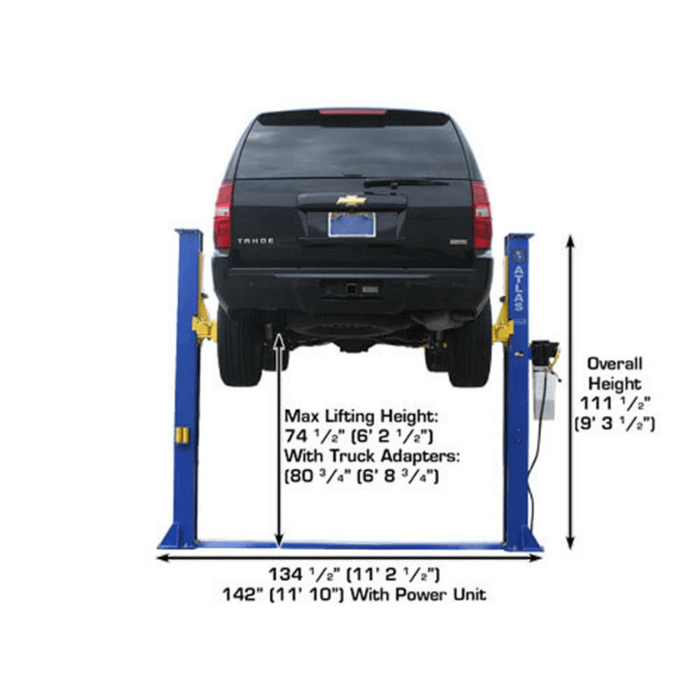

| Maximum Lift Height (No Adapters) | 74 1/2" |
| Maximum Lift Height (With Adapters) | 81" |
| Minimum Arm Height | 4" |
| Inside Column | 110" (9' 2") |
| Drive Thru | 101" (8' 5") |
| Column Size | 7 1/4" x 11" |
| Column Thickness | 5mm |
| Base of Lift | 14 1/4" x 18 1/4" |
| Motor/Electrical Requirement | 220V single phase (30 amp recommended) |
| Oil Requirement | 3-5 gallons AW32/AW46 (not included) |

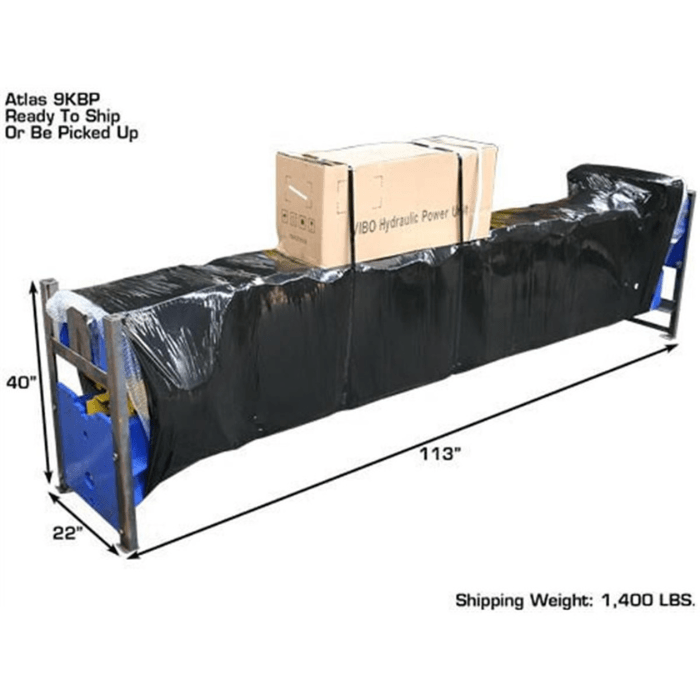

| Shipping Weight | 1,400 lbs |

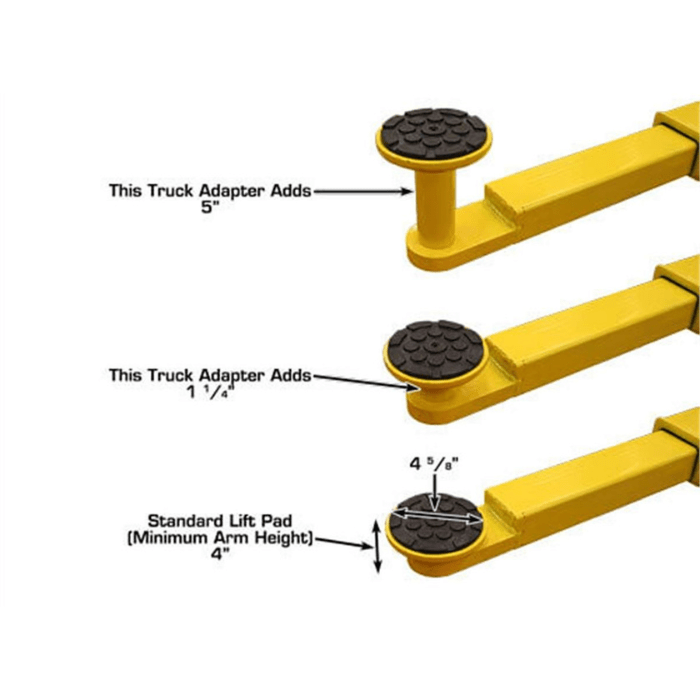

| Adapter Heights | 4 each 1.5", 5" |
| Arm Hole/Adapter Peg Size | 1.5" |
| Concrete Requirement | Minimum 4" thick with 3000 psi rating |
