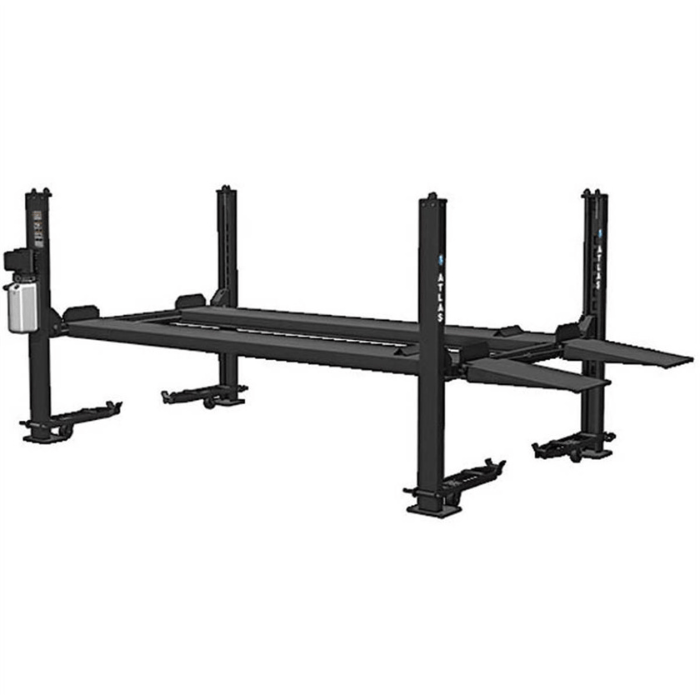

Commercial-Grade Safety Meets DIY Convenience. Atlas Apex 8 ALI Certified 4 Post Lift
Shopping for a reliable 4 post car lift can be a hassle. Especially when you're looking for something that’s certified, safe, and flexible enough to use at home. Most lifts either lack certification, require permanent installation, or don’t offer enough clearance for stacking vehicles. The Atlas Apex 8 ALI Certified 8,000 lb 4-Post Lift solves all of that. It’s engineered with hobbyists in mind but still built to commercial-grade standards where it counts. Offering ALI certification, heavy-duty construction, and portable convenience without the need to anchor it down. ALI certification at the 8K hobbyist tier is rare. Atlas's Apex 8 brings third-party safety validation into the home-shop and side-bay price band where most lifts skip the certification overhead.

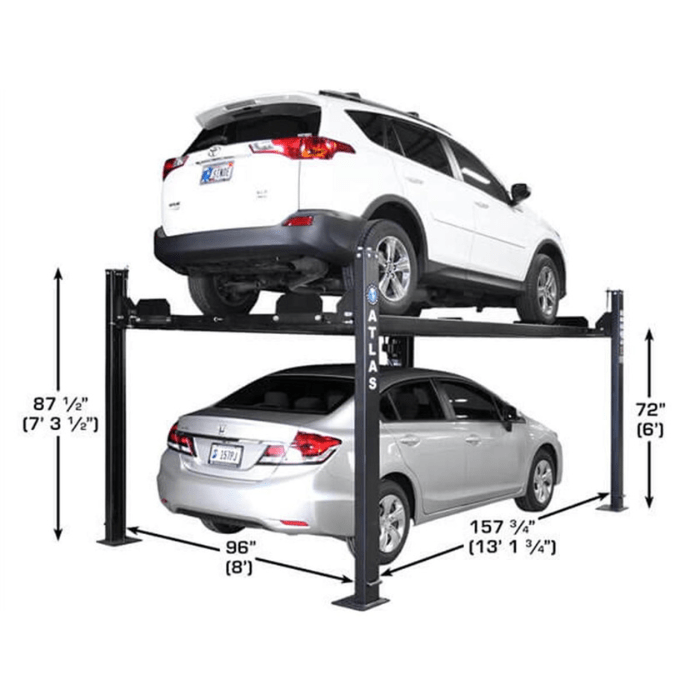

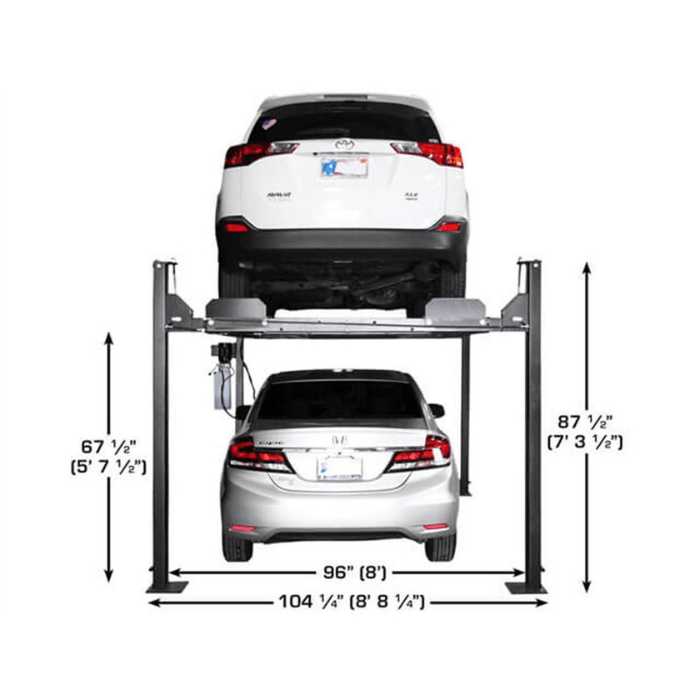

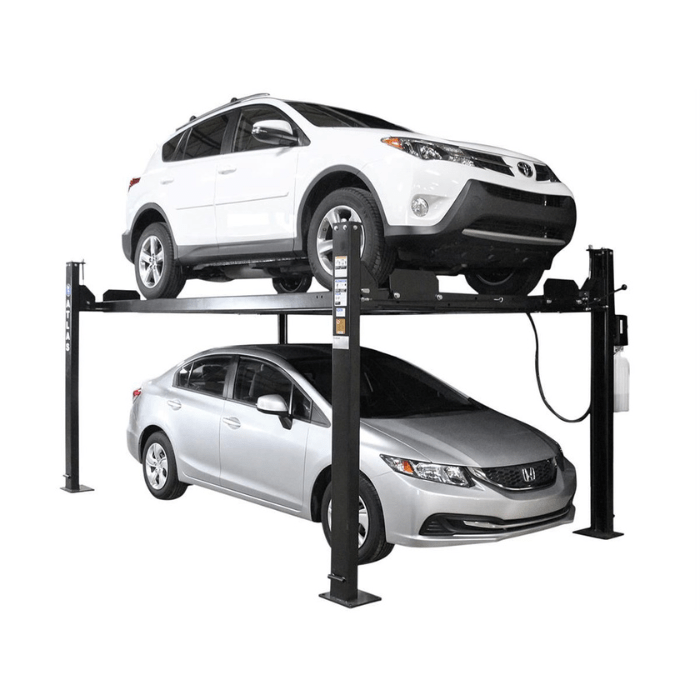

This Atlas 4 post lift includes an upgraded frame that’s nearly 200 lbs heavier than most other hobbyist lifts, giving it extra stability. It features a lifting height of 72" to the top of the runways and 67" of clearance underneath. Enough room to stack most sedans and smaller SUVs. Whether you're storing an extra car or doing light maintenance work, this four post car lift offers serious vertical space without needing a high-ceiling shop. Add in the included caster kit with polyurethane wheels, and you’ve got full mobility from bay to bay or even outdoors. 8,000 lb capacity covers full-size sedans, SUVs, and most light trucks. ALI certification means the structural design and manufacturing process have been independently verified.
The Apex 8 isn’t just about strengthand lift height. It’s about convenience and peace of mind. From the powder-coated finish to the single-point lock release and redundant safety locks, every detail is designed to make DIY lifts smoother and safer. It runs on a standard 110V outlet with a 30 amp breaker, so there’s no complicated wiring needed. It’s plug-and-play, stack-and-store simplicity. * For home-shop owners who want commercial-grade safety verification at residential pricing, the Apex 8 is one of the few ALI-certified options in this capacity tier.
Benefits of the Atlas Apex 8 Vehicle Lift
Key Features of the Atlas Apex 8 ALI Certified 8000lb Four-Post Vehicle Lift You'll Love:
• ALI Certified for Safety & Reliability: The Apex 8 is ALI certified, which means it meets rigorous safety and performance standards. Whether you're storing cars or working on them, you can trust this lift to deliver the kind of stability that serious users expect. Every single time.
• Heavy-Duty Design: Weighing nearly 200 lbs more than similar models, this lift offers superior rigidity and less sway under load. The extra weight isn’t just a number. It’s your insurance for safer stacking and smoother lifting.

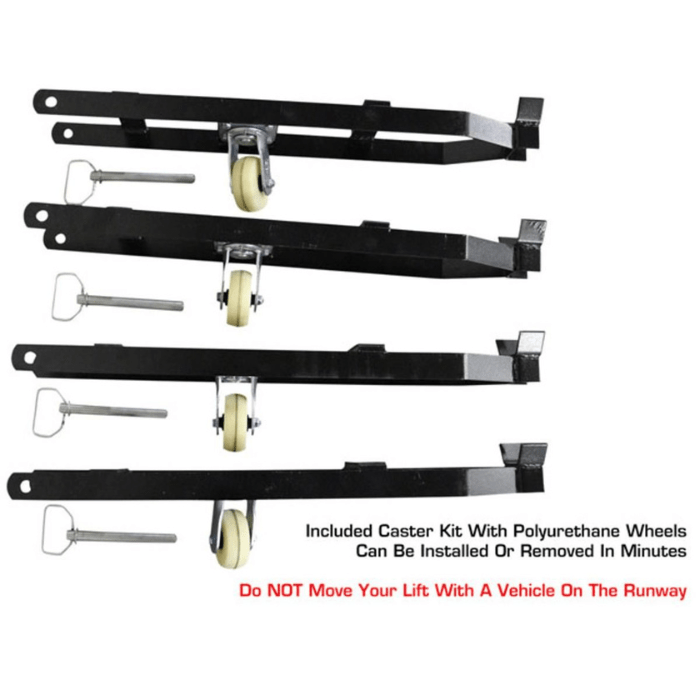

• Portable, Freestanding Construction: No anchors? No problem. Thanks to the included caster kit with polyurethane wheels, the lift can be moved with ease. Perfect for homeowners or restorers who need garage flexibility.

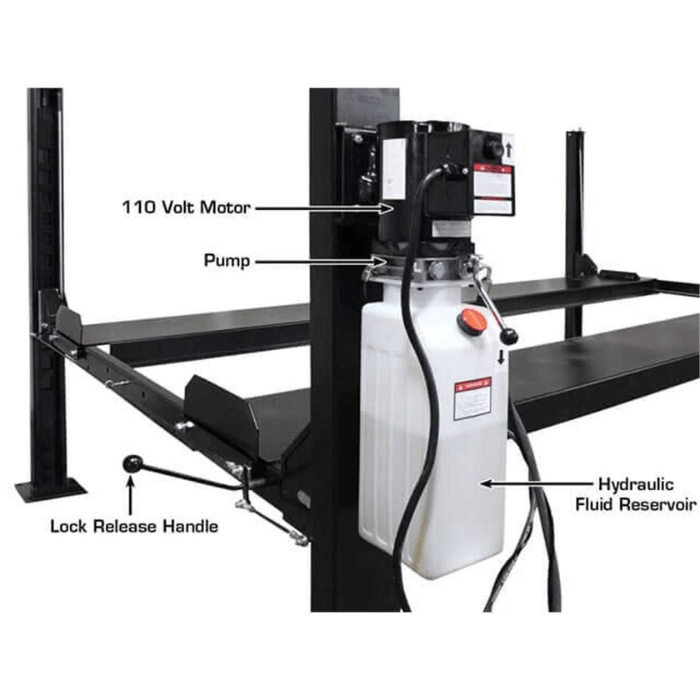

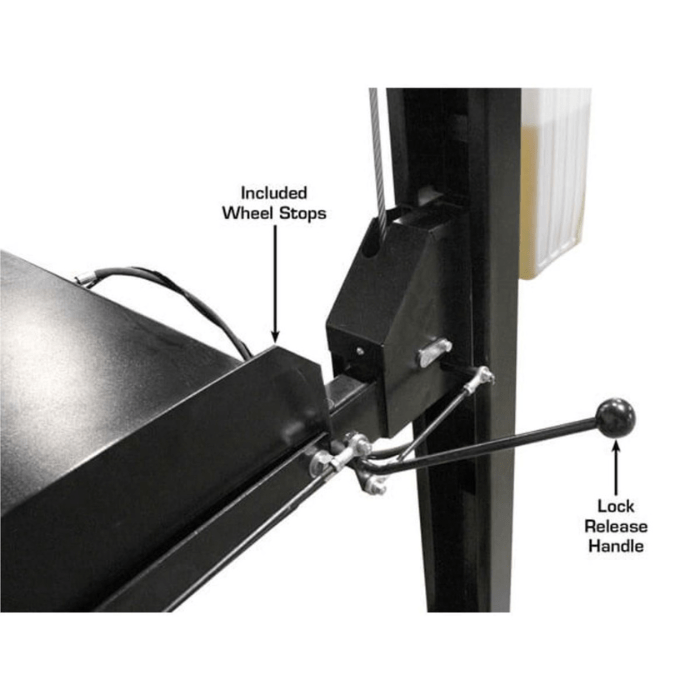

• Single-Point Lock Release System: Easily engage or disengage all four locks with a single lever. It’s a time-saving feature that makes operating the lift quick and intuitive. Even for first-timers.

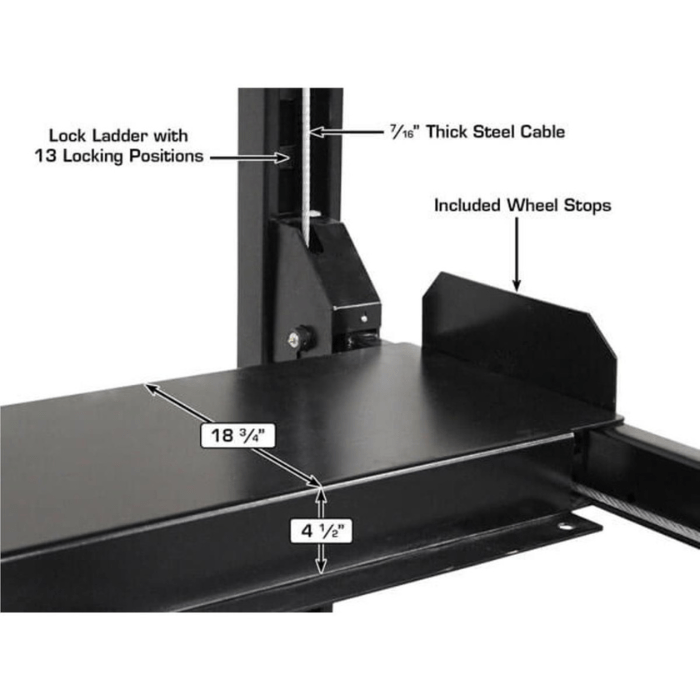

• Double Lock Safety System: A backup lock automatically engages if the primary one fails, giving you peace of mind every time the lift goes up. It’s one of those “just in case” systems that you’ll be glad you have.

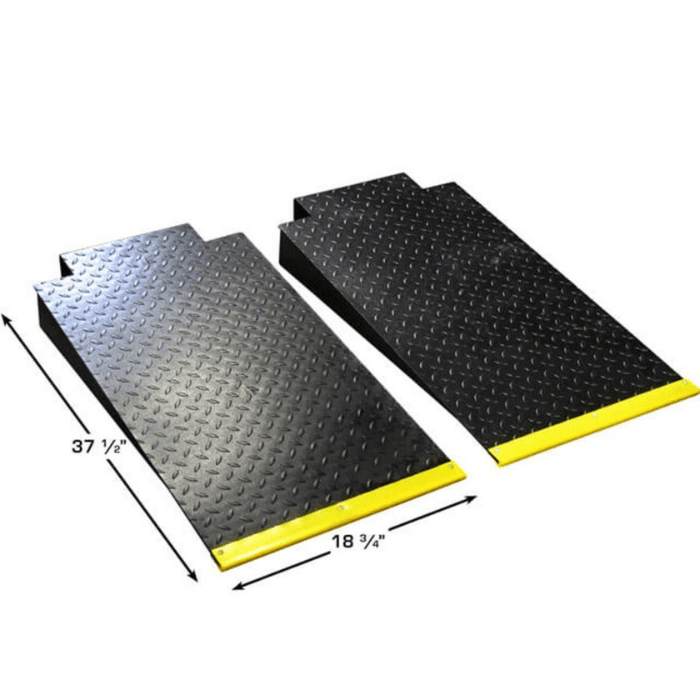

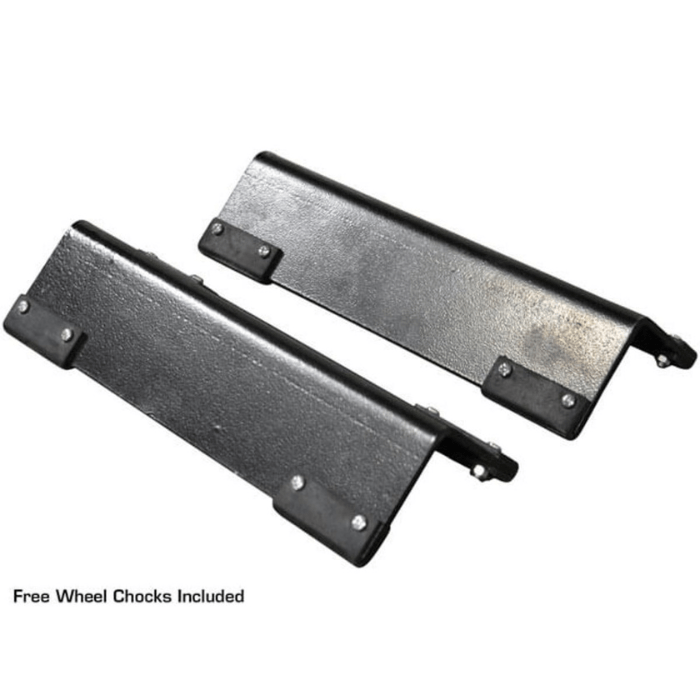

• All-Inclusive Accessory Package: Steel ramps, wheel chocks, wheel stops, and a jack tray-compatible design. All included. Everything you need to start stacking or servicing the moment it's set up.
Minimum Garage Requirements
✔ Ceiling Height: At least 92" (7'8") recommended ✔ Floor Space: 207" L x 104" W (17'3" x 8'8") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 110V / 30 AMP Breaker ✔ Post Height: 86" (7'2") (measure before ordering)
✔ Ceiling Height: At least 92" (7'8") recommended
✔ Floor Space: 207" L x 104" W (17'3" x 8'8")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 110V / 30 AMP Breaker
✔ Post Height: 86" (7'2") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
Atlas Apex 8 Hobbyist Four-Post Car Lift Specifications |
|
| Manufacturer | Atlas |
| Lift Type | ALI Certified Portable 4-Post Lift |
| Capacity | 8,000 lb |
| Lifting Height (Top of Runways) | 72" (6') |
| Clearance Under Runways | 67" (5' 7") |
| Height of Columns | 86 5/8" (7' 2 5/8") |
| Overall Width (Without Motor) | 104" (8' 8") |
| Overall Width (With Motor) | 114" (9' 6") |
| Overall Length (w/ Ramps) | 207 5/6" (17' 3 5/6") |
| Length Without Ramps | 186 1/2" (15' 6 1/2") |
| Runway Width | 18 2/3" |
| Runway Rail Width | 2 1/2" |

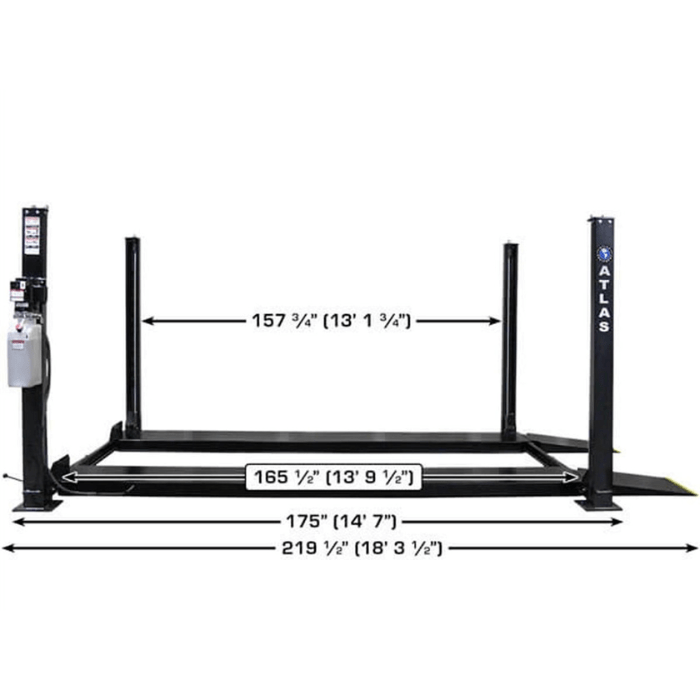

| Runway Length | 169 1/2" (14' 1 1/2") |
| Runway Thickness | 4 1/3" |

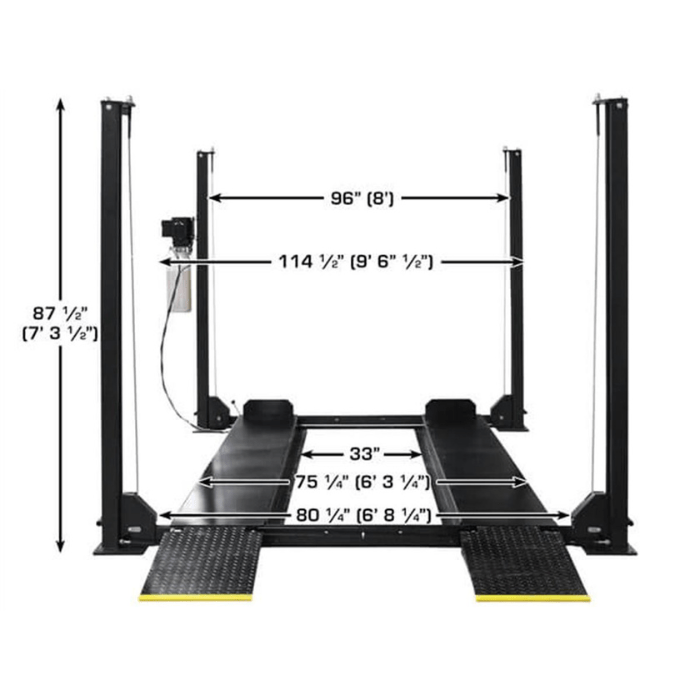

| Width Between Runways | 38" (3' 2") |
| Width Between Runway Rails | 33" (2' 9") |
| Outside Runway to Outside Runway | 75 1/4" (6' 3 1/4") |
| Clearance Between Columns | 94" (7' 10") |

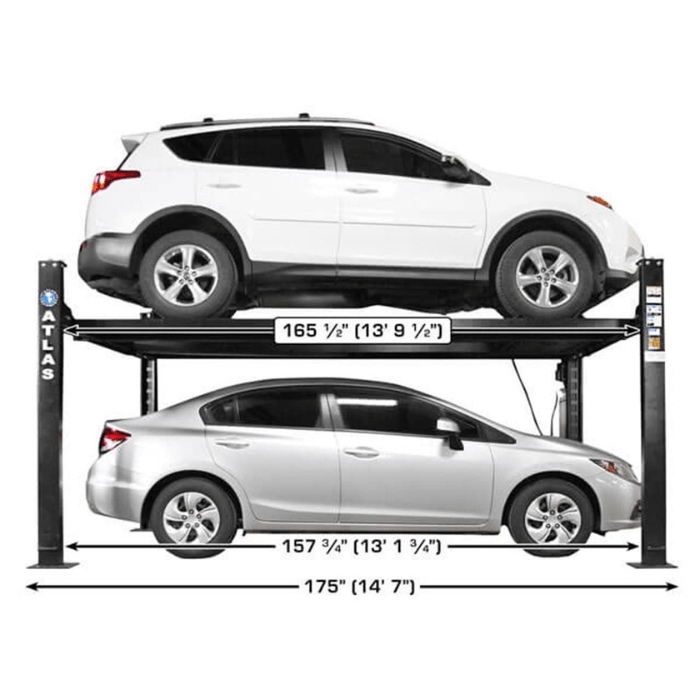

| Length Between Columns | 157 1/3" (13' 1 1/3") |
| Maximum Wheelbase | 154" (12' 9") |
| Drive Thru Width | 80 1/4" (6' 8 1/4") |
| Motor / Electrical Requirements | 110V / 30 AMP Breaker |
| Weight | 2,000 lb |
