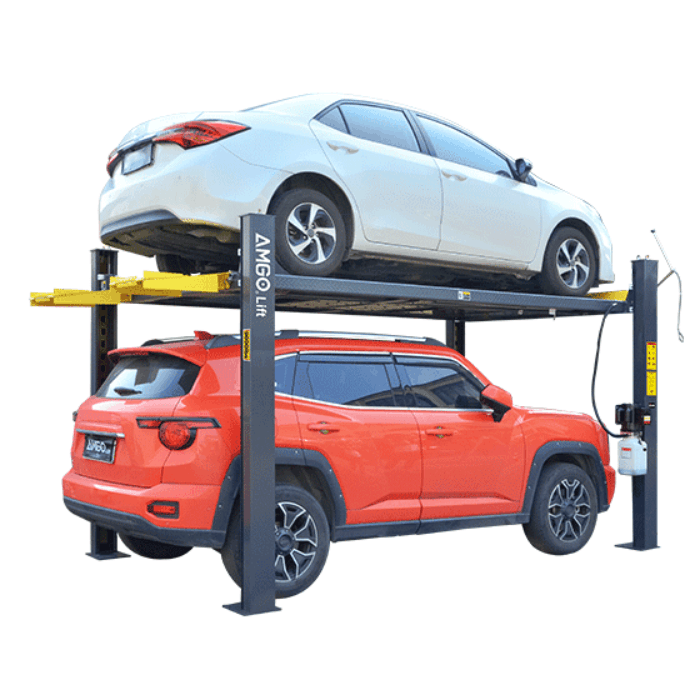

AMGO 4-Post Vehicle Storage Lift – 9,000 lb Capacity | 409-HP
High-Clearance Storage, Zero Compromise: AMGO 409-HP 9,000 lb 4-Post Lift
Finding the right 4 post lift for both taller and longer vehicles can be frustrating. Many lifts lack the height, safety features, or flexibility to work with SUVs, trucks, and specialty vehicles. The AMGO 409-HP solves these issues with its 9,000 lb capacity, extended lifting height, and durable design that’s perfect for home garages or professional shops. Whether you’re parking for storage or working underneath, this lift delivers stability and safety without compromising on space. 9K capacity with high-profile column geometry combined is rare at the residential tier. Most 9K lifts default to standard column heights to save on shipping, leaving owners with lifted trucks or higher ceilings out in the cold.
Unlike some models that limit your workspace, the 409-HP offers an impressive 82 15/16" clearance underneath. Enough for most full-size trucks. It uses AMGO’s patented concealed safety lock control device, ensuring a smooth and secure lift every time. The single-cylinder drive with cable transmission keeps operation efficient, while the dual safety system gives you peace of mind during every use. Foldable ramps and non-skid diamond platforms make loading easy and secure, even for heavier vehicles. 9,000 lb capacity handles full-size trucks, lifted SUVs, and work vans at the upper end of residential-tier storage. The high-profile column setting gives extra stacking clearance for taller upper vehicles.
This isn’t just another AMGO 4 post lift. It’s a high-clearance, space-saving solution that adapts to your setup. The power column can be installed at any corner, and back-to-back installation is possible for maximizing floor space. From hobbyists to commercial operators, the 409-HP offers the flexibility, safety, and reliability you need in a vehicle storage lift built to last. For home owners stacking full-size trucks or working with garage ceilings above 10 feet, the 409-HP brings true 9K storage capability with the column dimensions to actually use it.
Need a different capacity or configuration? Compare all 4 post car lifts, browse the full Car Lifts collection, or read our 2-Post vs 4-Post guide to pick the right style. Questions? Call (470) 208-2754.
Benefits of the AMGO 409-HP 4-Post Lift
Key Features of the AMGO 409-HP 4-Post Lift You'll Love:
• 9,000 lb Wide-Body Capacity: The largest single-platform storage lift in the AMGO line: 119" overall width, 42-3/8" between runways, and a 98-1/4" drive-through that swallows crew cabs, vans, and long SUVs without tiptoeing.
• High-Clearance Stacking: 96-5/8" columns allow an 87-11/16" max lifting height with 83" clear beneath the runways — enough room to park an SUV underneath a stored truck.
• Dual Voltage Options: Run the standard 1.0 HP motor on a 110V household outlet, or spec the 2.0 HP 220V unit to cut the full rise from 143 to 57 seconds. Same lift, your choice of wiring.
• Patented Concealed Safety Locks: AMGO's single-point lock control engages automatically as the lift rises and releases all four corners from one handle — cleaner columns, faster cycles.
• Foldable Drive-On Ramps & Non-Slip Platforms: The approach ramps fold up to save floor space when parked, and textured runways keep tires planted during loading.
• Rolling-Jack Ready: The runways accept both the J5H 5,000 lb and RJ-6H 6,000 lb rolling jacks for wheels-free brake, tire, and suspension work — turning the storage lift into a true service station.
Minimum Garage Requirements
✔ Ceiling Height: At least 102" (8'6") recommended ✔ Floor Space: 238" L x 119" W (19'10" x 9'11") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 1.0 HP (110V/60Hz) or 2.0 HP (220V/60Hz) ✔ Post Height: 96" (8'0") (measure before ordering)
✔ Ceiling Height: At least 102" (8'6") recommended
✔ Floor Space: 238" L x 119" W (19'10" x 9'11")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 1.0 HP (110V/60Hz) or 2.0 HP (220V/60Hz)
✔ Post Height: 96" (8'0") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
AMGO 409-HP 9,000 lb 4-Post Lift Specifications |
|
| Manufacturer | AMGO |
| Model | 409-HP |
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 143 sec (110V) / 57 sec (220V) |
| Overall Length (Incl. Ramps) | 238 1/8" |
| Outside Edge of Crossbeams | 197 3/4" |
| Overall Width | 119 1/8" |
| Width Between Posts | 109 7/16" |
| Max. Lifting Height | 87 11/16" |
| Max. Locking Height | 84 1/2" |
| Overall Height | 96 5/8" |
| Minimum Height | 6 1/16" |
| Max. Underneath Height | 82 15/16" |
| Max. Lock Underneath Runway | 79 13/16" |
| Drive-Through Clearance | 98 1/4" |
| Width Between Runways | 42 3/8" |
| Outside Edge of Runways | 82 3/8" |
| Gross Weight | 1,984 lbs |
| Motor | 1.0 HP (110V/60Hz) or 2.0 HP (220V/60Hz) |
| Shipping Dimensions | Length: 5100 mm (201") Width: 560 mm (22.1") Height: 780 mm (30.71") |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
AMGO 409-HP Frequently Asked Questions
Will my truck fit on the 409-HP?
This is the truck-friendly storage lift of the line: 9,000 lb capacity, a 98-1/4" drive-through width, 42-3/8" between runways, and 238" overall length. Crew cabs, long SUVs, and vans load without tiptoeing, and the 87-11/16" max lifting height leaves 83" of clearance underneath.
Does the 409-HP run on a normal home outlet?
Yes -- the standard 1.0 HP motor runs on 110V household power, with a 2.0 HP 220V option that cuts the rise from 143 to 57 seconds. Either way, no rewiring required for this 4 post storage lift.
Which AMGO storage 4-post is right for me?
This 409-HP is the wide, tall 9,000 lb truck option. Storing cars only? The 408-P and taller 408-HP cost less. Four vehicles? The 409-DPX double-wide stacks two pairs. Daily commercial service? Step up to the PRO-12.
Can I do repair work on the 409-HP?
Yes -- and this model takes both the J5H 5,000 lb and heavier RJ-6H 6,000 lb rolling jack for wheels-free brake and tire work. Add the drip tray set and jack tray to keep the bay clean.
Can I move it or use it outdoors?
AMGO's caster kit lets you roll the lift to a new spot, the outdoor motor cover protects the power unit under a carport, and extended aluminum ramps ease loading for low-clearance vehicles.
Do I need to bolt it to the floor?
No -- 4-post storage lifts are free-standing on concrete at least 4" thick at 3,000 PSI. Anchoring is optional for permanent installs; leave it unanchored if you plan to use the casters.
Is the AMGO 409-HP worth it?
AMGO backs it with 5 years on structure, 3 years on hydraulics, and 2 years on electrical -- longer hydraulic coverage than most value brands offer. See the Reviews tab above for buyer feedback, and our 2-Post vs 4-Post guide if you're still choosing a style.
