AMGO 4-Post Vehicle Storage Lift – 8,000 lb Capacity | 408-HP

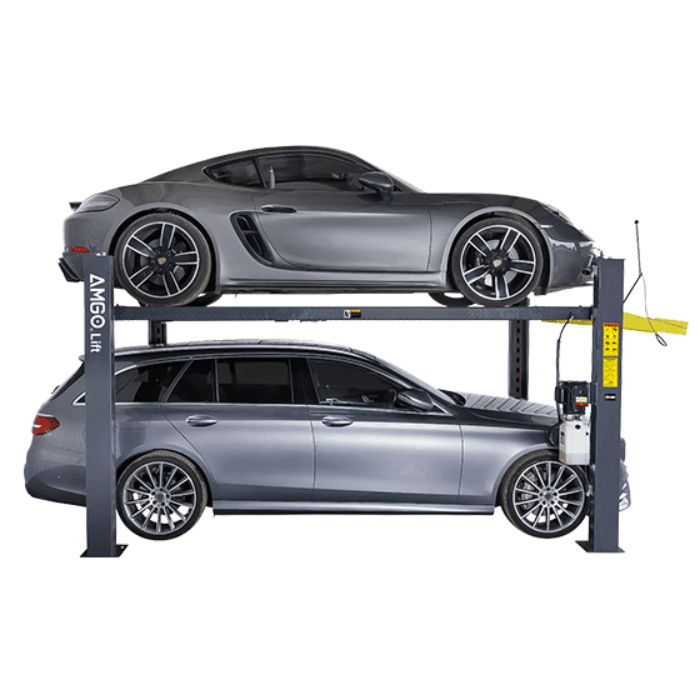

Built for Tall Rides: AMGO 408-HP 8,000 lb 4-Post Lift with Extended Height & Dual Safety
Finding the right 4 post lift that works for taller vehicles can be a headache. Many options fall short when it comes to clearance, safety features, or adaptability for both home garages and commercial shops. The AMGO 408-HP solves these problems with its 8,000 lb lifting capacity and extended lifting height. Perfect for SUVs, trucks, and vans. Built for everyday reliability, it’s engineered with a single-cylinder drive, cable transmission, and AMGO’s patented concealed safety lock control device, ensuring smooth operation and unmatched security. The HP (high-profile) configuration adds extra column height for stacking taller vehicles or for use in higher-ceiling garages. That matters most for owners with lifted trucks, full-size SUVs, or 12+ foot residential ceilings.
If you’ve struggled with lifts that are hard to position or limit your space, you’ll appreciate how versatile the 408-HP is. The power column can be installed at any corner, and the back-to-back installation capability makes it a great fit for garages where every inch matters. Its non-slip diamond platforms and adjustable safety lock ladders make loading and securing vehicles simple, while foldable drive-in ramps help save space when not in use. 8,000 lb capacity covers full-size sedans, mid-size SUVs, and most light trucks. The high-profile column setting gives extra storage clearance above the lifted vehicle.
This isn’t just another 8000 lb 4 post lift. It’s a professional-grade solution that’s equally at home in residential garages and busy automotive shops. From the dual safety system to the option for caster kits, jack trays, and rolling jacks, the 408-HP is ready to adapt to your needs. Whether you’re storing an extra car or creating more working room, this lift delivers dependable performance for years to come. For home owners storing taller vehicles or working with higher residential ceilings, the 408-HP gives you the column dimensions standard 8K storage lifts can't match.
Need a different capacity or configuration? Compare all 4 post car lifts, browse the full Car Lifts collection, or read our 2-Post vs 4-Post guide to pick the right style. Questions? Call (470) 208-2754.
Benefits of the AMGO 408-HP Four Post Lift
Key Features of the AMGO 408-HP 4-Post Lift You'll Love:
• 8,000 lb Lifting Capacity: Handles cars, trucks, SUVs, and vans with ease for both shops and home garages. The 8K rating covers most passenger vehicles plus extended-cab pickups and full-size SUVs that strain consumer-tier 7K storage lifts.
• Extended Lifting Height: Max lift of 87 3/4" accommodates taller vehicles and provides more room to work underneath. The extra lift height matters most when stacking taller vehicles or when techs need full standing clearance for undercar service.
• Patented Concealed Safety Lock Control: Single-point manual release with protected mechanisms for safer, cleaner operation. Concealing the lock control protects the safety mechanism from incidental damage and keeps the bay looking professional.
• Dual Safety System: Primary mechanical lock plus secondary cable-slack device for maximum security during lifts. Dual-redundant safety means the lift won't drop even if one mechanism fails. Critical for long-term unattended storage.
• Non-Slip Diamond Platforms & Foldable Drive-In Ramps: Textured runways keep tires planted; ramps fold to save floor space. Diamond plate surface gives tires consistent grip during loading even when surfaces are slick from rain or melting snow.
• Flexible Installation Options: Power column at any corner; supports back-to-back installs for tight spaces. Back-to-back installation flexibility lets you fit two lifts in a single commercial bay where layout would otherwise force a single install.
Minimum Garage Requirements
✔ Ceiling Height: At least 102" (8'6") recommended ✔ Floor Space: 207" L x 102" W (17'3" x 8'6") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 1.0 HP (110V) or 2.0 HP (220V) ✔ Post Height: 96" (8'0") (measure before ordering)
✔ Ceiling Height: At least 102" (8'6") recommended
✔ Floor Space: 207" L x 102" W (17'3" x 8'6")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 1.0 HP (110V) or 2.0 HP (220V)
✔ Post Height: 96" (8'0") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering.
408-HP 8,000 lb 4-Post Lift Specifications |
|
| Manufacturer | AMGO |
| Model | 408-HP |
| Lifting Capacity | 8,000 lbs |
| Lifting Time (Up/Down) | 98 sec / 46 sec |
| Overall Length (With Ramps) | 207 1/4" |
| Overall Length (Without Ramps) | 173 7/8" |
| Overall Width | 102 1/2" |
| Width Between Posts | 92 7/8" |
| Max. Lifting Height | 87 3/4" |
| Max. Locking Height | 84 1/2" |
| Overall Height | 96 5/8" |
| Minimum Height | 6 1/8" |
| Max. Height Underneath Runway | 83" |
| Max. Locking Height Underneath Runway | 79 13/16" |
| Drive-Through Width | 81 5/8" |
| Width Between Runways | 37" |
| Outside Edge of Runways | 74 3/8" |
| Motor | 1.0 HP (110V) or 2.0 HP (220V) |
| Shipping Dimensions | Length: 4400 mm (173.23") Width: 550 mm (21.65") Height: 780 mm (30.71") |
| Warranty | Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years Other Parts (excl. Consumables), electrical, power units: 2 Years |
AMGO 408-HP Frequently Asked Questions
What does the "HP" add over the standard 408-P?
Height. The 408-HP's 96-5/8" columns allow an 87-3/4" max lifting height and 83" of clearance under the runways -- 14" more stacking room than the 408-P. If you have 102" (8'6") of ceiling, the HP earns it; under 8 feet, stay with the standard.
Does the 408-HP run on a normal home outlet?
Yes -- the standard 1.0 HP motor runs on 110V household power, with a 2.0 HP 220V option for faster cycling. This 4 post storage lift installs without rewiring your garage.
Which AMGO storage 4-post is right for me?
This 408-HP is the tall 8,000 lb model for SUV-over-SUV stacking. The 407-P is the 7,000 lb value pick; the 409-HP adds capacity and width for trucks; and the 409-DPX double-wide stacks four vehicles at this same tall height.
Can I do repair work on the 408-HP?
Yes -- underbody work happens right from the runways. Add the J5H 5,000 lb rolling jack for wheels-free brake and tire work, plus the drip tray set and jack tray to keep the bay clean.
Can I move it or use it outdoors?
AMGO's caster kit lets you roll the lift to a new spot, the outdoor motor cover protects the power unit under a carport, and extended aluminum ramps ease loading for low-clearance cars.
Do I need to bolt it to the floor?
No -- 4-post storage lifts are free-standing on concrete at least 4" thick at 3,000 PSI. Anchoring is optional for permanent installs; leave it unanchored if you plan to use the casters.
Is the AMGO 408-HP worth it?
AMGO backs it with 5 years on structure, 3 years on hydraulics, and 2 years on electrical -- longer hydraulic coverage than most value brands offer. See the Reviews tab above for buyer feedback, and our 2-Post vs 4-Post guide if you're still choosing a style.
