If you own a four-post car lift, you’ll eventually need to get your wheels off the runways for tasks like a brake job on a 4-post lift or suspension work. What’s the safest, easiest way to do it? Some folks use a rolling bridge jack, while others improvise with a bottle jack on a 4-post lift using a jack tray. Both methods let you lift the wheels free, but they aren’t equally stable or convenient.

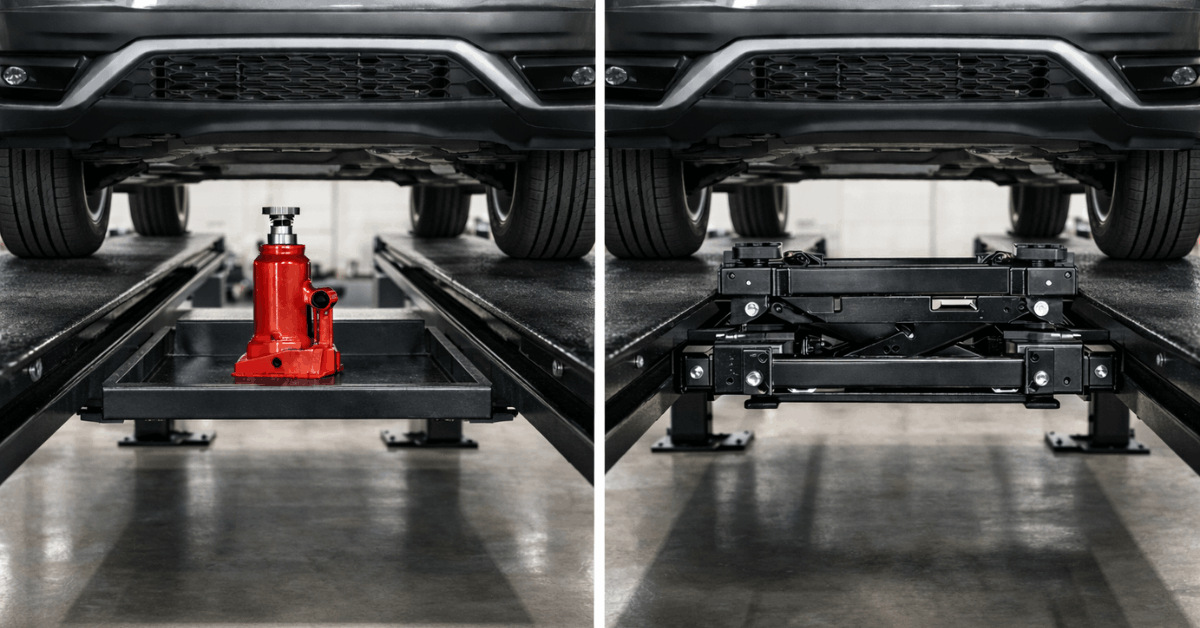

In this guide, we’ll do a simple jack tray vs bridge jack comparison, run through a safety checklist for wheels-free lifting, and highlight some smart product picks to make your 4-post ownership safe and easy.
A rolling bridge jack (bridge jack) spans across a 4-post lift’s runways and slides forward or back to match your vehicle’s wheelbase. It lifts one end of the vehicle at a time by contacting approved jack points on the frame or axle, which effectively turns a storage-style 4-post into a wheels-free service lift. Most use a hydraulic scissor or telescoping design, and higher-quality models include built-in mechanical safety locks you can set at height. If you want to browse options that fit most common runway setups, start with the Rolling Bridge Jacks.
What it does in the real world
Lets you pull wheels for brakes, suspension, and tire work while the car stays supported on the 4-post.
Slides to where you need it, so you’re not fighting wheelbase and jack-point placement.
With two bridge jacks (front + rear), you can lift all four wheels off the runways for full service access.
Key features to look for
Adjustable lift pads/saddles to hit manufacturer-approved frame or axle jack points cleanly.
Hydraulic lift mechanism (air or hand pump) with smooth travel and predictable control.
Mechanical safety locks that hold the load at working height, similar to your main lift’s lock system.
Capacity note
Bridge jacks are typically rated per axle (example: a 4,500 lb bridge jack lifts one end of a vehicle up to 4,500 lb).
A jack tray is a removable steel platform that sits across the runways and gives a flat base for a bottle jack (or small floor jack). You slide the tray to the lift point, set the jack on top, and pump to raise a corner or one end of the vehicle. It’s basically a budget-friendly way to mimic a bridge jack using a standard bottle jack.
Why shops use it
Simple setup with fewer moving parts, and it’s easy to store when not needed.
Works well for occasional wheels-free access without buying a dedicated bridge jack.
Good option if you already own bottle jacks and just need a stable platform on the runways.
Typical specs and setup details
Many trays are rated around 3,500 to 4,500 lb total capacity.
Some trays can hold one or two bottle jacks side by side for lifting both sides of an axle.
Trays often slide or telescope to fit different runway widths and keep the jack centered and stable.
Safety reality check
Unlike a rolling bridge jack, the tray method usually does not include built-in locking, so you’re relying on the bottle jack and should use blocks or stands for added safety once lifted.
If you need help matching a bridge jack to your lift style and runway spacing, call (470) 208-2754.
A rolling bridge jack is purpose-built for 4-post lifts, so it’s the cleanest way to get true wheels-free service without fighting balance issues. Because it spans the runways, the load stays centered and evenly distributed, and it can roll slightly as the vehicle naturally shifts during lift which helps prevent tipping or kicking out. Setup is fast and repeatable, and most models include mechanical safety locks so you’re not relying on hydraulic pressure while you work.
Real-world wins
Stable, centered lifting for brake jobs, tire rotations, and suspension work on both wheels of an axle.
Rolls with minor vehicle movement, reducing the risk of a jack tipping or slipping under load.
Mechanical safety locks add confidence when you’re working at height.
Two bridge jacks front and rear can lift all four wheels and make your 4-post feel like a temporary 2-post.
The biggest drawback is upfront cost since these are specialized accessories and pricing commonly lands around $1,000 to $2,000+ depending on capacity. Fitment matters too because the jack has to match your runway spacing and rail style, so one model does not automatically work on every 4-post. They’re also heavy, which is great for durability but less fun when you need to move or store them, and you need to size capacity to your heaviest axle weight. If you want a purpose-built rolling bridge jack with strong capacity and a common shop fit, check out the Triumph RJ-9000.
What to watch for
Higher cost than other options, especially if you want two jacks.
Compatibility checks required for runway spacing and rail style.
Heavy to reposition and store compared to simpler accessories.
Capacity selection matters since it’s typically rated per axle.
The jack-tray method is the budget entry point, especially if your lift already includes a tray and you only need to buy a solid bottle jack. It’s flexible because you can slide the tray to different positions on the runways and lift a corner or one end for smaller, occasional jobs. When you’re not lifting, the tray can even double as a tool shelf or mini work surface.
Where it makes sense
Low cost if you already have the tray and a bottle jack.
Fine for occasional quick jobs like a single tire swap or a one-corner brake job.
Flexible placement along the runways.
Tray can be useful as a tool platform when not jacking.
It’s slower, more fiddly, and generally less stable for full axle lifts because you’re using a loose jack on a flat platform with no built-in mechanical lock. Vehicles often want to roll slightly as suspension droops, and if the car cannot move (on locks, in Park, wheels chocked), that shifting can make a bottle jack wobble, tilt, or kick out. Getting the fit right also matters more than people expect because you need enough clearance to position the jack, plus the right low-profile and max height range to actually lift safely.
Main risks and hassles
No mechanical safety lock, so blocks or stands are usually needed for safety.
Higher chance of wobble or kick-out as the vehicle shifts during lifting.
Easier to misplace lift points compared to a spanning bridge jack.
More setup effort sliding the tray and positioning the jack at height.
Fitment is picky: tray width plus jack minimum height and max height must match your vehicle and lift.
Raise the vehicle to working height, then lower the 4-post onto its mechanical safety locks before you attempt any wheels-free lifting. Never jack a vehicle while the lift is supported only by hydraulics, because any weight transfer can shift the system. A locked, level lift is your stable foundation for everything that happens next. If you want a deeper safety baseline before you start shopping accessories, review ALI certification basics so you know what you are trusting under load.
Set the lift on its mechanical locks and confirm it is level and secure.
Do not begin wheels-free lifting until the lift is fully resting on the locks.
If anything feels unstable, lower the vehicle and reset before continuing.
Chock the wheels that will stay on the runways, especially the end opposite the end you’re lifting. If you lift the front wheels, chock the rear wheels and set the parking brake, and do the reverse when lifting the rear. This is cheap, simple insurance against unexpected rolling. If you want a quick second set of eyes on your setup, email support@pitstop-pro.com.
Chock the runway wheels before you start jacking.
Set the parking brake and keep the vehicle in Park or in gear.
Re-check chocks after the vehicle settles and the suspension droops.
Always lift from OEM-approved jack points on the frame, axle, suspension, or pinch welds, not thin sheet metal or non-structural parts. If the vehicle needs specific adapters, use them so the contact patch is secure and non-slip. Good lift points are about control and repeatability, not just getting it off the ground.
Use the owner’s manual or manufacturer guidance for approved lift points.
Use pinch-weld pads for unibody vehicles when needed.
Use axle cradle style adapters for round axles when appropriate.
Your setup is only as strong as the lowest-rated component in the chain. Check the ratings for the lift, runways, bridge jack or bottle jack, jack tray, and any stands or blocks you add. If one piece is rated lower, that lower number is your real limit.
Verify capacities on every component, not just the lift.
Do not assume a high-capacity lift makes every accessory safe at that same load.
If you are unsure, reduce the load or upgrade the limiting component.
A bottle jack alone is not a secure support, and a hydraulic bridge jack should not be treated as your only support for extended work. Once the vehicle is lifted, place jack stands, axle stands, or approved support blocks under solid points before you get underneath. Think of jacks as lifting tools, and stands or blocks as the safety system.
Never get under a vehicle supported only by a jack.
Add stands or blocks before doing longer, higher-force jobs.
Confirm supports are on solid points and positioned squarely.
Unbalanced lifting is where small mistakes turn into big movement. If you need to lift a full axle, a bridge jack that spreads the load is safer, or lift one side at a time and support it properly. Keep the vehicle as level as possible on the runways, and avoid lifting in a way that makes it tilt or rock.
Do not try to lift a full end of the vehicle with a small, narrow-base jack if it causes wobble.
Avoid lifting two wheels off on the same side at once unless the setup is designed for it.
If one end must go high, add stable support on the other end to prevent teetering.
A bridge jack should comfortably exceed your heaviest axle weight, not your full GVWR, since you’re lifting one end at a time. If an 8,000 lb truck carries roughly 4,500 lb on the front axle, a 4,500 lb jack is the bare minimum and a 5,000+ lb jack gives a safer margin. Always keep the axle weight under the jack’s rated capacity, and aim to avoid running at 100% capacity on your heaviest vehicles.
Check your heaviest axle, not total vehicle weight.
Use a capacity buffer so the jack is not maxed out.
If unsure on distribution, assume many cars are near 50/50 while front-heavy trucks and EVs can be closer to 60/40.
Measure the inside distance between your runways and confirm how the bridge jack rides on the lift. Some 4-posts use dedicated jack rails or channels, while others support the jack on the runway tops, and the wrong style can be unsafe or not fit at all. Match the jack to your lift’s runway spacing and rail profile and use manufacturer compatibility guidance when possible. If you want us to double-check fitment before you buy, use our contact form.
Measure inside runway width accurately.
Identify whether your lift uses jack rails, lips, or flat runway tops.
Confirm the jack’s adjustable span covers your runway spacing and fits your rail design.
Your jack needs to fit under the vehicle at its lowest point and still reach a safe lift point without stacking blocks. Low vehicles may require a low-profile jack, while lifted trucks may require more max lift height to reach the frame cleanly. Pad choice matters too because flat pads work well for pinch welds or frame rails, while axle cradles are better for solid axles and round contact points.
Compare jack minimum height to your vehicle clearance.
Confirm jack maximum height can reach the frame on taller vehicles.
Choose the right pad or adapter so contact is stable and non-slip.
Avoid over-stacking wood or adapters because it increases instability.
If you use a jack tray, confirm both the weight rating and the physical fit across the runways. The tray should support the portion of weight you plan to lift and have an adjustable width range that matches your runway separation. A larger, more stable tray surface also makes it easier to seat the bottle jack base securely without wobble.
Verify tray capacity for the lift you plan to do.
Confirm the tray’s width range matches your runway spacing.
Make sure the bottle jack base sits fully and flat on the tray.
Look for secure seating features like rubber contact surfaces or locking tabs.
Size the bottle jack above the load you’re lifting, and prioritize stability over bargain pricing. For a single corner, you might be in the 25% of vehicle weight range, but for lifting one end you are closer to 50% and need a higher-rated jack with a wider base. The saddle should match the lift point because a mismatched saddle is one of the easiest ways to create a slip risk.
Choose a jack rated above your expected load.
Prefer a wide base for stability and predictable lifting.
Match the saddle to the lift point:
Concave or V-style adapters for axles or rounded points.
Flat rubber pads for frames and pinch weld areas.
Avoid makeshift setups that can slide, split, or shift under load.
If you do frequent wheels-off work like brake jobs, tire rotations, or suspension repairs, a rolling bridge jack is the right tool for the job. It’s faster to position, more stable for full-axle lifts, and usually includes mechanical safety locks for peace of mind while you’re working. If you run heavier vehicles or trucks, the bridge jack is also the option that feels purpose-built instead of borderline. If you are shopping for a 4-post that supports wheels-free work well, start with our latest 4-post lift picks to narrow down the best platforms.
Best fit for
Regular service work where you need wheels-free access often.
Lifting the full front or rear axle repeatedly and safely.
Heavier vehicles where a bottle jack setup can feel unstable.
Anyone who values speed, repeatability, and built-in safety locks.
What you gain
Quick roll-and-lift setup with less fiddling.
A centered load path that stays stable as the vehicle shifts slightly.
The confidence to treat a 4-post like a true service lift.
If your wheels-free needs are occasional, a jack tray with a quality bottle jack can work as a practical, low-cost solution. It’s best for one-wheel or light-duty tasks, especially if your 4-post is mainly for storage, oil changes, or basic maintenance. It also stores easily, which matters if you don’t have space to keep a heavy bridge jack nearby.
Best fit for
Infrequent wheel removal or one-corner lifting.
Lighter vehicles and simple tasks like seasonal wheel swaps.
Budget-friendly starting setups after buying the lift itself.
Tight storage space where a bridge jack is hard to keep accessible.
What to remember
It takes more setup time and more attention to lift points.
You need extra safety steps every time: locks, chocks, and stands or blocks.
It works in a pinch, but it is not the smoothest option for full-axle lifting.
A lot of owners start with the jack tray because it often comes with the lift and covers occasional needs. Then, when the budget allows or wheels-off work becomes routine, adding a rolling bridge jack is the upgrade that changes how usable your 4-post feels. Having both gives you flexibility, with the bridge jack for daily work and the tray as a backup option.
Wheels-free lifting is safe on a 4-post when the lift is locked, the vehicle is secured, and your jack method is set up correctly. Always follow your lift and jack manuals, but the workflow below covers the proven basics. Move slowly, watch for shifts, and never skip the locks, chocks, and support steps.
Quick safety setup
Park centered on the runways and set the parking brake.
Chock the wheels that will stay on the runways, especially the opposite end from what you are lifting.
Raise the lift slightly and set it onto the first lock to let the vehicle settle, then lift to working height.
Lower the lift onto its mechanical locks so the system is supported by locks, not hydraulics.
Drive onto the lift and center the vehicle between the runways so load is even and predictable. Chock the wheels that will remain on the runways, set the parking brake, and raise the lift a few inches to confirm nothing shifts. Lower onto the first lock to settle the suspension, then raise to working height and lower onto the locks again.
Checklist
Vehicle centered between runways.
Parking brake set and wheel chocks in place.
Lift resting fully on safety locks at your working height.
Roll or slide the bridge jack between the runways under the end you want to lift and align the pads with solid OEM-approved lift points. Pre-load slowly until the pads just contact, confirm both pads are seated correctly, then lift only as high as needed to clear the tires. Engage the bridge jack’s mechanical lock, let the jack rest on the lock, and add stands if you will be under the vehicle or pulling heavier components.
Steps
Roll the bridge jack into position and center it under the target axle or end.
Install the correct pads or adapters, then pre-load until both pads contact firmly.
Lift slowly while watching for shifts and stop once the tires are a couple inches off the runways.
Engage the jack’s safety lock and lower slightly onto the lock.
Add jack stands under solid points if you will be under the vehicle for extended work.
To lower when finished
Raise slightly to clear the lock, disengage the lock, then lower slowly to the runways.
Remove or reposition the bridge jack before moving to the other end.
Slide the jack tray between the runways and position it where it supports the lift point cleanly and squarely. Place the bottle jack centered on the tray with the saddle matching the lift point, then jack slowly while watching for wobble or shifting. Once the wheel or axle is just clear, immediately add stands or solid blocks and never work under a vehicle supported only by the bottle jack.
Steps
Slide the tray into position under the area you need to lift.
Set the bottle jack on the tray, keep it centered, and orient it so the handle is easy to operate.
Use the correct adapter so the saddle meets the lift point squarely.
Pump slowly until the tire or tires are just clear of the runways and stop if anything looks crooked.
Place jack stands or blocks under secure points, then transfer weight onto them enough to stabilize the setup.
To lower when finished
Jack slightly to clear the stands, remove the stands, then lower the bottle jack slowly to the runways.
Remove the bottle jack and tray before lowering the lift.
Before lowering the 4-post, clear everything from under the vehicle, including stands, tools, and jacks. Raise the lift slightly to disengage the locks, then remove any chocks that could catch on the way down. Lower the lift smoothly to the ground and do a final quick check that nothing was left on the runways.
Final reset checklist
All jacks, stands, blocks, and tools removed.
Locks disengaged cleanly and chocks removed if needed.
Lift lowered smoothly with the vehicle staying centered and stable.
If you want a strong starter 4-post that can do wheels-free work without buying extra accessories on day one, the KT-4H950 is an easy win. It comes with the essentials to get set up fast and keep your garage cleaner while you work. When you are ready for more frequent brake and suspension jobs, you can add a rolling bridge jack later to level up the setup.
Why it is a smart starter
Jack tray included so you can lift wheels-free right away with a bottle jack.
Caster kit included for easier repositioning in a home garage.
Drip trays included to help keep the floor clean during storage and service.
Best for
Home enthusiasts using a 4-post for storage plus occasional maintenance.
Buyers who want a compatible platform they can upgrade with a bridge jack later.
Garages that want a clean, organized setup from day one.
The NSS-8XLT is built for extra room, and that matters when you are working with longer wheelbase vehicles or taller ceilings. The added length and height give you more flexibility for trucks, larger SUVs, and even stacked vehicle storage when the space allows. You can run it with a rolling bridge jack for faster axle lifting, or use the jack tray and a bottle jack for lighter, occasional wheels-free tasks.
Why mechanics like it
Extra length helps with longer vehicles and easier positioning.
Extra height helps with clearance and storage flexibility.
Works well as a grow-with-you lift for mixed needs.
How to equip it for wheels-free work
Add a rolling bridge jack for stable full-axle lifting and faster repeatability.
Use a jack tray with a quality bottle jack for one-corner or occasional lifting.
Keep wheel chocks and stands in your routine for consistent safety.
If you want a daily-driver service setup, the KT-4H150 is the most turnkey option of the three because it includes a rolling bridge jack from the start. It is alignment-ready with turnplates and slip plates, which makes it a strong fit for shops doing suspension and steering work. The heavy-duty build and repeatable lock positions make it a dependable choice when speed, safety, and consistency matter.
What makes it shop-ready
15,000 lb capacity for heavier vehicles and commercial use.
Alignment features like turnplates and slip plates for proper setup.
Rolling bridge jack included for safer axle lifting during service.
Best for
Frequent wheels-free work like brakes, suspension, and tire service.
Shops that want an integrated alignment and lifting workflow.
Anyone who wants the fastest path to a stable, repeatable routine.
Choose based on how often you will do wheels-off work and how heavy your typical vehicles are. A jack tray friendly 4-post is great for occasional lifting, while an included rolling bridge jack setup is the smoothest path for frequent axle service. If you want help matching runway width, rail style, and jack fitment, reach out to Pitstop Pro before ordering so your setup works the first time.
These guides will help you compare lift styles, prep your space, and build safer habits in the shop. They also make it easier to match the right lift and accessories to your vehicle mix and how often you plan to do wheels-free work. If you are unsure about fitment or runway spacing, these are the best places to start before you buy.
4-Post Lift Collection
Browse storage and service 4-post lifts with specs and features for side-by-side comparison.
2-Post vs 4-Post Lift Guide
Breaks down the real differences in access, stability, space needs, and best use cases.
Installation Requirements
Covers ceiling height, concrete requirements, power needs, and common setup pitfalls.
Car Lift Safety Guide
Focuses on safe spotting, daily checks, proper locking, and working under load.
These are the industry baselines that help you stay consistent and safe, whether you are in a commercial shop or a home garage. They are especially useful when you are choosing accessories like bridge jacks, jack trays, and adapters. If you want the most confidence, cross-check your routine against these standards.
ALI and ANSI Lift Standards
ALI publishes key ANSI standards for lift construction, testing, operation, and maintenance.
OSHA Vehicle Lifting Guidance
OSHA guidance and shop safety rules for lifting equipment, jack usage, training, and inspections.
In the bridge jack vs bottle jack debate, it really comes down to frequency and safety. A rolling bridge jack is the safest and fastest way to lift wheels on a 4-post because it is purpose-built for stable, centered axle lifting and most models add mechanical safety locks for confidence. A bottle jack on a tray can work for light, occasional lifting, but it takes more setup and more caution, so it is best treated as a backup or temporary option.
Quick takeaway
Choose a bridge jack if you do wheels-off work regularly and want the most stable, repeatable setup.
Use a bottle jack + tray if you rarely need wheels-free access and you are strict about locks, chocks, and stands.
No matter what, follow the safety rules every time because shortcuts are where accidents happen.
Before you buy any accessory, run through the sizing checklist to confirm capacity and fitment with your runway spacing, rail style, and vehicle clearance. Starting with a 4-post that includes a jack tray gives you a Day 1 option, and adding a bridge jack later is the upgrade that makes full axle lifting feel effortless and professional. Think of the tray method as your occasional solution and the bridge jack as the long-term move when you are ready for more frequent service work.
Leave a comment
