Triumph 7,000 lb Portable Two Post Auto Lift | C-7000
Tired of Bulky, Permanent Lifts? The C7000 Portable Two Post Lift Stores Away in Minutes
Finding a dependable 2 post car lift that doesn’t eat up your entire garage or require permanent installation can be a frustrating process. Most traditional models are bulky, immobile, or require expensive professional setup. If your workspace changes or you're working with limited room, the standard lift just doesn’t cut it. That’s where the Triumph C-7000 completely changes the game. What most buyers in this category really want is the ability to set the lift up for a project, then take it back down and use the bay for other work. Standard 2-post lifts force you to commit a bay permanently, which is a non-starter for many home garages.
The C7000 Portable Two Post Auto Lift delivers unmatched versatility with a fully flush-mounted design. The recessed anchors are removable, so when the lift is disassembled and stored you get 100% of your floor space back with nothing left protruding from the slab. Whether you're a pro mechanic or a serious DIYer, the C-7000 adapts to your setup and not the other way around. The posts mount anywhere from 48" to 120" apart, center to center, with no cable limitations dictating the spacing. That range covers a Miata at one end and an F-150, a light truck, or a small tow truck at the other.
Unlike fixed-frame options, this 2 post vehicle lift is designed for flexibility and simplicity. It disassembles and can be stored in under 10 minutes by just one person. And because the posts are only 95" tall with a 69" lifting height, it works in home garages that can't take a full-height 2-post at all. 7,000 lb capacity, a 110V motor on a 30 amp breaker, and an automatic locking ladder system in a new chrome finish. Two notes worth knowing before you order: casters are not included (the power unit ships on its own wheeled dolly, but the lift itself does not come with wheels), and the mounting hardware ships separately from our Texas warehouse.
Still shopping around? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Triumph Lifts Worth It? breakdown. Questions? Call (470) 208-2754.
Benefits of the Triumph C-7000 Vehicle Lift
Key Features of the Triumph C-7000 7,000 lb Portable Two-Post Car Lift You'll Love:
• Quick Install Design: The lift can be disassembled and stored in under 10 minutes by a single operator, and the recessed anchors lift straight out of the floor. Set it up for a project, break it down when the bay is needed for something else.
• Adjustable Width, No Cable Limitations: Mountable at any width up to 120" between post centers (48" minimum). Most 2-post lifts fix the spacing around an equalizer cable. This one does not, so the bay is yours to configure.
• Automatic Locking Ladder System: Welded for durability and finished in the new chrome treatment. Locks engage automatically as the carriage rises, so the load is never held on hydraulic pressure alone.
• Flush Mounting System: Preserves 100% usable floor space when the lift is stored. Nothing protrudes above the slab once the recessed anchors come out.
• Pad Extensions and Rubber Lifting Pads: Includes 3" and 6" extensions with rubber lifting pads for frame-lift points on trucks and vehicles with unusual clearance. Lowered arm clearance is 4.5", so low-slung cars still clear on approach.

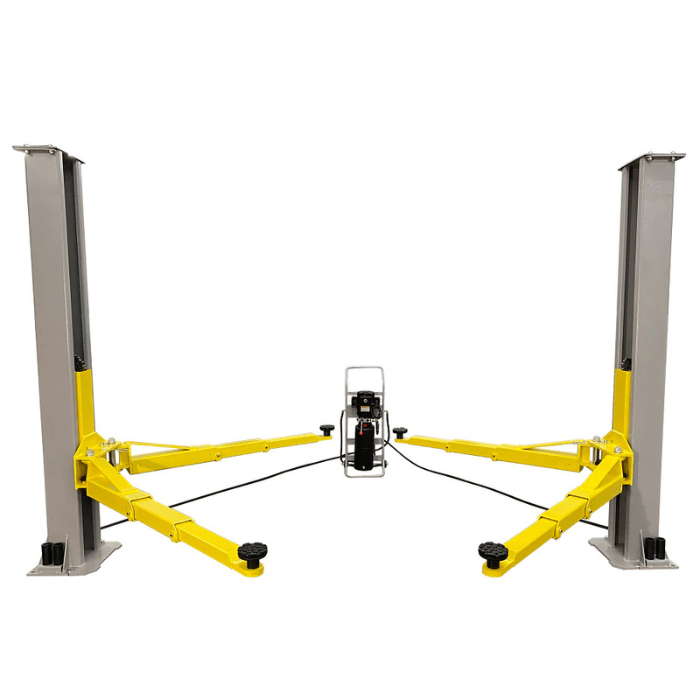

• Power Unit on a Wheeled Dolly: The 3 HP / 110V power unit is mounted on its own wheeled dolly so you can move it around the bay. Note: casters for the lift itself are not included and the unit does not ship with wheels.
• Hardware Ships Separately from Texas: To cut down on misplaced hardware packs, the mounting hardware ships on its own from our TX warehouse rather than in the crate. This applies to warehouse pickup orders too, except pickups made in Texas.
Minimum Garage Requirements
✔ Ceiling Height: At least 101" (8'5") recommended ✔ Post Spacing: 48" to 120" apart, center to center (4'0" to 10'0") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 110V on a 30 amp breaker ✔ Overall Lift Height: 95" (7'11") (measure before ordering)
✔ Ceiling Height: At least 101" (8'5") recommended
✔ Post Spacing: 48" to 120" apart, center to center (4'0" to 10'0")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 110V on a 30 amp breaker
✔ Overall Lift Height: 95" (7'11") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. The flush mounting system uses recessed anchors set into the slab, so slab depth matters even though the lift is removable. The 95" post height is the fixed dimension; the 69" lifting height is what you get under the vehicle, so measure your ceiling and your tallest vehicle before ordering.
Triumph C-7000 Two-Post Portable Auto Lift Specifications |
|
| Manufacturer | Triumph |
| Lift Type | Portable Flush-Mount 2-Post Lift |
| Capacity | 7,000 lbs |
| Lifting Height | 69" (5' 9") |
| Overall Height | 95" (7' 11") |
| Width Between Posts | 48" to 120" (center to center), adjustable |
| Base Plate Size | 18" x 15" |
| Lowered Arm Clearance | 4.5" |
| Locking System | Automatic locking ladder, welded, chrome finish |
| Pad Extensions / Truck Adapters | 3" and 6" extensions with rubber lifting pads, included |
| Mounting | Flush mount, recessed removable anchors |
| Concrete Requirement | 4" Slab @ 3,000 PSI |
| Casters | Not included. The power unit ships on a wheeled dolly; the lift itself does not include wheels. |
| Voltage | 110V (30 amp breaker) |
| Motor Power | 3 HP |
| Unit Weight | 1,200 lbs |
| Pallet Dimensions | 98" x 19" x 35" |
| Warranty | 1 Year, Parts Only |
Triumph C-7000 Frequently Asked Questions
What makes the C-7000 portable?
Two things: it disassembles and stores in under 10 minutes by one operator, and the flush mounting system uses recessed anchors that pull straight out of the slab. Take the lift down and the floor is flat again. It's the pick for renters, shared shops, and anyone not ready to commit a bay to lift posts for good. Worth being clear about one thing: portable here means quick to break down and store, not rolled around on wheels. Casters are not included.
How much ceiling height does the C-7000 need?
The posts stand 95" (7'11"), so plan on at least 101" (8'5") of ceiling. That's the whole point of this lift: it installs in home garages that can't take a conventional overhead 2-post, which typically needs 12 feet or more. Lifting height is 69" to the pads, so measure the height of your tallest vehicle too.
Will my vehicle fit on the C-7000?
As a 7,000 lb car lift it covers everything from a Miata to an F-150, light trucks, and even a small tow truck. Because the posts mount 48" to 120" apart with no cable between them, you can set the spacing to the vehicle rather than the other way round. Heavier than 7,000 lbs and you want the 9,000 lb NT-9 or NTO-9AE instead.
Does the C-7000 really run on 110V power?
Yes -- the 3 HP motor runs on standard 110V, but it needs a 30 amp breaker, so check the circuit before delivery rather than assuming any household outlet will do. The power unit is mounted on a wheeled dolly so you can position it wherever it suits the layout.
Which Triumph 2-post is right for me?
This C-7000 is the low-ceiling, take-it-down-when-you're-done pick for car-weight vehicles. If your lift is staying put, the anchored NT-9 (floor-plate, 110V) and NTO-9AE (overhead, 110V) add 2,000 lbs of capacity for similar money.
Should I get a 2-post or a 4-post lift?
Two-posts like this one are built for repair work -- wheels hang free for brakes, suspension, and tires. Four-posts win for storage and drive-on ease. Our 2-Post vs 4-Post guide walks through the decision in five minutes.
How does delivery work?
The C-7000 is different from our other lifts: it ships on a 98" x 19" x 35" pallet via small package shipping rather than standard freight. Total unit weight is about 1,200 lbs. You can also choose free pickup at one of Triumph's 3 warehouse locations -- enter your ZIP above to see whether one is close to you. The mounting hardware ships separately from our Texas warehouse, including on warehouse pickup orders, except pickups made in Texas. We do it that way because hardware packs were going missing in the crate.
What warranty does it carry?
One year, parts only. That's shorter than our anchored 2-post lifts carry, which reflects the removable, repositionable design. Call (470) 208-2754 if you want to talk through coverage before ordering.
Is the Triumph C-7000 worth it?
It's the only portable 2-post in our catalog, it fits under a ceiling most 2-posts can't touch, and it's one of the least expensive paths to wheels-free service work anywhere. See the Reviews tab above for buyer feedback, and read our Are Triumph Lifts Worth It? breakdown on The Pitstop Journal.
