Need a Lift That Handles Trucks and Keeps Your Floor Clear? The Triumph NTO-11A Lift Delivers Both
Buying a 2-post car lift for your garage or auto shop can feel overwhelming. You’re looking for something strong enough to lift trucks, but also safe, easy to use, and built to last. Many lifts in this weight class either cut corners on safety or don’t accommodate the variety of vehicles you handle daily. The last thing you want is a clunky design that limits floor space or gives you uneven lifting issues. Every increase in capacity adds to the cost of a 2-post lift, but the 11K range is where the price-quality tradeoff becomes most acute. Cheap options compromise on cable sync and cylinder design, the components that fail first.
The NTO-11A Car Lift from Triumph solves those problems and then some. This commercial-grade 2-post auto lift supports up to 11,000 lbs and is built with an overhead-style frame that keeps your floor completely open underneath the vehicle. That means no tripping hazards or obstacles when you’re rolling toolboxes, jacks, or other gear under the lift. The overhead electric safety cut-off ensures peace of mind. You’ll never accidentally raise a vehicle too far and cause roof damage. Direct-drive hydraulic cylinders eliminate the lift chains that wear out in cheaper lifts, aircraft-grade synchronization cables keep both carriages moving in lockstep, and single-point safety release lowers the lift from one location.
With a single-point safety release, direct drive cylinders for smoother lifting, and heavy-duty truck adapters included, the NTO-11A is built for versatility and efficiency. Whether you're servicing compact cars or big work trucks, this 2 post vehicle lift gets the job done quickly and safely, while making the best use of your shop space. For shops handling daily mixed work, from sedans through full-size trucks, the NTO-11A delivers the durability and operational simplicity that keep a lift in service for a decade rather than a couple of years.
Searching for a better fit for your garage? Compare all 2 post car lifts, browse the full Car Lifts collection, or read our honest Are Triumph Lifts Worth It? breakdown. Questions? Call (470) 208-2754.
Benefits of the Triumph NTO-11A Vehicle Lift

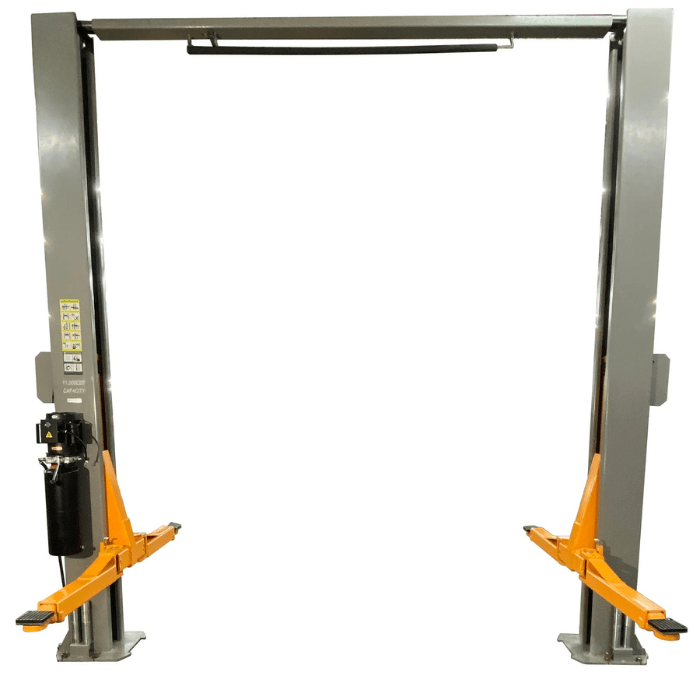

Maximize Floor Space Keep workspace clear with overhead design. Cables and hoses route through the crossmember, not across the floor. Work on All Vehicle Types Handles compact cars to full-size trucks. The 11,000 lb capacity covers crew cabs, lifted SUVs, and most light commercial vehicles. Save Time with Fast Lift Cycles 40-second lift speeds. The 3HP / 220V motor cycles full-capacity loads in the same time as lighter lifts handle compact cars. Simplify Operations Single point lock release for convenience. One operator can raise, lock, lower, and reset the lift without walking between posts. Boost Long-Term Reliability Fewer moving parts, low maintenance. Direct-drive hydraulic cylinders eliminate the lift chains and sheaves that wear out first in cheaper lifts. Increase Shop Safety Overhead safety cut-off and sync cables. Aircraft-grade synchronization keeps both carriages moving in lockstep, and the overhead cutoff prevents over-lift damage.Key Features of the Triumph NTO-11A 11,000 lb Two-Post Overhead Car Lift You'll Love:
• Overhead Design with Floor-Free Access: Keeps your floor completely clear of obstructions for safer, more efficient work. No base plates to trip over. Just open space for carts, creepers, and tools. Floor-free access keeps the working area clear of cables and hydraulic hoses during service work.

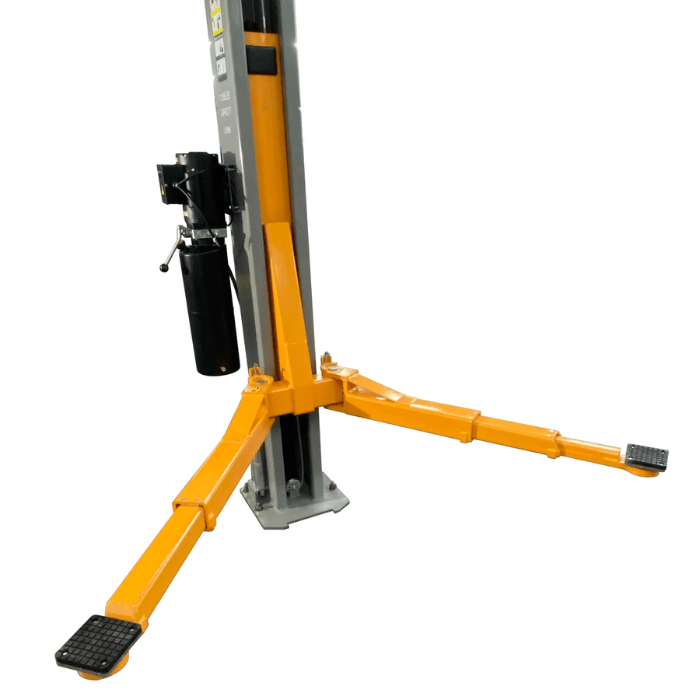

• 11,000 lb Capacity with Heavy-Duty Truck Adapters: Handles everything from compact cars to full-size diesel trucks. Comes standard with large, machined truck adapters for reliable lifting across a wide range of vehicles. Heavy-duty truck adapters cover frame variations on full-size trucks without forcing improvised contact points.
• Direct Drive Hydraulic Cylinders: The cylinders drive each carriage directly, so there are no lift chains or sheaves in the load path. Fewer moving parts, less maintenance, and more consistent lifting over time. (The synchronization cables described below keep the carriages level; they do not carry the lifting load.)
• Single Point Safety Release: Unlock both arms from one side with a single motion. Saves time, boosts efficiency, and keeps your workflow running smoothly without unnecessary steps. Single-point release engages and disengages all locks from one location, cutting walking time per cycle.
• Aircraft-Grade Synchronization Cables: Uses 3/8” aircraft-grade cables for perfectly even lifting on both sides. Reduces wear on components and improves overall safety with every use. Aircraft-grade synchronization cables keep both carriages moving in lockstep, critical for vehicle balance during lifting.

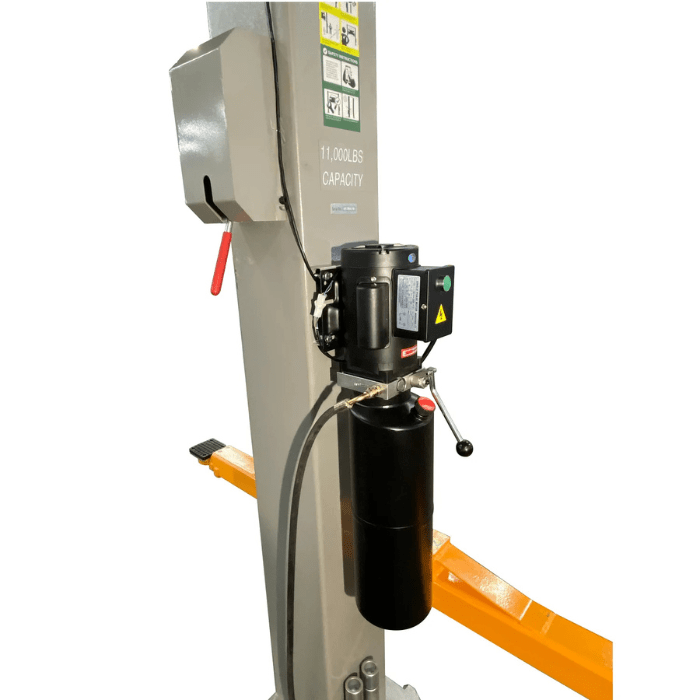

• Fast Lift Time with 3 HP Motor: Raises vehicles in just 40 seconds, powered by a high-performance 3 HP motor. Keeping your shop on pace and increasing daily output. The 3HP motor cycles consistently at 11K capacity, not just under empty or light-vehicle conditions.
Minimum Garage Requirements
✔ Ceiling Height: At least 151" (12'7") recommended ✔ Footprint: 108" drive-thru x 145" overall (9'0" x 12'1") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,500 PSI, steel-reinforced, cured at least 28 days ✔ Electrical: 220 Volt ✔ Overall Lift Height: 145" (12'1") (measure before ordering)
✔ Ceiling Height: At least 151" (12'7") recommended
✔ Footprint: 108" drive-thru x 145" overall (9'0" x 12'1")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,500 PSI, steel-reinforced, cured at least 28 days
✔ Electrical: 220 Volt
✔ Overall Lift Height: 145" (12'1") (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: 2-post overhead lifts inherently require tall ceilings. Verify your overhead clearance before ordering.

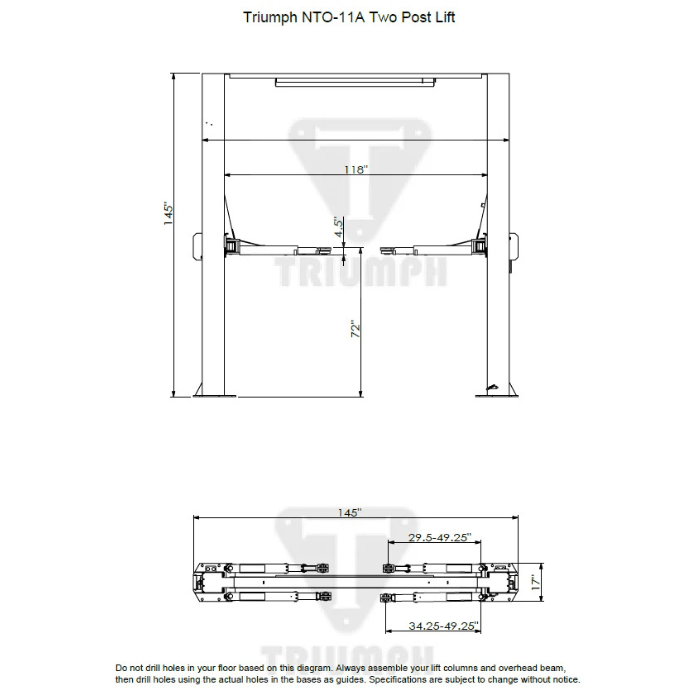

Triumph NTO-11A Overhead Two-Post Auto Lift Specifications |
|
| Manufacturer | Triumph |
| Model | NTO-11A |
| Lift Capacity | 11,000 lbs |
| Style | Overhead |
| Overall Height | 145" |
| Overall Width | 145" |
| Distance Between Posts | 118" |
| Drive-Thru Width | 108" |
| Lifting Height | 72" |
| Lowered Height | 4.5" |
| Base Plate Size | 18" x 20" |
| Lift Time | 40 Seconds |
| Voltage | 220 Volt |
| Horsepower | 3 HP |
| Concrete Requirement | 4" Slab, 3,500 PSI |
| Truck Adapters | Included |
| Lock Release | Single Point |
| Electric Safety Cut-Off | Yes |
Triumph NTO-11A Frequently Asked Questions
Will a 3/4-ton truck fit on the NTO-11A?
Yes -- the 11,000 lb rating covers half-ton and 3/4-ton pickups plus full-size SUVs, and the 108" drive-thru is the widest of our light-duty Triumph 2-posts, so wide mirrors and duallys' fenders clear the columns. Truck adapters are included.
How much ceiling height do I need?
The overhead beam stands 145" (12'1"), so plan on at least 151" (12'7") of ceiling. The electric safety cutoff stops the carriage before a roof or rack can touch the beam. Lower ceiling? The floor-plate NT-11 carries the same 11,000 lbs at 116" tall.
Which Triumph 2-post is right for me?
This NTO-11A tops the light-duty overhead range -- 11,000 lbs, single-point release, widest drive-thru. The NTO-10A saves money at 10,000 lbs; the floor-plate NT-11 fits lower ceilings; and commercial trucks belong on the 16,000 lb NTO-16.
Does the NTO-11A run on 110V power?
No -- it needs 220V single-phase on a dedicated circuit. If you only have 110V, our Triumph NT-9 and NTO-9AE run on household power at 9,000 lbs.
Do I need to bolt it to the floor?
Yes -- every 2-post must be anchored, and the hardware ships with the lift. Your slab needs to be a steel-reinforced 4" pour at 3,500 PSI, cured at least 28 days. Verify before ordering.
Should I get a 2-post or a 4-post lift?
Two-posts like this one are built for repair work -- wheels hang free for brakes, suspension, and tires. Four-posts win for storage and drive-on ease. Our 2-Post vs 4-Post guide walks through the decision in five minutes.
How does freight delivery work?
The lift ships as freight. You can choose curbside freight delivery or free pickup at one of Triumph's 3 warehouse locations -- enter your ZIP above to see whether one is close to you. Most orders arrive within 1-2 weeks.
Is the Triumph NTO-11A worth it?
The widest drive-thru and highest capacity of the light-duty overheads, with single-point release and an electric cutoff -- it's the pick when you want room to grow without commercial pricing. See the Reviews tab above for buyer feedback, and read our Are Triumph Lifts Worth It? breakdown on The Pitstop Journal.
Ready to upgrade your garage? Talk to a Lift Specialist or explore more options.
Call (470) 208-2754 Request a Quote Browse All LiftsWarranty
- Coverage Periods
- Auto lifts: 1-year parts warranty
- Auto lift structure (indoor use only): 1-year structural warranty
- Tire equipment: 1-year warranty
- Not Covered
- Labor costs (no labor warranty offered)
- Normal wear parts, including:
- Rubber lifting pads
- Plastic demount heads, rim clamp covers, bead breaker covers
- Valve stem hoses, wheel weight hammers, wheel cones, wing nuts
- Warranty Terms
- Warranty is for parts only. Free ground shipping (USA only) within the first 60 days.
- After 60 days, all shipping costs must be paid by the customer.
- International customers are responsible for all shipping costs (no exceptions).
- Warranty is non-transferable and void if:
- Chargebacks or legal action are attempted
- Equipment is installed improperly
- Replacement parts do not extend the warranty period.
Triumph reserves the right to amend warranty terms at any time without notice.
Shipping
- Freight shipping only within the lower 48 U.S. states.
- No liftgate service available for auto or motorcycle lifts.
- Customer is responsible for unloading the lift. Forklift, Bobcat, tractor, or similar equipment is required.
- If unable to unload at delivery site, shipment can be rerouted to the nearest freight terminal for pickup.
- Delivery occurs via a 48-foot semi-truck. No guaranteed delivery times, but most orders arrive within 3–14 business days.
- Customer must call the freight company to schedule delivery.
- All equipment must be inspected upon delivery. Report any visible damage or missing parts on the Bill of Lading.
- Missing motors or power units must be reported at the time of delivery.
- Any incorrect or missing parts must be reported within 14 days of receipt, or within 3 days for parts shipped separately.
Returns
- All Triumph lift sales are final once the equipment has shipped.
- Triumph lifts are not eligible for standard returns after shipment.
- Orders canceled after payment has been processed but before shipment may be subject to a 15% cancellation fee.
- If a shipped order is refused at delivery, the customer is responsible for round-trip freight charges and a 30% restocking fee.
- Used, installed, assembled, or altered equipment cannot be returned.
- Parts orders are final sale and are not eligible for return.
- Any missing, damaged, or incorrect items must be reported according to the delivery and warranty guidelines listed on this page.
- Warranty-related issues are handled through Triumph/National Auto Tools’ parts warranty process and are not considered standard returns.
Installation
- Installation must be performed by a certified electrician to avoid potential issues. Triumph is not liable for any damage or problems caused by unlicensed or improper installation.
- Electrical wiring diagrams will not be provided due to legal restrictions.
- If installation is not completed by a certified electrician, disputes will require an invoice and itemized report from a certified electrician for review.
- Installation does not include:
- Hydraulic oil
- Equipment training
- Equipment delivery
- Repair of shipping damage
- Regular maintenance, including cable adjustments, oil top-offs, and lubrication
- The installer is not required to:
- Complete installation if the site is unsafe or unprepared
- Make repeat visits due to lack of electricity or improper site conditions
- Perform any labor related to warranty service or maintenance
- Auto lift motors are for indoor use only and are not covered under warranty if installed outdoors.
