NitroFill High-Output Nitrogen Conversion System – 26 CFM for Truck Tires | E-175

SKU E-175
Save $500.00
Original Price $14,000.00
Current Price $13,500.00

Notify me when back in stock

Served in the military? Click here — we’d love to thank you with a personalized discount.
NitroFill Mobile and Desktop Trust Badges NitroFill Mobile and Desktop Trust Badges

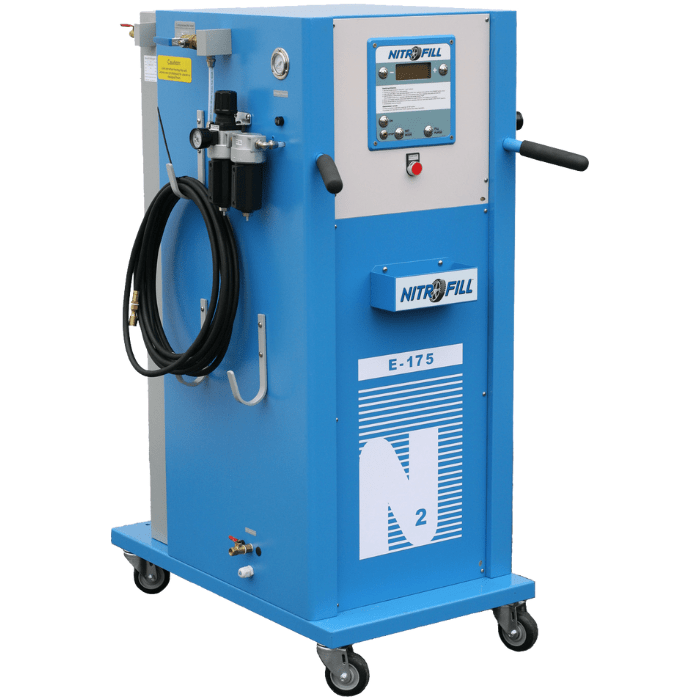

Commercial-Grade Nitrogen – E-175 Generator with 99.9% Purity & LCD Display



If you're running a busy fleet service center or truck tire shop, you know how frustrating slow inflation systems can be. Most nitrogen generators just can't keep up with large commercial tires, wasting precious time and killing workflow. The NitroFill E-175 solves that problem with a high-output nitrogen generation system that delivers an unmatched 26 CFM—fast enough to inflate a 12.00R x 22.5 tire from 0 to 120 psi in under 10 minutes.

The E-175 nitrogen generator is designed for speed, power, and ease of use. Whether you're servicing a single semi-truck or a row of fleet vehicles, this machine converts up to 6 tires at once with just the push of a button. It’s fully programmable, automated, and backed by NitroFill’s reputation for durability. That means you’re getting a turnkey, heavy-duty nitrogen conversion system that works hard without breaking down.

For any high-volume tire operation, the E-175 is a game-changer. It delivers adjustable nitrogen purity up to 99.9%, supports auto modes like over-pressure and auto-off, and comes with a clean, easy-to-read LCD display. This nitrogen generator isn’t just built to perform—it’s built to simplify your workday and maximize output without compromise.

Want to compare more models? Take a look at our complete Nitrogen Generators lineup.

Professional-Grade NitroFill E-175 Nitrogen Generator for Tire Shops

Benefits of the NitroFill 175 Nitrogen Generator

Maximize Tire Bay Efficiency | Inflate large truck tires in minutes.

Simultaneous Tire Conversions | Service up to 6 tires at once.

Unmatched Nitrogen Purity | Adjustable up to 99.9%.

Automated Safety Modes | Prevents user error with smart settings.

Turnkey Installation | No additional parts or setup required.

Long-Term ROI | Built for volume, backed by 5-year warranty.

Key Features of the NitroFill E-175 High-Output Nitrogen Conversion System – 26 CFM for Truck Tires You'll Love:

  • Industry-Leading 26 CFM Output: Delivers unmatched nitrogen flow for fast inflation of large truck and fleet tires. Easily fills tires from 0 to 120 PSI in under ten minutes.
  • Simultaneous Multi-Tire Conversion: Capable of inflating up to six tires at once. Ideal for high-volume service centers looking to reduce wait times and increase efficiency.
  • Fully Automated, Programmable Operation: Advanced microprocessor system offers Auto-On, Auto-Off, and overpressure functions to streamline workflow and eliminate manual input.
  • Clean User Interface with Diagnostic Feedback: Back-lit LCD screen provides real-time status, error alerts, and self-diagnostic tools—helping prevent service interruptions and confusion.
  • PSA Design with Premium Filtration: Pressure Swing Adsorption technology delivers nitrogen purity up to 99.9%. Equipped with four external filters to remove contaminants and prolong system life.
  • Built to Last with a 5-Year Warranty: Rugged steel construction and high-end components are backed by a 5-year manufacturer warranty, ensuring long-term reliability in demanding shop environments.

NitroFill E-175 Nitrogen Generation System Specifications

Manufacturer NitroFill
Power Requirement 100–240Vac, 50/60Hz
Operating Temperature -4°F to 158°F
Compressed Air Input Range 125–200 PSI
Compressed Air Quality 0.01 ppm
Nitrogen Purity 95–99+% (Adjustable)
Nitrogen Output 26 CFM @ 160 PSI, 80°F
Tank Output Flow Rate 13.5 CFM @ 160 PSI, 80°F
Operating Pressure Range 145–174 PSI
Recommended Inlet Pressure 5–162 PSI
Accuracy ±44 PSI
Display Increments 1 PSI
Units of Measurement PSI, kPa, bar
Over-Pressure Setting Range 0–29 PSI
Nitrogen Purge Settings 0–9
Shipping Weight 800 lbs
Unit Dimensions (H x W x D) 52” x 28” x 39”
Container Dimensions (H x W x D) 57” x 28.5” x 43”
Warranty 5 Years
Included Accessories 4 Tire Service Hoses
Note External compressed air source required
Overview

Commercial-Grade Nitrogen – E-175 Generator with 99.9% Purity & LCD Display



If you're running a busy fleet service center or truck tire shop, you know how frustrating slow inflation systems can be. Most nitrogen generators just can't keep up with large commercial tires, wasting precious time and killing workflow. The NitroFill E-175 solves that problem with a high-output nitrogen generation system that delivers an unmatched 26 CFM—fast enough to inflate a 12.00R x 22.5 tire from 0 to 120 psi in under 10 minutes.

The E-175 nitrogen generator is designed for speed, power, and ease of use. Whether you're servicing a single semi-truck or a row of fleet vehicles, this machine converts up to 6 tires at once with just the push of a button. It’s fully programmable, automated, and backed by NitroFill’s reputation for durability. That means you’re getting a turnkey, heavy-duty nitrogen conversion system that works hard without breaking down.

For any high-volume tire operation, the E-175 is a game-changer. It delivers adjustable nitrogen purity up to 99.9%, supports auto modes like over-pressure and auto-off, and comes with a clean, easy-to-read LCD display. This nitrogen generator isn’t just built to perform—it’s built to simplify your workday and maximize output without compromise.

Want to compare more models? Take a look at our complete Nitrogen Generators lineup.

Professional-Grade NitroFill E-175 Nitrogen Generator for Tire Shops

Benefits of the NitroFill 175 Nitrogen Generator

Maximize Tire Bay Efficiency | Inflate large truck tires in minutes.

Simultaneous Tire Conversions | Service up to 6 tires at once.

Unmatched Nitrogen Purity | Adjustable up to 99.9%.

Automated Safety Modes | Prevents user error with smart settings.

Turnkey Installation | No additional parts or setup required.

Long-Term ROI | Built for volume, backed by 5-year warranty.

Key Features of the NitroFill E-175 High-Output Nitrogen Conversion System – 26 CFM for Truck Tires You'll Love:

  • Industry-Leading 26 CFM Output: Delivers unmatched nitrogen flow for fast inflation of large truck and fleet tires. Easily fills tires from 0 to 120 PSI in under ten minutes.
  • Simultaneous Multi-Tire Conversion: Capable of inflating up to six tires at once. Ideal for high-volume service centers looking to reduce wait times and increase efficiency.
  • Fully Automated, Programmable Operation: Advanced microprocessor system offers Auto-On, Auto-Off, and overpressure functions to streamline workflow and eliminate manual input.
  • Clean User Interface with Diagnostic Feedback: Back-lit LCD screen provides real-time status, error alerts, and self-diagnostic tools—helping prevent service interruptions and confusion.
  • PSA Design with Premium Filtration: Pressure Swing Adsorption technology delivers nitrogen purity up to 99.9%. Equipped with four external filters to remove contaminants and prolong system life.
  • Built to Last with a 5-Year Warranty: Rugged steel construction and high-end components are backed by a 5-year manufacturer warranty, ensuring long-term reliability in demanding shop environments.

NitroFill E-175 Nitrogen Generation System Specifications

Manufacturer NitroFill
Power Requirement 100–240Vac, 50/60Hz
Operating Temperature -4°F to 158°F
Compressed Air Input Range 125–200 PSI
Compressed Air Quality 0.01 ppm
Nitrogen Purity 95–99+% (Adjustable)
Nitrogen Output 26 CFM @ 160 PSI, 80°F
Tank Output Flow Rate 13.5 CFM @ 160 PSI, 80°F
Operating Pressure Range 145–174 PSI
Recommended Inlet Pressure 5–162 PSI
Accuracy ±44 PSI
Display Increments 1 PSI
Units of Measurement PSI, kPa, bar
Over-Pressure Setting Range 0–29 PSI
Nitrogen Purge Settings 0–9
Shipping Weight 800 lbs
Unit Dimensions (H x W x D) 52” x 28” x 39”
Container Dimensions (H x W x D) 57” x 28.5” x 43”
Warranty 5 Years
Included Accessories 4 Tire Service Hoses
Note External compressed air source required
