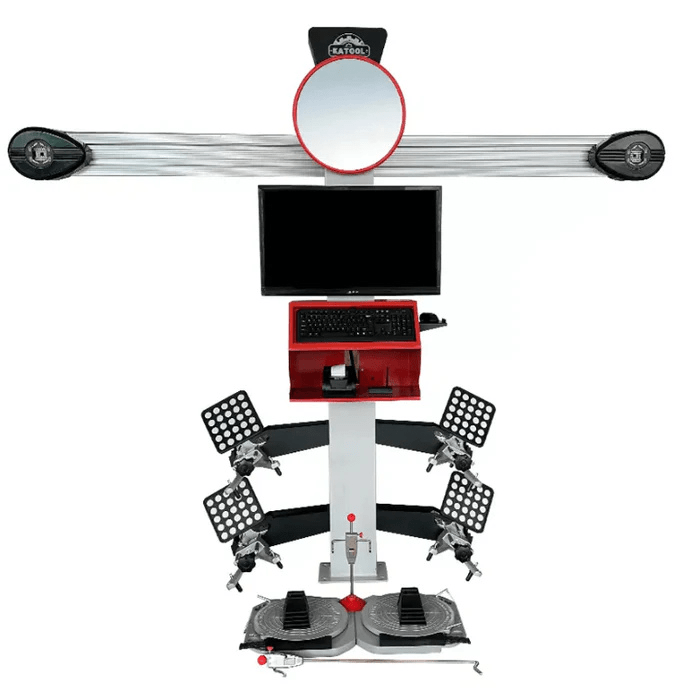

Front view of the Katool KT-AV533 3D Wheel Alignment Machine featuring a crossbeam with dual cameras, a central monitor, reflective targets, and two turntables for precise wheel measurements.

Katool 3D Wheel Alignment Machine – High-Precision System | KT-AV533

by KATOOL
SKU KT-AV533
$3,799.00

Notify me when back in stock

If the price feels out of reach, click here — we’re happy to see how close we can get to your budget.
Katool Mobile and Desktop Trust Badges Katool collection Mobile Trust Badges

Accurate Alignments Without the Bulk – The AV533 Is the 3D Wheel Aligner Made for High-Volume Shops



Choosing the right wheel alignment machine for your shop can be overwhelming. Between clunky setups, unreliable results, and steep learning curves, it’s easy to invest in equipment that causes more headaches than it solves. That’s where the Katool AV533 3D Wheel Alignment Machine steps in — designed to make accurate alignments not just possible, but effortless. Whether you're servicing sedans, SUVs, or light trucks, the AV533 brings precision and consistency to every job.

At just 39.6" long, 25.6" wide, and weighing 143.3 lbs, the AV533 is compact enough to fit into tight workspaces without compromising on power. Its high-performance hydraulic system delivers 50 kN of pushing force, paired with a robust 70 MPa operating air pressure. This makes the AV533 a perfect match for high-volume automotive shops that need reliable performance without the bulky footprint of traditional wheel alignment machines.

What truly sets the Katool AV533 apart is its advanced 3D imaging system. Unlike older or budget wheel aligner machines, this model captures precise measurements in real time, helping technicians identify alignment issues with pinpoint accuracy. Add in the intuitive user interface, and you’ve got a machine that boosts efficiency without sacrificing quality — something every shop owner can appreciate.

This one not quite right? Check out the rest of our Wheel Alignment Machines.

Direct frontal perspective of the Katool KT-AV533 3D Wheel Alignment Machine showcasing its crossbeam with dual cameras, central display, reflective targets, and paired turntables for accurate wheel calibration

Benefits of the Katool AV533 Alignment Machine

Ultra-Precise Alignments | Reduces technician error and ensures optimal vehicle handling.

Compact Shop Footprint | Saves valuable space without sacrificing performance.

Easy to Operate | No steep learning curve for technicians.

Reliable All-Day Performance | Built for high-volume shop environments.

Works on Multiple Vehicle Types | Great for general repair and specialty shops.

Boosts Customer Satisfaction | Fewer alignment complaints and faster service turnaround.

Key Features of the Katool KT-AV533 Wheel Alignment Machine – High-Precision System You'll Love:

  • Advanced 3D Imaging System: The AV533 uses real-time 3D imaging to provide ultra-precise measurements, minimizing guesswork and improving alignment accuracy. It’s the kind of cutting-edge tech that helps reduce comebacks and builds customer trust.
  • Compact and Lightweight Design: At only 143.3 lbs, this unit is easy to move and install. Its space-saving footprint means it fits into just about any shop layout without disrupting your workflow or requiring expensive renovations.
  • High Hydraulic Pushing Force: With 50 kN of hydraulic force, the AV533 provides the muscle needed for effective wheel adjustments. It powers through tough alignment jobs while maintaining control and safety.
  • Robust Operating Pressure: Running on 70 MPa of air pressure, this machine delivers consistent performance throughout the day. Whether you're running quick alignments or more complex adjustments, it won’t lose steam mid-task.
  • User-Friendly Interface: Even if it’s your tech’s first time using it, the AV533's intuitive display makes operation smooth and stress-free. The learning curve is practically flat — a major win for busy shops training new staff.
  • Versatile Vehicle Compatibility: From compact cars to light-duty trucks, the AV533 handles a variety of vehicles. This flexibility makes it a valuable investment for multi-service shops looking to expand their capabilities.
Oblique side view of the Katool KT-AV533 High-Capacity Wheel Alignment Machine aligning a truck wheel, featuring a clamp assembly and digital monitor for precise measurement.

Katool KT-AV533 High-Capacity Wheel Alignment Machine Specifications
Manufacturer Katool
Length 39.6 inches
Width 25.6 inches
Height 35.4 inches
Weight 143.3 lbs
Air Pressure 70 MPa
Hydraulic Force 50 kN
