iDEAL 2,200 lb Electric-Hydraulic UTV Lift Bench | U-2200IEH-XR
The 2,200 lb UTV Lift Bench with a Full-Width Retractable Ramp That Actually Gets Out of Your Way

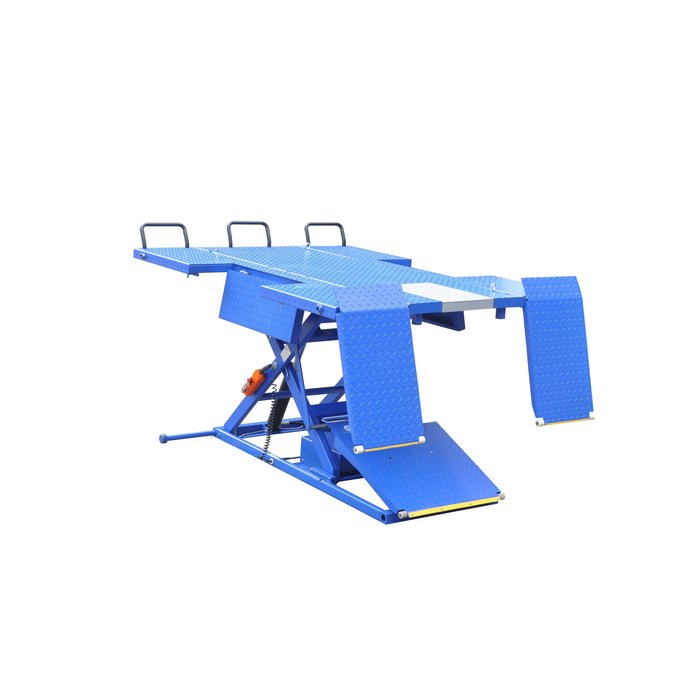

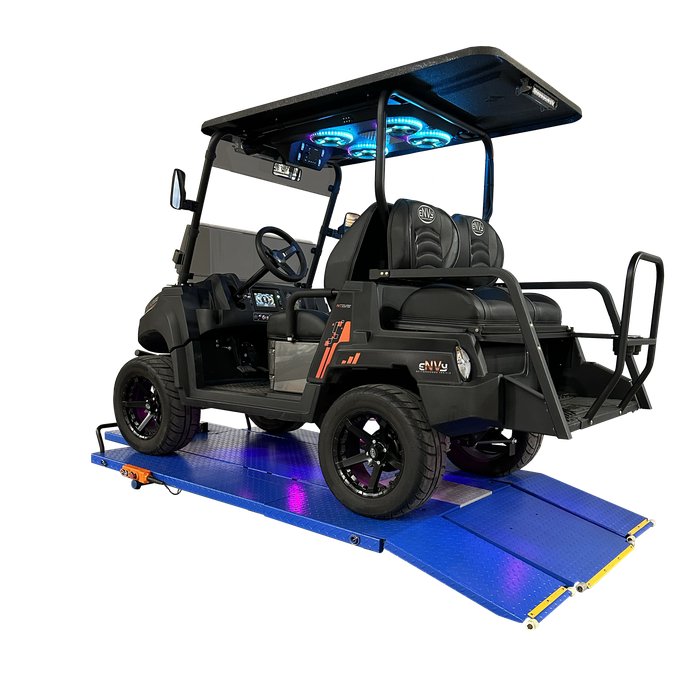

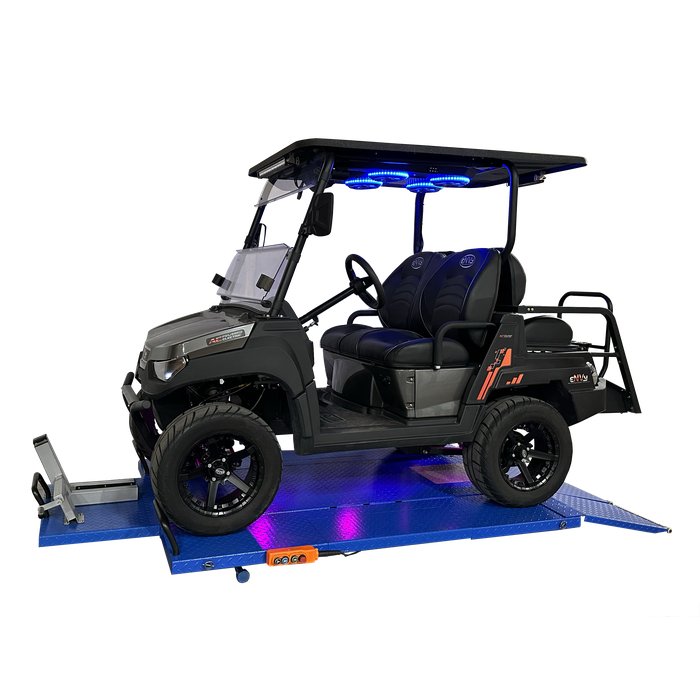

The iDEAL U-2200IEH-XR is a purpose-built UTV service and storage lift for the shop, dealership or serious hobbyist working on side-by-sides, ATVs, trikes and heavier powersport machines. Its 2,200 lb capacity and 65 by 88.6 inch platform swallow full-size UTVs like the Can-Am Defender, Polaris Ranger, Kawasaki Mule, Honda Pioneer or Yamaha Wolverine with room to spare, and the lift rises to a full 47.25 inches for real under-machine access.

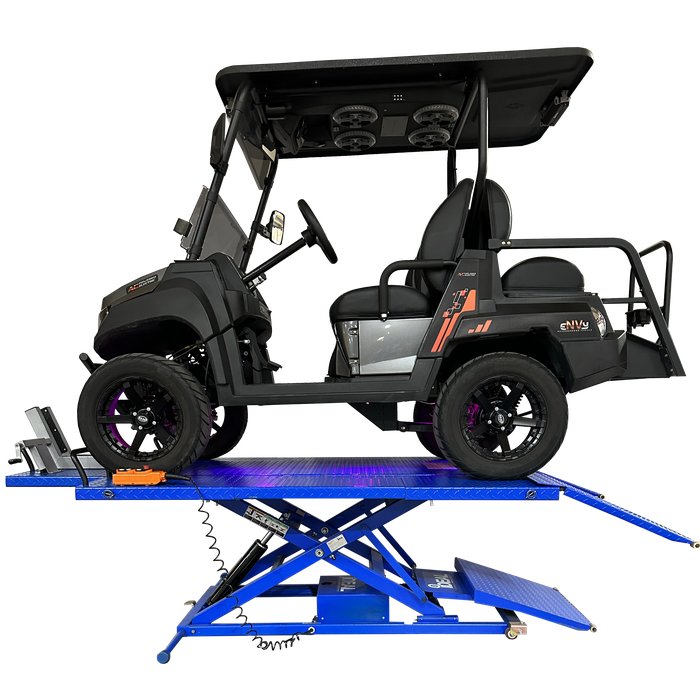

What makes this lift stand out is the exclusive full-width retractable ramp system. Roll the UTV up the ramp, then retract the ramp out of the way instead of leaving it sticking out into the aisle. Combined with the exclusive side extensions with center drop panels and a rear drop-down service panel, you can walk all the way around the machine and access every component without stepping on a ramp.
A 110V integrated electric-hydraulic power unit with a hand-held remote control pendant lifts and lowers the platform in 30 seconds each direction, and a magnetic lock release drops the platform through six locking positions. Includes a stabilizer bar, wheel stops, tie-down anchor eye bolts and mounting points for the optional M-VISE or M-CHOCK. Available in iDEAL Blue or Limited Edition Black. Backed by iDEAL / Tuxedo.
Key Features of the U-2200IEH-XR That Matter in the UTV Bay:
- Exclusive Full-Width Retractable Ramp: The whole approach ramp retracts out of the way after you roll the UTV on. No permanent ramp sticking out into the aisle and no separate ramp to store.
- Exclusive Side Extensions + Center Drop Panels: Side extensions widen the working platform, and center drop panels give you clear access to the underside of the machine for wrench work.
- 2,200 lb Capacity, 47.25 in Rise: Handles full-size UTVs (Can-Am Defender, Polaris Ranger, Kawasaki Mule, Honda Pioneer, Yamaha Wolverine) plus trikes, ATVs and heavy motorcycles. Six locking heights let you set the working height exactly where you want.
- 65 x 88.6 in Platform: Full-size UTVs, three-wheelers and side-by-sides fit with room to spare. Overall length with ramp deployed is 116.5 inches, overall width including the stabilizer bar is 65 inches.
- Integrated 110V Electric-Hydraulic Power Unit: Runs off a standard 110V shop outlet, 18 amp draw. No shop air needed. Hand-held remote control pendant handles lifting, lowering and lock release with one thumb.

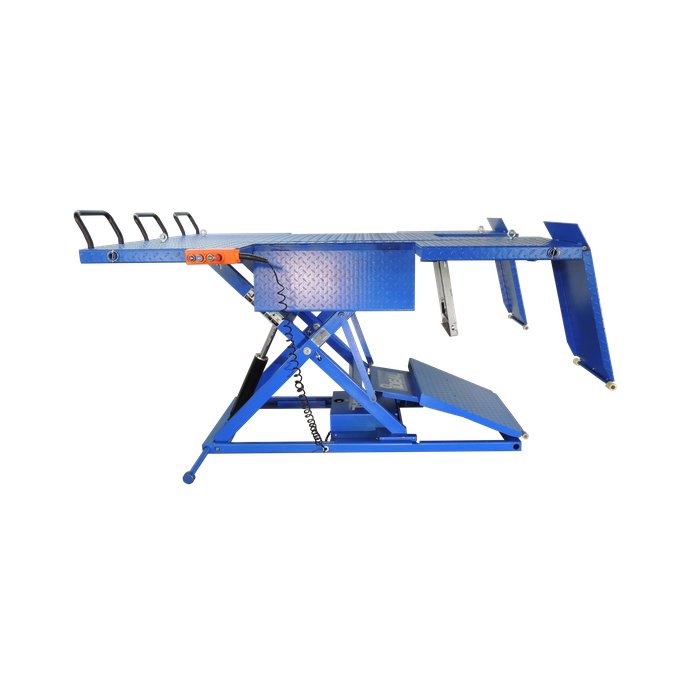

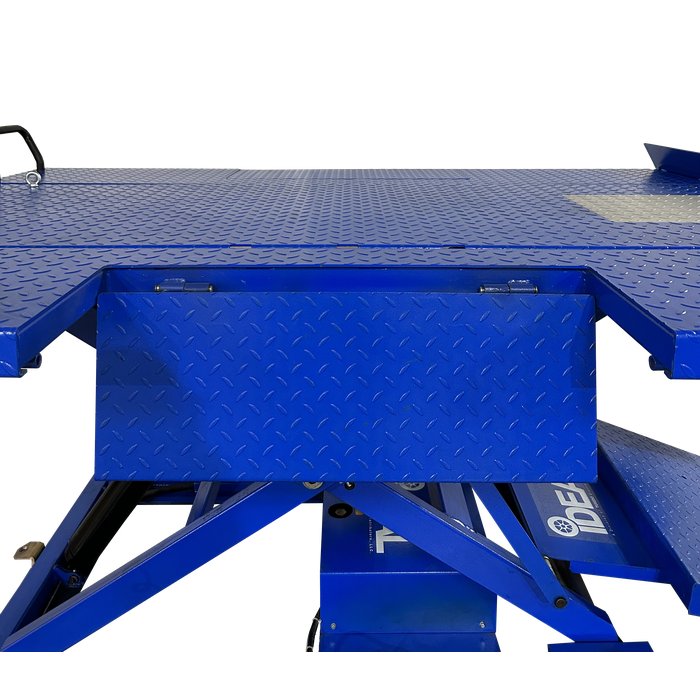

- Rear Drop-Down Service Panel: The rear panel drops down to give the tech easy access to the back of the machine without climbing on the ramp or reaching over the deck.
- Built-In Wheel Stops + Stabilizer Bar: Wheel stops keep the UTV from rolling forward off the deck, and the stabilizer bar keeps the platform planted at full lift height. Tie-down anchor eye bolts included for straps.

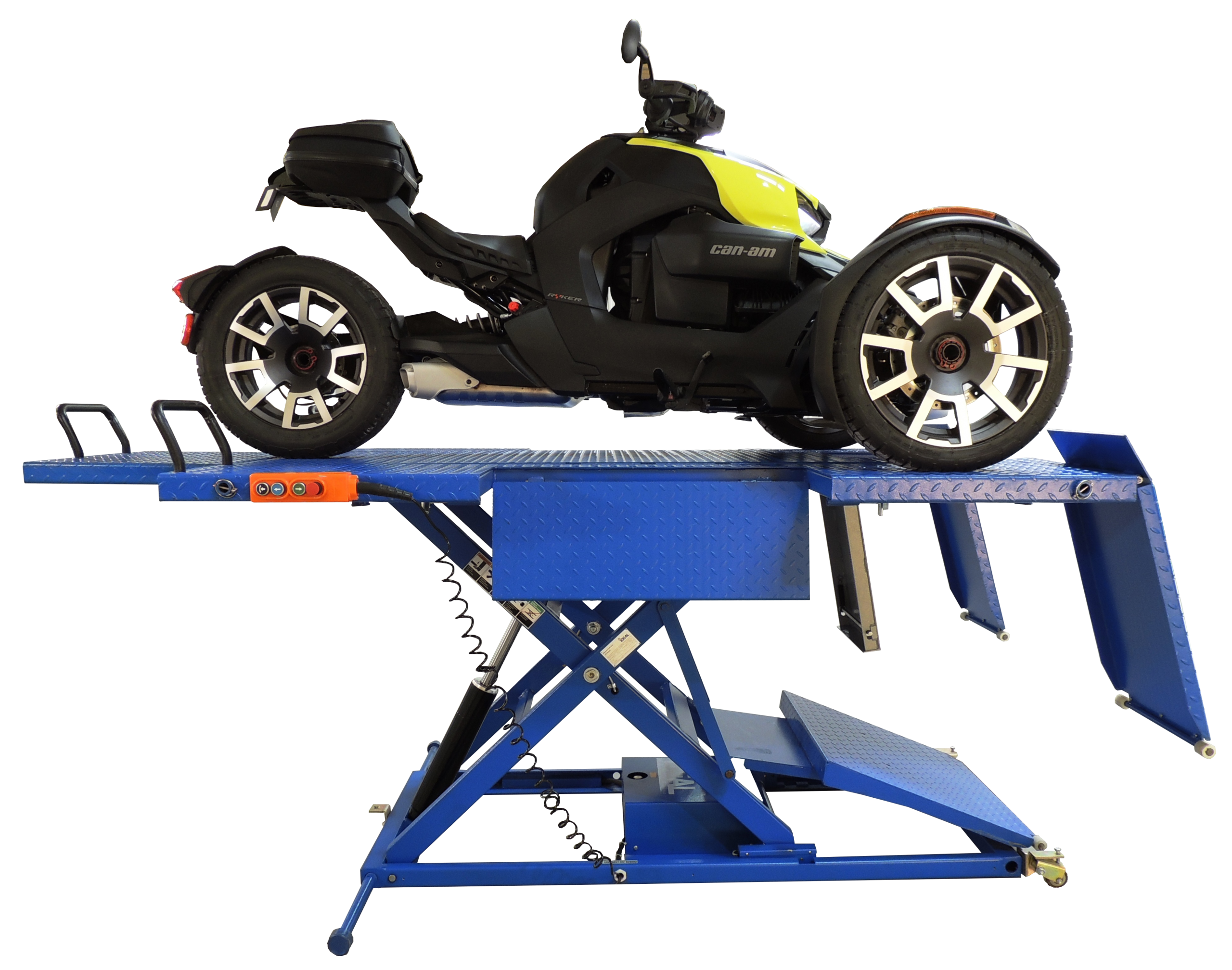

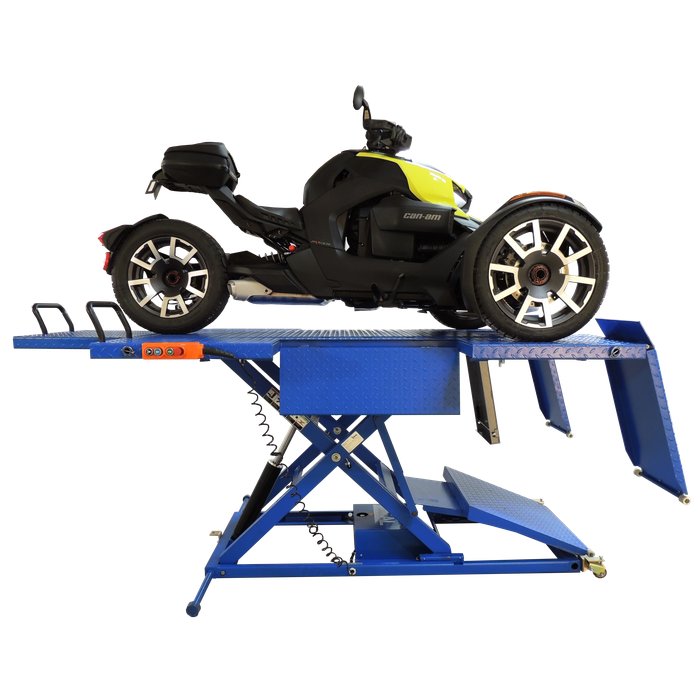

- Ready for M-VISE, M-CHOCK and Extension Kit: Platform is designed with mounting points for the optional M-VISE (motorcycle vise), M-CHOCK (front wheel chock) and FRTEXT-2200IEH front extension kit (extends the deck to 110 inches for longer machines).
U-2200IEH-XR UTV Lift Bench Specifications | |
| Manufacturer | iDEAL Distributed by Tuxedo Distributors, LLC |
| Model | U-2200IEH-XR (Blue) or U-2200IEH-XR-BLK (Black) |

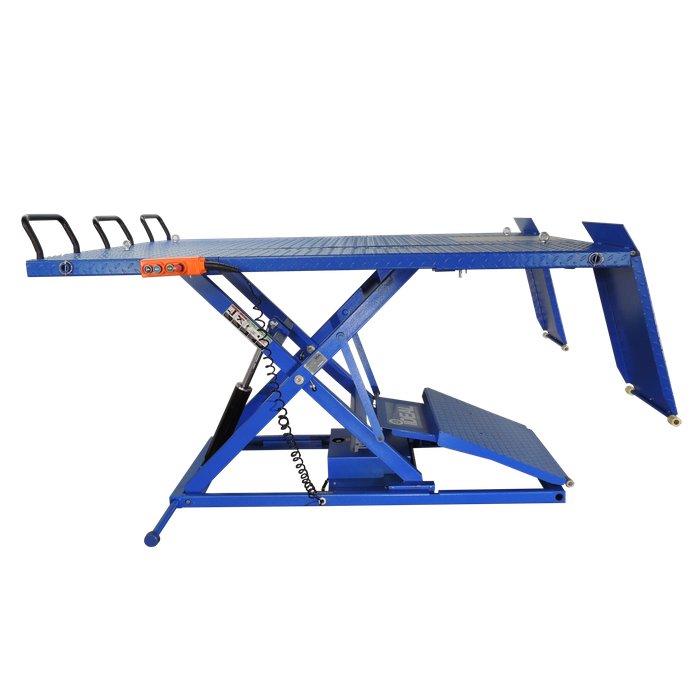

| Configuration | Electric-hydraulic scissor lift bench with retractable ramp |
| Primary Application | UTV, ATV, trike and heavy motorcycle service and storage |
| Lifting Capacity | 2,200 lb |

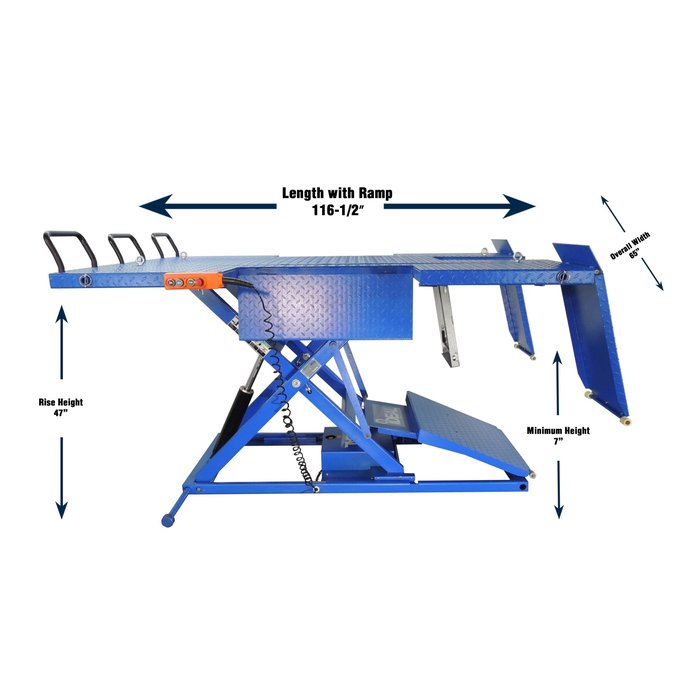

| Minimum Height | 7 in |
| Maximum Lifting Height | 47.25 in |
| Platform Size (L x W) | 88.625 in x 65 in |
| Overall Length with Ramp | 116.5 in |
| Overall Width incl. Stabilizer | 65 in |
| Rise Time | 30 seconds |
| Lower Time | 30 seconds |
| Power Supply | 110V, 60 Hz, 1-Phase, 18 A |
| Power Unit | Integrated 110V electric-hydraulic |
| Control | Single-point hand-held remote control pendant |
| Locking Positions | Six, with magnetic lock release |
| Approach Ramp | 27.5 in long full-width retractable ramp |
| Service Access | Rear drop-down service panel, side extensions with center drop panels |
| Safety | Built-in wheel stops, stabilizer bar, tie-down anchor eye bolts |

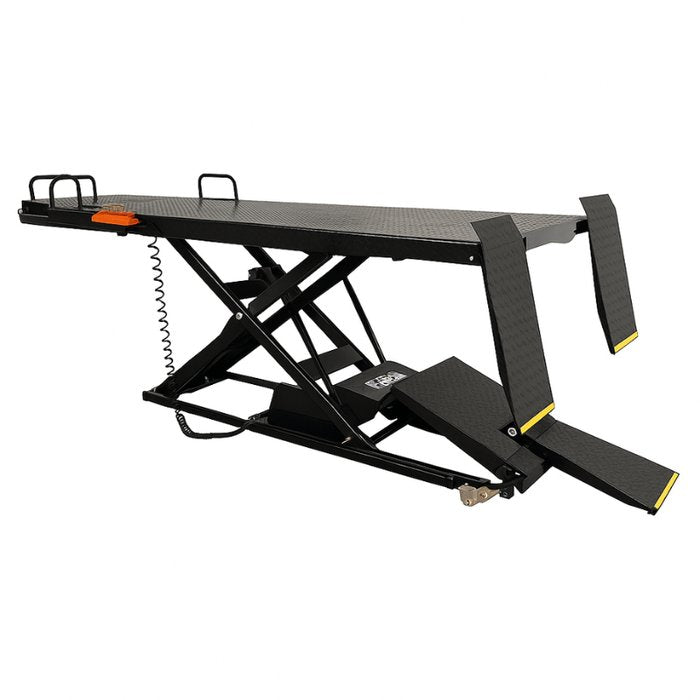

| Available Colors | iDEAL Blue, Limited Edition Black |

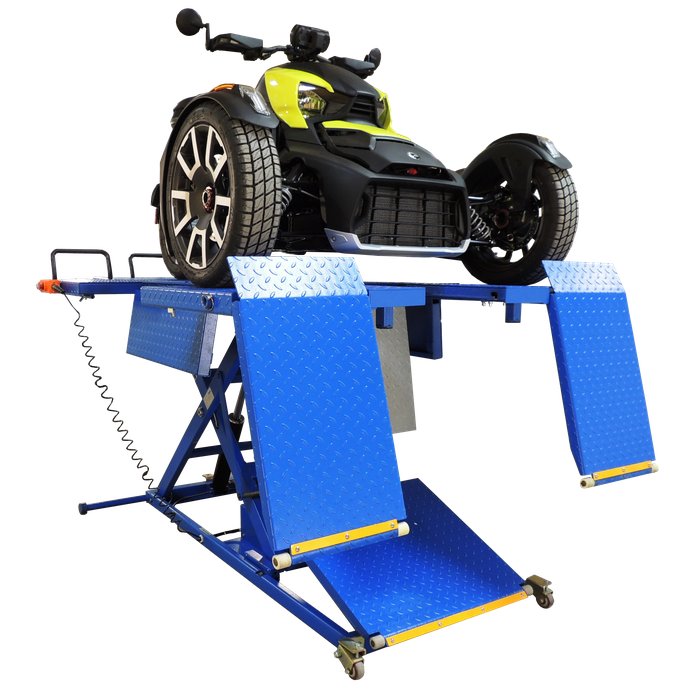

| Optional Accessories | M-VISE, M-CHOCK, M-JACK, DLYWHLKIT-2200IEH dolly wheel kit, FRTEXT-2200IEH front extension |
| Finish | Durable powder coat |
| Shipping Weight | 1,095 lb (approx) |
| Warranty | iDEAL / Tuxedo standard limited warranty (see manual) |
