iDEAL 2,000 lb Single Column UTV and Mower Storage Lift | SC-2K-UTV-X
The 2,000 lb Single Column Storage Lift That Doubles Your Garage and Triples as a Service Lift
The iDEAL SC-2K-UTV-X is a purpose-built multi-use single column storage and service lift for the shop, dealership or serious hobbyist who needs to park a UTV, golf cart, zero-turn mower or riding lawn mower up in the air and still have floor space underneath for a car, workbench or second machine. Its 2,000 lb capacity handles small-to-mid-size ATVs, UTVs like the Can-Am Defender, Kawasaki Mule and Polaris Ranger, plus golf carts, riding mowers and zero turns.

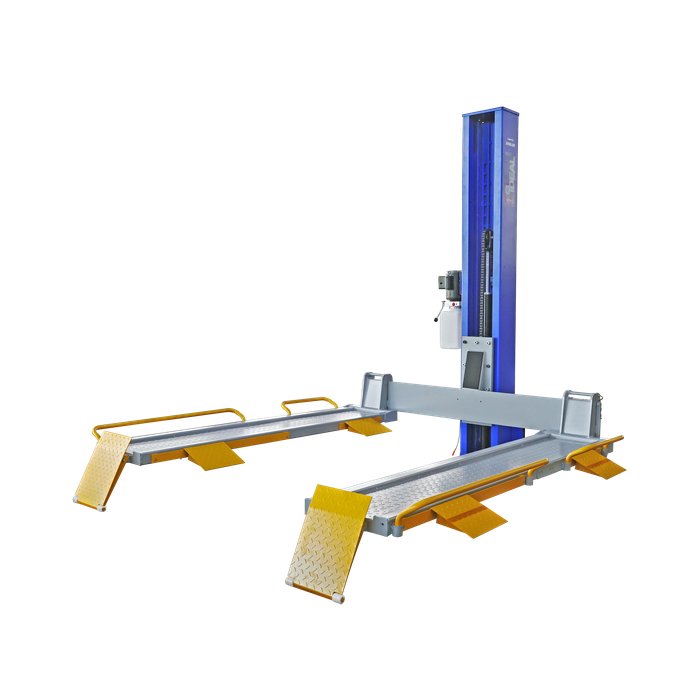

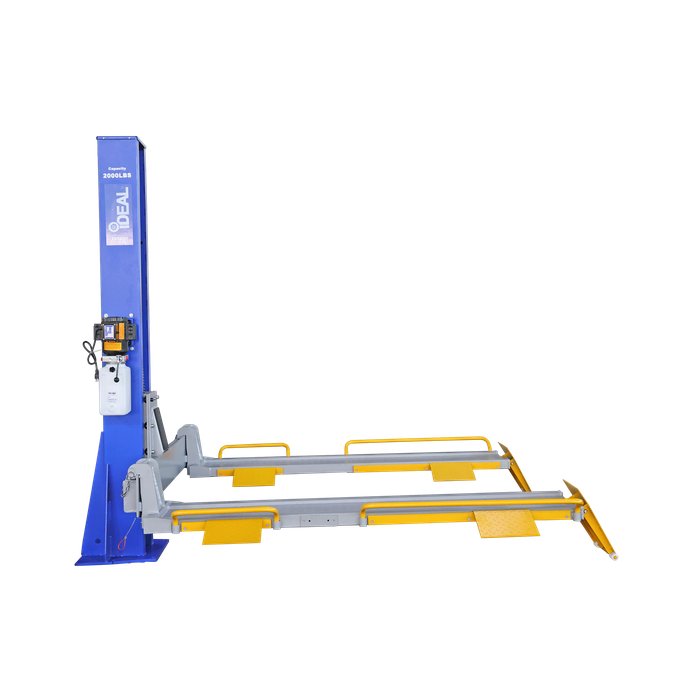

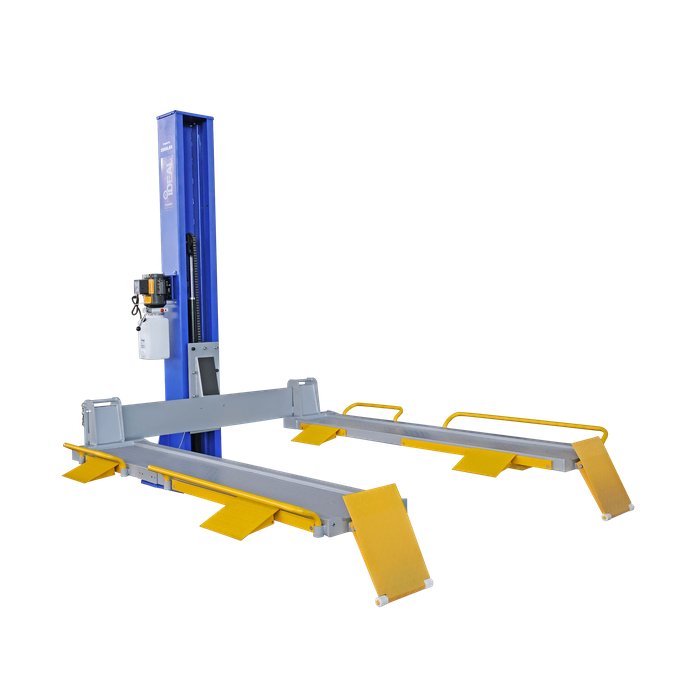

What makes this lift stand apart is the dual adjustable platforms. Each of the two runways rides on retractable nylon rollers and quick-release bolster pins so you can slide the platforms in and out to match the wheelbase of the machine on top. Adjustable outside-width range from 52.8 to 84.6 inches. That means one lift handles a narrow zero-turn mower, then handles a wide Can-Am UTV, without buying two lifts or a specialty adapter kit.
Rolls on a reliable 115V DURO electric-hydraulic power unit that can be mounted to the front, side or rear of the column for the best shop fit. 20 locking height positions with single-point manual lock release, max platform height 81.3 inches, minimum 4.7 inches (real drive-on clearance). Includes 8 multi-position steel side ramps, 2 pivot wheel-stop ramps with nylon rollers, and quick-removal outer wheel-stop bars. Optional SC-2K-UTV-CTRPNLKIT center deck plate kit adds a solid working platform between the runways. Backed by iDEAL / Tuxedo with a 5-year structural warranty.
Key Features of the SC-2K-UTV-X That Actually Matter in Your Garage:
- Dual Adjustable Platform Widths: Each runway slides in and out on retractable nylon rollers with quick-release bolster pins. Adjustable outside-width range from 52.8 to 84.6 inches, side-ramp centerline range from 35.4 to 67 inches. One lift for the zero-turn, the golf cart, and the full-size UTV.
- Front or Side Loading: Load vehicles from either the front of the platforms or the side. Layout the lift wherever it fits your bay without giving up loading access.

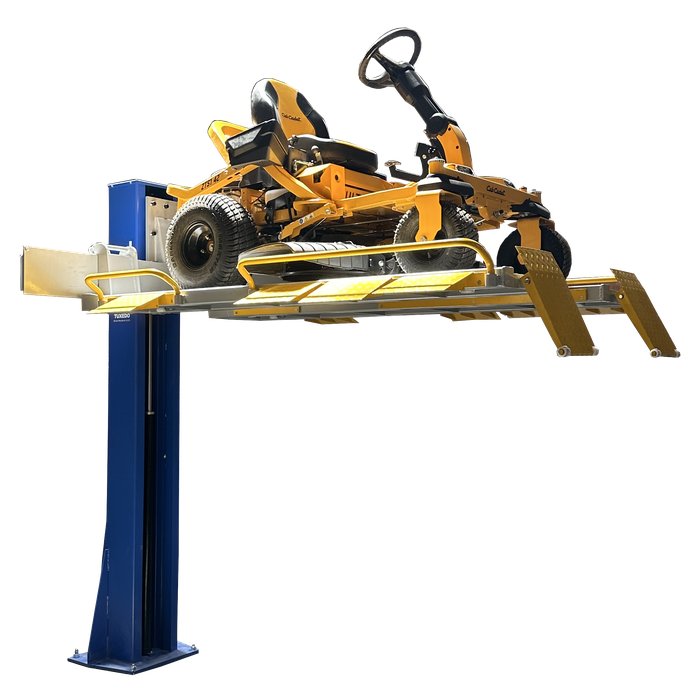

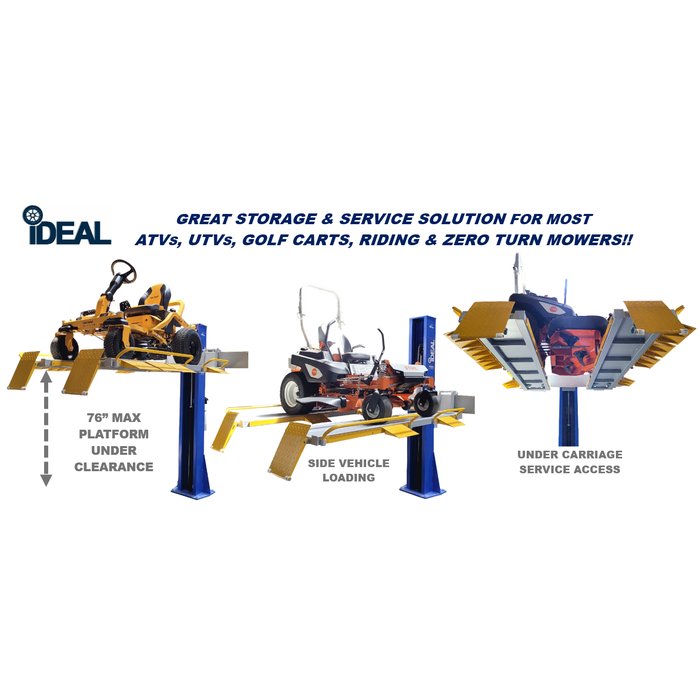

- Extended 81.3 in Rise for Real Storage: Max platform height of 81.3 inches gives you 76.8 inches of clearance underneath. Park a UTV up high and drive a compact car underneath. Store two machines in one garage bay.

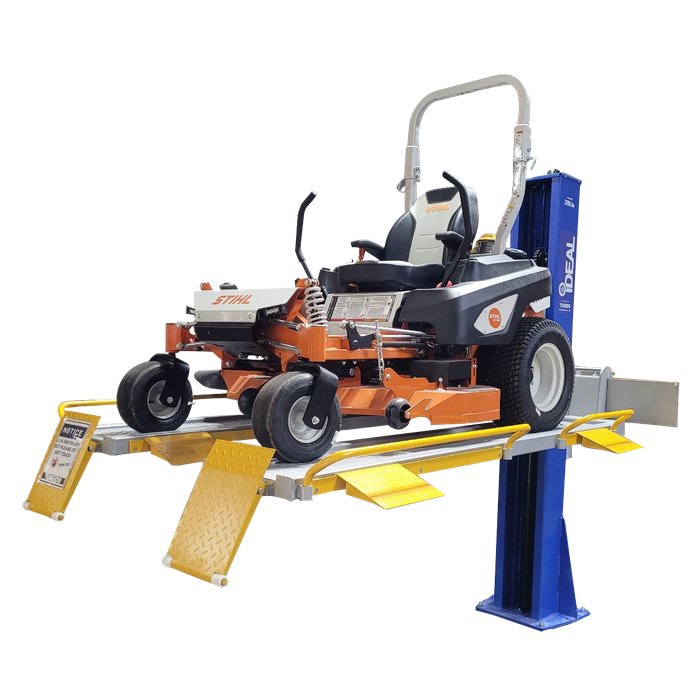

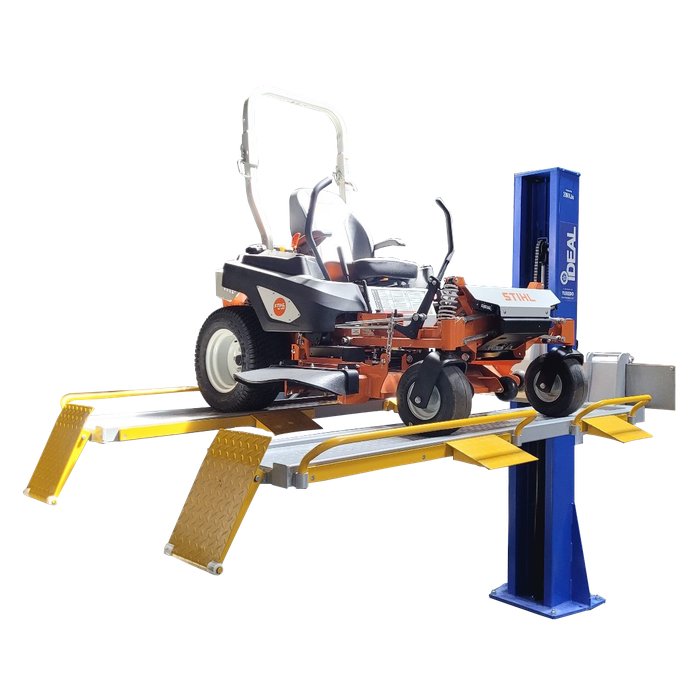

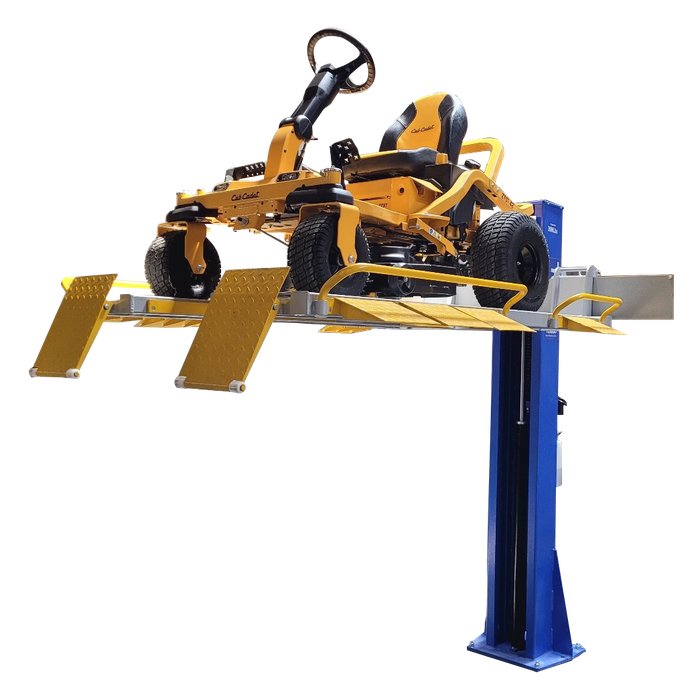

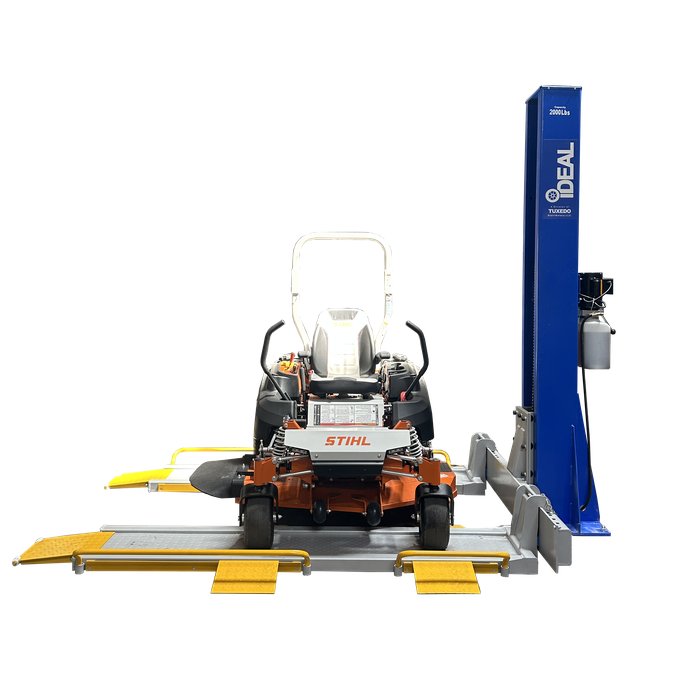

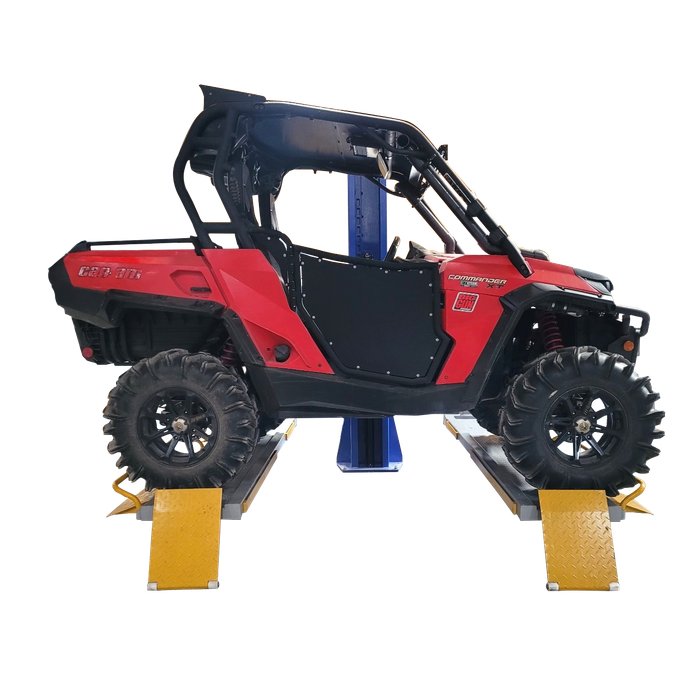

- Multi-Vehicle Fit: Fits small-to-mid-size ATVs, UTVs (Can-Am Defender, Kawasaki Mule, Polaris Ranger and similar), golf carts, riding lawn mowers and zero-turn mowers. One lift does storage duty and service duty.
- 115V DURO Electric-Hydraulic Power Unit: Included DURO power unit runs on a standard 115V 20 A outlet, so no 220V wiring needed. Power unit can be mounted to the front, side or rear of the column to fit your shop layout.

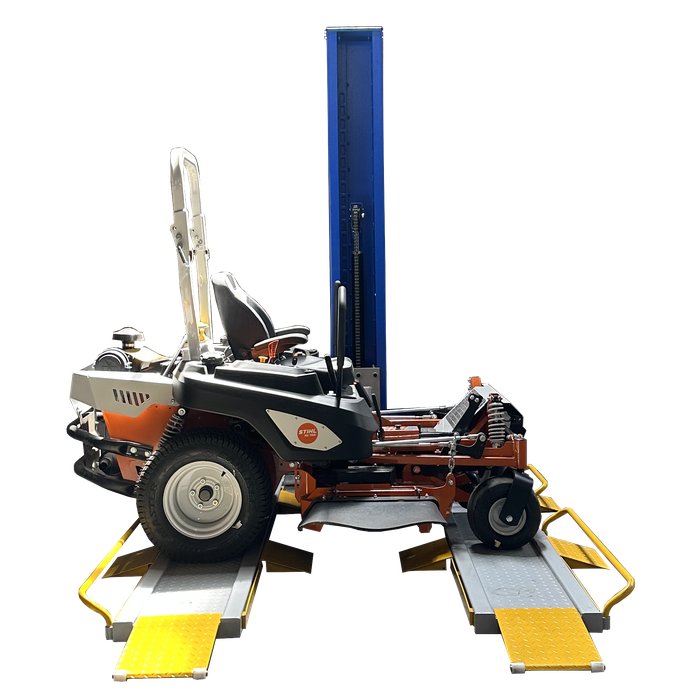

- 20 Locking Height Positions: 20 mechanical locking positions from drive-on height to full-lift storage height. Single-point manual lock release lets one person drop the lift smoothly.
- 8 Steel Side Ramps + 2 Pivot Wheel-Stop Ramps: Eight quick-adjust multi-position steel side ramps handle every load angle. Two pivot ramps with nylon rollers keep wheels from rolling off. Quick-removal outer wheel-stop bars slide out when you need the whole platform surface.
- Optional Center Deck Plate Kit: SC-2K-UTV-CTRPNLKIT (sold separately) adds three center panels between the runways to create a solid working platform. Useful when the platforms are wide and you want a solid top for a small tractor, a workbench build or additional storage.
SC-2K-UTV-X Single Column UTV & Mower Lift Specifications | |
| Manufacturer | iDEAL Distributed by Tuxedo Distributors, LLC |
| Model | SC-2K-UTV-X |
| Configuration | Single column dual-platform electric-hydraulic storage / service lift |
| Primary Application | UTV, ATV, golf cart, riding mower and zero-turn storage and service |
| Lifting Capacity | 2,000 lb |
| Overall Width | 102 in |
| Overall Height | 106.3 in |
| Overall Length / Depth | 130 in |
| Max Clearance Under Platforms | 76.8 in |
| Platform Min Height | 4.7 in |
| Platform Max Height | 81.3 in |
| Platform Length | 90.4 in each runway |
| Platform Width | 17.7 in each runway (12.2 in runway width) |
| Adjustable Platform Widths (OD) | 52.8 in to 84.6 in |
| Adjustable Side Ramp Widths (CL) | 35.4 in to 67 in |
| Locking Height Positions | 20 |
| Power Supply | 115V, 20 A, 1-Phase (standard plug) |
| Power Unit | iDEAL DURO electric-hydraulic, included |
| Power Unit Mounting | Front, side or rear of the column (installer choice) |
| Lock Release | Single-point manual |
| Loading | Front or side of platforms |
| Included Ramps | 8 quick-adjust multi-position steel side ramps + 2 pivot wheel-stop ramps with nylon rollers |
| Included Safety | Quick-removal tubular outer wheel-stop bars |
| Concrete Requirements | Minimum 4.25 in, 3,000 PSI |
| Optional Accessories | SC-2K-UTV-CTRPNLKIT center deck plate kit (3 panels), sold separately |
| Finish | Durable powder coat |
| Shipping Dimensions | 124" L x 32" W x 45" H |
| Shipping Weight | 1,624 lb |
| Warranty | 1 Year Parts, 5 Year Structural |
