iDEAL 10,000 lb Commercial Low-Rise Pad Lift | LR-10K-TLPAD
The 10,000 lb Commercial Low-Rise Pad Lift Built for High-Volume Tire and Wheel Service

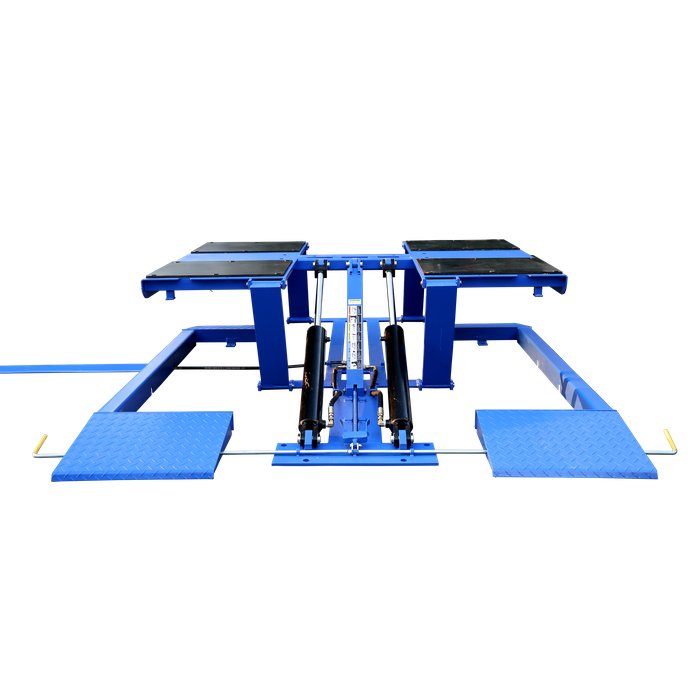

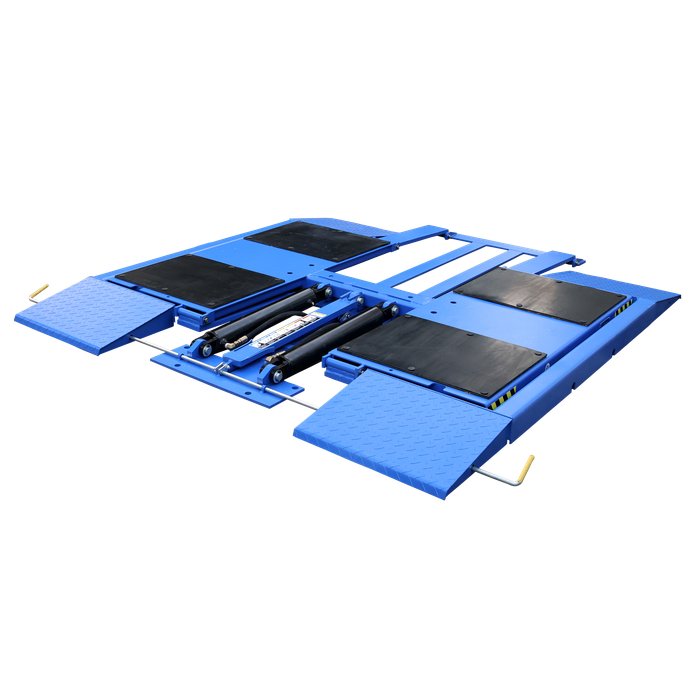

The iDEAL LR-10K-TLPAD is a commercial-grade low-rise pad lift built for shops that hammer through tire rotations, brake jobs, alignments and other under-vehicle service work all day long. With a full 10,000 lb capacity and a 91 inch long by 88-5/8 inch wide surface-mount platform, this lift accepts everything from a compact sedan to a full-size pickup or SUV without changing configurations.

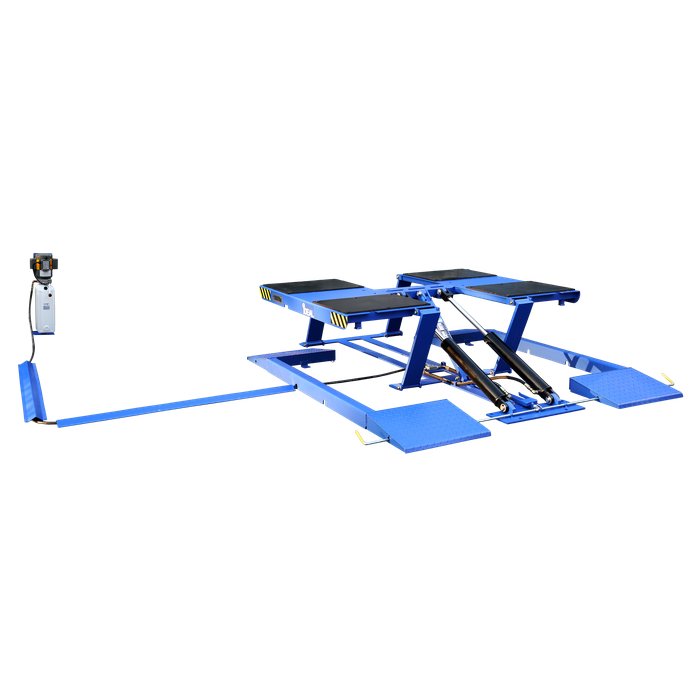

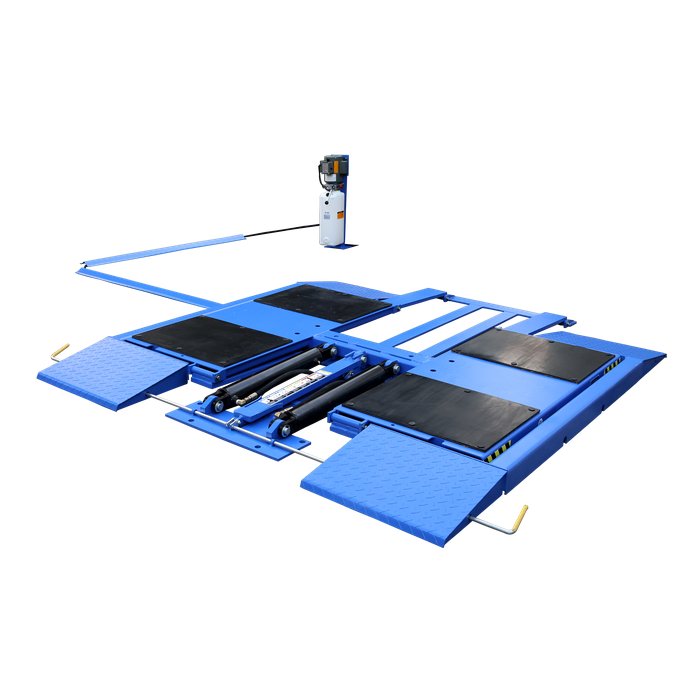

The integrated outer frame and diamond-plate ramps give real drive-on and drive-off clearance for wide vehicles, and once the vehicle is loaded, dual hydraulic cylinders raise it smoothly to any of three mechanical locking positions (13.5, 17.25 and 21.5 inches). Standard configuration uses a 115V single-phase power unit that raises a fully loaded lift in 60 seconds. The optional 220V power unit knocks that down to 36 seconds for high-volume service bays where every cycle counts.
Every LR-10K-TLPAD ships with the whole express-service package: four heavy-duty multi-position height adapters, four 1.5 inch rubber pads, two 55 inch metal hose covers, latch release handles on both sides of the lift, a power unit pedestal stand, and a durable powder-coat finish. Backed by iDEAL and Tuxedo Distributors and built to hold up in a real commercial shop environment.
Key Features of the LR-10K-TLPAD That Matter in a Busy Service Bay:
- 10,000 lb Commercial Capacity: Full 10,000 lb rated capacity for the sedan-to-full-size-pickup range. Enough headroom to service crew-cab trucks, SUVs and cargo vans without derating.
- Drive-On, Drive-Off Wide Vehicle Access: Integrated outer frame and diamond-plate ramps stay attached to the lift and give real clearance for wide-track vehicles. Surface-mount install so you drop it on the shop floor and go.
- Dual Hydraulic Lift Cylinders: Twin hydraulic cylinders provide stable, balanced lifting under load. No single-cylinder wobble or one-side lag when raising or lowering a heavy vehicle.

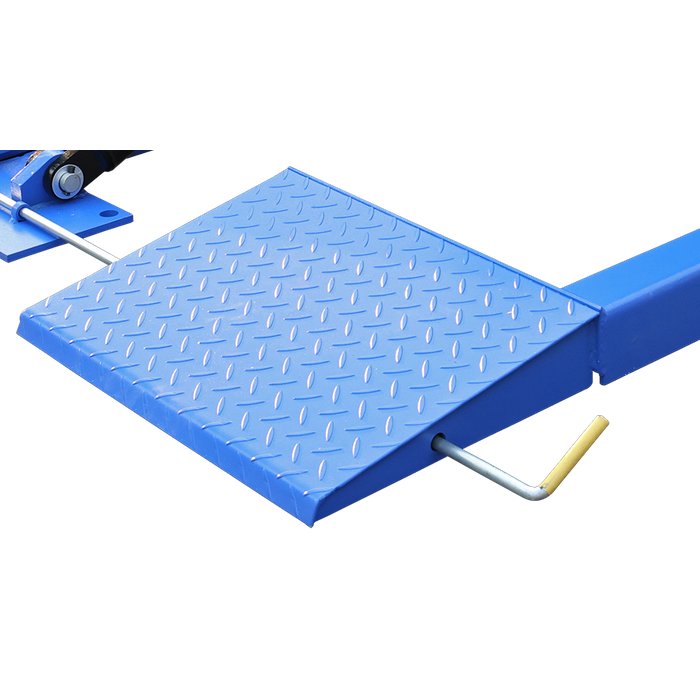

- Three Mechanical Locking Heights: Three locking positions at 13.5, 17.25 and 21.5 inches let you park the lift at the right working height for tires, brakes or exhaust work. Latch release handles on both sides make one-person operation fast.

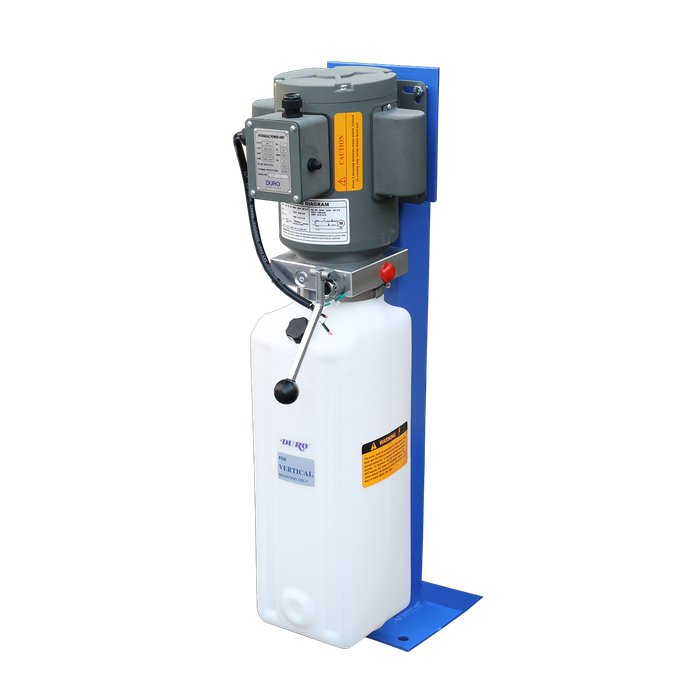

- Standard 115V or Optional 220V Power Unit: Ships standard with a 115V single-phase 20 A power unit that raises a full load in 60 seconds. Optional 220V power unit drops cycle time to 36 seconds for high-volume tire-and-wheel shops.

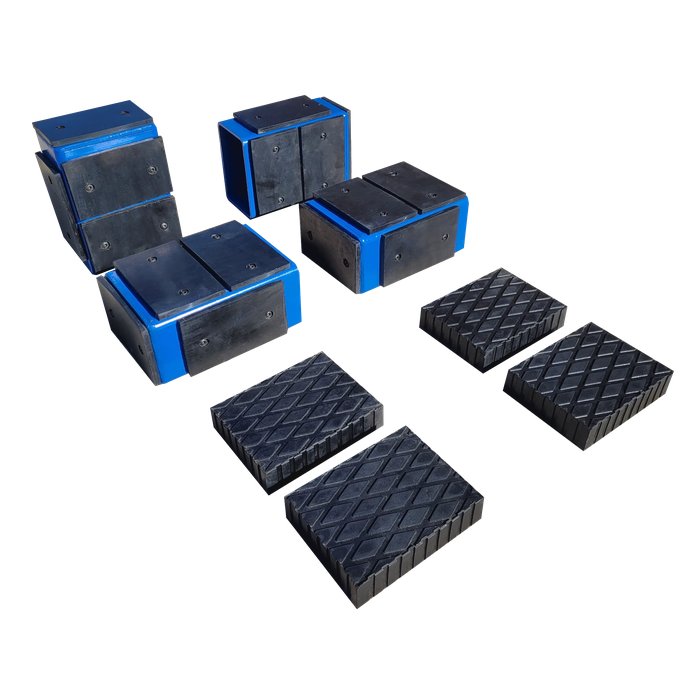

- Multi-Position Height Adapters + Rubber Pads Included: Four heavy-duty multi-position height adapters and four 1.5 inch rubber pads ship in the box. Reach lift points on trucks and SUVs and get to 30-3/4 inches of pad height with the tall adapter.

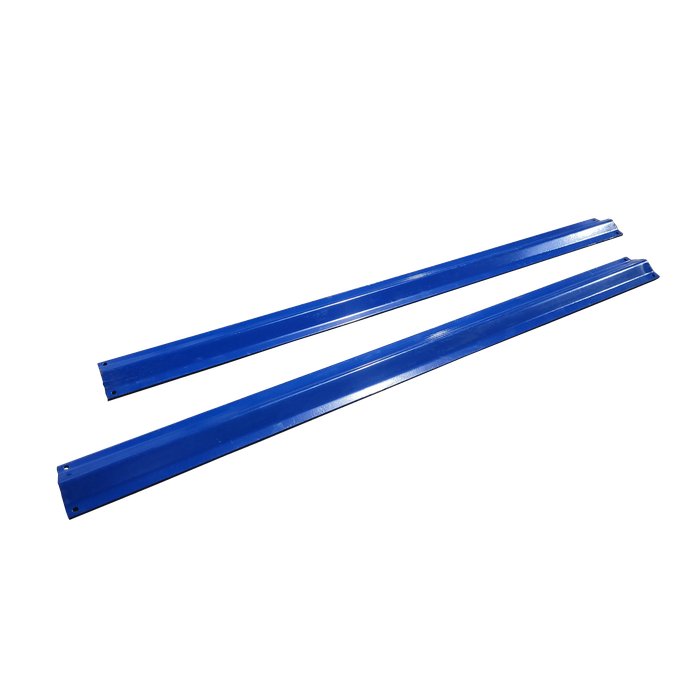

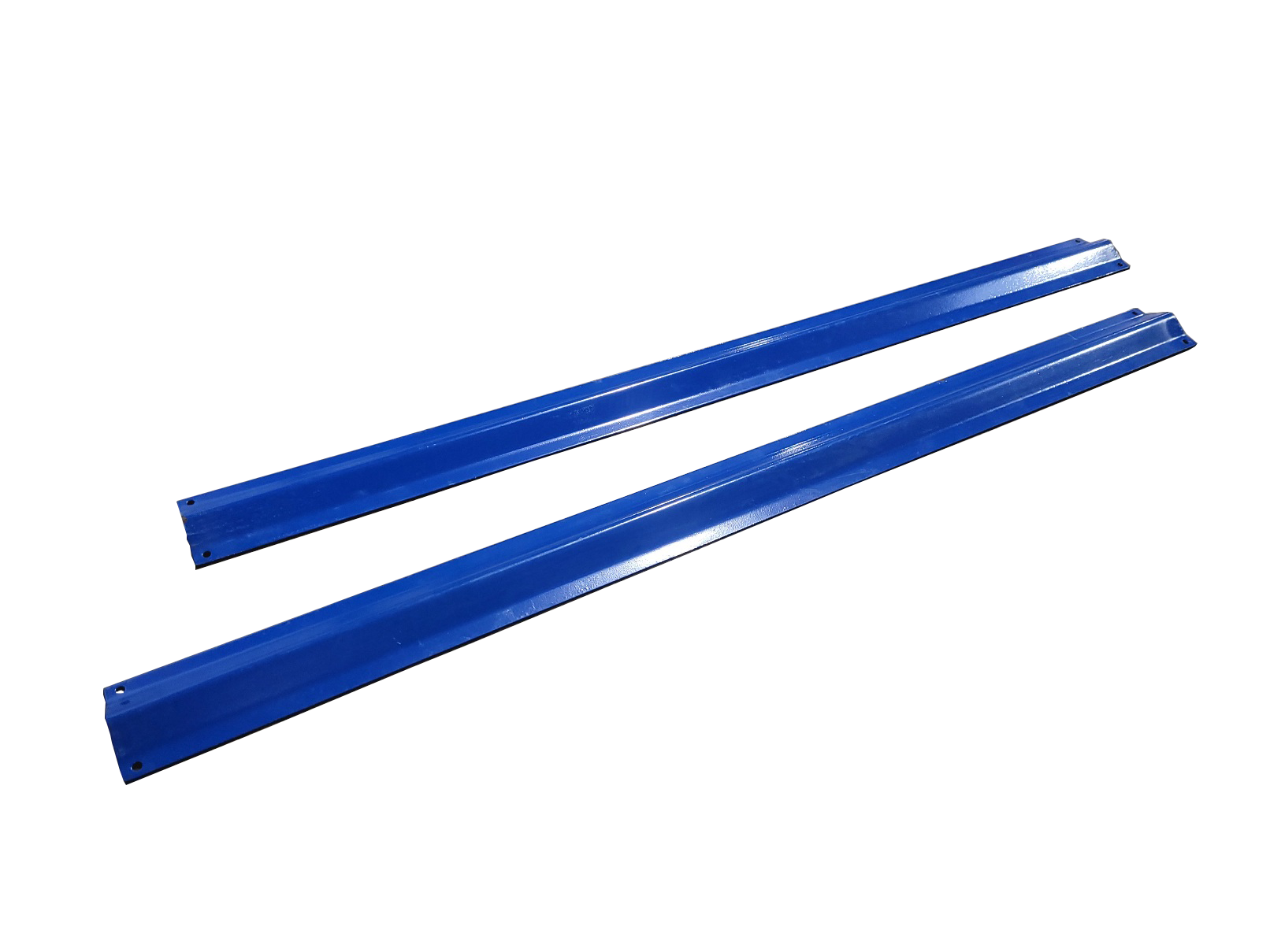

- Metal Hose Covers and Power Unit Pedestal: Two 55 inch metal hose covers and a power unit pedestal stand come standard. Everything is out of the way and protected from shop traffic.
- Commercial-Grade Powder Coat Finish: Durable powder-coat finish holds up against the brake dust, tire mounting compound, coolant and everything else a commercial bay throws at a lift.
LR-10K-TLPAD Low-Rise Pad Lift Specifications | |
| Manufacturer | iDEAL Distributed by Tuxedo Distributors, LLC |
| Model | LR-10K-TLPAD |
| Configuration | Low-rise commercial pad lift, surface-mount, scissor-type |
| Primary Application | Express tire and wheel service, brake, exhaust and general under-vehicle work |
| Lifting Capacity | 10,000 lb |
| Overall Length | 91 in |
| Overall Width | 88-5/8 in |
| Minimum Lift Height | 4-1/4 in |
| Maximum Rise Height | 22-1/2 in |
| Max Height with Tall Adapter | 30-3/4 in |
| Platform Pad Length | 51-1/4 in |
| Platform Pad Width | 24 in |
| Platform Outer Width | 70-3/4 in |
| Platform Forward Movement | 15 in |
| Locking Height Positions | 3 (13.5 in, 17.25 in, 21.5 in) |
| Lift Cylinders | Dual hydraulic |
| Standard Power Unit | 115V, 1-Phase, 20 A |
| Standard Lift Speed | 60 seconds fully loaded |
| Optional Power Unit | 220V (sold separately) for faster cycle time |
| Optional Lift Speed | 36 seconds fully loaded (with 220V) |
| Latch Release | Handles on each side of the lift |
| Ramps | Diamond-plate approach ramps, integrated outer frame |
| Included Adapters | 4 heavy-duty multi-position height adapters, 4 x 1.5 in rubber pads |
| Hose Covers | 2 x 55 in metal hose covers |
| Power Unit Pedestal Stand | Included |
| Concrete Requirements | Minimum 4.25 in, 3,000 PSI |
| Finish | Durable powder coat |
| Installation | Surface-mount |

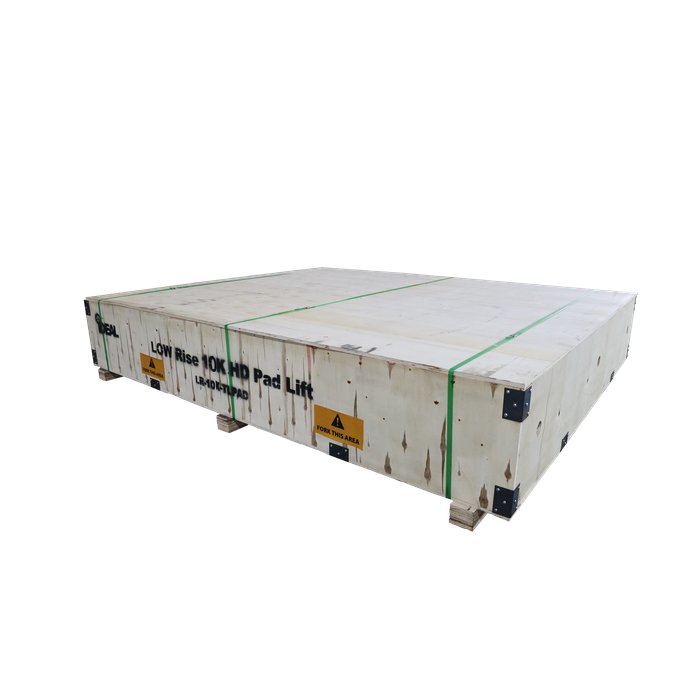

| Shipping Dimensions | 91 in L x 75 in W x 30 in H |
| Shipping Weight | 1,230 lb (too large for lift gate service) |
| Warranty | 1 Year Parts, 5 Year Structural |
