Atlas Scissor Alignment Lift - 12,000 lb. Capacity | 12ASL
Built for Heavyweights. The Atlas 12ASL Scissor Lift Delivers 12,000 lb Alignment Stability

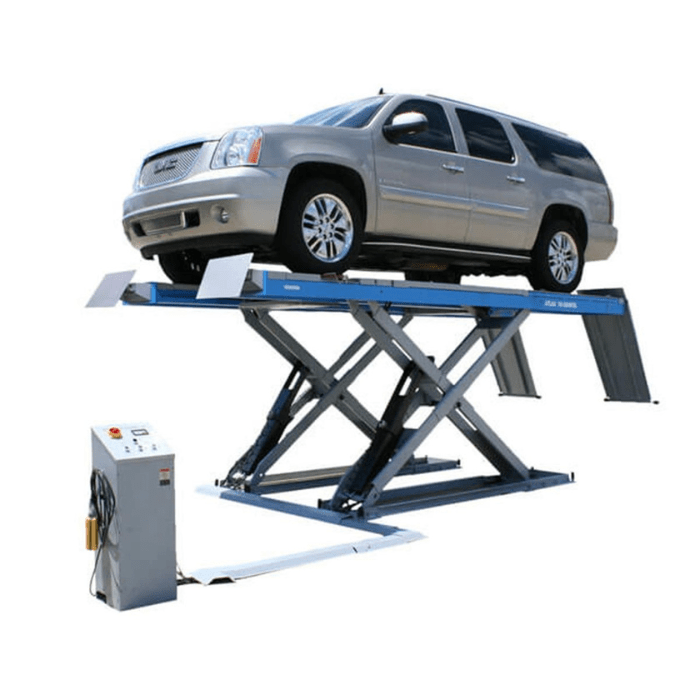

The Atlas 12ASL 12,000 lb Scissor Alignment Lift is designed to meet the demanding needs of automotive professionals. It offers a sturdy, high-performance solution to lifting vehicles for precise alignments. Many customers struggle with finding a lift that combines both power and accuracy, and the Atlas 12ASL stands out by addressing these pain points. With a robust 12,000 lb lifting capacity and the flexibility to either be surface-mounted or flush-mounted, this lift maximizes garage space while maintaining a high standard of safety and performance. Scissor-format alignment lifts solve the limited-ceiling-clearance problem alignment shops face when overhead 4-post alignment lifts won't fit. Atlas's 12ASL delivers full alignment-rack capability in scissor configuration.

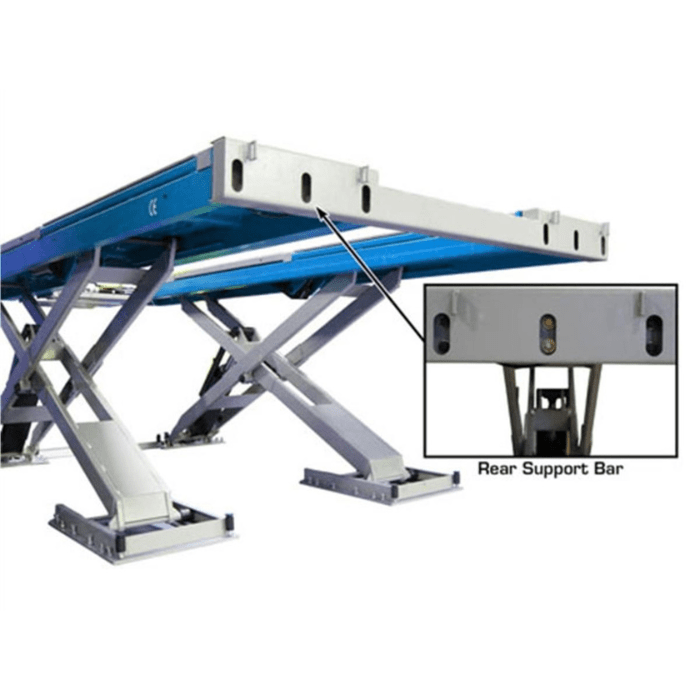

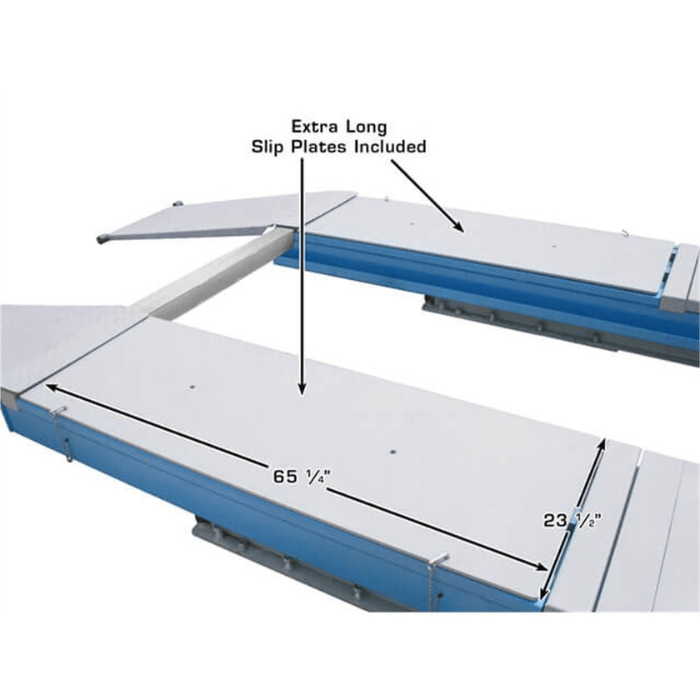

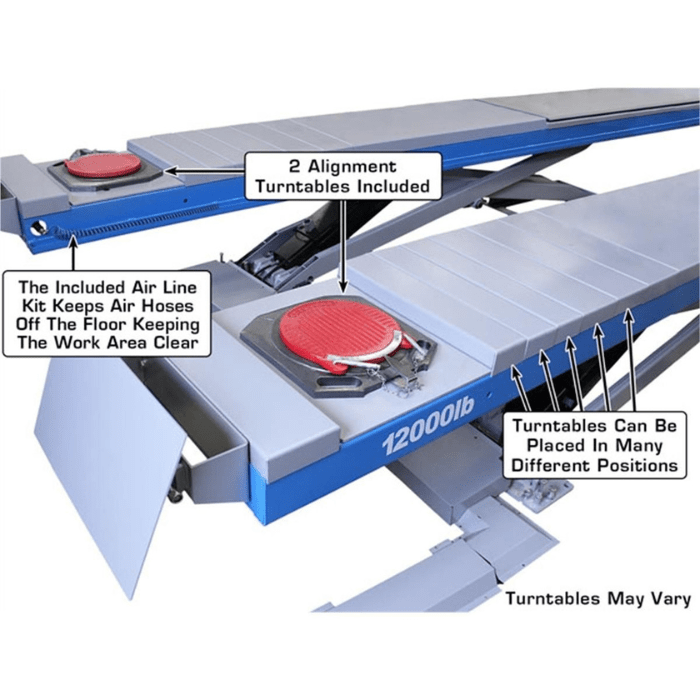

A common challenge in the industry is ensuring stability while lifting heavy vehicles, especially larger models. The Atlas 12ASL solves this by incorporating a full-frame scissor lift design that guarantees maximum stability, ensuring a smooth and controlled lift even with the heaviest vehicles. This scissor lift is ideal for any shop needing to perform alignments, from compact cars to heavy-duty trucks. Additionally, its open-center design allows easy access to the undercarriage, a feature highly valued by technicians who need to perform quick and efficient services. 12,000 lb capacity with built-in turn plate cutouts and slip plates for accurate alignment work on commercial vehicles. Scissor configuration keeps overall lift height minimal compared to 4-post alignment alternatives.
Another concern for automotive shops is the reliability of lift systems. The Atlas 12ASL addresses this with its durable construction and advanced features, like air-operated locks and precise platform leveling. Its easy-to-use control panel, with a self-contained hydraulic unit, simplifies operation while reducing downtime. This lift is CE-certified and comes with a comprehensive 2-year structural warranty, ensuring that it will be a long-lasting, valuable asset for your business. * For alignment shops with limited ceiling clearance handling commercial vehicles at the 12K capacity tier, the 12ASL is one of the rare options that combines alignment-ready features with scissor footprint.
Benefits of the Atlas 12ASL Scissor Lift
Key Features of the Atlas 12ASL 12,000lb Alignment Scissor Lift You'll Love:
• 12,000 lb Capacity for Heavy-Duty Lifting: The Atlas 12ASL delivers a robust 12,000 lb lifting capacity, making it ideal for servicing everything from compact sedans to large trucks. This ensures dependable strength and balance for a wide range of alignment applications.
• Open Center Design for Easy Access: The open-center configuration provides unobstructed access to the vehicle’s undercarriage, allowing technicians to work faster and more efficiently. Especially useful for alignment and suspension tasks.

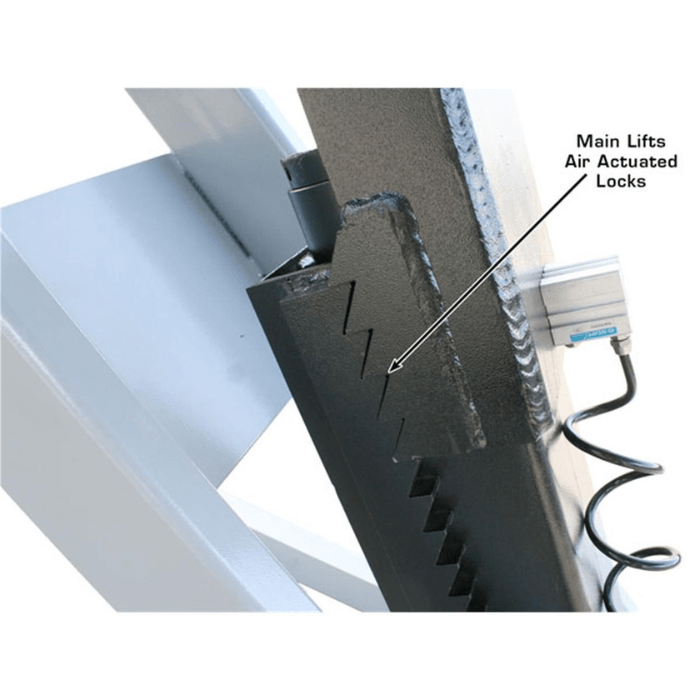

• Air-Operated Lock Release: The single-point, air-operated lock release system simplifies the lifting and lowering process. It enhances operational safety and streamlines workflow by automatically engaging and disengaging locks.
• Precision Platform Leveling: Built-in platform leveling ensures smooth and accurate lifting with every cycle. This helps prevent misalignments and supports consistent, high-quality service.

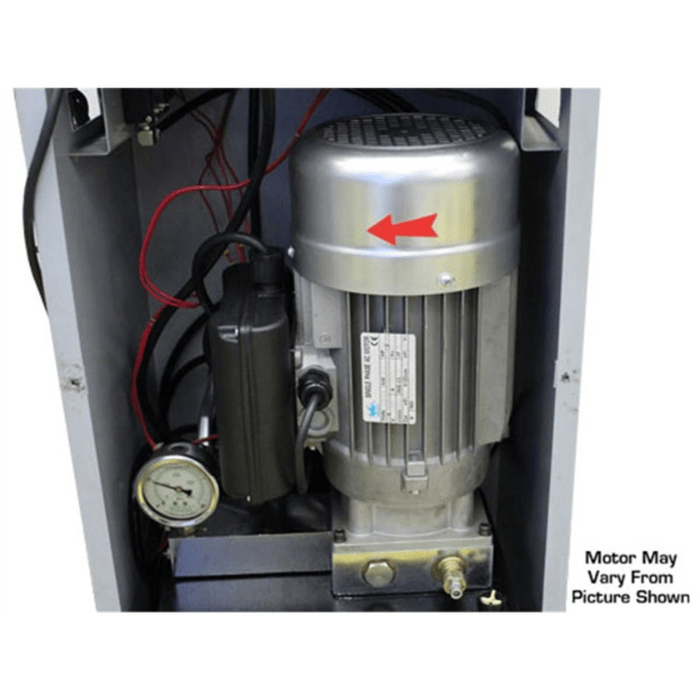

• Separate Self-Contained Control Panel: A standalone control panel makes it easy to operate the lift from a convenient position. Designed for user-friendliness, it improves control access and reduces technician fatigue.
• CE Certified and Warranty-Backed: CE certified for safety and durability, the Atlas 12ASL includes a 2-year structural and 1-year hydraulic warranty. It’s a reliable, professional-grade investment for any alignment bay.
Minimum Garage Requirements
✔ Max Lift Height: 84" (7'0") ✔ Lowered Height: 11.0" drive-on clearance ✔ Platform Dimensions: see specifications below ✔ Overall Dimensions (raised): 250" L x 86" W (20'10" x 7'2") ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Electrical: 220V ± 5% single phase (requires 30A breaker)
✔ Max Lift Height: 84" (7'0")
✔ Lowered Height: 11.0" drive-on clearance
✔ Platform Dimensions: see specifications below
✔ Overall Dimensions (raised): 250" L x 86" W (20'10" x 7'2")
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Electrical: 220V ± 5% single phase (requires 30A breaker)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: required ceiling clearance equals max lift height plus your vehicle height plus working clearance. Measure your specific vehicles before ordering.
Atlas 12ASL Alignment Lift Specifications |
|
| Manufacturer | Atlas |
| Lifting Capacity | 12,000 lbs |
| Lifting Height | 84 1/4" (7' 1/4") (Surface Mounted) |
| Lowered Height | 11 1/2" |
| Overall Width | 86 3/8" (7' 2 3/8") |
| Overall Length with Ramps | 250" (20' 10") |
| Overall Length without Ramps | 197" (16' 5") |
| Ramp Length | 72" (6') |
| Wheelbase (4-Wheel Alignment) | Max. 168 in. |
| Wheelbase (2-Wheel Alignment) | Max. 172 in. |
| Runway Width | 23 3/4" (1' 11 3/4") |
| Width Between Runways | 39 1/4" |
| Width Between Rails | 34 3/8" |
| Air Requirement | 90-120 PSI |
| Motor/Electrical Requirement | 220V ± 5% single phase (requires 30A breaker) |
| Oil Requirement | 3-5 gallons AW32 or AW46 (not included) |

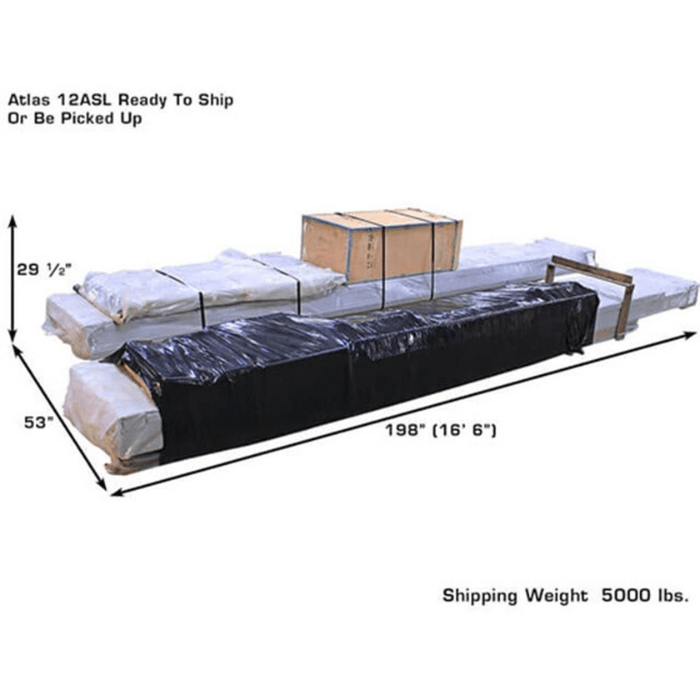

| Shipping Weight | 5,000 lbs |
