Atlas Overhead 2-Post Lift – 9000 lb. Capacity | 9KOHX
Lift Cars or Trucks with Confidence. The Atlas 9KOHX Offers 9K Capacity in a Compact Overhead Design
When it comes to lifting heavy vehicles in tight spaces, you need a reliable, durable solution that doesn't compromise on performance. The Atlas 9KOHX Overhead 2-Post Lift 9,000 lb. Capacity is designed to meet the needs of both small commercial repair facilities and dedicated home garages. With a robust 9,000 lb. Lifting capacity, this two post car lift ensures that you can handle a wide range of vehicles, from compact cars to heavier trucks. If you’ve ever struggled with lifts that are too bulky or don’t provide enough clearance, the Atlas 2 post car lift offers a perfect solution. 9K overhead 2-post lifts at the consumer-friendly price band typically skip the commercial-grade structural verification commercial shops need. Atlas's 9KOHX brings reinforced commercial-grade construction into the 9K overhead tier.

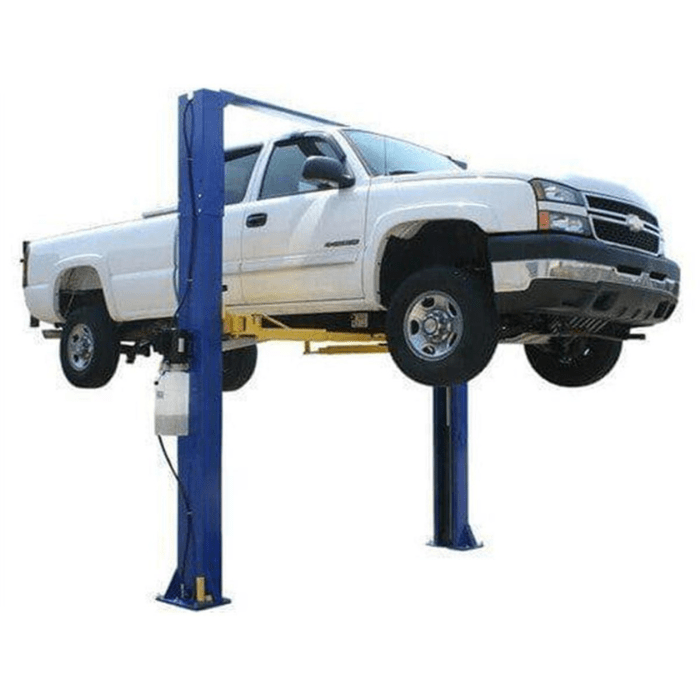

This lift features a powder coat finish for superior durability, and it is engineered with an overhead design that provides open-floor accessibility. Whether you are working on a car or a truck, the adjustable arms can be set in asymmetric or symmetric positions, offering flexibility for various vehicle types. The Atlas 9KOHX ensures a low pad height, making it easier to position the arms under vehicles, even those with low pick-up points. Additionally, the automatic arm restraints and dual direct-drive cylinders enhance the lift's safety and reliability. 9,000 lb capacity covers full-size sedans, SUVs, and most light trucks. Overhead design keeps the bay floor open and trip-free, with cables and hoses routed through the crossmember.
Designed to save space while delivering high performance, the Atlas 9KOHX 2 post car lift is ideal for any shop or home garage that demands efficiency and safety. It’s a great fit for those who need to maximize their workspace while still lifting vehicles with ease. With included mounting hardware and a 5-year structural warranty, this lift guarantees long-lasting value. * For commercial shops handling daily passenger-vehicle service at the 9K capacity tier, the 9KOHX delivers commercial-grade structural rating without the major-brand commercial pricing.
Benefits of the Atlas 9KOHX Auto Lift
Key Features of the Atlas 9KOHX 9000lb Overhead Two-Post Lift You'll Love:

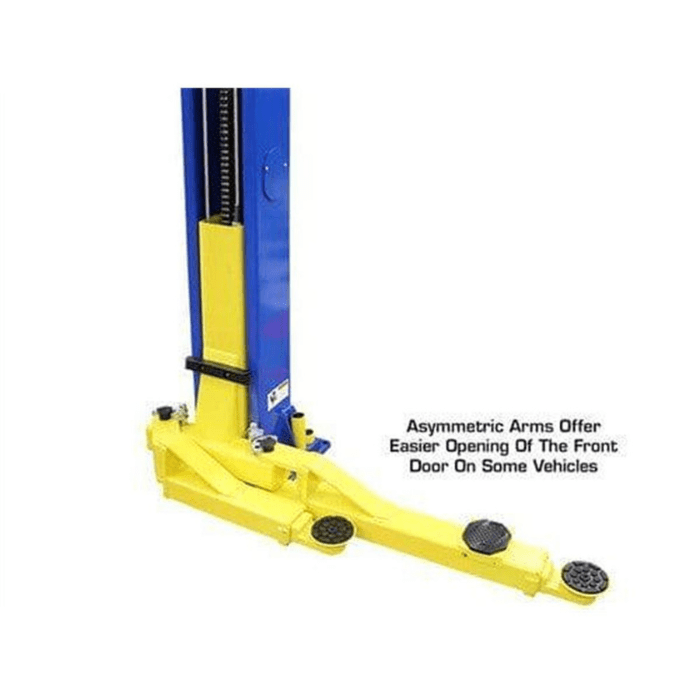

• Asymmetric/Symmetric Arm Design: The Atlas 9KOHX 2 post car lift offers the flexibility of asymmetric and symmetric arm positions. This allows for a variety of vehicle types to be lifted efficiently, including low-sitting cars and taller trucks, ensuring versatility across multiple lifting scenarios.

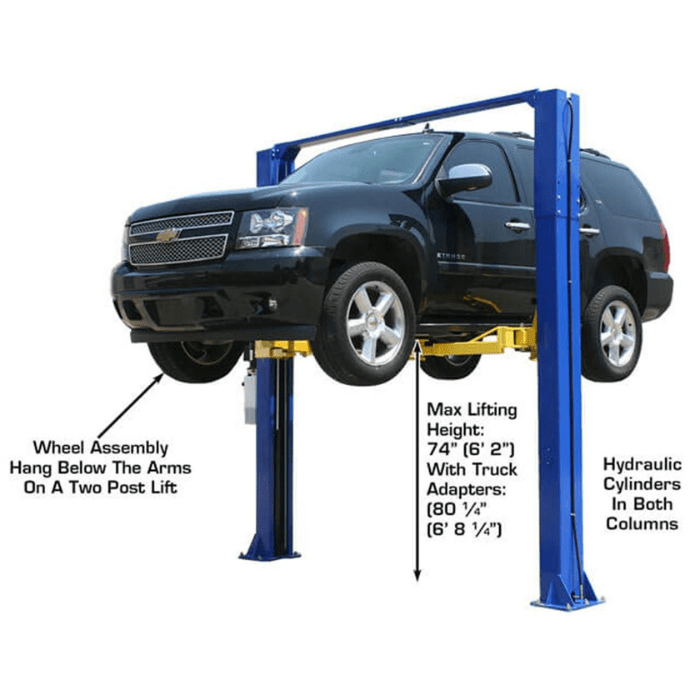

• Dual Direct-Drive Cylinders: Equipped with dual direct-drive cylinders, this lift provides smooth, consistent power. The design has fewer moving parts, ensuring long-lasting performance and reducing the need for frequent maintenance.
• Open-Floor Overhead Design: The open-floor configuration allows for easy access to the lift arms, making it ideal for tight spaces where every inch of floor space counts. The overhead setup also gives you greater clearance, making it easier to maneuver vehicles beneath the lift.

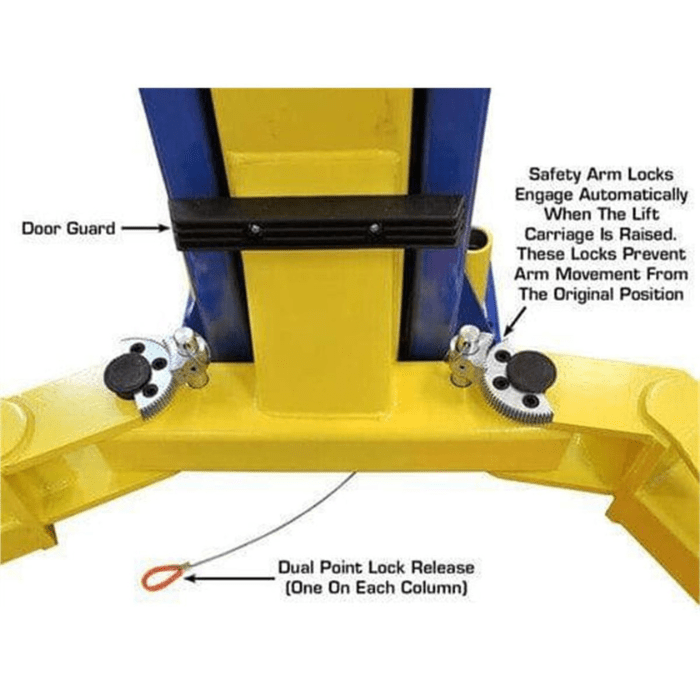

• Automatic Arm Restraints: For added safety, the Atlas 9KOHX features automatic arm restraints. These restraints lock the arms securely in place while in use, ensuring that the lift is stable and safe for lifting even the heaviest vehicles.
• Powder Coat Finish: This lift is finished with a powder coat for extra durability. The coating not only protects the lift from corrosion but also provides a sleek, professional look that will stand up to the toughest shop environments.

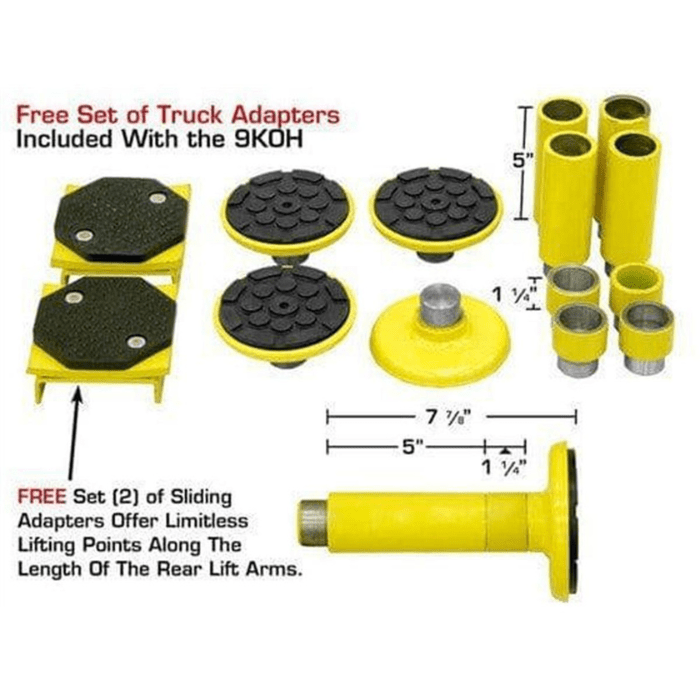

• Free 8-Piece Truck Adapter Set: The Atlas 9KOHX includes an 8-piece truck adapter set at no additional cost. This feature ensures that you can work with a range of vehicle sizes, from compact cars to full-size trucks, without needing to purchase separate accessories.
Minimum Garage Requirements
✔ Ceiling Height: At least see specifications below recommended ✔ Footprint: see specifications below ✔ Concrete Thickness: Minimum 4" (101.6 mm) ✔ Concrete Strength: Minimum 3,000 PSI compressive ✔ Electrical: 220V single phase, 30 amp breaker recommended ✔ Overall Lift Height: see specifications below (measure before ordering)
✔ Ceiling Height: At least see specifications below recommended
✔ Footprint: see specifications below
✔ Concrete Thickness: Minimum 4" (101.6 mm)
✔ Concrete Strength: Minimum 3,000 PSI compressive
✔ Electrical: 220V single phase, 30 amp breaker recommended
✔ Overall Lift Height: see specifications below (measure before ordering)
*Concrete must meet the manufacturer's minimum requirements as specified above. Installing this lift on inadequate concrete may result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength prior to purchase and installation. Stacking taller vehicles vertically may require additional ceiling height. Measure your specific vehicles before ordering. Note: 2-post overhead lifts inherently require tall ceilings. Verify your overhead clearance before ordering.
Atlas 9KOHX Overhead Two-Post Car Lift Specifications |
|
| Manufacturer | Atlas |
| Capacity | 9,000 lbs |

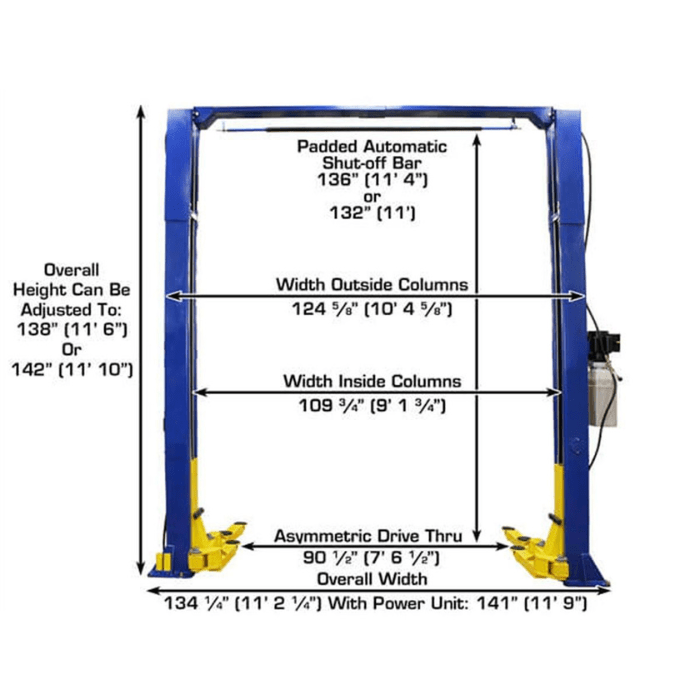

| Overall Floor Width | 134 1/2" (11' 2 1/2") |
| Outside Column to Column | 124 7/8" (10' 4 7/8") |

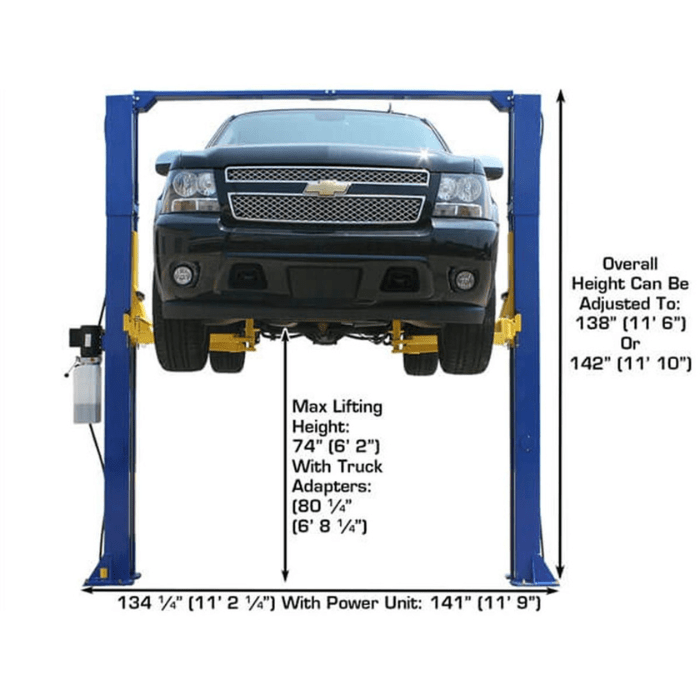

| Maximum Lift Height | 68" (without adapters), 74 1/4" (with adapters) |
| Minimum Arm Height | 4 1/2" |
| Inside Column | 110" (9' 2") |

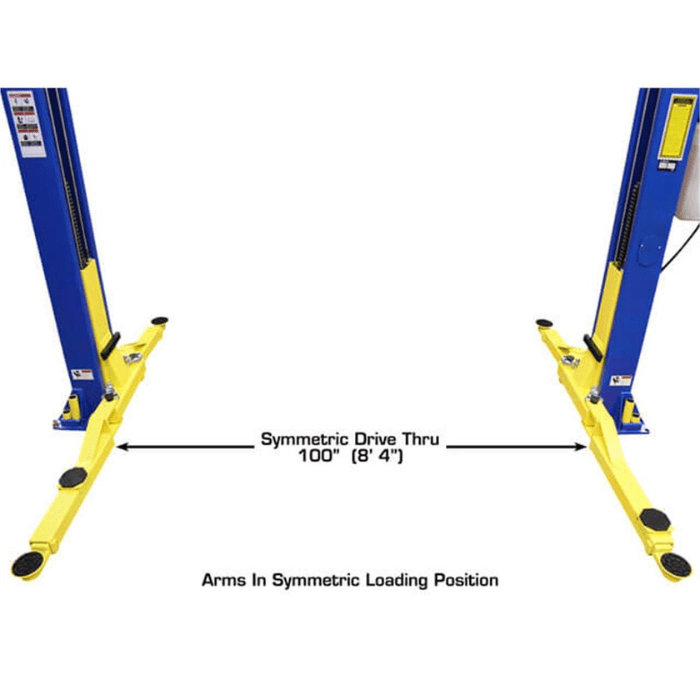

| Drive Thru | 100" (symmetric), 90 1/2" (asymmetric) |

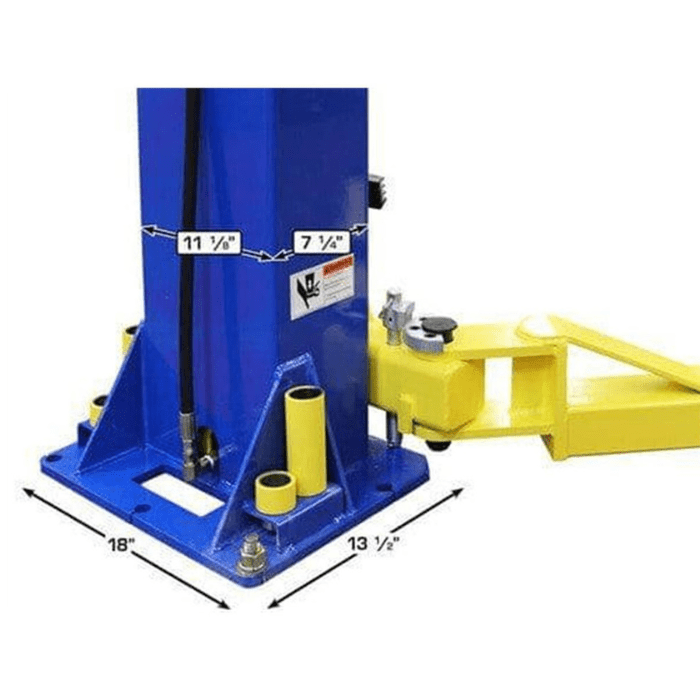

| Column Size | 7 1/4" x 11" |
| Motor/Electrical Requirement | 220V single phase, 30 amp breaker recommended |
| Oil Requirement | 3-5 Gallons AW32/AW46 (not included) |

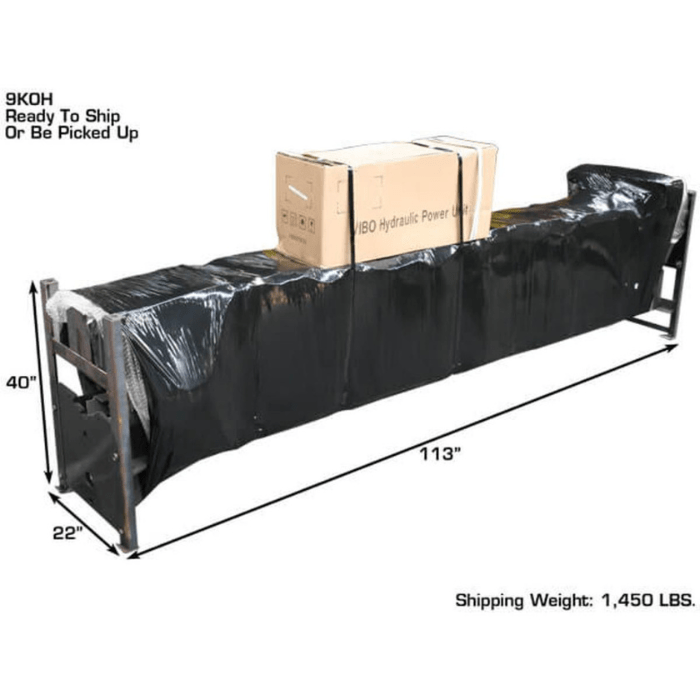

| Shipping Weight | 1,450 lbs |

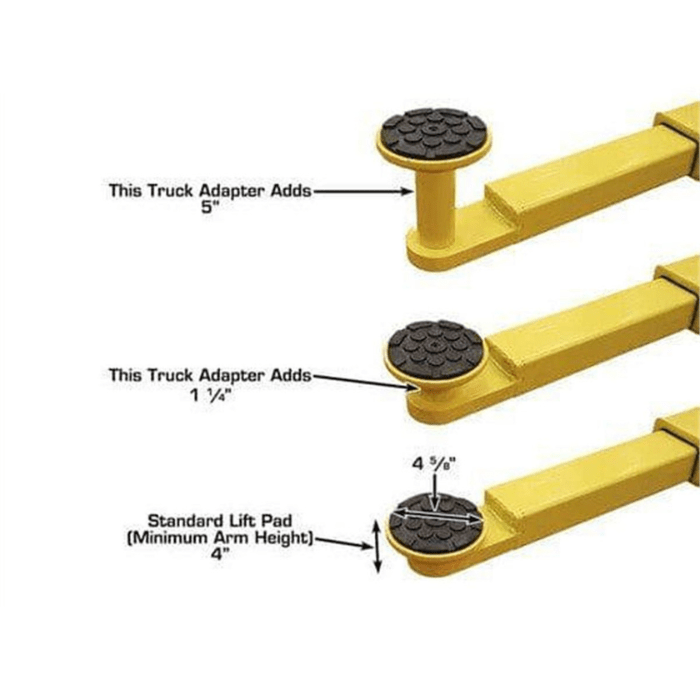

| Adapter Heights | 4 each of 1.5", 5" |
