Atlas Equipment Air Force 10HP 120 Gallon Air Compressor 3 Phase | AF10

SKU ATEMPAF10-3PH
$6,500.00

Notify me when back in stock

Served in the military? Click here — we’d love to thank you with a personalized discount.
Atlas Mobile and Desktop Trust Badges Atlas collection Mobile Trust Badges

Commercial-Grade Muscle—Atlas AF10 120 Gal Air Compressor w/ Low Oil Shutdown



Shopping for a heavy-duty air compressor can be frustrating, especially if you're dealing with underpowered units that overheat, wear out quickly, or can't keep up with a busy auto shop. Many 120-gallon air compressors make big claims but fall short under real pressure. The Atlas Equipment Air Force AF10 is built differently. It's engineered specifically for demanding commercial environments where consistent airflow and reliability aren't optional—they’re mission-critical.

This 10HP 120-gallon air compressor delivers serious performance with a 3-cylinder, 2-stage pump that cranks out 35 CFM at 175 PSI and 37 CFM at 90 PSI. That’s enough output to run multiple tools across multiple bays without slowing down. The horizontal tank design is made in the USA and holds a large air reserve while staying relatively compact for its class. And thanks to its belt-driven low-RPM motor and included Vibro-Isolation Pads, it runs quieter than you'd expect from a 1000 lb unit.

What really sets the AF10 apart is the Plus Package, a set of upgrades you don’t usually get without paying extra—or installing yourself. We're talking an automatic low-oil shutdown, air-cooled aftercooler, and auto tank drain—all designed to give you drier, cleaner air and longer machine life. It's backed by a 1-year parts warranty and comes standard with a magnetic starter, continuous run option, and smart features that make it a serious upgrade for any operation.

Still undecided? Our full Air Compressors collection gives you more to choose from.

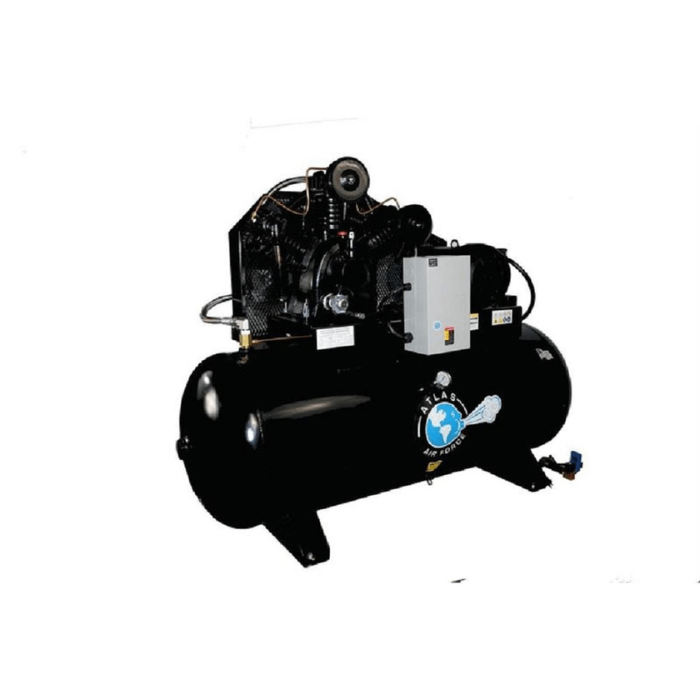

Atlas AF10 10HP 120-Gallon Air Compressor in 3-phase configuration, shown with a horizontal tank and integrated magnetic starter assembly.

Benefits of the Atlas AF10 Air Compressor

Reliable Airflow | Handles multiple tools with ease.

Lower Shop Noise | Quiet, low-RPM motor operation.

Extended Machine Life | Built-in low oil shutoff and cooler.

Easy Maintenance | Automatic tank drain system.

USA-Made Durability | Rugged 120-gallon horizontal tank.

High-Output Performance | 35–37 CFM at 175 PSI.

Key Features of the Atlas AF10 120-Gallon Air Compressor You'll Love:

  • Heavy-Duty 10HP Motor (3-Phase Power): Built for commercial use, the 10HP motor delivers consistent power with high electrical efficiency. Designed for smooth startups and reduced voltage drops in high-load environments.
  • Oversized 120-Gallon Horizontal Tank: Made in the USA, this large-capacity horizontal tank stores more air and maintains pressure longer—ideal for shops requiring sustained air delivery in tighter spaces.
  • Advanced 2-Stage, 3-Cylinder Pump: Compresses air faster and more evenly. The 3-cylinder design ensures balanced operation and extended pump life, even under heavy, continuous use.

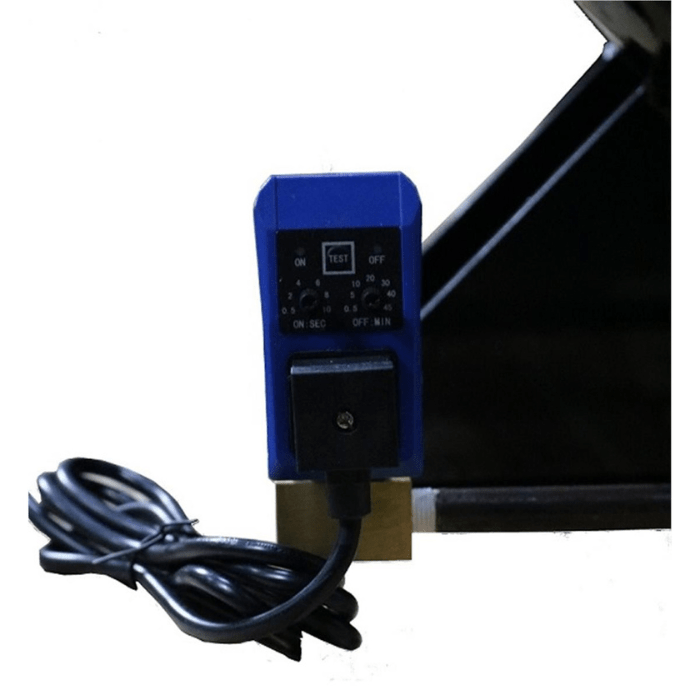

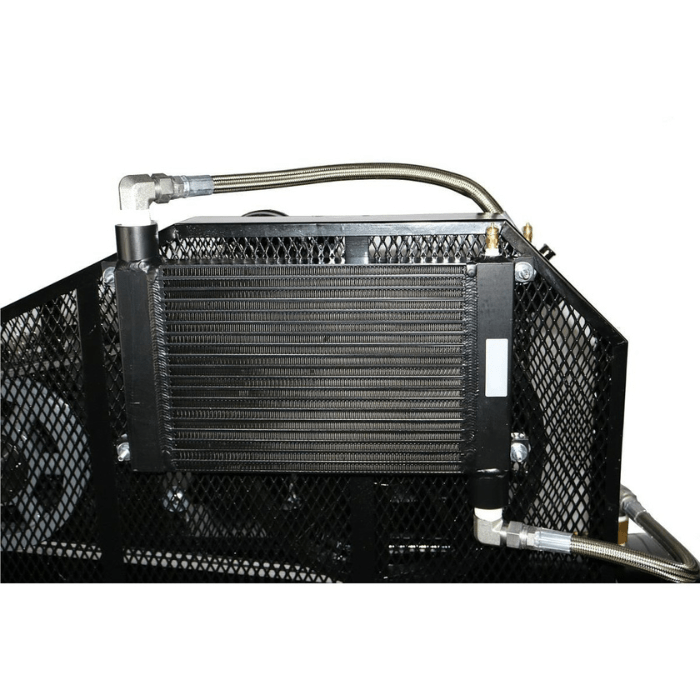

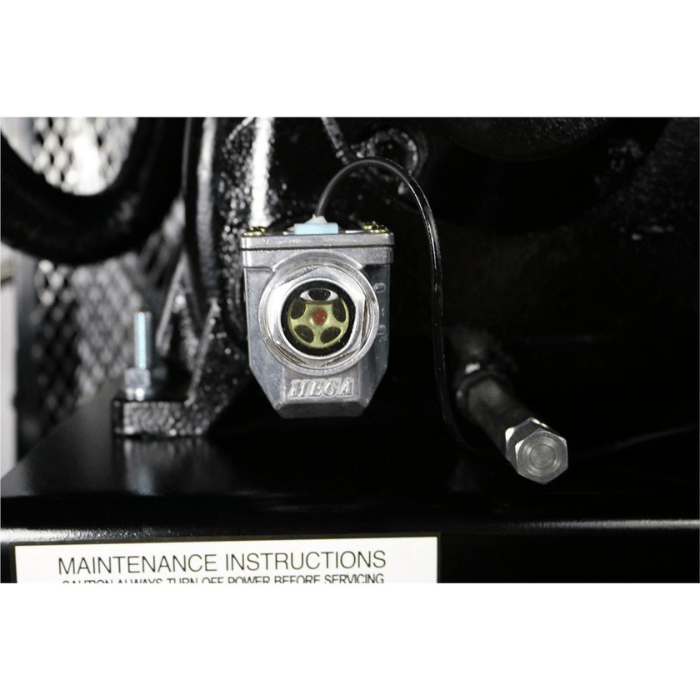

  • Plus Package: Aftercooler, Auto Drain, Low Oil Monitor: Included upgrades prevent moisture buildup, safeguard against low oil damage, and automate draining to reduce maintenance needs and protect internal components.
  • Magnetic Starter + Continuous Run Option: Protects your motor with overload prevention and allows for continuous run mode—ideal for multi-bay shops or operations with nonstop air demands.
  • Quiet Operation with Vibro-Isolation: Runs at low RPM with integrated vibration pads, significantly reducing shop noise and creating a more comfortable working environment.
Close-up view of the Atlas AF10 10HP Air Compressor highlighting the Hega oil sensor placement near the two-stage compressor head.

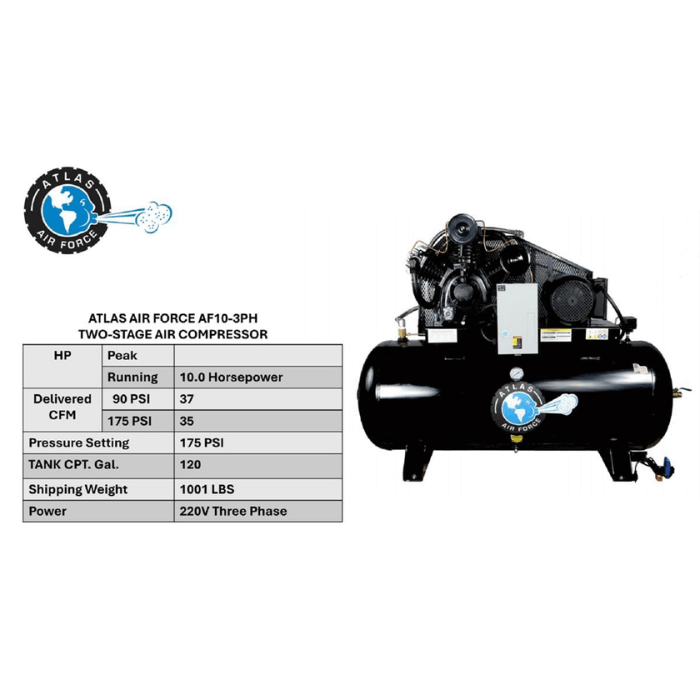

Atlas AF10 10HP Air Compressor Specifications

Manufacturer Atlas
Model Air Force AF10
Motor Power 10 HP
Voltage / Phase 220V / 3 Phase
Breaker Requirement 30 Amp Breaker
Recommended Wire 10 Gauge (Max 70 ft)
Pump Type 3-Cylinder, 2-Stage
Tank Capacity 120 Gallons (Horizontal, USA-Made)
Delivered CFM @ 90 PSI 37
Delivered CFM @ 175 PSI 35
Pressure Range 145 – 175 PSI
Air Outlet Size 3/4" NPT
Noise Control Vibro-Isolation Pads Included
Drain System Hands-Free Tank Drain Extension
Oil Drain Compressor Oil Drain Extension Tube
Moisture Control Finned Tank Inlet Tube
Belt Guard Heavy-Duty Metal
Starter Type Magnetic Starter Included
Continuous Run Option Yes
Overall Dimensions (L x W x H) 72" x 32" x 52"
Shipping Weight 1000 lbs.
Warranty 1 Year Parts Only
Overview

Commercial-Grade Muscle—Atlas AF10 120 Gal Air Compressor w/ Low Oil Shutdown



Shopping for a heavy-duty air compressor can be frustrating, especially if you're dealing with underpowered units that overheat, wear out quickly, or can't keep up with a busy auto shop. Many 120-gallon air compressors make big claims but fall short under real pressure. The Atlas Equipment Air Force AF10 is built differently. It's engineered specifically for demanding commercial environments where consistent airflow and reliability aren't optional—they’re mission-critical.

This 10HP 120-gallon air compressor delivers serious performance with a 3-cylinder, 2-stage pump that cranks out 35 CFM at 175 PSI and 37 CFM at 90 PSI. That’s enough output to run multiple tools across multiple bays without slowing down. The horizontal tank design is made in the USA and holds a large air reserve while staying relatively compact for its class. And thanks to its belt-driven low-RPM motor and included Vibro-Isolation Pads, it runs quieter than you'd expect from a 1000 lb unit.

What really sets the AF10 apart is the Plus Package, a set of upgrades you don’t usually get without paying extra—or installing yourself. We're talking an automatic low-oil shutdown, air-cooled aftercooler, and auto tank drain—all designed to give you drier, cleaner air and longer machine life. It's backed by a 1-year parts warranty and comes standard with a magnetic starter, continuous run option, and smart features that make it a serious upgrade for any operation.

Still undecided? Our full Air Compressors collection gives you more to choose from.

Atlas AF10 10HP 120-Gallon Air Compressor in 3-phase configuration, shown with a horizontal tank and integrated magnetic starter assembly.

Benefits of the Atlas AF10 Air Compressor

Reliable Airflow | Handles multiple tools with ease.

Lower Shop Noise | Quiet, low-RPM motor operation.

Extended Machine Life | Built-in low oil shutoff and cooler.

Easy Maintenance | Automatic tank drain system.

USA-Made Durability | Rugged 120-gallon horizontal tank.

High-Output Performance | 35–37 CFM at 175 PSI.

Key Features of the Atlas AF10 120-Gallon Air Compressor You'll Love:

  • Heavy-Duty 10HP Motor (3-Phase Power): Built for commercial use, the 10HP motor delivers consistent power with high electrical efficiency. Designed for smooth startups and reduced voltage drops in high-load environments.
  • Oversized 120-Gallon Horizontal Tank: Made in the USA, this large-capacity horizontal tank stores more air and maintains pressure longer—ideal for shops requiring sustained air delivery in tighter spaces.
  • Advanced 2-Stage, 3-Cylinder Pump: Compresses air faster and more evenly. The 3-cylinder design ensures balanced operation and extended pump life, even under heavy, continuous use.
  • Plus Package: Aftercooler, Auto Drain, Low Oil Monitor: Included upgrades prevent moisture buildup, safeguard against low oil damage, and automate draining to reduce maintenance needs and protect internal components.
  • Magnetic Starter + Continuous Run Option: Protects your motor with overload prevention and allows for continuous run mode—ideal for multi-bay shops or operations with nonstop air demands.
  • Quiet Operation with Vibro-Isolation: Runs at low RPM with integrated vibration pads, significantly reducing shop noise and creating a more comfortable working environment.
Close-up view of the Atlas AF10 10HP Air Compressor highlighting the Hega oil sensor placement near the two-stage compressor head.

Atlas AF10 10HP Air Compressor Specifications

Manufacturer Atlas
Model Air Force AF10
Motor Power 10 HP
Voltage / Phase 220V / 3 Phase
Breaker Requirement 30 Amp Breaker
Recommended Wire 10 Gauge (Max 70 ft)
Pump Type 3-Cylinder, 2-Stage
Tank Capacity 120 Gallons (Horizontal, USA-Made)
Delivered CFM @ 90 PSI 37
Delivered CFM @ 175 PSI 35
Pressure Range 145 – 175 PSI
Air Outlet Size 3/4" NPT
Noise Control Vibro-Isolation Pads Included
Drain System Hands-Free Tank Drain Extension
Oil Drain Compressor Oil Drain Extension Tube
Moisture Control Finned Tank Inlet Tube
Belt Guard Heavy-Duty Metal
Starter Type Magnetic Starter Included
Continuous Run Option Yes
Overall Dimensions (L x W x H) 72" x 32" x 52"
Shipping Weight 1000 lbs.
Warranty 1 Year Parts Only
