Atlas Air Force Electric 5HP 80 Gallon Air Compressor | AF7

by Atlas
SKU ATEMPAF7
$2,850.00

Notify me when back in stock

Served in the military? Click here — we’d love to thank you with a personalized discount.
Atlas Mobile and Desktop Trust Badges Atlas collection Mobile Trust Badges

Quiet Power, Built to Last—Atlas AF7 80 Gal 5HP Air Compressor



Shopping for the right air compressor can be overwhelming, especially when you're trying to balance power, durability, and price. A lot of compressors on the market either fall short on pressure, wear out too fast, or end up being way louder than expected. If you’re tired of underperforming units and just want a reliable setup that delivers strong, consistent air, the Atlas Equipment Air Force AF7 is built for you.

This 80 gallon air compressor is commercial-grade from top to bottom. It runs on a powerful 5HP low-RPM motor, driving a heavy-duty 3-cylinder, 2-stage cast iron pump that cranks out 18.5 CFM at 145 PSI and 14.5 CFM at 175 PSI. The USA-made vertical tank saves floor space while holding a serious amount of air. And since it's belt-driven and runs at lower RPMs, it stays impressively quiet, even under load.

The AF7 also comes loaded with smart design choices like a magnetic starter for longer motor life, hands-free tank drain, and finned inlet tubes that reduce moisture build-up inside the tank. Whether you're powering air tools, sandblasters, or doing general shop work, this compressor offers a rock-solid solution without breaking the bank. It’s professional-grade gear at a working man's price.

Need more power or tank size? Explore higher-capacity Air Compressors in our collection.

The Atlas AF7 5HP Air Compressor features a vertical 80-gallon tank, protected pulley system, and integrated control box.

Benefits of the Atlas AF7 Air Compressor

Quiet Performance | Low-RPM design cuts noise.

Long-Term Durability | Industrial-grade motor and pump.

Moisture Management | Finned inlet keeps tank dry.

Space-Saving Design | Vertical tank fits tighter shops.

Hassle-Free Maintenance | Hands-free tank draining.

Built for Heavy Use | 18.5 CFM at 145 PSI output.

Key Features of the Atlas AF7 80-Gallon Air Compressor You'll Love:

  • Commercial-Grade 2-Stage Pump: Features a 3-cylinder cast iron pump with dual low-pressure and one high-pressure cylinder, delivering consistent airflow for heavy-duty pneumatic tool use in professional shops.
  • Low-RPM 5HP Motor: Operates at a lower RPM to reduce heat, noise, and wear—extending the life of the motor and ensuring quiet, reliable performance over time.
  • 80 Gallon Vertical Steel Tank (USA-Made): Made in the USA for premium durability, this space-saving vertical tank provides high air capacity for continuous operation in demanding environments.
  • Magnetic Starter for Longevity: Built-in magnetic starter helps regulate electrical input, protecting the motor and enhancing the compressor's lifespan with every use.
  • Hands-Free Tank Drain Extension: Simplifies moisture removal with an easy-access drain extension—no crawling or tools required, helping to prevent rust and preserve tank integrity.
  • Built-In Moisture Reduction with Finned Inlet: A finned tank inlet tube cools and condenses incoming air, reducing internal condensation buildup for better performance and extended tank life.

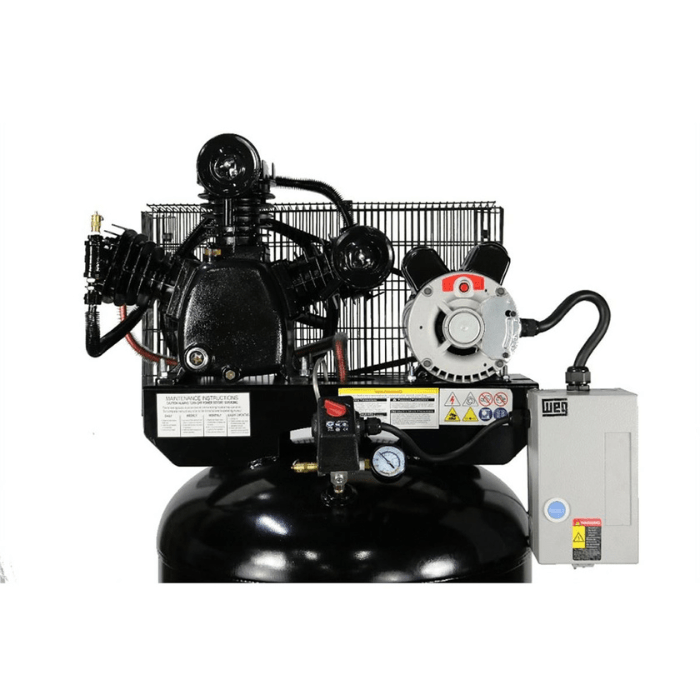

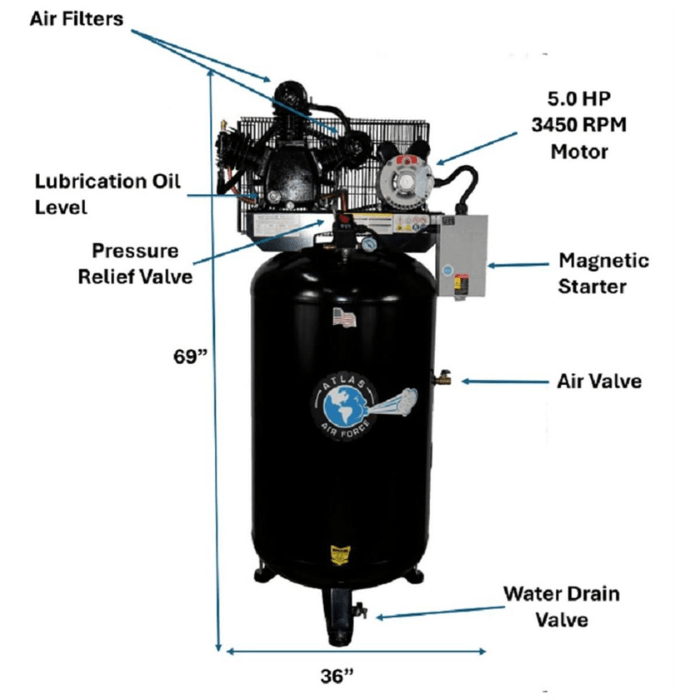

Close-up of the Atlas AF7 Air Compressor showcasing its belt-driven motor, safety cage, and magnetic starter unit.

Atlas AF7 5HP Air Compressor Specifications

Manufacturer Atlas
Model Air Force AF7
Motor Power 5 HP (Low RPM)
Motor Voltage 220V / 1 Phase / 30 Amp Breaker
Wire Requirement #10 Wire
Compressor Pump 3 Cylinder, 2-Stage Cast Iron
Tank Capacity 80 Gallons (Vertical, USA-Made)
Pressure Range 145 – 175 PSI
Delivered CFM @ 145 PSI 18.5
Delivered CFM @ 175 PSI 14.5
Air Outlet Size 1/2" NPT (Ball Valve Included)
Noise Reduction Vibro-Isolation Pads Included
Drain System Hands-Free Tank Drain Extension
Moisture Control Finned Tank Inlet Tube
Belt Guard Heavy-Duty Metal
Magnetic Starter Included
Overall Dimensions (L x W x H) 36" x 24" x 69"
Shipping Weight 485 lbs
Warranty 1 Year Parts Only
