High Lift Garage Door Conversion: When You Need It

Bottom line: a high lift garage door conversion is the single cheapest way to turn a residential garage with an 8 to 10 ft ceiling into a working car-lift bay. The conversion swaps the curved horizontal track for a tall vertical track, replaces the torsion springs, and moves the operator off the ceiling onto a wall-mounted jackshaft motor. Done right, it buys you 24 to 36 in. of unobstructed ceiling, exactly where the lift columns and overhead crossbar need it. Done wrong, you get a door that crashes shut on its own or refuses to open.

This guide is for the home mechanic or shop owner who already picked a 2-post or 4-post lift → and just realized the garage door is in the way. We will cover what the conversion actually changes, when you really need it (and when a low-rise lift is a better answer), the parts list, real pricing, the install pitfalls we see on customer calls, and the lifts that most reliably trigger the conversation.

What Is a High Lift Garage Door Conversion?

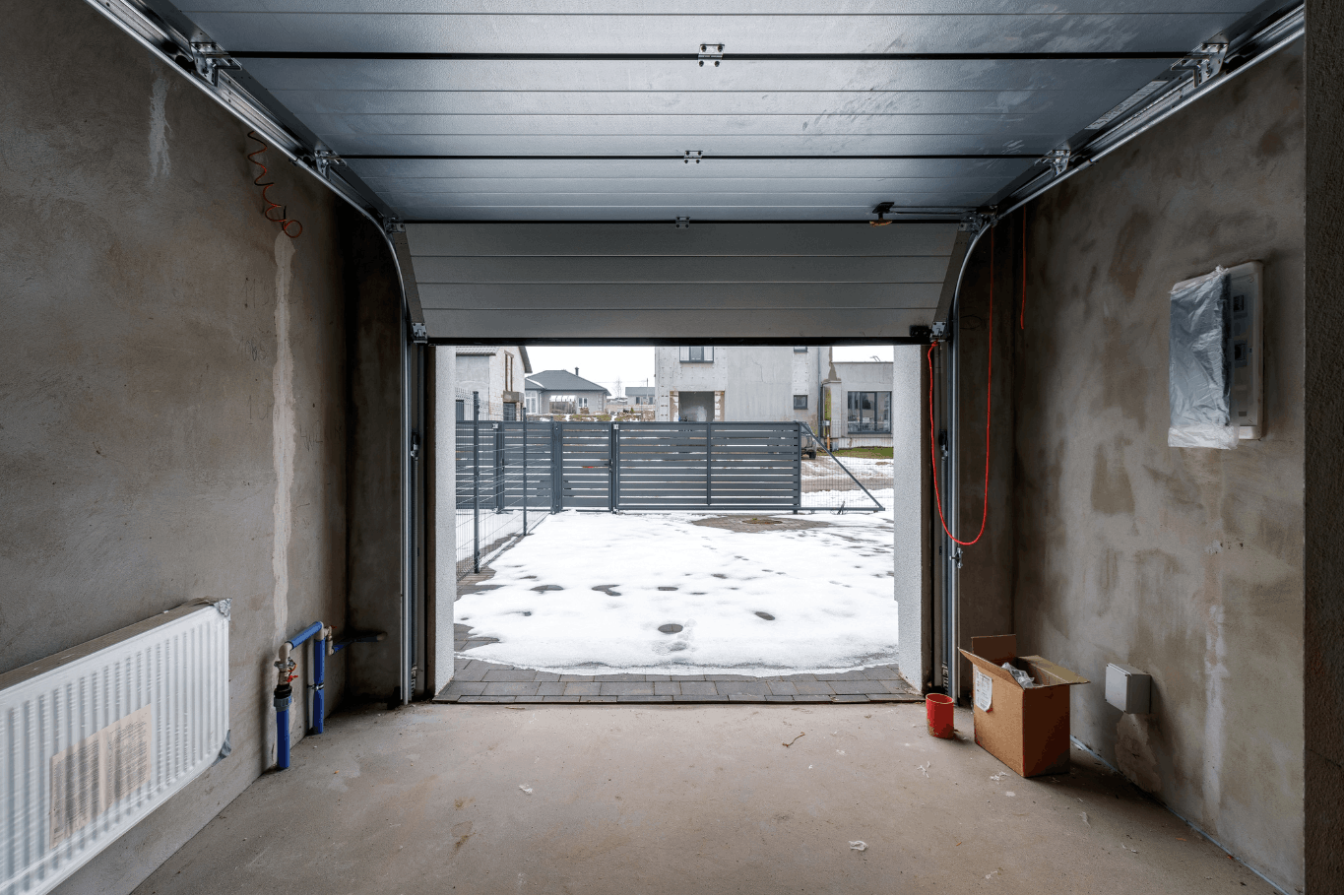

A standard residential garage door rolls up on a curved horizontal track that sits roughly 8 to 14 in. below the ceiling, depending on door style and spring placement. That track is the reason your garage door panels eat the ceiling space directly above the opening, the exact ceiling space your lift columns and overhead crossbar need.

A high lift conversion replaces that low horizontal track with a taller vertical track that runs straight up the wall before turning the corner toward the ceiling. The door panels stack vertically against the wall instead of folding into the ceiling plane, and the horizontal track that does exist gets pushed back to the rear of the bay where the lift no longer cares. You buy back the ceiling room directly above and behind the door header, which is exactly where a 2-post lift →'s overhead bar or a 4-post lift's runway clearance has to live.

The conversion is not a new door. The panels, hinges, rollers, and bottom seal all stay. What changes:

• Vertical track. A new section of straight track runs floor to high-mounted curve.
• Horizontal track. Either lengthened, repositioned, or both, so the door panels finish their travel above the lift envelope rather than through it.
• Torsion springs. Longer springs and a longer torsion shaft, because the door now travels farther before reaching its open position. Old springs almost never carry over.
• Operator (the motor). A standard ceiling-mounted chain or screw drive cannot reach the new track geometry. Most conversions move to a wall-mounted jackshaft operator that drives the torsion shaft directly.
• Cables and drums. Longer cables and (sometimes) a different drum profile so the door tracks correctly through the new geometry.

What does not change: the door panels themselves, the structural opening in your wall, the slab, or the size of the door you can drive through. A high lift conversion is purely a track-and-balance change.

When You Actually Need One (Doing the Ceiling Math)

Before you spend a dollar on track parts, do the math. The conversion is required when the open-door position of your existing track sits below the highest point your lift will ever reach with a vehicle on it. That sounds obvious until you start measuring.

The numbers that matter:

• Your ceiling height, measured slab to lowest joist or drywall in the lift envelope, not at the peak.
• Your lift's full-rise height with overhead crossbar, not the column height. Most 2-post lifts run 11 to 12 ft 6 in. at the top of the overhead bar.
• Your tallest expected vehicle on the lift, measured from the lift's pad height (typically 75 to 80 in. at full rise) plus vehicle height. A modern crew-cab pickup at 78 in. on pads at 76 in. is 12 ft 10 in. before you add headroom for service.
• Your door's open-position headroom, measured from finished floor to the bottom of the open door panel. On a stock track this is typically 7 to 8 ft.

If your stock door's open-position headroom is less than the tallest vehicle you plan to lift plus working space, the door is in the way. That is the conversion trigger. For most home garages running a full-size 2-post lift, you need 11 to 12 ft of clear headroom above the door track. A high lift conversion buys back the difference.

Three scenarios where the conversion is genuinely required:

1. 2-post overhead lift in a 10 ft ceiling garage. The overhead crossbar plus a tall SUV on the arms wants 11 ft. Stock door track steals 9 to 18 in. of that. You need the conversion.
2. 4-post storage lift over a parked daily. The bottom car's roof clears the runways at full rise by maybe 6 in., and the door panels sit right at runway level. Even if the lift columns clear the door, the door panels block runway access to the rear of the bay.
3. Wide-bay shop with a single tall door. If the door header sits at 8 ft and the lift's overhead bar wants 11 ft 6 in., conversion is the only path that does not also require ripping out the door header and rebuilding the framing.

And one scenario where you do not need it: if your ceiling is high enough that the lift envelope sits entirely above the door's open track height, leave the door alone. We see customers spend $700 on parts to "just to be safe" when their existing 12 ft ceiling already has 10 in. of clearance above the open door, more than enough.

Rule of thumb: if your lift's overhead bar plus tallest vehicle plus 6 in. of working space is less than the height to the bottom of the open door panel, you are fine without the conversion. If it is more, you need the conversion or you need a shorter lift.

If you would rather skip the conversion entirely, a low-rise or mid-rise scissor lift → is the obvious alternative. They top out at 30 to 50 in. of pad height, which keeps every vehicle well below the door track. The trade-off: you lose the standing-room access a full 2-post or 4-post gives you, and you cannot do real undercarriage work.

How a High Lift Conversion Actually Works

If you have ever watched a garage door installer work, the conversion is mostly familiar territory with a few critical changes. Here is the order of operations a pro will follow, and the order you should follow if you DIY:

1. Measure the new geometry. Decide how high you want the door to travel. The standard answer for car-lift bays is "high enough that the open door bottom sits at or above the lift's overhead bar plus 4 in. of working clearance." That number drives every parts decision below. Most high lift kits ship in 24 in., 36 in., or 48 in. lift heights. Pick the one that gets you above the lift envelope, not the biggest one available.

2. Order matched parts. A real high lift kit includes the new vertical track, the new horizontal track section, longer torsion springs (rated for the door weight and the new lift height), a longer torsion shaft, longer cables, and the brackets to mount everything. Mismatched parts are the number-one source of door-balance problems after a conversion. Do not "save money" by reusing your existing springs, they were sized for a different door travel.

3. Unload the existing springs safely. A torsion spring under load stores hundreds of pounds of force. Wind it down with the proper winding bars from the side, never with a screwdriver, never standing in front of the shaft. If you have never unloaded a torsion spring before, this is the single best place to call a pro. The rest of the job is easier than this step is dangerous.

4. Remove the old track. Disconnect the door panels at the rollers, then pull the horizontal track sections. You can usually leave the door hanging on a few rollers in the vertical jamb track while you swap the horizontal section.

5. Install the new vertical track. The new track section bolts to the existing jamb track and runs up the wall. Plumb is critical, an out-of-plumb track binds rollers and shortens roller life by years.

6. Install the new horizontal track. This now sits much higher than before, near or against the ceiling. Hang it level, with hangers spaced per the manufacturer's spec, and confirm the curve from vertical to horizontal is smooth without a "kink" the rollers have to climb.

7. Reinstall the torsion shaft, drums, and springs. The new shaft is longer to match the new track. Drums are sized for the new cable length and must match the new lift height. Wind the springs to the calculated turn count for your door's weight, you cannot eyeball this number.

8. Replace the operator. A jackshaft operator (the unit that bolts to the wall and drives the torsion shaft directly) is the standard for high lift conversions. Wall-mount, no rail to interfere with the lift envelope, and direct drive on the shaft. Brand-name jackshaft operators have safety sensors, manual release, and a battery backup option.

9. Test cycle 10 times before you let a vehicle near it. The door should travel smoothly, balance at half-open with no operator input (a sign the springs are wound correctly), and stop on contact with a 2x4 placed under the bottom rail.

What It Costs and How Long It Takes

Pricing varies by region, door size, and how much of the work you take on yourself. Real numbers from recent customer-call patterns:

• Parts only (DIY) for a 16x7 door: $400 to $700 for the conversion kit (track, springs, shaft, cables, brackets), plus $250 to $450 for a wall-mount jackshaft operator. Total parts: $650 to $1,150.
• Parts + labor (pro install) for a 16x7 door: $1,200 to $2,000 turnkey. Higher in metro markets. Add $300 to $600 if your existing door panels also need new rollers or hinges.
• Tall (8 ft or 9 ft) or oversize (18 ft wide) doors: Add $200 to $500 to either column above. Oversize springs and longer cables drive the bump.
• Permits: Most jurisdictions do not pull a permit for a track-and-spring change on an existing door. Confirm with your local building department before you assume.

Time to complete: a competent installer with a helper does the conversion in 4 to 6 hours. A first-time DIY install runs 8 to 12 hours, mostly because spring winding and operator wiring are slow the first time. Plan a full Saturday with a backup plan if something does not balance at the end. One cost customers miss: if you reuse your old trolley operator on the new geometry, expect early failure. Budget the new jackshaft operator into your number, the conversion is not finished without it.

What Can Go Wrong (And How to Avoid It)

Most high lift conversions go fine. The ones that do not share a small set of root causes:

Wrong springs. The single most common failure. A spring sized for a stock 7 ft door travel will not balance the same door on a 36 in. high lift conversion. The door slams shut on its own or refuses to lift at all. Fix: order springs from the kit's spring chart based on your actual door weight (weigh the door on a bathroom scale at the bottom rail, do not guess) and your new lift height.

Out-of-plumb vertical track. The new vertical track has to be plumb in two directions; any twist binds the rollers. Symptom: jerky travel, premature roller wear. Fix: shim the track with metal shims, not wood, and verify with a 6 ft level.

Operator clearance with the lift. Even a wall-mount jackshaft operator has a footprint, and that footprint cannot live where your lift column wants to live. Mock the column position before you order the operator. We see customers stuck with an immovable operator on the wrong side of the door.

Header strength on older homes. Single 2x10 headers sometimes flex when you anchor new track hardware. Symptom: track shifts under load, door binds. Fix: add a sister header or steel-angle reinforcement before mounting. Cheap during install, expensive to retrofit later.

Skipping the post-install retest. A door balanced on day one is not the same as a door balanced after a week of cycling. Recheck spring tension at 30 days, especially in cold-climate garages where steel relaxes with temperature swings. And test the safety reverse on a 2x4 every install, every time, the longer travel sometimes confuses the operator's calibration.

DIY Versus Hiring a Pro

The honest cut:

DIY makes sense if you have done at least one garage door spring change before and your garage is a standard single bay with a 16x7 door and no header surprises. The work is mostly mechanical and the parts savings are real. The only step that genuinely scares us is the spring unloading.

Hire a pro if you have never touched a torsion spring, your door is over 9 ft tall or 18 ft wide, the existing door has visible panel damage, your header is questionable, or you are converting two doors at once. The labor premium runs $500 to $900. Cheap insurance against a spring-failure ER visit.

Hybrid that works well: install the new track yourself, then hire a garage door tech for the spring change and operator wiring. Local techs charge $250 to $400 for that scope. You save half the labor, keep the dangerous step in the hands of someone who does it daily, and end up with pro-set spring tension. We never recommend doing the spring change yourself if you have not done one before.

Our Top Picks

Here are the standouts from this category, picked by our Lift Specialists for real-world fit and value.

Katool KT-H105: 10,000 lb 2-Post (Value Pick)

💳 Affirm & Shop Pay Installments at checkout | $1,899

The KT-H105 is the workhorse 2-post that most home-garage customers actually drive home with. 10,000 lb capacity, asymmetric column design, and an overhead bar that sits at 11 ft 4 in. at full rise. In a 10 ft ceiling garage with a stock door, that overhead bar will hit the door track. The high lift conversion is what makes this lift fit in a typical residential bay.

Best for: Home garages and small shops servicing daily drivers, light SUVs, and pickups. The honest "I want a real 2-post and I am not made of money" pick.

View Pricing & Specs →

★★★★★ Verified reviews · Authorized dealer · Lift Specialists ready to help

AMGO OH-10: 10,000 lb Super-Asymmetric 2-Post (Mid-Tier Pick)

💳 Affirm & Shop Pay Installments at checkout | $4,395

The OH-10 is the lift that most reliably triggers the door-conversion conversation. Super-asymmetric column geometry plus a tall overhead crossbar means the lift envelope wants 11 ft 6 in. of clear ceiling. AMGO has US parts inventory and Lift Specialist support.

Best for: Shoppers who want a third-party-certified 2-post and have already accepted that a 10 ft ceiling is going to need the high lift conversion. Verify the specific model's listing at autolift.org before purchase.

View Pricing & Specs →

★★★★★ Verified reviews · Authorized dealer · Lift Specialists ready to help

Katool KT-4H110: 11,000 lb 4-Post Storage Lift

💳 Affirm & Shop Pay Installments at checkout | $3,299

If your real goal is parking two cars on the footprint of one, the KT-4H110 is the storage-lift answer. The 4-post runways are physically lower than a 2-post overhead bar, but the bottom-car roof plus runway plus top-car height is what eats the ceiling. In a 10 ft garage with a stock door, the bottom car's roof and the door panels collide. High lift conversion fixes it.

Best for: Two-car households with one bay, daily drivers stacked over weekend cars. Free-standing install means no slab anchors required.

View Pricing & Specs →

★★★★★ Verified reviews · Authorized dealer · Lift Specialists ready to help

Frequently Asked Questions

How much ceiling does a high lift conversion give me back?

Standard kits ship in 24 in., 36 in., and 48 in. lift heights. The kit's name is the additional ceiling clearance you buy back: a 36 in. kit gets you 36 in. of extra unobstructed space above where the open door used to sit. Pick the kit that gets you above your lift's overhead bar plus 4 in. of working clearance. Bigger is not always better, taller kits need longer springs and longer cables, which costs more.

Can I install a 2-post lift without modifying my garage door at all?

Sometimes. If your ceiling is 12 ft or higher and your existing door track sits at the standard 8 ft open position, the lift envelope (11 ft 6 in. for most full-size 2-posts) sits below the door. Measure before you spend. If you have less than 12 ft of ceiling and you want a full-size 2-post, the conversion is almost always required.

Will the conversion void my garage door's warranty?

Door panel warranties (typically 5 to 10 years on the panels themselves) usually survive a track change. Spring warranties die with the conversion because you are installing new springs. Operator warranties depend on the brand, jackshaft operators carry their own warranty separate from the door. Your installer should give you matched warranty paperwork on the new parts.

What is the difference between a high lift conversion and a vertical lift conversion?

High lift converts to mostly-vertical-then-horizontal track, the panels travel up the wall and then turn the corner toward the ceiling near the rear of the bay. Vertical lift goes fully vertical, the panels stack flat against the wall above the opening with no horizontal section. Vertical lift requires more wall height and is more common in commercial buildings, high lift is the residential-and-small-shop standard.

Can I keep my old chain-drive operator?

Almost never. Trolley-mounted ceiling operators ride on a rail that has to span the door's open position, and on a high lift conversion that rail would either crash into the lift envelope or not reach the new open position at all. Plan on a wall-mount jackshaft operator. The good news: jackshaft operators are quieter, free up ceiling space, and most ship with smartphone control and battery backup.

Take the Next Step

The cheapest path to a working car-lift bay in a low-ceiling garage is the high lift conversion. Skipping it almost always pushes you toward a smaller lift, a less useful lift, or a lift that does not fit at all. The right move is to spec the lift first, do the ceiling math second, and order the conversion kit alongside the lift so both arrive in the same window.

Not sure which 2-post or 4-post fits your garage and which conversion height you actually need? Talk to a Lift Specialist before you order anything. Five minutes on the phone (or text) saves you weeks of forum reading and the wrong-size spring kit.
