When you’re diagnosing newer vehicles, the biggest time killer is not the scan itself, it’s chasing the wrong direction because your tool cannot clearly show what’s connected, what’s offline, and what’s actually causing the fault. Add in security gateways and faster network protocols, and basic tablets start to feel like guesswork. Phoenix Max is built for techs who want a clearer diagnostic picture, faster confirmation, and fewer jobs that get pushed out to a dealer or specialist.

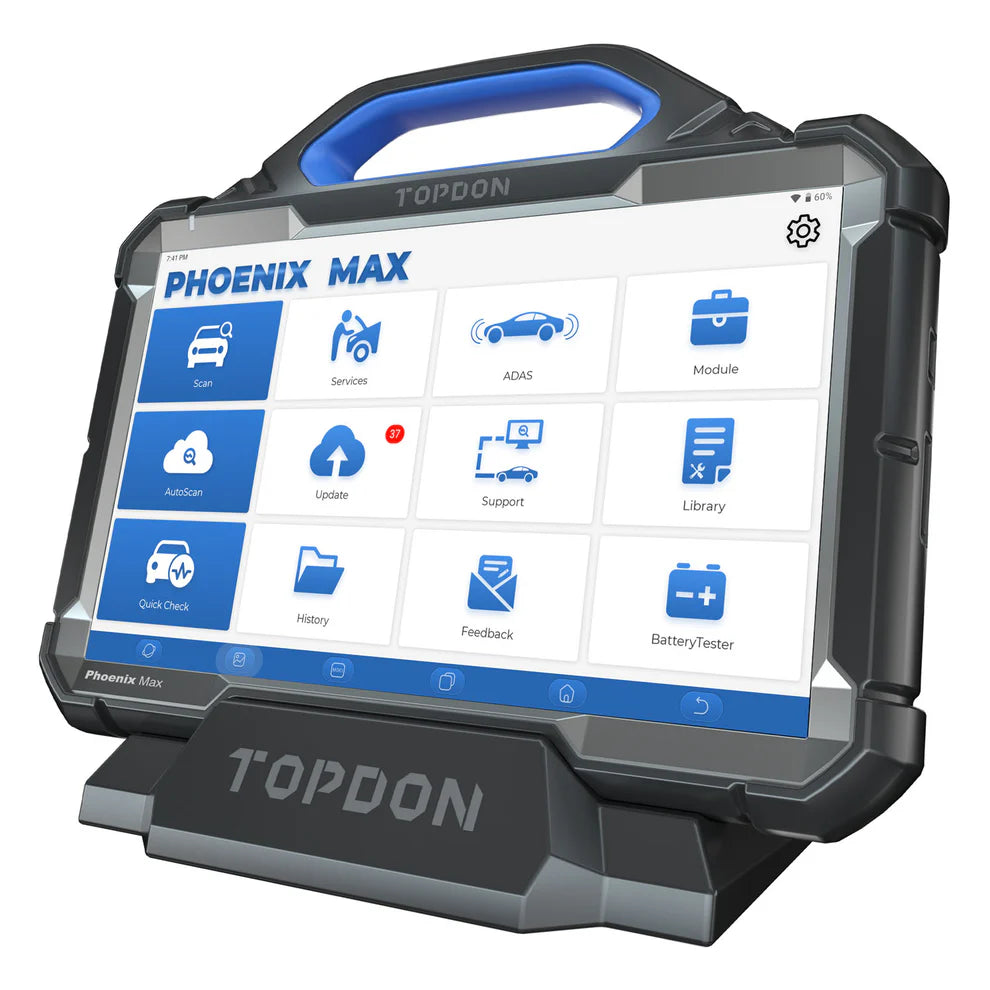

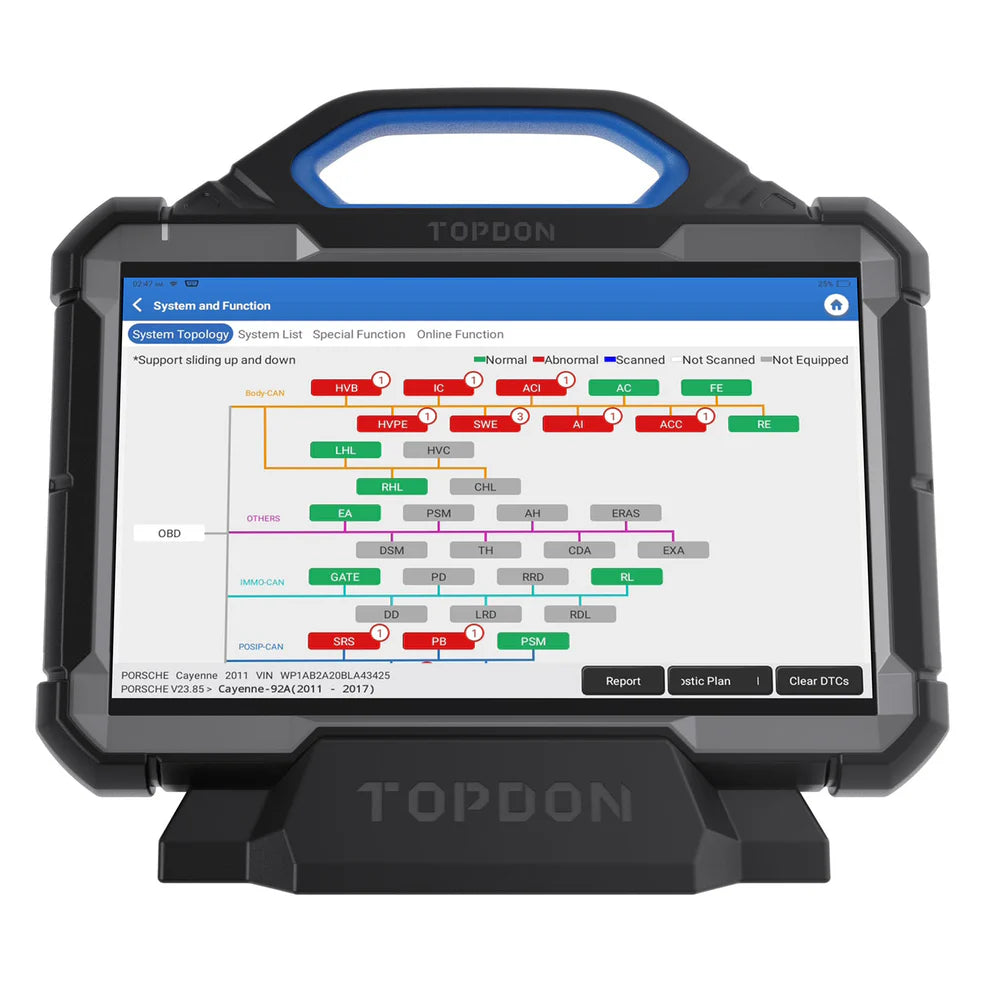

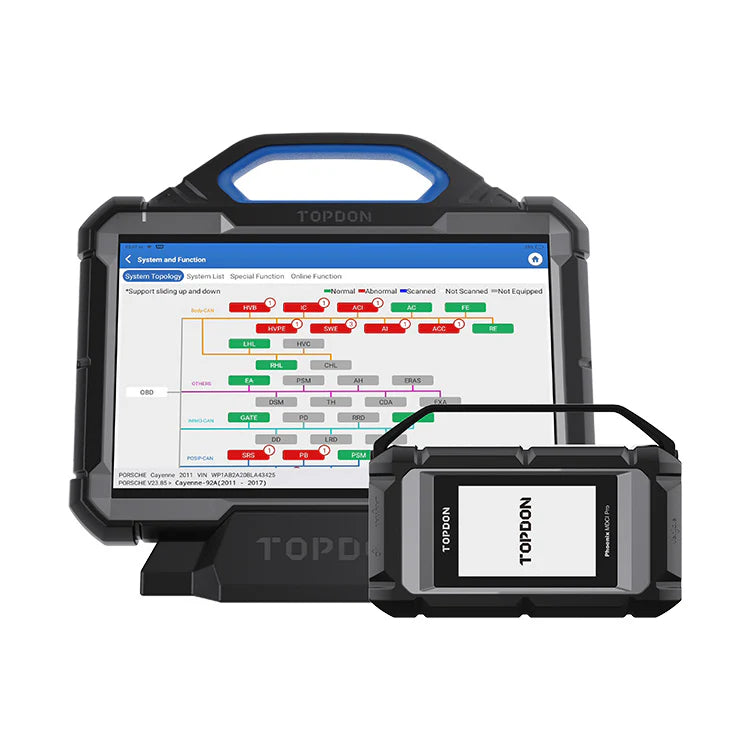

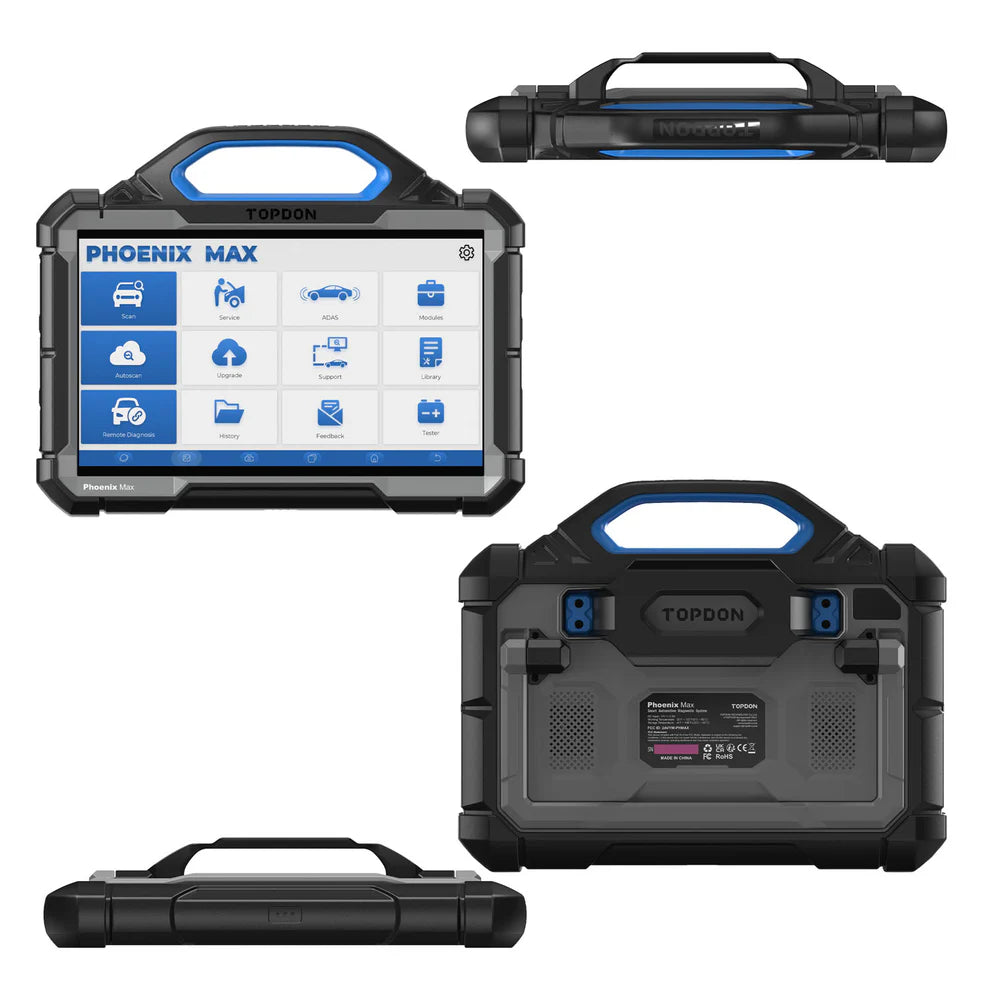

Phoenix Max centers everything around a large 13.3 inch screen so you can work faster without constantly flipping screens, zooming, or missing key network relationships. It supports full-system diagnostics, active tests, live data, AutoVIN, and topology mapping, which helps you see vehicle systems and their status in one view. This workflow is ideal for stacked faults, module communication issues, and late-model vehicles where the problem is rarely isolated to one system.
At the core is the Phoenix MDCI Pro, which brings broad protocol coverage and makes the platform more capable for modern vehicles and advanced workflows. With support for J2534, DoIP, CAN FD, D-PDU, and RP1210, Phoenix Max is designed for deeper diagnostics and professional-level communication. If you want one tablet that can scale with your workload and reduce outsourcing, this platform is built for that.
Looking for a different option? See our complete Diagnostic Scan Tools lineup.
Benefits of the TOPDON Phoenix Max Scan Tool
Faster fault isolation | Topology mapping helps you pinpoint problems without bouncing between modules.
More advanced in-house work | Programming and coding support helps you keep higher-value jobs in the shop.
Modern protocol coverage | MDCI Pro supports key protocols for late-model diagnostics and workflows.
Big screen productivity | 13.3 inch display improves visibility and speeds up diagnosis on complex jobs.
Always-ready charging | Docking station keeps the tablet charged, accessible, and ready between vehicles.
Expandable capabilities | Add-ons and optional software help you scale into more services over time.
Compatibility and Coverage (Read This First)
Phoenix Max supports full-system diagnostics and advanced functions, but available functions can vary by year, model, module, region, and software version. This is especially true for programming, coding, guided functions, secure gateway work, and some active tests.
Fast Compatibility Check (Recommended):Send us your
Year, Make, and Model and the exact function you need (diagnostics, active tests, service resets, coding, programming, FCA gateway). We’ll help you confirm coverage before you order.
Talk to a specialist: Contact Us
Phoenix MDCI Pro VCI Specs and Protocol Support

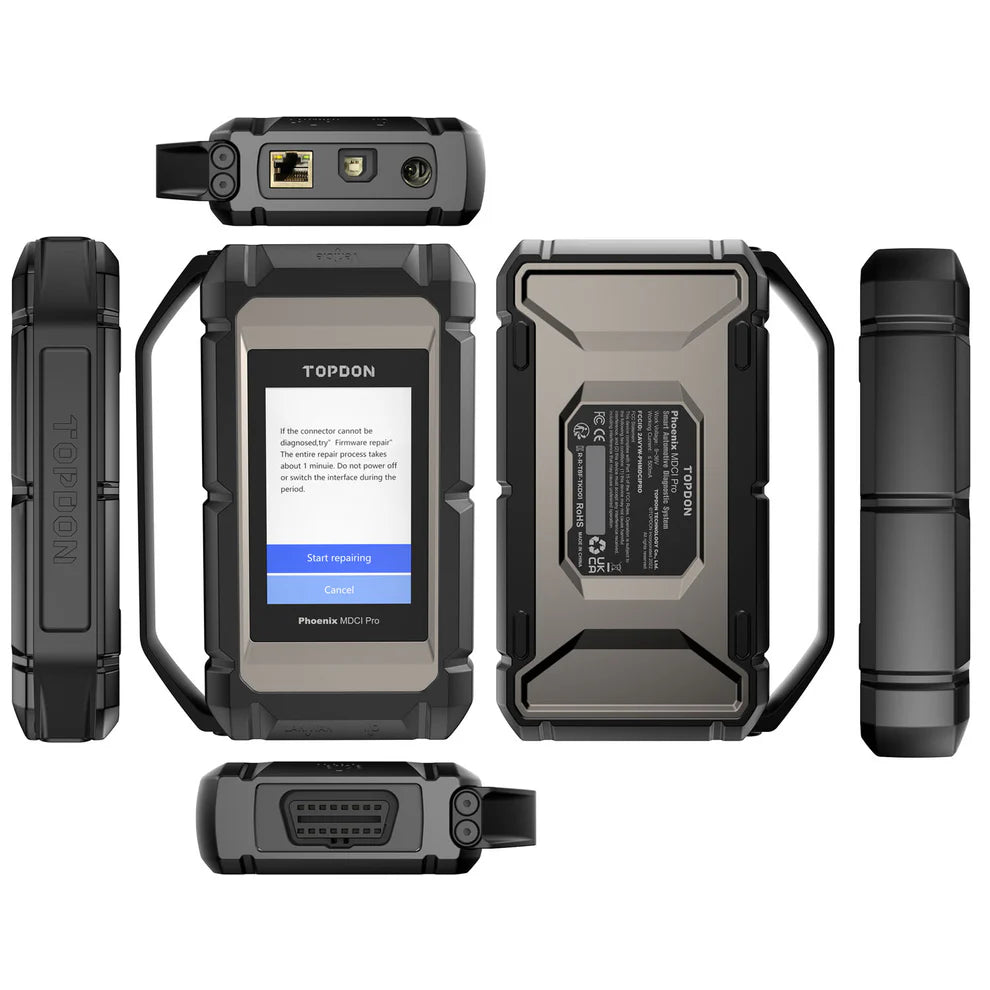

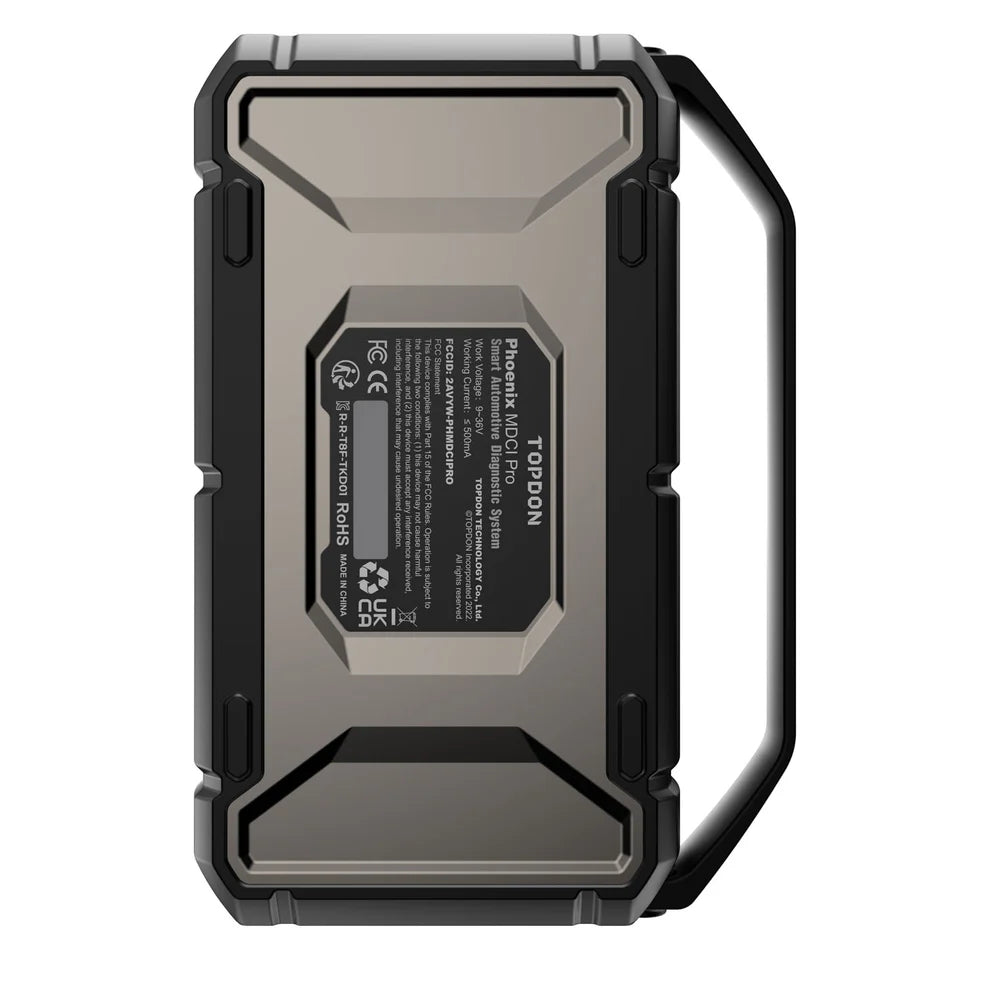

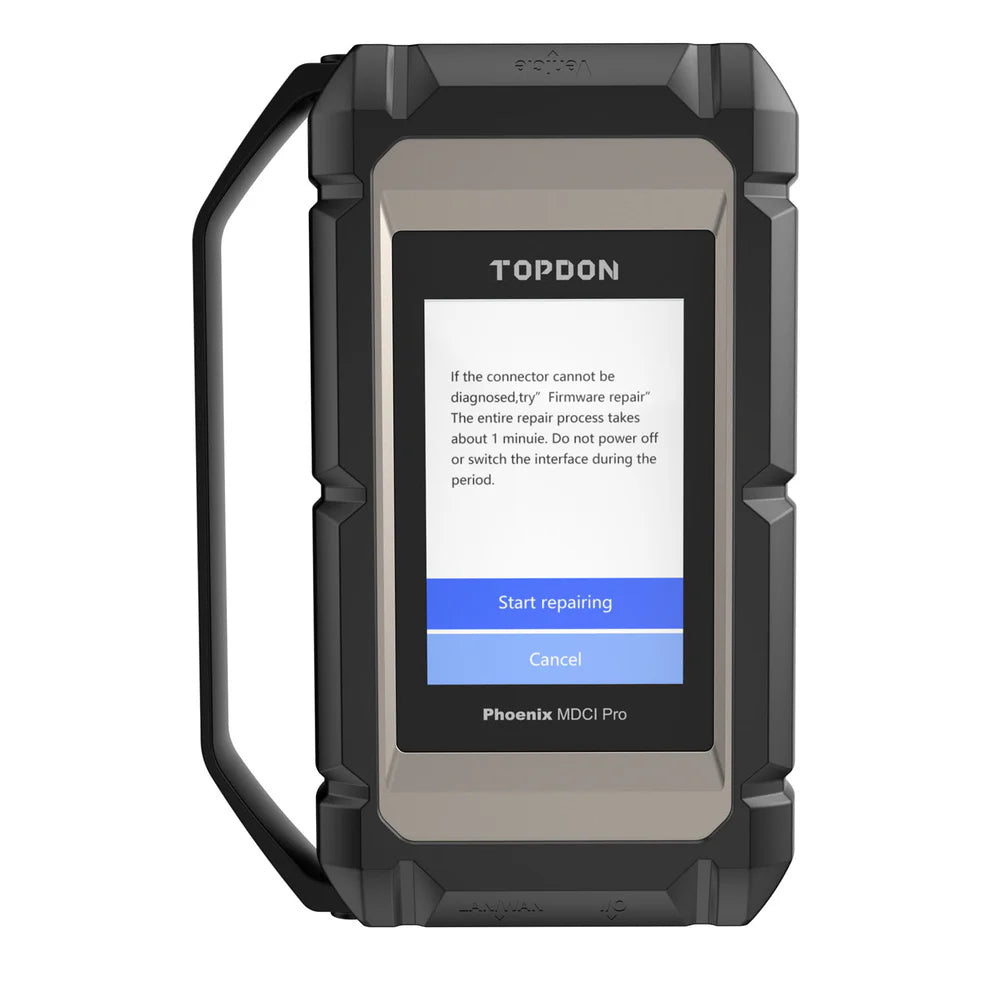

Phoenix Max includes the Phoenix MDCI Pro VCI, which handles communication between the tablet and the vehicle. For late-model work and advanced functions, the VCI matters because it determines whether you can reliably connect to modern networks and complete higher-level workflows.
The MDCI Pro supports the following protocols: J2534, DoIP, CAN FD, D-PDU, and RP1210. This is protocol coverage designed for modern diagnostics, advanced workflows, and professional-level communication needs.
| VCI Component |
Details |
| Phoenix VCI Included |
Phoenix MDCI Pro |
| Protocols Supported |
J2534, DoIP, CAN FD, D-PDU, RP1210 |
| Why It Matters |
Better late-model coverage, smoother workflows, fewer connection limitations on modern platforms |
Note: Supported functions still vary by vehicle and region. If programming or coding is the main reason you’re buying, send your vehicle info and the exact function you want so we can help verify coverage.
Programming and Coding Coverage (By Brand)
Programming and coding support can vary by year, model, and system, even within the same brand. Use this as a quick reference, then verify coverage for your exact vehicle if one function is critical.
Online Programming: Benz, BMW, VW, Audi, Skoda, SEAT, Porsche, Land Rover, Jaguar, Renault, Nissan, Subaru, Infiniti, Hyundai, Kia.
Online Parameterization: VW, Audi.
Online Coding: Benz (SCN), BMW, VW, Audi, Skoda, SEAT, Porsche, Renault.
Online FFS Activation: VW, Audi.
Online Calibration and Matching: VW, Audi.
Guided Function: VW, Audi, Skoda.
Offline Programming: Ford, Mazda, Vauxhall, Opel.
Flash Hidden Function: Benz, BMW, VW, Audi, Skoda, SEAT, Porsche, Jeep, Dodge, Chrystler, Toyota, Honda.
Repair Data: Benz, BMW, VW, Audi, Porsche (11-).
Important: Coverage varies by vehicle and region. If you want, send your vehicle details and the function you’re trying to run, and we’ll help you confirm it before purchase.
41 Maintenance Services and Daily Workflows
Phoenix Max supports full diagnostics plus a set of 41 maintenance services that cover common shop resets, calibrations, and relearns. Service coverage can vary by vehicle, module, and region, so verify your exact vehicle if one function matters most.
- Oil Reset
- SAS Reset
- EPB Reset
- BMS Reset
- DPF Regeneration
- ABS Bleeding
- IMMOBILIZER
- Sunroof Reset
- Suspension Reset
- Gearbox Reset
- AFS Headlamp Reset
- Injector Coding
- Gear Learning
- TPMS Reset
- Throttle Adaptation
- A/F Reset
- ADBLUE Reset
- Coolant Bleed
- EGR Reset
- Language Change
- NOx Sensor Reset
- Odometer Calibration
- Seats Calibration
- STOP/START
- Reset Airbag
- Transport Mode
- TYPE Reset
- Windows Calibration
- Clutch Matching
- FRM Matching
- Codage ECU
- Turbocharging matching
- IMMO PROG
- Rainfall light Sensor
- GPF Regeneration
- Gateway Module Data Calibration
- Power Balance
- High Voltage Battery!
- A/C System Relearn
- Motor Angle Calibration
- Intelligent Cruise Control System
Tip: If one specific service function is a must-have, send your vehicle info and we’ll help you verify coverage before you order.
Add-On Tools and Expansion Options
Phoenix Max can be expanded to match your services as you grow. Add-ons listed for the platform include optional software and compatible modules for advanced shop workflows.
-
Diesel or HD: Heavy-duty diagnosis software can be added for an additional fee.
-
EV diagnostics: New Energy Vehicle Diagnosis (EV) add-on support.
-
ADAS: Pair with TOPDON’s Phoenix ADAS options to support calibrations.
-
T-Ninja Box: Immobilizer and key programming add-on support.
-
Battery testing: BTMobile ProS compatibility listed.
-
Thermal imaging: TC001 thermal imaging compatibility listed.
-

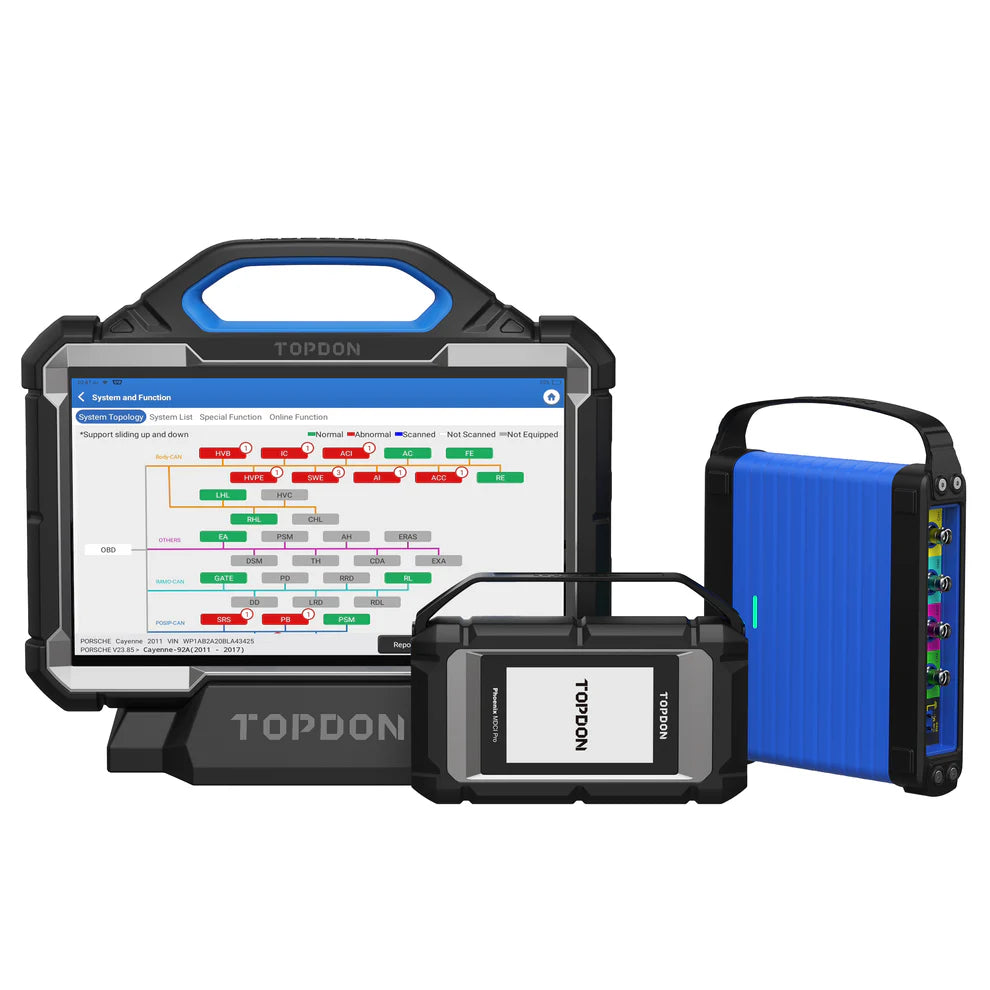

Oscilloscope: Phoenix Scope is available as a package option, and oscilloscope capability is included with the scope package.
Need help picking add-ons? Tell us what you work on (late-model cars, Euro, fleets, EVs, or heavy-duty) and we’ll suggest the best add-on path before you buy.
Software Updates, Subscriptions, and Ongoing Costs
Phoenix Max includes 2 years of free software upgrades, and updates can be downloaded directly on the tablet. After the included period, continuing updates are listed as an end-user renewal of $795 per year. This renewal is optional, but without renewal the tool will not stay current with the latest coverage and updates.
Optional subscriptions (only if needed for your workflow): Tesla is listed as $600 per year, and FCA Secure Gateway is listed as $50 per year.
Warranty note: Warranty continues with the customer’s subscription.
| Item |
What To Expect |
| Included Updates |
2 years free software upgrades |
| Update Method |
Download and update directly on the tablet |
| Update Renewal (End User) |
After 2 years, continued updates are listed as $795 per year (optional) |
| Tesla (Optional Subscription) |
Listed at $600 per year
|
| FCA Secure Gateway (Optional Subscription) |
Listed at $50 per year
|
| Warranty |
Warranty continues with the customer’s subscription |
Quick check: If you tell us the vehicles you service and the exact secure function you need, we’ll help you confirm what’s included, what renews yearly, and what requires a separate subscription.
Protocols Explained (J2534, DoIP, CAN FD, D-PDU, RP1210) and Who Needs Them
J2534: Commonly used for pass-through programming and OEM-level communication workflows, and useful for higher-level programming work.
DoIP: A modern communication method used on many newer vehicles, and helps prevent connection limits as platforms get newer.
CAN FD: A faster version of CAN used on many late-model vehicles, and helps the tool communicate reliably on newer networks.
D-PDU: A standardized diagnostic interface used in many professional environments and tool ecosystems.
RP1210: Commonly used in commercial and heavy-duty diagnostic ecosystems, and helpful for broader compatibility needs.
Who benefits most: Shops and mobile techs working on late-model vehicles, programming-heavy workflows, and diagnostics beyond basic code reading.
What’s in the Box
- Phoenix Max tablet
- Dock Station / Charging Base
- Phoenix MDCI PRO
- MDCI PRO CAB Male to Diagnostic Cable
- Clipper Cable (LCDSS)
- Fuse (AC250V/5A, φ5x20mm) x 4
- MDCI PRO CAB Type A to B Cable
- Cigarette Lighter Cable
- Fuse (AC250V/5A, φ6x30mm) x 2
- BZ-38 (BENZ)
- TA-17 (TOYOTA)
- B-20 (BMW)
- HA-3 (HONDA)
- OBD I Adaptor
- Charging Cable
- TA-22 (TOYOTA)
- G/V-12 (GM/VAG)
- CR-6 (CHRYSLER)
- NN-14+16 (NISSAN)
- M/H-12+16 (MITUBISHI/HYUNDAI)
- Adaptor
- AC Cable (US)
- Mini-HDMI to HDMI
- 3-in-1 Charger (Matched with U.S., U.K. and European plugs)
- FT-3 (FIAT)
- AC Cable (EU)
- AC Cable (UK)
- Type A USB to Type C
- Ethernet Cable
