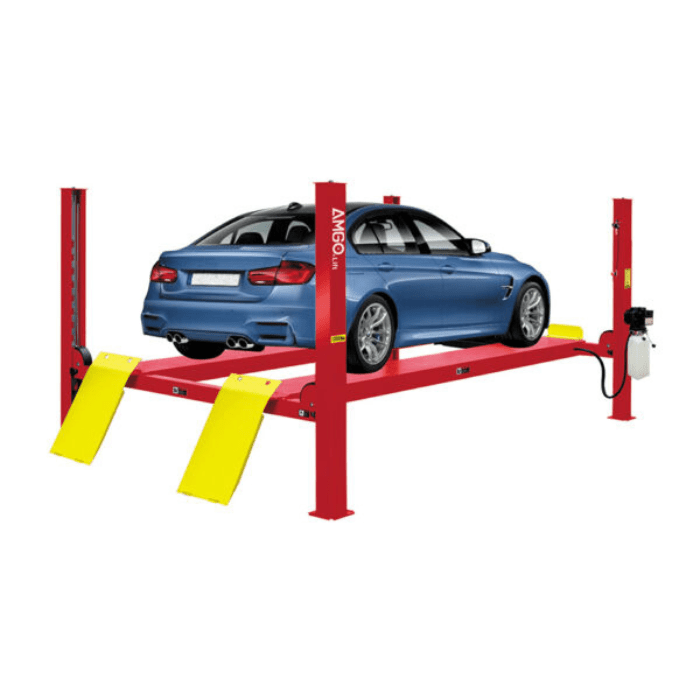

AMGO PRO-12SX 4 post lift in red holding a blue BMW sedan

AMGO Commercial 4-Post Lift – 12,000 lb Capacity | PRO-12SX

by AMGO
SKU PRO-12SX
Save $1,632.00
$8,305.00
$6,673.00

Notify me when back in stock

Want the best shipping rate possible? Click here to request it.
Trust badges for AMGO Trust badges for AMGO

Built for Speed & Strength: AMGO PRO-12SX 12,000 lb 4-Post Lift with Extra-Wide Drive-Thru



Finding the right 4 post lift that can handle both heavy-duty vehicles and everyday service work isn’t easy. Many lifts either don’t have the strength for larger trucks or lack the safety features shops need for daily operation. The AMGO PRO-12SX solves that problem with a 12,000 lb lifting capacity, a wide 104 3/16" drive-thru clearance, and robust safety systems designed for maximum reliability. Whether you’re servicing sedans, SUVs, or light-duty trucks, this 12000 lb 4 post lift is built for busy shops that need performance and durability.

The PRO-12SX isn’t just about raw strength—it’s engineered for efficiency and operator comfort. With a 45-second lifting time and skid-proof diamond platforms, you get secure vehicle positioning and quicker turnarounds. The stepless adjustable width between runways makes it easy to accommodate a variety of vehicles without time-consuming setup changes. Plus, its hydraulic system and aircraft-grade cables ensure smooth, stable lifting every time.

Safety is at the core of every AMGO 4 post car lift, and the PRO-12SX is no exception. It features mechanical self-locking safety devices, air-driven lock release, and dual safety locks for extra protection. From general repairs to tire service, this commercial 4 post lift is a dependable workhorse for any professional garage or serious home enthusiast looking for shop-grade performance.

If this model fits your garage, great — if not, browse all our 4-post lifts.

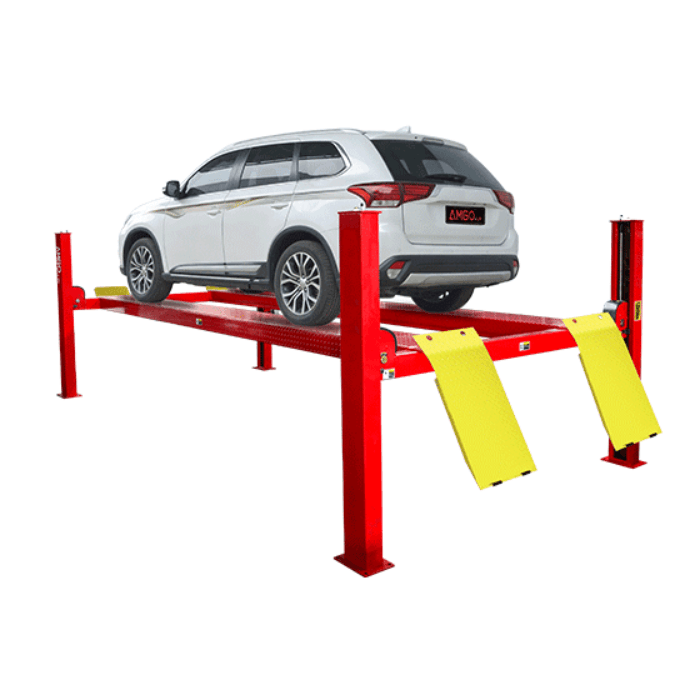

Red AMGO PRO-12SX car lift with yellow ramps supporting vehicle in raised position

Benefits of the AMGO PRO-12SX 4-Post Lift

Maximize Shop Productivity | Lift a variety of vehicles quickly.

Increase Safety Standards | Built-in redundant lock systems.

Protect Vehicles from Slipping | Skid-proof diamond platforms.

Work on More Vehicles | Adjustable platform width.

Improve Workflow | Wide drive-thru clearance.

Reduce Downtime | Low-maintenance hydraulic system.

Key Features of the AMGO PRO-12SX 4-Post Lift You'll Love:

  • 12,000 lb Capacity: This lift is engineered to handle a wide range of vehicles, from small cars to light-duty trucks, without strain. The high weight rating ensures you can take on heavier jobs with confidence while reducing the risk of overload damage.

  • Extra-Wide Drive-Thru Clearance: With over 104" of drive-thru width, the PRO-12SX makes it easier to load and unload vehicles of varying sizes. This added clearance improves workflow efficiency and reduces the risk of accidental scrapes or dents.
  • Dual Safety Lock System: The combination of primary multiple safety locks and a cable-slack protection system ensures the lift remains secure at all times. These redundant safety features provide peace of mind for both operators and customers.
  • Stepless Adjustable Platform Width: The adjustable runway width allows you to fit everything from compact sedans to wide-body trucks without additional equipment. This flexibility means you can work on a greater variety of vehicles with a single lift.
  • High-Quality Hydraulic System: Equipped with precision-engineered cylinders, high-grade oil seals, and a compensation valve, the PRO-12SX offers smooth, controlled lifting and lowering. This extends the life of the lift and reduces maintenance costs.

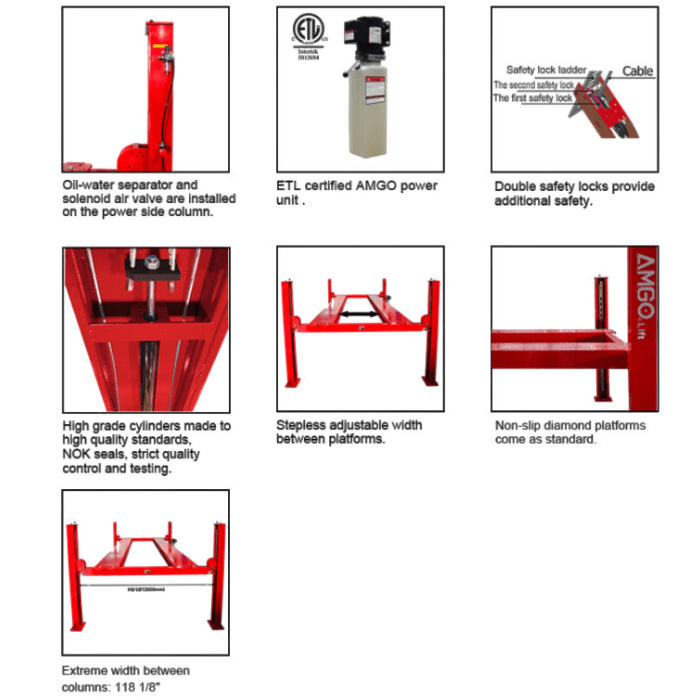

AMGO PRO-12SX lift parts such as hydraulic cylinders, diamond platforms, and extreme width clearance

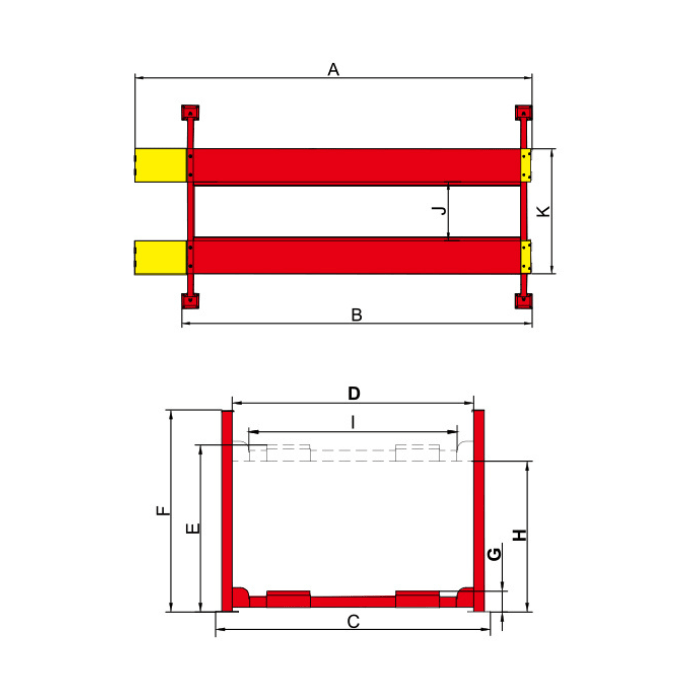

AMGO PRO-12SX 12,000 lb 4-Post Lift Specifications
Manufacturer AMGO
Model PRO-12SX
Lifting Capacity 12,000 lbs
Lifting Time 45 seconds
Overall Length (Inc. Ramps) 232 11/16"
Overall Length (No Ramps) 196 25/32"
Overall Width 132 1/8"
Width Between Columns 118 1/8"
Max. Lifting Height 74"
Max. Lock Height (Top of Runway) 70 7/8"
Overall Height 86"
Minimum Height 6 5/8"
Max. Underneath Height 68 1/2"
Max. Lock Underneath Runway 65 3/8"
Drive-Thru Clearance 104 3/16"
Width Between Runways 43 1/4" (Min. 3 3/8" ~ Max. 53 3/4")
Outside Edge of Runways 83 1/4" (Min. 43 3/8" ~ Max. 93 3/4")
Gross Weight 2,251 lbs
Motor 2.0 HP, 220V / 60Hz, Single Phase

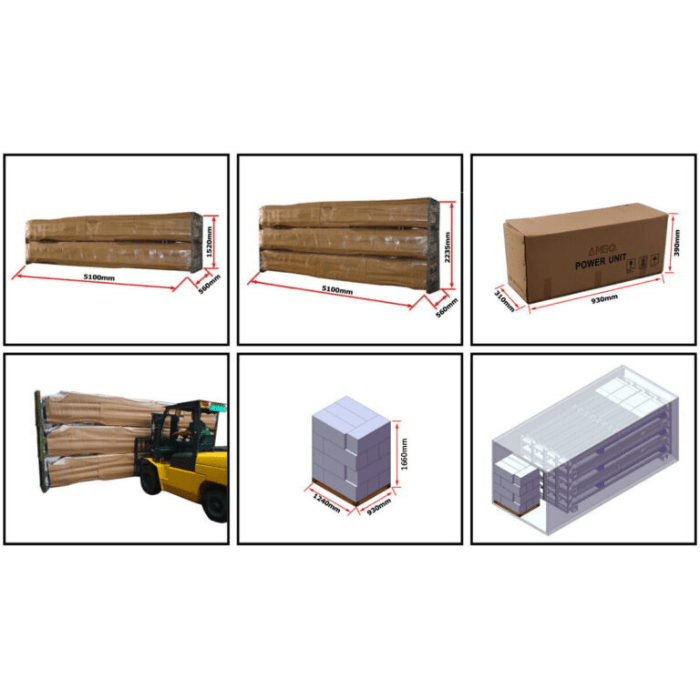

Shipping Dimensions Length: 5100 mm (204")
Width: 560 mm (22")
Height: 1520 mm (60")
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. consumables), electrical, power units: 2 Years
Overview

Built for Speed & Strength: AMGO PRO-12SX 12,000 lb 4-Post Lift with Extra-Wide Drive-Thru



Finding the right 4 post lift that can handle both heavy-duty vehicles and everyday service work isn’t easy. Many lifts either don’t have the strength for larger trucks or lack the safety features shops need for daily operation. The AMGO PRO-12SX solves that problem with a 12,000 lb lifting capacity, a wide 104 3/16" drive-thru clearance, and robust safety systems designed for maximum reliability. Whether you’re servicing sedans, SUVs, or light-duty trucks, this 12000 lb 4 post lift is built for busy shops that need performance and durability.

The PRO-12SX isn’t just about raw strength—it’s engineered for efficiency and operator comfort. With a 45-second lifting time and skid-proof diamond platforms, you get secure vehicle positioning and quicker turnarounds. The stepless adjustable width between runways makes it easy to accommodate a variety of vehicles without time-consuming setup changes. Plus, its hydraulic system and aircraft-grade cables ensure smooth, stable lifting every time.

Safety is at the core of every AMGO 4 post car lift, and the PRO-12SX is no exception. It features mechanical self-locking safety devices, air-driven lock release, and dual safety locks for extra protection. From general repairs to tire service, this commercial 4 post lift is a dependable workhorse for any professional garage or serious home enthusiast looking for shop-grade performance.

If this model fits your garage, great — if not, browse all our 4-post lifts.

 Red AMGO PRO-12SX car lift with yellow ramps supporting vehicle in raised position

Benefits of the AMGO PRO-12SX 4-Post Lift

Maximize Shop Productivity | Lift a variety of vehicles quickly.

Increase Safety Standards | Built-in redundant lock systems.

Protect Vehicles from Slipping | Skid-proof diamond platforms.

Work on More Vehicles | Adjustable platform width.

Improve Workflow | Wide drive-thru clearance.

Reduce Downtime | Low-maintenance hydraulic system.

Key Features of the AMGO PRO-12SX 4-Post Lift You'll Love:

  • 12,000 lb Capacity: This lift is engineered to handle a wide range of vehicles, from small cars to light-duty trucks, without strain. The high weight rating ensures you can take on heavier jobs with confidence while reducing the risk of overload damage.

  • Extra-Wide Drive-Thru Clearance: With over 104" of drive-thru width, the PRO-12SX makes it easier to load and unload vehicles of varying sizes. This added clearance improves workflow efficiency and reduces the risk of accidental scrapes or dents.
  • Dual Safety Lock System: The combination of primary multiple safety locks and a cable-slack protection system ensures the lift remains secure at all times. These redundant safety features provide peace of mind for both operators and customers.
  • Stepless Adjustable Platform Width: The adjustable runway width allows you to fit everything from compact sedans to wide-body trucks without additional equipment. This flexibility means you can work on a greater variety of vehicles with a single lift.
  • High-Quality Hydraulic System: Equipped with precision-engineered cylinders, high-grade oil seals, and a compensation valve, the PRO-12SX offers smooth, controlled lifting and lowering. This extends the life of the lift and reduces maintenance costs.
 AMGO PRO-12SX lift parts such as hydraulic cylinders, diamond platforms, and extreme width clearance

AMGO PRO-12SX 12,000 lb 4-Post Lift Specifications
Manufacturer AMGO
Model PRO-12SX
Lifting Capacity 12,000 lbs
Lifting Time 45 seconds
Overall Length (Inc. Ramps) 232 11/16"
Overall Length (No Ramps) 196 25/32"
Overall Width 132 1/8"
Width Between Columns 118 1/8"
Max. Lifting Height 74"
Max. Lock Height (Top of Runway) 70 7/8"
Overall Height 86"
Minimum Height 6 5/8"
Max. Underneath Height 68 1/2"
Max. Lock Underneath Runway 65 3/8"
Drive-Thru Clearance 104 3/16"
Width Between Runways 43 1/4" (Min. 3 3/8" ~ Max. 53 3/4")
Outside Edge of Runways 83 1/4" (Min. 43 3/8" ~ Max. 93 3/4")
Gross Weight 2,251 lbs
Motor 2.0 HP, 220V / 60Hz, Single Phase
Shipping Dimensions Length: 5100 mm (204")
Width: 560 mm (22")
Height: 1520 mm (60")
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. consumables), electrical, power units: 2 Years
Manual
Warranty

Warranty

  • Steel Structure Components (columns, carriages, arms, beams, platforms, ramps, scissor, base plate, etc.): 5 Years
  • Hydraulic Parts (cylinders, oil seals, hoses, fittings): 3 Years
  • Other Parts (excluding consumables like rubber pads), electrical components, power units: 2 Years
  • Warranty applies to the 48 contiguous states; contact AMGO for coverage outside this area.
  • Warranty claims require troubleshooting with AMGO by phone first; photos or videos may be required.
  • Warranty parts ship free via standard ground; expedited shipping is at the customer’s expense.
  • Warranty does not cover downtime, labor, or costs due to equipment being out of service.
  • Customer must follow AMGO’s installation specifications exactly; improper installation may void warranty.

For assistance, contact us at: support@pitstop-pro.com or call (470) 208-2754.
