What Is a 2-Post Auto Lift & Why Choose One?

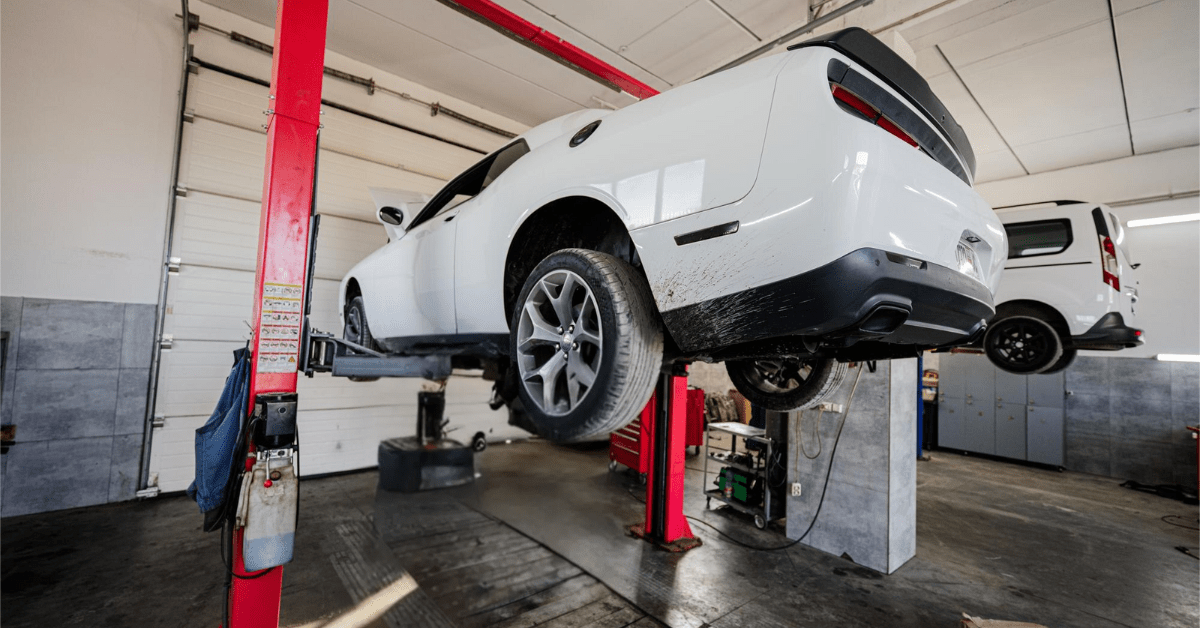

A 2-post vehicle lift uses two upright columns and four adjustable arms to engage the manufacturer’s lift points on the chassis. Because the car is supported by its frame, the wheels hang free—perfect for brakes, suspension, tires, and under-car service. Compared with a drive-on (4-post) lift, a 2-post takes far less floor space while giving unobstructed access to the underside.
For many small shops and home garages, that combo—compact footprint plus wheels-free access—makes a 2-post the go-to “work” lift. It’s generally more affordable than a comparable 4-post, quicker to set up for repairs, and easier to fit in a single bay. If your priority is service (not long-term storage), a good 2-post is tough to beat.
Why choose a 2-post:
-
Wheels-free by design for brakes, hubs, struts, control arms, and tire work.
-
Small footprint—easier to fit in tight bays than most 4-posts.
-
Great under-car access (exhaust, driveline, fluid service, fabrications).
-
Typically lower cost than 4-post units of similar capacity.
-
Fast workflow once you get the hang of spotting lift points.
When a 4-post might be better:
-
Storage/stacking a second car, or frequent drive-on inspections.
-
Very low ceilings where a low-rise/mid-rise solution fits better.
-
Heavy, long-wheelbase rigs where drive-on stability is preferred.
Key Factors to Consider Before Buying a 2-Post Lift
Before you click “add to cart,” confirm your space, slab, power, and vehicle mix so the lift fits day one and stays safe long-term. This quick guide hits the essentials; for a deeper checklist, see our Ultimate 2-Post Car Lift Guide. Dialing these in up front prevents rework, protects warranties, and avoids costly surprises.
Ceiling Height & Layout
Clear-floor (overhead) models typically need ~12 ft because of the top equalizer bar; baseplate styles fit 8–10 ft bays with a trade-off in max rise. Plan around door tracks, openers, lights, and sprinklers so nothing meets a roof panel the hard way. Always verify the manufacturer’s minimum for your exact model.
-
Clear-floor: ~12 ft clearance, higher max rise, overhead cut-off bar.
-
Baseplate: fits 8–10 ft ceilings, slightly lower rise, cables under a floor plate.
Concrete Floor & Anchoring
-
Most 9k–10k lifts: 4" of 3,000-psi reinforced concrete (minimum).
-
12k–15k lifts: 6"+ at 3,500-psi or higher is commonly required.
-
Anchor right: use supplied hardware, drill to depth, torque to spec, and avoid cracks/joints. A lift is only as trustworthy as the slab it sits on. If your floor doesn’t meet spec, budget for a proper pad before installation. Re-check anchor torque after initial cycles and on a maintenance schedule.
Power Supply
Most hobbyist and mid-range units run 220V single-phase, while higher-capacity/commercial models may offer 3-phase. Expect a 2–3 HP motor drawing roughly 20–25 amps, so size your breaker and wiring accordingly. Install a dedicated circuit and avoid long, undersized runs that cause voltage drop.
-
220V single-phase: most common for garages and small shops.
-
3-phase: great if your building has it; otherwise pick the single-phase option.
-
Good practice: add a local disconnect and follow the motor plate specs.
Capacity & Vehicle Fit
Buy for your heaviest, longest, and widest vehicle—not the average day. A 7,500-lb ¾-ton truck pushes a 9k lift; stepping to 10k–11k adds safety margin and reduces wear. Confirm arm reach to OEM lift points and inside-column width for trucks and vans.
-
Target margin: choose capacity ≥ ~20% above your heaviest vehicle.
-
Drive-thru clearance: ensure mirrors/tires clear the posts comfortably.
-
Wheelbase: long crew cabs and commercial vans benefit from wider post spacing.
Symmetric vs. Asymmetric
-
Symmetric: centers the vehicle with equal-length arms; stable for trucks, older big sedans, and long wheelbases.
-
Asymmetric: staggers the vehicle rearward for better door clearance—ideal for cars and small SUVs in tight bays.
-
Bi-symmetric: switchable setup that lets you run either pattern on demand.
There’s no “wrong” choice—match the mix you work on most and the space you have. Whatever you choose, keep pads on OEM lift points and balance the load. If you service both trucks and daily drivers, bi-symmetric is a smart hedge.
👉 For a deeper breakdown of lift arm styles and setup tips, check out our full guide on Symmetric vs. Asymmetric Car Lifts.
Safety & Compliance
Safe installs protect people, vehicles, and warranties. Read the installation and user manual end-to-end and meet every spec—slab, torque, electrical, and clearance—before the first lift. Train operators and follow current ALI/ANSI guidelines for use and maintenance.
-
Daily checks: locks, cables/chains, hydraulic leaks, anchor torque visual.
-
Never bypass: safety locks or limit switches; lower to locks before working.
-
Annual habit: schedule a certified inspection and refresh training as needed.
