If you own a four-post car lift, a bridge jack can transform it into a full-service lift in no time. But what is a bridge jack, and why do you need one? In this guide, we’ll explain what a bridge jack is, how a rolling bridge jack works, and why these handy accessories matter for both professional automotive shops and home garages.
We’ll also cover the key factors to consider when shopping for one and highlight some top bridge jacks (including Pitstop-Pro’s best picks) to help you make an informed choice. By the end, you’ll see how adding the right bridge jack for a 4 post lift can unlock new capabilities and convenience in your garage.
Quick Navigation
- What’s a Bridge Jack (for 4-post lifts)?
- How Do Bridge Jacks Work?
- Why Bridge Jacks Matter
- Key Factors to Look for When Buying a Bridge Jack
- Pitstop-Pro Bridge Jack Recommendations (Product Highlights)
- Bridge Jack Maintenance Tips
- Additional Resources
- Conclusion
What’s a Bridge Jack (for 4-post lifts)?

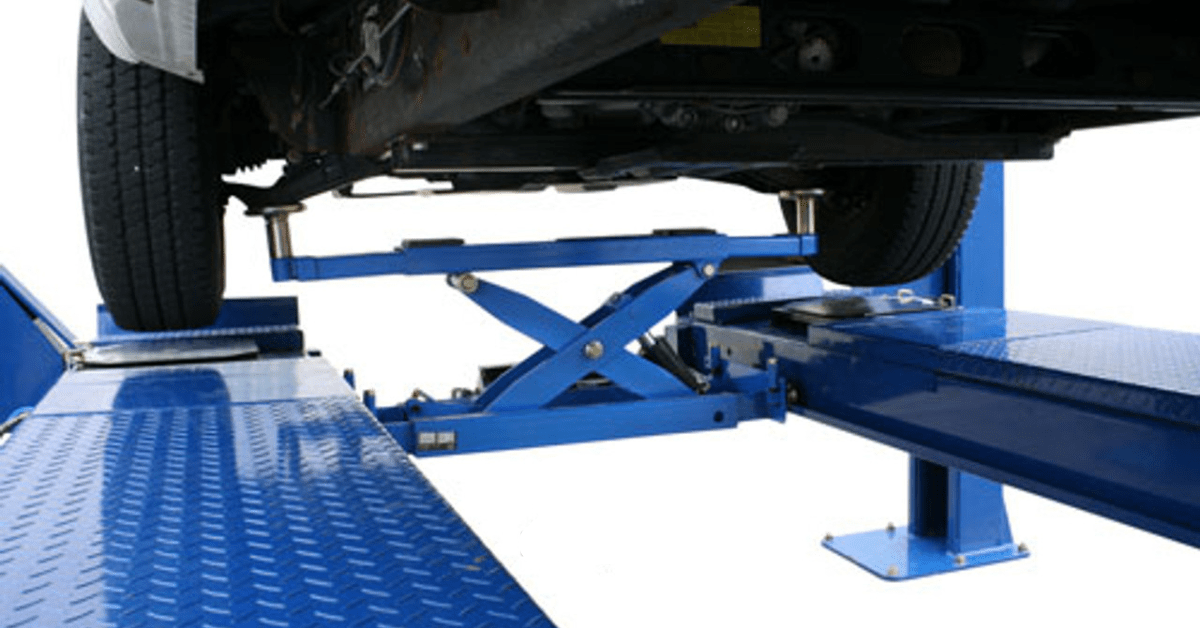

A bridge jack is a sliding, scissor-style jack that rides between the runways of a four-post lift. Roll it to the car’s lift points, pump it up, and it raises one axle or end so the wheels hang free. That’s how a “storage” lift becomes a full-service lift for brakes, tires, and suspension—without sketchy floor-jack tricks or wood blocks.
-
It “bridges” the runways, supporting the vehicle by the frame/subframe.
-
Most use air-over-hydraulic (shop air powers a small hydraulic ram); others are hand/foot-pump hydraulic.
-
A built-in mechanical safety ladder lets you lower the load onto solid steel, not just hydraulic pressure.
-
Use two bridge jacks (front + rear) to get all four wheels off the runways.
How it’s used (safe workflow)
Raise the vehicle on the 4-post, set the lift on its locks, then:
-
Slide the bridge jack to the end you’re servicing; extend its arms/pads to the factory lift points.
-
Pump/air it up until the tires clear; drop the jack onto its mechanical lock.
-
Chock the wheels that remain on the runways (or use a second jack at the other end).
-
When done, lift slightly to clear the lock, lower, and roll it out of the way.
Types & features you’ll see
-
Actuation: air-over-hydraulic (fast, easy), hand/foot hydraulic (no air needed), or electric-hydraulic (rarer).
-
Arms/pads: sliding or telescoping arms with rubber pads or pinch-weld adapters; some add height extenders for trucks/SUVs.
-
Width adjustment: side rails slide to match different runway spacing/rail styles.
-
Locks: multi-position ladder with a positive pawl; some add secondary “slack” protection.
-
Wheels: small rollers so you can position the jack anywhere along the runways.
Sizing it right (capacity math that actually helps)
You don’t need a jack rated for the full vehicle—it only lifts one end. As a rule of thumb:
-
Pick ≥ 60% of GVW for one bridge jack (covers the heavier end).
-
Example: 4,500 lb car → choose ~3,000 lb (1.5-ton) or higher jack.
-
6,000–7,000 lb trucks/SUVs → 6,000 lb (3-ton) jack is a safer bet.
-
-
Lifting all four wheels? Use two jacks—each sized as above.
Fit & compatibility checklist (quick buy guide)
-
Runway interface: Does the jack fit your lift’s rail style (C-channel, box, recessed)? Verify the min/max rail spread it spans.
-
Collapsed height vs. lift points: Low cars need a low-profile jack; tall trucks may need pad extenders.
-
Stroke (lift travel): Ensure enough rise to get the tires comfortably clear with room for tools.
-
Power: If air-over-hydraulic, you’ll want ~90–120 PSI shop air nearby; otherwise pick a manual unit.
-
Pad hardware: Rubber blocks, pinch-weld cups, frame adapters—get the right kit for your vehicles.
-
Lock quality: Multiple lock positions and a positive, hands-off engagement are must-haves.
Safety must-dos (every time)
-
Lower the 4-post onto its own mechanical locks and lower the bridge jack onto its lock before working.
-
Chock any tires on the runways; set the parking brake if appropriate.
-
Never lift by body panels; use factory lift points and stable pad contact.
-
Keep hands clear of scissor mechanisms; stay within the rated capacity.
Bottom line: A bridge jack turns a four-post from “great for storage” into “great for service,” giving you wheel-off access with the stability of a drive-on lift. Choose one that fits your runways, matches your vehicle mix, and has solid locks—and use it with the same safety habits you apply to the lift itself.
How Do Bridge Jacks Work?
A bridge jack turns a four-post “drive-on” lift into a wheel-off service bay. It rides between the runways, rolls to the vehicle’s lift points, then raises one end (or, with two jacks, the whole car) by the frame/subframe, leaving the wheels hanging free. Power is typically hydraulic—manual pump or air-over-hydraulic—with a built-in mechanical lock so the load rests on steel, not fluid pressure.
-
Roll into position: Small rollers let the jack glide along the runways. Center it under the front or rear lift points, then set its track locks so it can’t wander.
-
Set the pads/adapters: Slide or telescope the arms, place rubber pads (or pinch-weld/frame adapters) squarely on the manufacturer’s lift points, and confirm solid contact. 👉 For a deeper look at pad placement and arm setups, see our Symmetric vs. Asymmetric Car Lifts Guide.
-
Lift hydraulically: Pump the handle or press the air valve. A scissor mechanism driven by a hydraulic cylinder rises, taking the vehicle’s weight through the chassis—not the tires.
-
Drop onto the lock: As you rise, a ladder-style safety engages. Lower a hair so the pawl/lock bar carries the load. Now the jack is supporting mechanically, not just hydraulically.
-
Work wheels-off: Brakes, tires, hubs, suspension—everything’s accessible. With two bridge jacks (front + rear), you can get all four wheels in the air. Browse our full Bridge Jacks Collection
to find models that fit your 4-post lift. -
Lower smoothly: Raise slightly to clear the lock, release pressure in a controlled way, stow the arms/pads, and roll the jack out of the way.
Bridge jacks come in manual-hydraulic and air-over-hydraulic versions; the former needs no compressor, the latter is faster for frequent use. Match capacity to your vehicles (size for the heavier end of the heaviest vehicle, not the full GVW), and make sure the jack’s rail width and collapsed height fit your specific 4-post lift and vehicle mix. Used correctly—on lift locks, with wheel chocks where needed—a bridge jack safely gives your 4-post the wheel-off access of a 2-post without sacrificing the stability of a drive-on platform.
Why Bridge Jacks Matter
Bridge jacks are the missing link that turn a four-post “drive-on” lift into a true service bay. Instead of being limited to underbody work with the tires resting on the runways, you can safely raise one end (or both, with two jacks) by the frame, freeing the wheels for real maintenance.
-
Wheel-off work, on a drive-on lift: Swap tires, service brakes, wheel bearings, and suspension components without moving the vehicle to a 2-post lift.
-
Built-in safety, not improvisation: The jack locks to the runways and has mechanical safety positions—far safer than floor jacks, blocks, or stands perched on runways.
-
One bay, many jobs: Add a single jack for front/rear lifts or two jacks for four-wheel “wheels-free” service—perfect for inspections, suspension checks, and alignments.
-
Fast setup, precise placement: Rolling design lets you position pads right at factory lift points; adapters handle trucks/SUVs with higher frames.
-
Better workflow: Keep the car in one place—raise, lock, service, lower—saving time versus shuffling vehicles between different lifts.
In short, a rolling bridge jack unlocks the full potential of a 4-post lift. You keep the rock-solid stability that makes four-posts great for storage, while gaining the wheels-free access you need for real repair work—safely, quickly, and in the same bay.
Key Factors to Look for When Buying a Bridge Jack
Choosing the right bridge jack (rolling jack) comes down to matching capacity, fitment, operation style, and safety with your shop’s needs. The best jack makes vehicle service easier, safer, and faster—whether you’re running a busy shop or just upgrading your home garage. Below are the essentials to check before you buy.
Weight Capacity
Capacity is the first thing to confirm. A jack rated too low can’t safely handle your workload, and a jack too high may be unnecessarily heavy and costly. A safe rule: match or slightly exceed your lift’s rating, since you’ll usually be lifting one end of the vehicle.
-
Common ratings: 3,500 lbs, 6,000 lbs, 9,000 lbs, 15,000+ lbs
-
8,000 lb 4-post lift → pair with a 4,500–6,000 lb jack for cars
-
Heavy trucks → look for 9,000–20,000 lb jacks
Fit & Compatibility
Not every bridge jack works with every lift. Check your lift’s runway spacing and style, then match it to the jack’s extension range. Universal models often adjust, but it’s best to verify before purchase.
-
Adjustable width range example: ~33″–53″ runway spacing
-
Runway styles: top-flange rollers vs. inner-rail sliders
-
Confirm compatibility with your lift brand/model (Pitstop-Pro can help)
Hydraulic vs Pneumatic
Bridge jacks come in manual hydraulic or air-powered versions. Manual models are simpler and cheaper but require pumping effort, while pneumatic jacks deliver quick, push-button lifting. If you already have a shop compressor, pneumatic is a time-saver.
-
Manual hydraulic: foot/hand pump, affordable, low maintenance
-
Air-hydraulic: faster, effortless, ideal for busy shops
-
Example: AMGO RJ-6A (air-powered) vs RJ-6H (manual)
Safety Locks
Safety is non-negotiable. Look for a mechanical lock bar or tooth system that holds the jack even if hydraulic pressure fails. Multiple lock positions give you more usable working heights.
-
Automatic engagement while lifting
-
Fail-safe backup to hydraulics
-
Example: AMGO RJ-6A → two lock positions
Adjustability & Reach
A good bridge jack adapts to different vehicles. Sliding pads, rubber contact blocks, and optional height adapters make it easy to service both low cars and tall trucks. Having the right reach ensures secure, stable lifting every time.
-
Extendable arms or sliding pads
-
Rubber pads protect frames
-
Stackable adapters for higher clearance
Ease of Movement
One of the biggest perks is sliding the jack out of the way when not in use. The smoother the rollers and wheels, the faster you can reposition it. Keep in mind, high-capacity jacks weigh hundreds of pounds—so ergonomic handles and “easy-roll” features really help.
-
Steel wheels or casters designed for runway tracks
-
Guide rails or detachable handles for maneuvering
-
Large jacks (9,000 lb+) may weigh 500–600 lbs
Build Quality & Brand
Durability pays off in safety and peace of mind. Look for heavy steel, strong welds, and ALI/ANSI certifications. A reputable brand with a solid warranty is always a smarter long-term investment.
-
Reinforced scissor frames and stiffeners
-
ALI/ANSI certified for safety standards
-
Better steel = less flex under load
Bottom Line: Focus on weight rating, fitment, operation style, locks, adjustability, and build quality. Choosing wisely ensures your bridge jack will serve reliably for years and keep your shop running smoothly. If you’re not sure which model fits your lift or vehicle mix, our team at Pitstop Pro can help—reach us anytime at support@pitstop-pro.com
or 470-208-2754 for expert guidance.
Pitstop-Pro Bridge Jack Recommendations (Product Highlights)
When it comes to upgrading a 4-post lift, Pitstop-Pro carries bridge jacks that deliver the right balance of power, safety, and usability. Below are three standout models that cover everything from light-duty passenger cars to heavy trucks and fleet service.
AMGO RJ-6A – 6,000 lb Pneumatic Rolling Jack - $1,600.00
The AMGO RJ-6A is a shop favorite for efficiency and ease of use. Rated at 6,000 lbs, it’s air-operated—no manual pumping required—and designed for lifts up to 12,000 lbs capacity. It comes with adjustable arms, durable rubber pads, and 2.5″ stackable adapters to fit a wide range of vehicles from low sports cars to taller trucks.
-
Capacity: 6,000 lbs
-
Pneumatic-hydraulic operation for quick lifting
-
Adjustable arms + rubber pads for precision
-
Multiple lock positions for safe work at height
Triumph RJ-9000 – 9,000 lb Rolling Bridge Jack - $2,250.00
A heavy-duty option designed for versatility, the Triumph RJ-9000 handles up to 9,000 lbs—perfect for trucks, SUVs, and large sedans. Its hydraulic scissor design rolls smoothly between lift runways and includes two sets of height adapters (1.5" and 5") for different frame styles. With a strong steel frame and safety lock system, it’s a go-to jack for brake jobs, tire changes, and suspension work.
-
Capacity: 9,000 lbs
-
Includes 1.5″ & 5″ height adapters
-
Rolls between runways for easy positioning
-
Safety lock for stable, secure operation
AMGO RJ-20A – 20,000 lb Pneumatic Rolling Jack - $3,375.00
For extreme heavy-duty needs, the AMGO RJ-20A delivers a massive 20,000 lb (10 ton) capacity. This pneumatic-hydraulic jack is built for commercial shops handling large trucks, fleet vehicles, RVs, and other oversized loads. Reinforced scissor construction, a heavy-duty hydraulic cylinder, and included adapters (3″ and 6″) make it a powerhouse for demanding service environments.
-
Capacity: 20,000 lbs
-
Pneumatic-hydraulic for effortless big-load lifting
-
Reinforced scissor frame + large hydraulic cylinder
-
Includes saddle adapters + 3″ and 6″ extension blocks
Each of these bridge jacks is backed by Pitstop-Pro’s product support and expertise. From the compact convenience of the RJ-6A to the industrial strength of the RJ-20A, these models showcase some of the best bridge jacks available today.
👉 Explore more options in our full Bridge Jack Collection, featuring capacities from 3,500 lbs up to 20,000 lbs.
Bridge Jack Maintenance Tips
A bridge jack is only as reliable as the care you give it. With a little routine maintenance, you’ll extend its lifespan, keep operations smooth, and most importantly—stay safe under the lift. Here’s what to focus on.
Keep Hydraulic Fluid Topped Up
Low fluid is a common cause of weak or incomplete lifts. Check fluid levels regularly, using only manufacturer-recommended hydraulic oil. If you’re running a pneumatic jack, also drain moisture from your air compressor to protect the pump.
-
Inspect fluid if jack won’t reach full height
-
Top off with approved hydraulic oil when fully lowered
-
Drain compressor tanks regularly for air-powered jacks
Inspect Seals and Hoses
Hydraulic leaks can quickly turn dangerous. Before each use, do a quick walk-around to catch issues early. Replace worn hoses and repair leaky seals as soon as you spot them.
-
Look for fluid around cylinders, pumps, or hoses
-
Replace cracked/damaged hoses immediately
-
Don’t ignore small leaks—often a sign of failing seals
Clean Rollers and Sliding Surfaces
A bridge jack should move freely across the runways. Keep rollers, wheels, and sliding surfaces clear of grit and lightly lubricated if recommended. Clean jacks not only last longer but are easier to position.
-
Wipe down rollers, tracks, and arms after use
-
Remove debris, oil, or dirt from runway channels
-
Lightly grease moving parts per manual guidelines
Store Properly When Not in Use
Always store the jack in a safe, pressure-free state. Cover it if sitting for long periods, and keep adapters or blocks organized. Leaving it on the runways is fine—just make sure it’s fully lowered and not carrying a load.
-
Lower completely before storage
-
Cover to prevent dust and rust in long-term storage
-
Keep adapters and accessories in a known place
Perform Regular Functional Checks
A few quick checks go a long way. Test the safety locks, tighten loose hardware, and follow the lubrication schedule. Annual fluid changes keep the jack’s internals clean and corrosion-free.
-
Test safety locks at each position
-
Tighten bolts and linkage as needed
-
Replace hydraulic fluid yearly or per manual
Bottom Line: A well-maintained bridge jack is safer, smoother, and far more dependable. If you ever hear odd noises, notice sticking, or lose hydraulic pressure, stop using it until inspected by a professional. When it comes to lifting equipment, caution is always the smarter move.
Additional Resources
Want to get the most out of your lift and bridge jack? These resources will help you choose the right equipment, stay compliant with safety standards, and maintain safe shop practices.
Pitstop-Pro Internal Resources
-
4-Post Car Lift Collection – Explore our range of four-post lifts, perfect for pairing with a bridge jack.
-
Rolling Bridge Jack Collection – Browse jacks from 3,500 lbs to 20,000 lbs, complete with specs and details.
-
Car Lift Safety Guide - A comprehensive guide to lift safety, setup, and maintenance, including tips that apply to bridge jacks.
External Resources (Safety Standards)
-
OSHA Guidelines for Automotive Lifts – OSHA emphasizes following manufacturer instructions and maintaining safe shop environments when using lifts and accessories.
-
ALI / ANSI Standards – The Automotive Lift Institute sets national standards like ANSI/ALI ALCTV (lift construction/testing) and ANSI/ALI ALOIM (operation, inspection, maintenance). Choosing ALI-certified bridge jacks ensures your gear meets the highest safety requirements.
Bottom Line: Whether you’re shopping for new equipment or double-checking safety practices, these resources provide the knowledge you need to keep your shop efficient, compliant, and safe.
Conclusion
Adding a bridge jack to your four-post lift is one of the smartest upgrades you can make. This single accessory transforms a drive-on lift into a true full-service setup, giving you the ability to handle wheels-off maintenance safely and efficiently. From tire rotations to brake overhauls, the right bridge jack saves time while keeping your shop safer and more versatile.
Why It Matters
A quality bridge jack means working with proper equipment instead of makeshift methods. You’ll boost both safety and productivity, unlocking new potential in your lift for everything from quick jobs to full repairs. Whether you’re a pro mechanic or a serious DIYer, the payoff is confidence and convenience in every job.
Next Steps
Ready to elevate your capabilities? Explore Pitstop-Pro’s Bridge Jack Collection to find the perfect match for your 4-post lift. Our team can help confirm compatibility, recommend the right capacity, and guide you on safe use. Contact us anytime for personalized advice and support.
Upgrade your lift, lift your wheels, and enjoy the peace of mind that comes with a well-equipped garage. Happy lifting!
