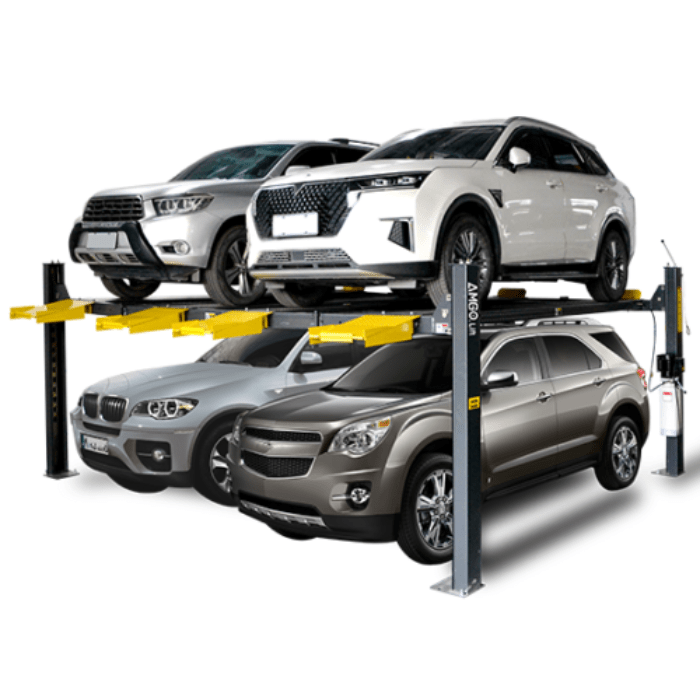

AMGO double wide 4-post lift storing four SUVs in extra longtall configuration

AMGO Double Wide 4-Post Lift (Extra Long/Tall) – 9,000 lb Capacity | 409-DPX

by AMGO
SKU 409-DPX
Save $787.00
$12,999.00
$12,212.00

Notify me when back in stock

Want the best shipping rate possible? Click here to request it.
Trust badges for AMGO Trust badges for AMGO

Extra Long/Tall, Double-Wide Storage: AMGO 409-DPX 9,000 lb 4-Post Parking Lift



Finding the right lift for multi-vehicle storage can be a real headache. Standard lifts often force you to compromise on space, height, or load capacity—especially if you need to store multiple full-size vehicles side by side. The AMGO 409-DPX solves that problem by giving you extra length, extra height, and the ability to park two vehicles per platform. With a 9,000 lb lifting capacity and a 6,000 lb max car weight per side, it’s built for personal garages and professional facilities where maximizing space matters most.

Designed for convenience and safety, this double-wide 4 post lift offers a minimum platform height of just 6 1/8", making it easier to load even low-clearance sports cars. AMGO’s patented concealed safety lock control and dual safety system keep vehicles secure during every lift. The foldable drive-on ramps save space when not in use, while the double “S” shaped columns provide unmatched strength and stability for long-term reliability.

Whether you’re running a high-volume service shop, managing a storage facility, or just want the ultimate solution for your home garage, this vehicle storage lift delivers on every front. Its extra long/tall design gives you the flexibility to handle bigger vehicles, store more in the same footprint, and keep everything safe, organized, and accessible.

Need a different capacity or platform length? Check all double wide car lifts.

Four-vehicle parking with AMGO 409-DPX extra longtall double wide 4-post lift

Benefits of the AMGO 409-DPX Double-Wide Parking Lift

Maximize Storage Capacity | Park two vehicles side-by-side per platform.

Save Floor Space | Foldable ramps reduce footprint.

Protect Low Vehicles | Low-profile runways prevent scraping.

Increase Workplace Safety | Dual safety system for secure lifts.

Improve Efficiency | Quick manual single-point lock release.

Built for Longevity | Reinforced “S” shaped columns.

Key Features of the AMGO 409-DPX Double-Wide Lift You'll Love:

  • 9,000 lb Lifting Capacity: Handles everything from compact cars to full-size SUVs with ease; 6,000 lb per platform supports two large vehicles side by side.
  • Low-Profile Platform Height: At just 6 1/8" minimum height, loading and unloading low-clearance vehicles is simple and safe.
  • Dual Safety System: Primary mechanical locks plus a cable-slack secondary device keep vehicles secure during every lift.
  • Patented Concealed Safety Lock Control: Manual single-point lock release speeds operation while protecting the mechanism from debris and damage.
  • Foldable Drive-On Ramps: Four included ramps fold away when not in use, saving valuable floor space and reducing trip hazards.
  • Double “S” Shaped Columns: Reinforced columns add strength and stability under load for years of daily use.

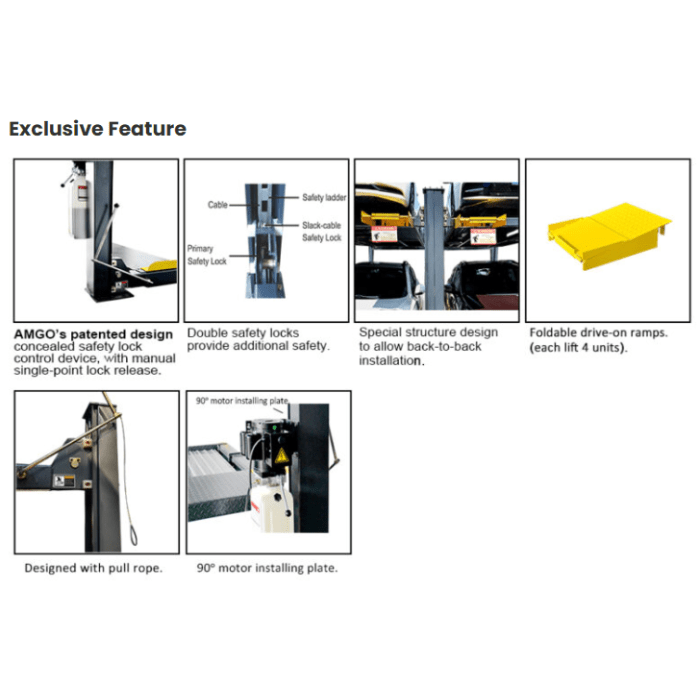

AMGO 409-DPX lift patented safety lock, foldable ramps, and back-to-back install design

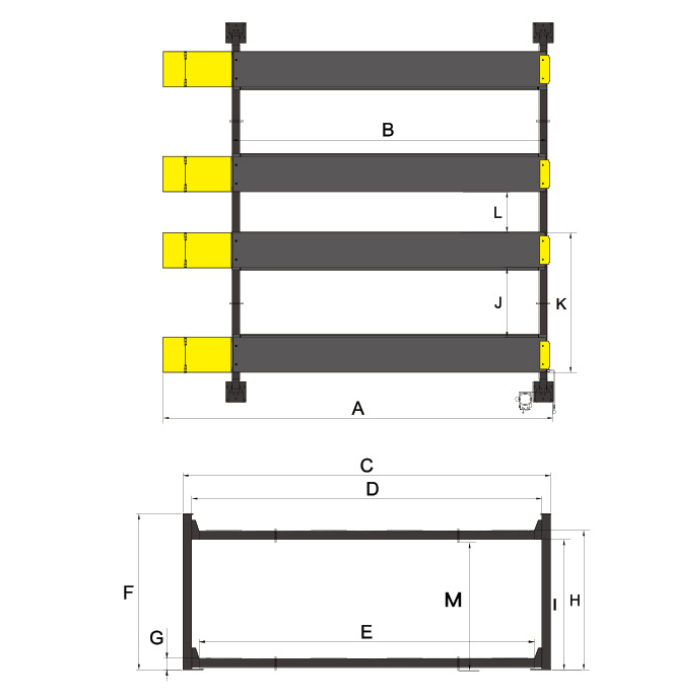

AMGO 409-DPX 9,000 lb Double-Wide 4-Post Lift Specifications
Manufacturer AMGO
Model 409-DPX
Lifting Capacity 9,000 lbs
Max Car Weight (Per Platform) 6,000 lbs
Lifting Time 57 seconds
Overall Length (Including Ramps) 238 9/16"
Outside Edge of Crossbeams 198 1/8"
Overall Width 198 7/16"
Width Between Columns 188 7/8"
Drive Through Width 177 3/4"
Overall Height 96 5/8"
Minimum Height 6 1/8"
Max. Lifting Height 87 11/16"
Max. Lock Height (Top of Runway) 84 15/16"
Max. Height Underneath Runway 83 3/4"
Max. Lock Height Underneath Runway 81"
Width Between Runways 37"
Overall Width of Single Parking Unit 74 7/16"
Width Between Two Parking Units 21 5/8"
Max. Lock Height Underneath Crossbeam 78 1/2"
Gross Weight 3,142 lbs
Motor 2.0 HP, 220V, Single Phase

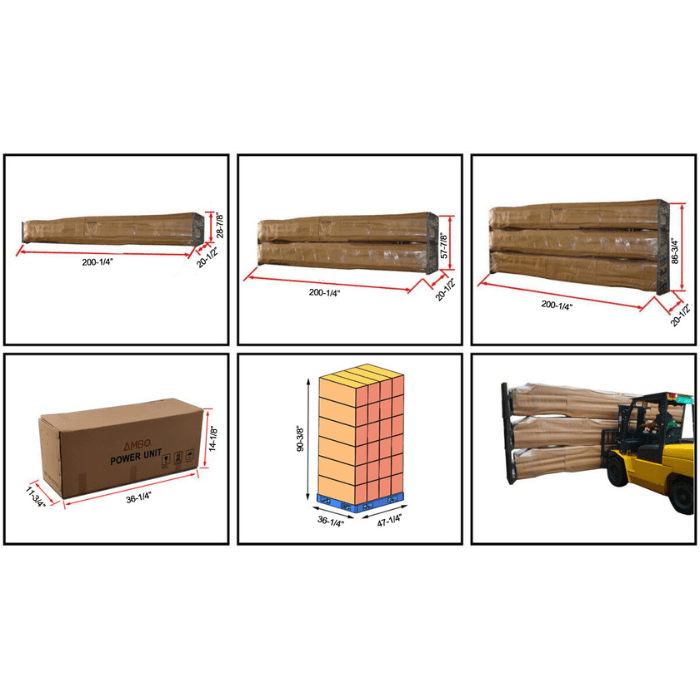

Shipping Dimensions Length: 5086 mm (200-1/4")
Width: 521 mm (20-1/2")
Height: 733 mm (28-7/8")
Warranty  Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. consumables), electrical, power units: 2 Years
Overview

Extra Long/Tall, Double-Wide Storage: AMGO 409-DPX 9,000 lb 4-Post Parking Lift



Finding the right lift for multi-vehicle storage can be a real headache. Standard lifts often force you to compromise on space, height, or load capacity—especially if you need to store multiple full-size vehicles side by side. The AMGO 409-DPX solves that problem by giving you extra length, extra height, and the ability to park two vehicles per platform. With a 9,000 lb lifting capacity and a 6,000 lb max car weight per side, it’s built for personal garages and professional facilities where maximizing space matters most.

Designed for convenience and safety, this double-wide 4 post lift offers a minimum platform height of just 6 1/8", making it easier to load even low-clearance sports cars. AMGO’s patented concealed safety lock control and dual safety system keep vehicles secure during every lift. The foldable drive-on ramps save space when not in use, while the double “S” shaped columns provide unmatched strength and stability for long-term reliability.

Whether you’re running a high-volume service shop, managing a storage facility, or just want the ultimate solution for your home garage, this vehicle storage lift delivers on every front. Its extra long/tall design gives you the flexibility to handle bigger vehicles, store more in the same footprint, and keep everything safe, organized, and accessible.

Need a different capacity or platform length? Check all double wide car lifts.

 Four-vehicle parking with AMGO 409-DPX extra longtall double wide 4-post lift

Benefits of the AMGO 409-DPX Double-Wide Parking Lift

Maximize Storage Capacity | Park two vehicles side-by-side per platform.

Save Floor Space | Foldable ramps reduce footprint.

Protect Low Vehicles | Low-profile runways prevent scraping.

Increase Workplace Safety | Dual safety system for secure lifts.

Improve Efficiency | Quick manual single-point lock release.

Built for Longevity | Reinforced “S” shaped columns.

Key Features of the AMGO 409-DPX Double-Wide Lift You'll Love:

  • 9,000 lb Lifting Capacity: Handles everything from compact cars to full-size SUVs with ease; 6,000 lb per platform supports two large vehicles side by side.
  • Low-Profile Platform Height: At just 6 1/8" minimum height, loading and unloading low-clearance vehicles is simple and safe.
  • Dual Safety System: Primary mechanical locks plus a cable-slack secondary device keep vehicles secure during every lift.
  • Patented Concealed Safety Lock Control: Manual single-point lock release speeds operation while protecting the mechanism from debris and damage.
  • Foldable Drive-On Ramps: Four included ramps fold away when not in use, saving valuable floor space and reducing trip hazards.
  • Double “S” Shaped Columns: Reinforced columns add strength and stability under load for years of daily use.
 AMGO 409-DPX lift patented safety lock, foldable ramps, and back-to-back install design

AMGO 409-DPX 9,000 lb Double-Wide 4-Post Lift Specifications
Manufacturer AMGO
Model 409-DPX
Lifting Capacity 9,000 lbs
Max Car Weight (Per Platform) 6,000 lbs
Lifting Time 57 seconds
Overall Length (Including Ramps) 238 9/16"
Outside Edge of Crossbeams 198 1/8"
Overall Width 198 7/16"
Width Between Columns 188 7/8"
Drive Through Width 177 3/4"
Overall Height 96 5/8"
Minimum Height 6 1/8"
Max. Lifting Height 87 11/16"
Max. Lock Height (Top of Runway) 84 15/16"
Max. Height Underneath Runway 83 3/4"
Max. Lock Height Underneath Runway 81"
Width Between Runways 37"
Overall Width of Single Parking Unit 74 7/16"
Width Between Two Parking Units 21 5/8"
Max. Lock Height Underneath Crossbeam 78 1/2"
Gross Weight 3,142 lbs
Motor 2.0 HP, 220V, Single Phase
Shipping Dimensions Length: 5086 mm (200-1/4")
Width: 521 mm (20-1/2")
Height: 733 mm (28-7/8")
Warranty  Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. consumables), electrical, power units: 2 Years
Manual
Warranty

Warranty

  • Steel Structure Components (columns, carriages, arms, beams, platforms, ramps, scissor, base plate, etc.): 5 Years
  • Hydraulic Parts (cylinders, oil seals, hoses, fittings): 3 Years
  • Other Parts (excluding consumables like rubber pads), electrical components, power units: 2 Years
  • Warranty applies to the 48 contiguous states; contact AMGO for coverage outside this area.
  • Warranty claims require troubleshooting with AMGO by phone first; photos or videos may be required.
  • Warranty parts ship free via standard ground; expedited shipping is at the customer’s expense.
  • Warranty does not cover downtime, labor, or costs due to equipment being out of service.
  • Customer must follow AMGO’s installation specifications exactly; improper installation may void warranty.

For assistance, contact us at: support@pitstop-pro.com or call (470) 208-2754.

⛟Shipping and Returns

Shipping

  • Freight shipping only within the lower 48 states and Canada.
  • Orders typically arrive within 2–7 business days, but may take up to 21 days depending on item size, quantity, and destination.
  • Delivery dates are estimates only and not guaranteed.
  • Customer is responsible for unloading freight shipments from the delivery truck. If no forklift or loading dock is available, the order must be shipped to a freight terminal for customer pickup or collected directly from an AMGO warehouse.
  • Liftgate service is available for an additional fee on qualifying products (not available for vehicle lifts).
  • Customer is responsible for re-delivery charges if delivery is missed, shipment is redirected, or storage fees are incurred.
  • Inspect all shipments immediately upon arrival. You have the right to inspect before signing. Note any damage or suspected damage on the Bill of Lading.
  • Hidden damage or missing parts must be reported to AMGO and the freight carrier within 48 hours of delivery.
  • AMGO is not responsible for downtime or costs incurred due to shipping delays.

Returns

  • 30-day return window from the invoice date for eligible items.
  • All returns require prior authorization from AMGO; unauthorized returns will be refused.
  • Items must be unused, in original packaging, and include all manuals, accessories, and packing material.
  • Non-returnable items: Used, damaged, or missing components.
  • 25% restocking fee applies to non-defective returns. Additional fees may apply for opened or incomplete products.
  • Customer is responsible for return freight costs.
  • Defective or incorrectly shipped merchandise will be replaced or refunded at no cost.
  • Cancelled orders before shipment are subject to a 3% processing fee. Orders cancelled after shipment will be subject to shipping costs and restocking fees.
