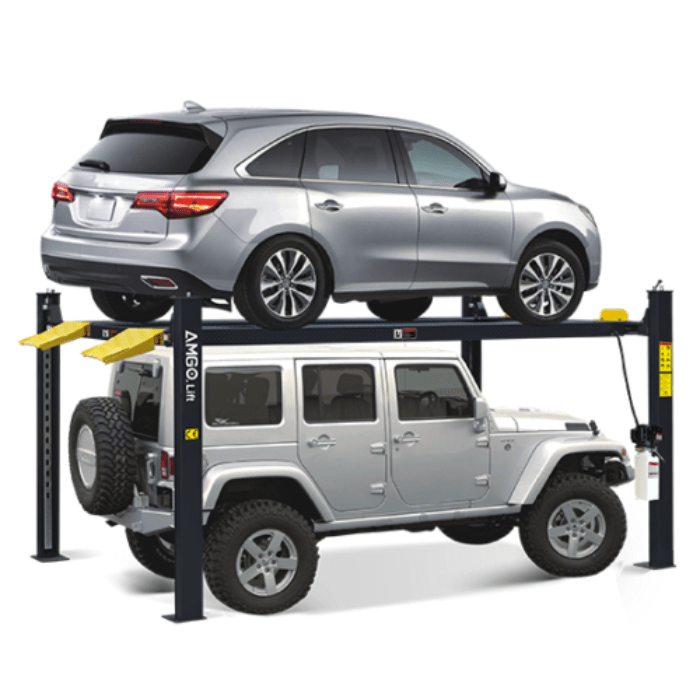

AMGO 409-HP 4 post lift storing SUV above Jeep for high-clearance garage parking

AMGO 4-Post Vehicle Storage Lift – 9,000 lb Capacity | 409-HP

by AMGO
SKU 409-HP
Save $874.00
$7,583.00
$6,709.00

Notify me when back in stock

Want the best shipping rate possible? Click here to request it.
Trust badges for AMGO Trust badges for AMGO

High-Clearance Storage, Zero Compromise: AMGO 409-HP 9,000 lb 4-Post Lift



Finding the right 4 post lift for both taller and longer vehicles can be frustrating. Many lifts lack the height, safety features, or flexibility to work with SUVs, trucks, and specialty vehicles. The AMGO 409-HP solves these issues with its 9,000 lb capacity, extended lifting height, and durable design that’s perfect for home garages or professional shops. Whether you’re parking for storage or working underneath, this lift delivers stability and safety without compromising on space.

Unlike some models that limit your workspace, the 409-HP offers an impressive 82 15/16" clearance underneath—enough for most full-size trucks. It uses AMGO’s patented concealed safety lock control device, ensuring a smooth and secure lift every time. The single-cylinder drive with cable transmission keeps operation efficient, while the dual safety system gives you peace of mind during every use. Foldable ramps and non-skid diamond platforms make loading easy and secure, even for heavier vehicles.

This isn’t just another AMGO 4 post lift—it’s a high-clearance, space-saving solution that adapts to your setup. The power column can be installed at any corner, and back-to-back installation is possible for maximizing floor space. From hobbyists to commercial operators, the 409-HP offers the flexibility, safety, and reliability you need in a vehicle storage lift built to last.

Need a longer deck or higher rise? We’ve got other 4-post options.

9,000 lb AMGO 409-HP 4 post lift with extended height holding two vehicles

Benefits of the AMGO 409-HP 4-Post Lift

Maximize Vehicle Storage | Store two vehicles vertically with ease.

Increased Workspace Clearance | 82 15/16" underneath height.

Enhanced Safety Features | Dual safety lock system for security.

Flexible Installation | Power column can be placed at any corner.

Long-Lasting Durability | Heavy-duty columns and platforms.

Space-Saving Design | Foldable ramps and back-to-back setup.

Key Features of the AMGO 409-HP 4-Post Lift You'll Love:

  • Single-Cylinder Drive with Cable Transmission: Delivers smooth lifting action while reducing mechanical wear for easier maintenance. Cable transmission distributes load evenly, boosting efficiency and extending lift life.

  • AMGO Patented Concealed Safety Lock Control: Safety lock is built inside the column to protect from debris and damage. Single-point manual release allows quick, safe lowering.

  • Dual Safety System: Combines a primary mechanical lock with a cable-slack secondary safety device for two-layer protection, keeping vehicles secure even if one system fails.

  • Non-Skid Diamond Platforms with Adjustable Safety Lock Ladders: Provides firm tire grip and adjustable lock height for comfort and slippage prevention.

  • Foldable Drive-In Ramps: Space-saving design folds up when not in use and allows smooth entry for vehicles of all sizes.

  • Double “S” Shaped Columns: Increases strength and stability to handle heavier loads without flexing, improving lift lifespan.

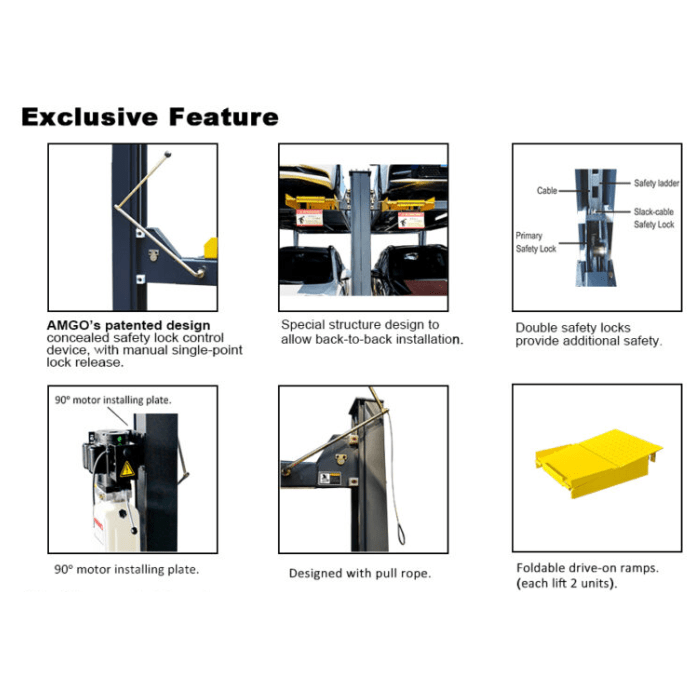

Highlighting AMGO 4 post lift features such as pull rope design, 90° motor plate, and back-to-back installation

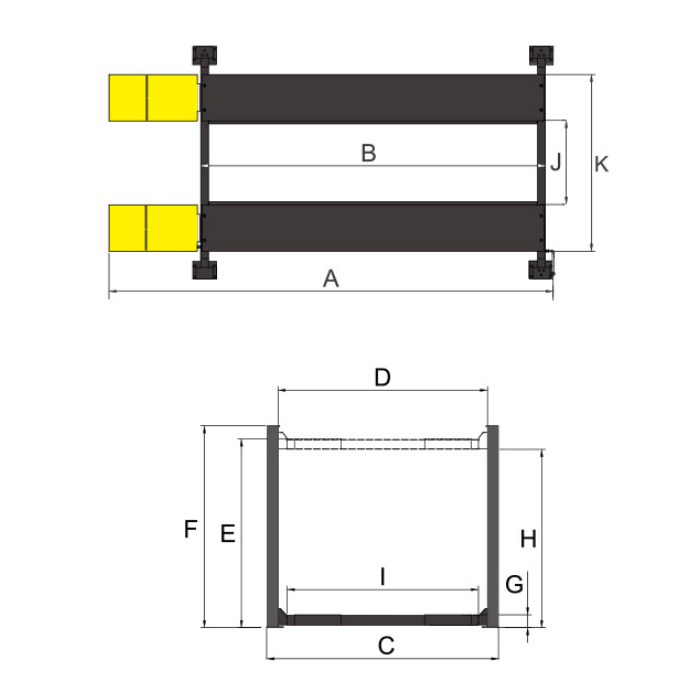

AMGO 409-HP 9,000 lb 4-Post Lift Specifications
Manufacturer AMGO
Model 409-HP
Lifting Capacity 9,000 lbs
Lifting Time 143 sec (110V) / 57 sec (220V)
Overall Length (Incl. Ramps)  238 1/8"
Outside Edge of Crossbeams  197 3/4"
Overall Width  119 1/8"
Width Between Posts  109 7/16"
Max. Lifting Height  87 11/16"
Max. Locking Height 84 1/2"
Overall Height  96 5/8"
Minimum Height  6 1/16"
Max. Underneath Height  82 15/16"
Max. Lock Underneath Runway 79 13/16"
Drive-Through Clearance  98 1/4"
Width Between Runways  42 3/8"
Outside Edge of Runways  82 3/8"
Gross Weight 1,984 lbs
Motor 1.0 HP (110V/60Hz) or 2.0 HP (220V/60Hz)

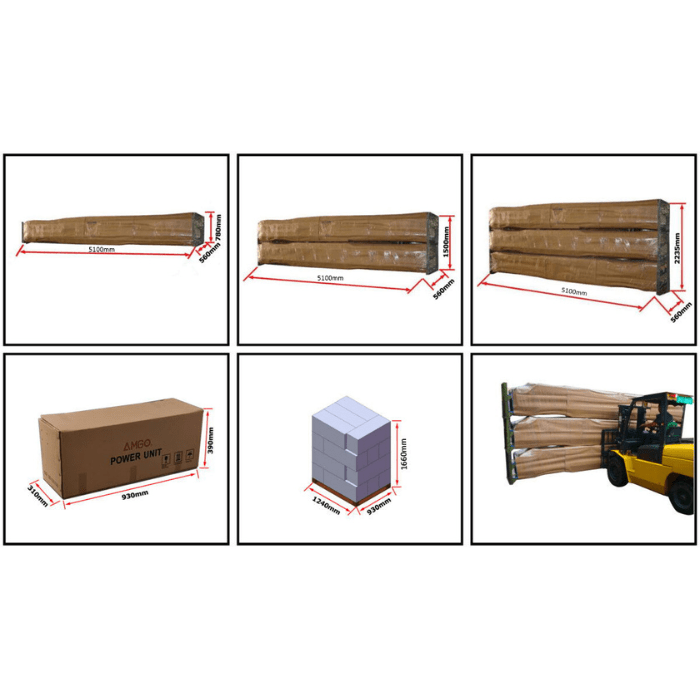

Shipping Dimensions  Length: 5100 mm (201")
Width: 560 mm (22.1")
Height: 780 mm (30.71")
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. consumables), electrical, power units: 2 Years
Overview

High-Clearance Storage, Zero Compromise: AMGO 409-HP 9,000 lb 4-Post Lift



Finding the right 4 post lift for both taller and longer vehicles can be frustrating. Many lifts lack the height, safety features, or flexibility to work with SUVs, trucks, and specialty vehicles. The AMGO 409-HP solves these issues with its 9,000 lb capacity, extended lifting height, and durable design that’s perfect for home garages or professional shops. Whether you’re parking for storage or working underneath, this lift delivers stability and safety without compromising on space.

Unlike some models that limit your workspace, the 409-HP offers an impressive 82 15/16" clearance underneath—enough for most full-size trucks. It uses AMGO’s patented concealed safety lock control device, ensuring a smooth and secure lift every time. The single-cylinder drive with cable transmission keeps operation efficient, while the dual safety system gives you peace of mind during every use. Foldable ramps and non-skid diamond platforms make loading easy and secure, even for heavier vehicles.

This isn’t just another AMGO 4 post lift—it’s a high-clearance, space-saving solution that adapts to your setup. The power column can be installed at any corner, and back-to-back installation is possible for maximizing floor space. From hobbyists to commercial operators, the 409-HP offers the flexibility, safety, and reliability you need in a vehicle storage lift built to last.

Need a longer deck or higher rise? We’ve got other 4-post options.

 9,000 lb AMGO 409-HP 4 post lift with extended height holding two vehicles

Benefits of the AMGO 409-HP 4-Post Lift

Maximize Vehicle Storage | Store two vehicles vertically with ease.

Increased Workspace Clearance | 82 15/16" underneath height.

Enhanced Safety Features | Dual safety lock system for security.

Flexible Installation | Power column can be placed at any corner.

Long-Lasting Durability | Heavy-duty columns and platforms.

Space-Saving Design | Foldable ramps and back-to-back setup.

Key Features of the AMGO 409-HP 4-Post Lift You'll Love:

  • Single-Cylinder Drive with Cable Transmission: Delivers smooth lifting action while reducing mechanical wear for easier maintenance. Cable transmission distributes load evenly, boosting efficiency and extending lift life.

  • AMGO Patented Concealed Safety Lock Control: Safety lock is built inside the column to protect from debris and damage. Single-point manual release allows quick, safe lowering.

  • Dual Safety System: Combines a primary mechanical lock with a cable-slack secondary safety device for two-layer protection, keeping vehicles secure even if one system fails.

  • Non-Skid Diamond Platforms with Adjustable Safety Lock Ladders: Provides firm tire grip and adjustable lock height for comfort and slippage prevention.

  • Foldable Drive-In Ramps: Space-saving design folds up when not in use and allows smooth entry for vehicles of all sizes.

  • Double “S” Shaped Columns: Increases strength and stability to handle heavier loads without flexing, improving lift lifespan.

 Highlighting AMGO 4 post lift features such as pull rope design, 90° motor plate, and back-to-back installation

AMGO 409-HP 9,000 lb 4-Post Lift Specifications
Manufacturer AMGO
Model 409-HP
Lifting Capacity 9,000 lbs
Lifting Time 143 sec (110V) / 57 sec (220V)
Overall Length (Incl. Ramps)  238 1/8"
Outside Edge of Crossbeams  197 3/4"
Overall Width  119 1/8"
Width Between Posts  109 7/16"
Max. Lifting Height  87 11/16"
Max. Locking Height 84 1/2"
Overall Height  96 5/8"
Minimum Height  6 1/16"
Max. Underneath Height  82 15/16"
Max. Lock Underneath Runway 79 13/16"
Drive-Through Clearance  98 1/4"
Width Between Runways  42 3/8"
Outside Edge of Runways  82 3/8"
Gross Weight 1,984 lbs
Motor 1.0 HP (110V/60Hz) or 2.0 HP (220V/60Hz)
Shipping Dimensions  Length: 5100 mm (201")
Width: 560 mm (22.1")
Height: 780 mm (30.71")
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. consumables), electrical, power units: 2 Years
Manual
Warranty

Warranty

  • Steel Structure Components (columns, carriages, arms, beams, platforms, ramps, scissor, base plate, etc.): 5 Years
  • Hydraulic Parts (cylinders, oil seals, hoses, fittings): 3 Years
  • Other Parts (excluding consumables like rubber pads), electrical components, power units: 2 Years
  • Warranty applies to the 48 contiguous states; contact AMGO for coverage outside this area.
  • Warranty claims require troubleshooting with AMGO by phone first; photos or videos may be required.
  • Warranty parts ship free via standard ground; expedited shipping is at the customer’s expense.
  • Warranty does not cover downtime, labor, or costs due to equipment being out of service.
  • Customer must follow AMGO’s installation specifications exactly; improper installation may void warranty.

For assistance, contact us at: support@pitstop-pro.com or call (470) 208-2754.
