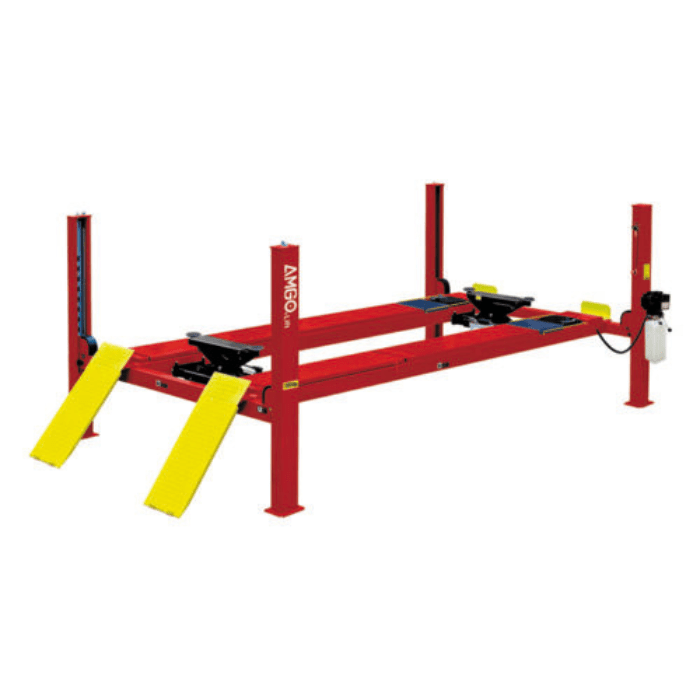

AMGO PRO-12ASX 4 post alignment lift with yellow ramps and rolling jacks installed

AMGO 4-Post Alignment Lift – 12,000 lb Capacity | PRO-12ASX

by AMGO
SKU PRO-12ASX
Save $1,040.00
$9,388.00
$8,348.00

Notify me when back in stock

Want the best shipping rate possible? Click here to request it.
Trust badges for AMGO Trust badges for AMGO

Alignment-Ready Power: AMGO PRO-12ASX 12,000 lb 4-Post Lift for Fast, Precise Service



Finding the right 4 post lift that can handle heavy-duty vehicles, precise wheel alignments, and daily shop use can be a real challenge. Many lifts lack the strength, stability, or alignment features needed to keep up with high-volume work. The AMGO PRO-12ASX solves that problem with the perfect mix of power, safety, and precision. Designed for busy shops, dealerships, and service centers, this lift provides a 12,000 lb lifting capacity, adjustable platform width, and alignment-ready features that make it an all-in-one solution for both general service and precision wheel work.

Built with commercial-grade construction, the PRO-12ASX uses aircraft-grade cables, heavy-duty hydraulic cylinders, and a mechanical self-locking safety device with an air-driven lock release. This means every lift is stable, smooth, and secure—whether you’re raising a compact sedan or a full-size pickup. Its 4 post car lift design delivers unmatched stability for alignment procedures, while the non-skid diamond platforms give technicians the traction they need for safe positioning.

Efficiency is a major focus of the AMGO PRO-12ASX. With a quick 45-second lifting time, adjustable turnplate pockets, and integrated slip plates, you can adapt quickly to different wheelbases and complete more jobs in less time. The stepless adjustable platform width ensures compatibility with a variety of vehicles, making it one of the most versatile amgo 4 post lifts in its class. If you need a 4 post alignment lift that’s ready to work as hard as you do, this is the one.

If you need higher capacity, see heavy-duty 4-post lifts here.

Red AMGO PRO-12ASX car lift featuring adjustable runways and alignment accessories

Benefits of the AMGO PRO-12ASX 4-Post Alignment Lift

Maximize Shop Productivity | Handle more vehicles in less time.

Precision Alignment Capability | Built-in slip plates and turnplate pockets.

Enhanced Safety Features | Multiple locks and cable protection.

Versatile Vehicle Support | Works with sedans, SUVs, and trucks.

Quick Lift Speed | 45-second lifting time.

Built for Longevity | Heavy-duty construction and components.

Key Features of the AMGO PRO-12ASX 4-Post Alignment Lift You'll Love:

  • 12,000 lb Lifting Capacity – Built to handle everything from sedans to light trucks, this lift provides the strength you need for heavy-duty shop work. Its robust design ensures long-term durability, even under continuous use.
  • Alignment-Ready Design – Integrated slip plates and adjustable turnplate pockets allow you to perform precision wheel alignments on multiple wheelbases without extra equipment. This speeds up service times and improves accuracy.
  • AMGO ETL-Certified Power Unit – Comes standard with a high-quality power unit that meets rigorous safety and performance standards. This ensures consistent lifting performance and peace of mind during every job.
  • Advanced Safety Systems – Mechanical self-locking safety device with air-driven lock release, plus multiple safety locks and a cable-slack protection system, all work together to prevent accidents and protect both vehicles and operators.
  • Aircraft-Grade Cables & Heavy-Duty Hydraulics – Uses premium-grade cables and hydraulic cylinders with quality oil seals and a compensation valve for smooth, stable lifts that hold up over years of service.
  • Stepless Adjustable Platform Width – Quickly adjust platform spacing to accommodate different vehicle track widths, giving your shop maximum flexibility without compromising efficiency.

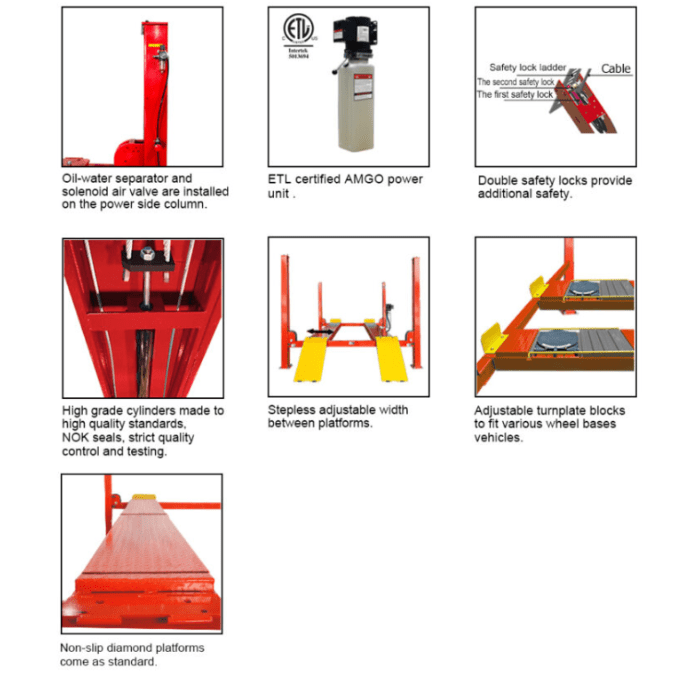

AMGO PRO-12ASX parts such as ETL-certified power unit, slip plates, and diamond platforms

AMGO PRO-12ASX 12,000 lb 4-Post Alignment Lift Specifications
Manufacturer AMGO
Model PRO-12ASX
Type Commercial Grade Four Post Alignment Lift
Lifting Capacity 12,000 lbs
Lifting Time 45 seconds

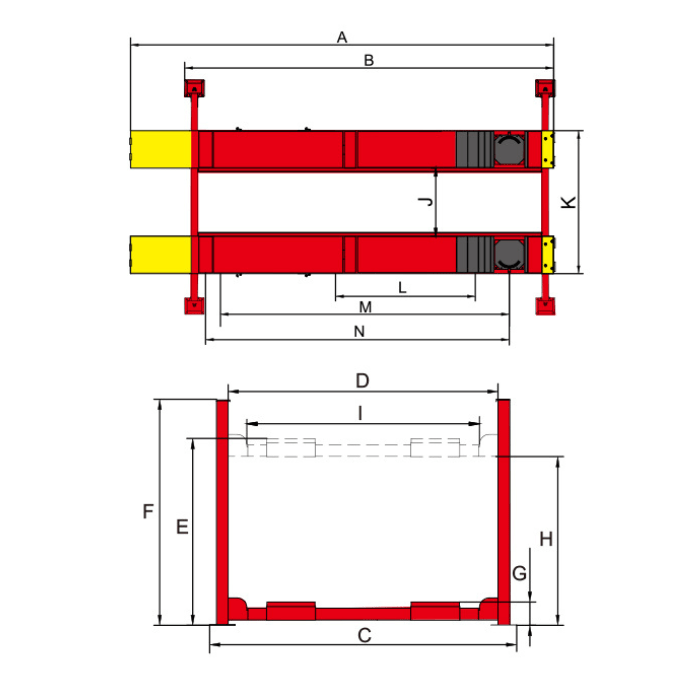

Overall Length (Including Ramps) [A] 232 11/16"
Overall Length (No Ramps) [B] 196 3/4"
Overall Width [C] 132 1/8"
Width Between Columns [D] 118 1/8"
Max. Lifting Height [E] 76"
Max. Lock Height (Top of Runway) 72 7/8"
Overall Height [F] 86"
Minimum Height [G] 8 5/8"
Max. Underneath Height [H] 68 1/2"
Max. Lock Underneath Runway 65 3/8"
Drive-Thru Clearance [I] 104 1/8"
Width Between Runways [J] 43 1/4" (Adjustable Min. 3 3/8" – Max. 53 3/4")
Outside Edge of Runways [K] 83 5/16" (Adjustable Min. 43 3/8" – Max. 93 3/4")
Min. Four-Wheel Align 81 7/8"
Max. Four-Wheel Align 151 9/16"
Max. Two-Wheel Align 157 1/2"
Gross Weight 2,804 lbs
Motor 2.0 HP, 220V / 60Hz, Single Phase

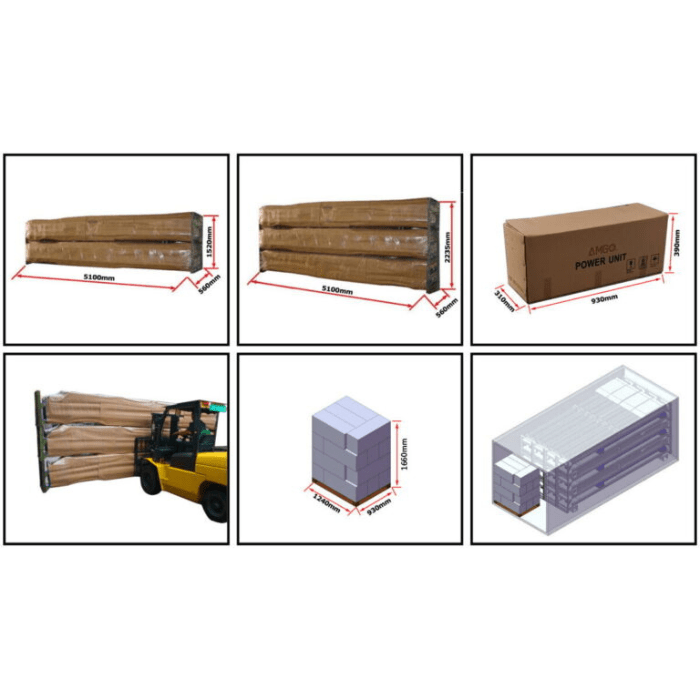

Shipping Dimensions Length: 5100 mm (204")
Width: 560 mm (22")
Height: 1520 mm (60")
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. consumables), electrical, power units: 2 Years
Overview

Alignment-Ready Power: AMGO PRO-12ASX 12,000 lb 4-Post Lift for Fast, Precise Service



Finding the right 4 post lift that can handle heavy-duty vehicles, precise wheel alignments, and daily shop use can be a real challenge. Many lifts lack the strength, stability, or alignment features needed to keep up with high-volume work. The AMGO PRO-12ASX solves that problem with the perfect mix of power, safety, and precision. Designed for busy shops, dealerships, and service centers, this lift provides a 12,000 lb lifting capacity, adjustable platform width, and alignment-ready features that make it an all-in-one solution for both general service and precision wheel work.

Built with commercial-grade construction, the PRO-12ASX uses aircraft-grade cables, heavy-duty hydraulic cylinders, and a mechanical self-locking safety device with an air-driven lock release. This means every lift is stable, smooth, and secure—whether you’re raising a compact sedan or a full-size pickup. Its 4 post car lift design delivers unmatched stability for alignment procedures, while the non-skid diamond platforms give technicians the traction they need for safe positioning.

Efficiency is a major focus of the AMGO PRO-12ASX. With a quick 45-second lifting time, adjustable turnplate pockets, and integrated slip plates, you can adapt quickly to different wheelbases and complete more jobs in less time. The stepless adjustable platform width ensures compatibility with a variety of vehicles, making it one of the most versatile amgo 4 post lifts in its class. If you need a 4 post alignment lift that’s ready to work as hard as you do, this is the one.

If you need higher capacity, see heavy-duty 4-post lifts here.

 Red AMGO PRO-12ASX car lift featuring adjustable runways and alignment accessories

Benefits of the AMGO PRO-12ASX 4-Post Alignment Lift

Maximize Shop Productivity | Handle more vehicles in less time.

Precision Alignment Capability | Built-in slip plates and turnplate pockets.

Enhanced Safety Features | Multiple locks and cable protection.

Versatile Vehicle Support | Works with sedans, SUVs, and trucks.

Quick Lift Speed | 45-second lifting time.

Built for Longevity | Heavy-duty construction and components.

Key Features of the AMGO PRO-12ASX 4-Post Alignment Lift You'll Love:

  • 12,000 lb Lifting Capacity – Built to handle everything from sedans to light trucks, this lift provides the strength you need for heavy-duty shop work. Its robust design ensures long-term durability, even under continuous use.
  • Alignment-Ready Design – Integrated slip plates and adjustable turnplate pockets allow you to perform precision wheel alignments on multiple wheelbases without extra equipment. This speeds up service times and improves accuracy.
  • AMGO ETL-Certified Power Unit – Comes standard with a high-quality power unit that meets rigorous safety and performance standards. This ensures consistent lifting performance and peace of mind during every job.
  • Advanced Safety Systems – Mechanical self-locking safety device with air-driven lock release, plus multiple safety locks and a cable-slack protection system, all work together to prevent accidents and protect both vehicles and operators.
  • Aircraft-Grade Cables & Heavy-Duty Hydraulics – Uses premium-grade cables and hydraulic cylinders with quality oil seals and a compensation valve for smooth, stable lifts that hold up over years of service.
  • Stepless Adjustable Platform Width – Quickly adjust platform spacing to accommodate different vehicle track widths, giving your shop maximum flexibility without compromising efficiency.
 AMGO PRO-12ASX parts such as ETL-certified power unit, slip plates, and diamond platforms

AMGO PRO-12ASX 12,000 lb 4-Post Alignment Lift Specifications
Manufacturer AMGO
Model PRO-12ASX
Type Commercial Grade Four Post Alignment Lift
Lifting Capacity 12,000 lbs
Lifting Time 45 seconds
Overall Length (Including Ramps) [A] 232 11/16"
Overall Length (No Ramps) [B] 196 3/4"
Overall Width [C] 132 1/8"
Width Between Columns [D] 118 1/8"
Max. Lifting Height [E] 76"
Max. Lock Height (Top of Runway) 72 7/8"
Overall Height [F] 86"
Minimum Height [G] 8 5/8"
Max. Underneath Height [H] 68 1/2"
Max. Lock Underneath Runway 65 3/8"
Drive-Thru Clearance [I] 104 1/8"
Width Between Runways [J] 43 1/4" (Adjustable Min. 3 3/8" – Max. 53 3/4")
Outside Edge of Runways [K] 83 5/16" (Adjustable Min. 43 3/8" – Max. 93 3/4")
Min. Four-Wheel Align 81 7/8"
Max. Four-Wheel Align 151 9/16"
Max. Two-Wheel Align 157 1/2"
Gross Weight 2,804 lbs
Motor 2.0 HP, 220V / 60Hz, Single Phase
Shipping Dimensions Length: 5100 mm (204")
Width: 560 mm (22")
Height: 1520 mm (60")
Warranty Steel Structure (columns, carriages, arms, beams, ramps, etc.): 5 Years
Hydraulic Parts (cylinders, seals, hoses, fittings): 3 Years
Other Parts (excl. consumables), electrical, power units: 2 Years
Manual
Warranty

Warranty

  • Steel Structure Components (columns, carriages, arms, beams, platforms, ramps, scissor, base plate, etc.): 5 Years
  • Hydraulic Parts (cylinders, oil seals, hoses, fittings): 3 Years
  • Other Parts (excluding consumables like rubber pads), electrical components, power units: 2 Years
  • Warranty applies to the 48 contiguous states; contact AMGO for coverage outside this area.
  • Warranty claims require troubleshooting with AMGO by phone first; photos or videos may be required.
  • Warranty parts ship free via standard ground; expedited shipping is at the customer’s expense.
  • Warranty does not cover downtime, labor, or costs due to equipment being out of service.
  • Customer must follow AMGO’s installation specifications exactly; improper installation may void warranty.

For assistance, contact us at: support@pitstop-pro.com or call (470) 208-2754.
